SINCRO FK4 MDS Single Phase Synchronous AC Alternator 8 kVA Capacitor
      SINCRO FK4 MDS Single Phase Synchronous AC Alternator 8 kVA Capacitor
      SINCRO FK4 MDS Single Phase Synchronous AC Alternator 8 kVA Capacitor

      SINCRO FK4 MDS Single Phase Synchronous AC Alternator 8 kVA Capacitor

      FK4 MDS J609b c25.4

      Phase: Single Phase
      Poles: 4
      Voltage (V): 230
      Frequency (Hz): 50
      Rpm Speed: 1500
      Single Phase Output (kVA): 8
      Constant Speed Alternator
      Capacitor
      Brushless
      Weight (Kg): 56
      Protection: IP23

      Ask a question
      Offer on letterhead
      Choose the type of coupling :
      Ask for availability
      Download PDF
      Custom Quote
      Product: SINCRO FK4 MDS Single Phase Synchronous AC Alternator 8 kVA Capacitor

      PERSONAL DATA

      Ask a question
      Product: SINCRO FK4 MDS Single Phase Synchronous AC Alternator 8 kVA Capacitor
      Offer on letterhead
      Product: SINCRO FK4 MDS Single Phase Synchronous AC Alternator 8 kVA Capacitor
      SINCRO
      FK4 MDS J609b c25.4

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine rpm (rpm)
      1500
      Poles
      4
      Single-phase power (KW)
      8
      Single-phase power (KVA)
      8
      Efficiency (%)
      81
      Protection degree
      IP23
      Dry weight (Kg)
      56
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      Capacitor

      Specific References

      New

      Single phase brushless alternator - Capacitor.

      - Self-regulated
      - IP23
      - Standard voltage 230 V - 50 Hz
      - Short circuit current greater than 3 In

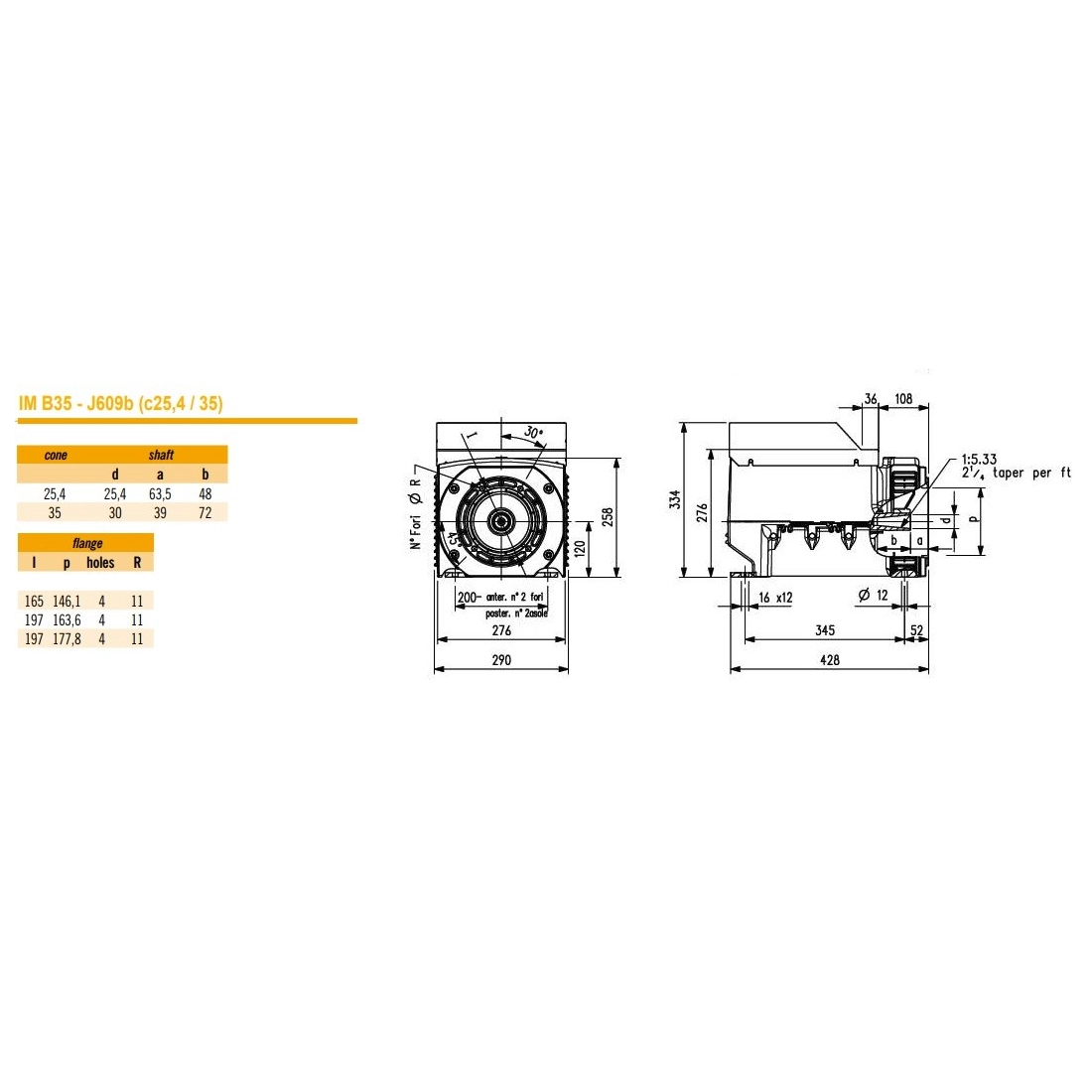

      - Standard coupling IM B35 cone 25.4 / cone 35
      - Couplings IM B34, IM B35, SAE

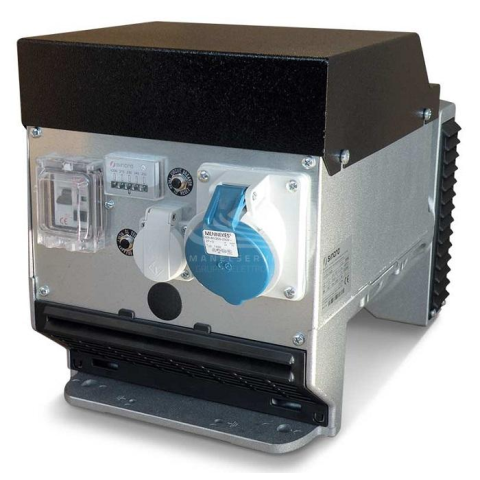

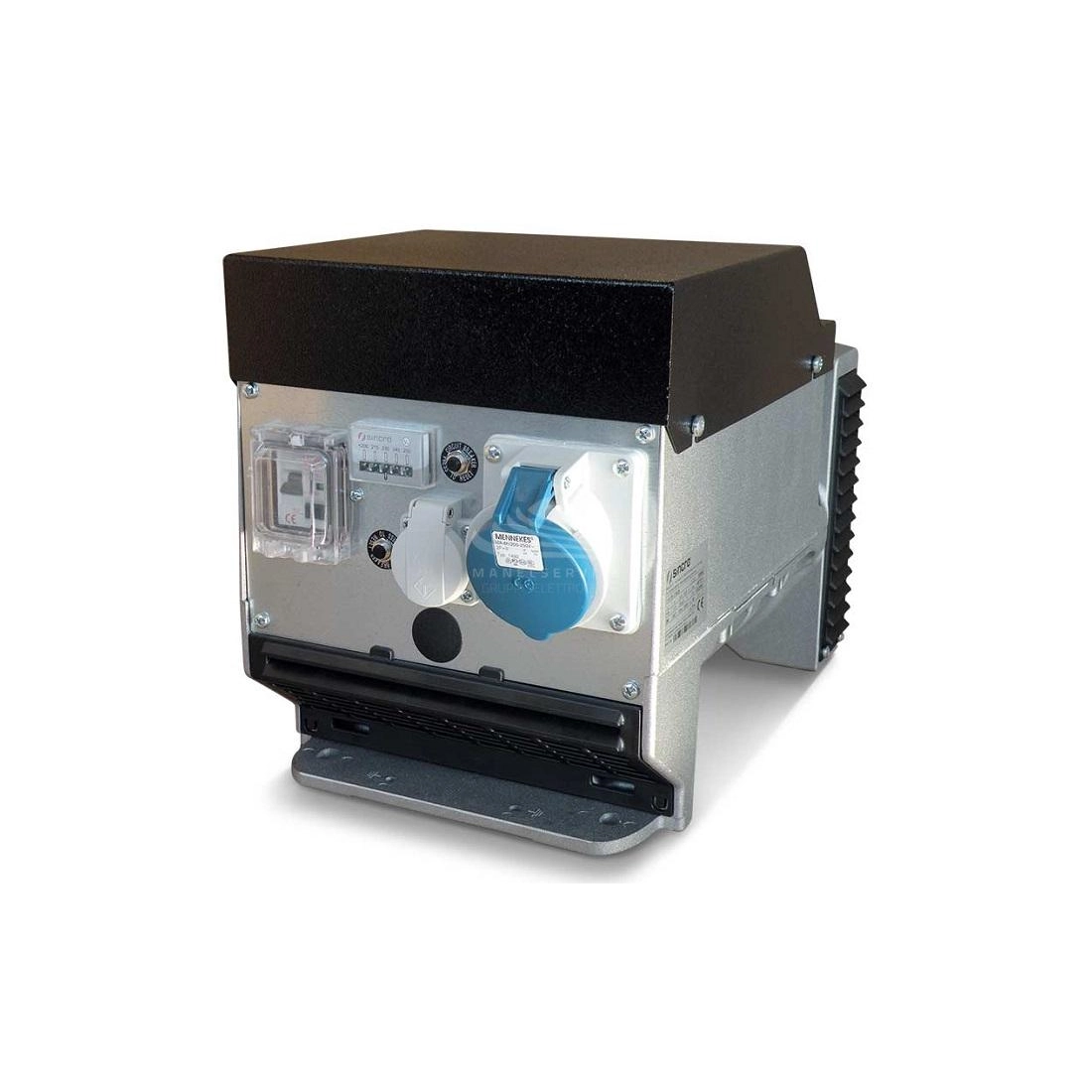

      The image is purely indicative.
