Phase type: Single phase / Three phase
Maximum three phase power: 165 KVA / 132 KW
Three phase continuous use power: 150 KVA / 120 KW
Maximum single phase power: 90 KVA / 90 KW
single phase continuous use power: 83 KVA / 83 KW
Frequency: 50 / 60 Hz
Voltage: 230 / 400 V
Protection class: IP23
Alternator speed: 1500 / 1800 rpm
Number of poles: 4
Efficiency: 92. 9%
Weight: 423 Kg
Constant speed alternator
Brushless
Voltage regulator: DSR (AVR)

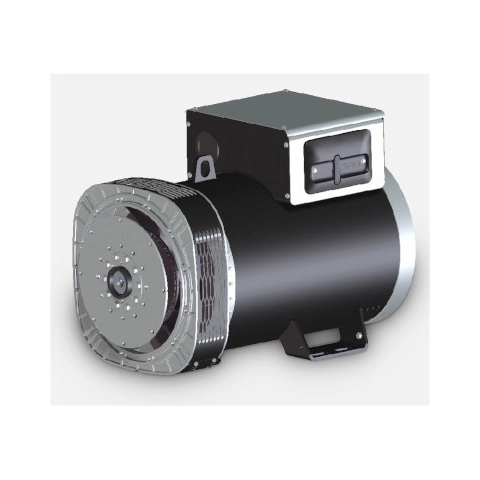

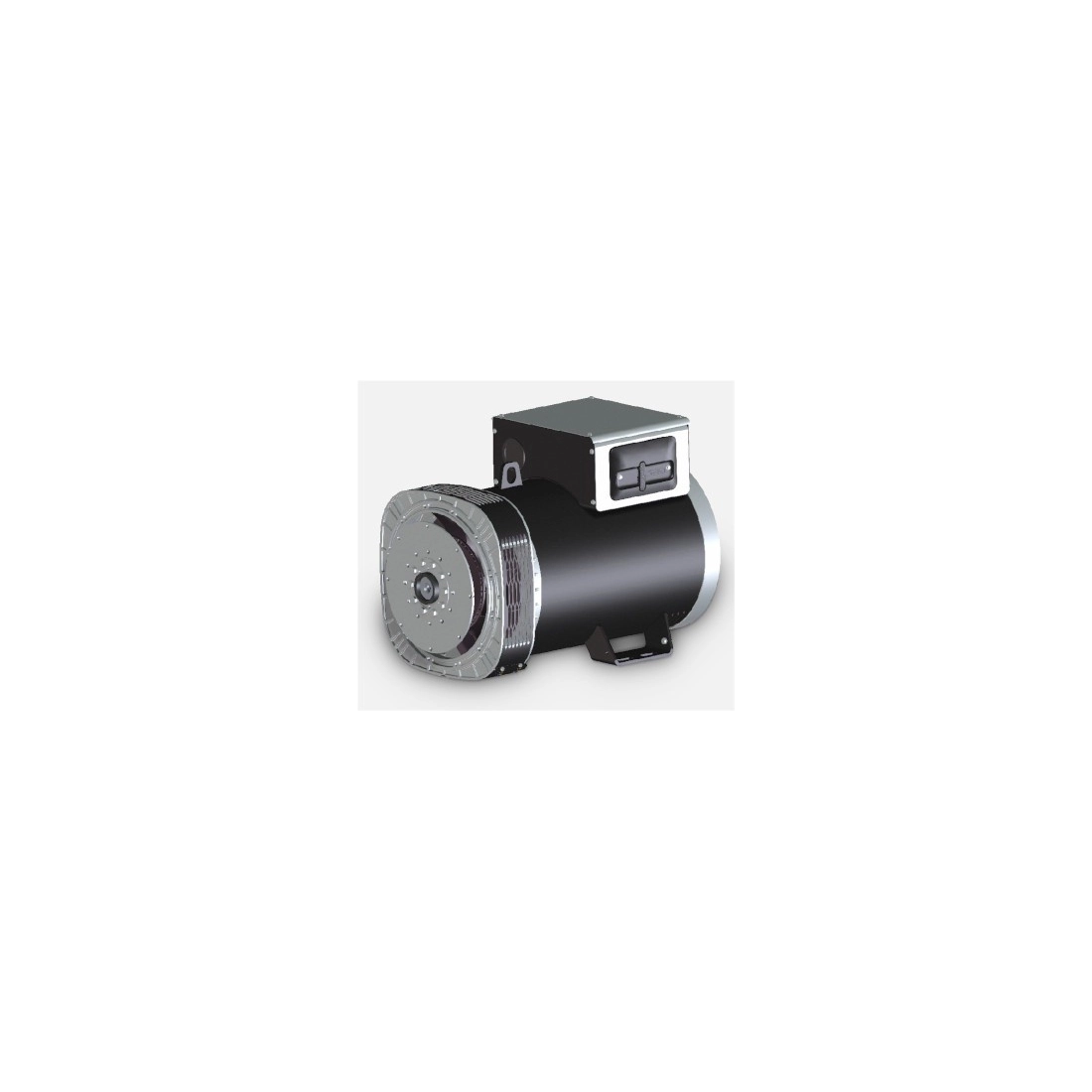

MECC ALTE ECP34-1L/4 C-TYPE ALTERNATOR
The ECP34 C-Type range has many product features designed into the alternator.
Type C alternators make the most of power conversion to produce the maximum power to size ratio.
C-Type is now one of the easiest alternators to assemble, integrate, configure and maintain with OEM equipment.
Our goal was to provide maximum power from the smallest, lightest and most durable alternators, and the MECC ALTE designers have lavished the C-Type with much more flexibility.
The entire series is built to the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/CSA-C22.2 No14-95- No100-95.
Images and technical data are not binding.
Phase type: Single phase / Three phase
Maximum three phase power: 165 KVA / 132 KW
Three phase continuous use power: 150 KVA / 120 KW
Maximum single phase power: 90 KVA / 90 KW
single phase continuous use power: 83 KVA / 83 KW
Frequency: 50 / 60 Hz
Voltage: 230 / 400 V
Protection class: IP23
Alternator speed: 1500 / 1800 rpm
Number of poles: 4
Efficiency: 92. 9%
Weight: 423 Kg
Constant speed alternator
Brushless
Voltage regulator: DSR (AVR)
