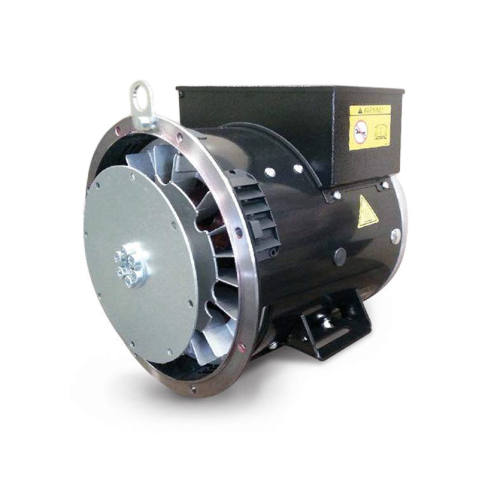

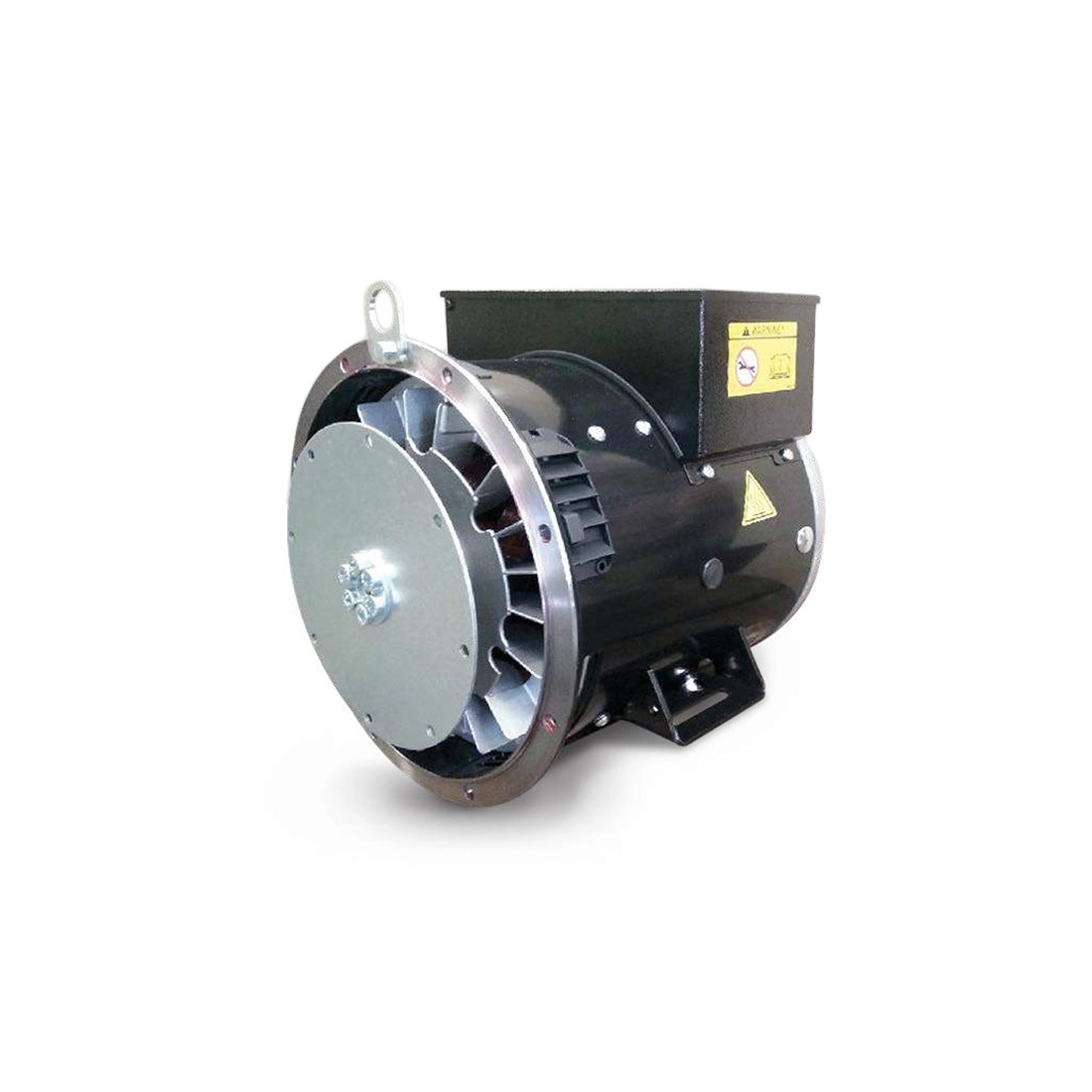

SINCRO SK160 CA1 SINGLE-PHASE ALTERNATOR 12KVA AVR

Technical features

Phase: Single phase
Frequency (Hz): 50
Voltage (V): 115 / 230
Engine rpm (rpm): 1500
Poles: 4
Single-phase power (KW): 12
Single-phase power (KVA): 12
Efficiency (%): 86
Protection degree: IP23
Dry weight (Kg): 79
Brushes: No
Type of alternator: Constant Speed
Voltage regulator: AVR

Details

Single phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 230 V - 50 Hz
- Three phase leads 12 / single phase leads 4
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: IB4 alternators can be connected for single-phase use
- Tropicalizzation: standard

The image is purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.

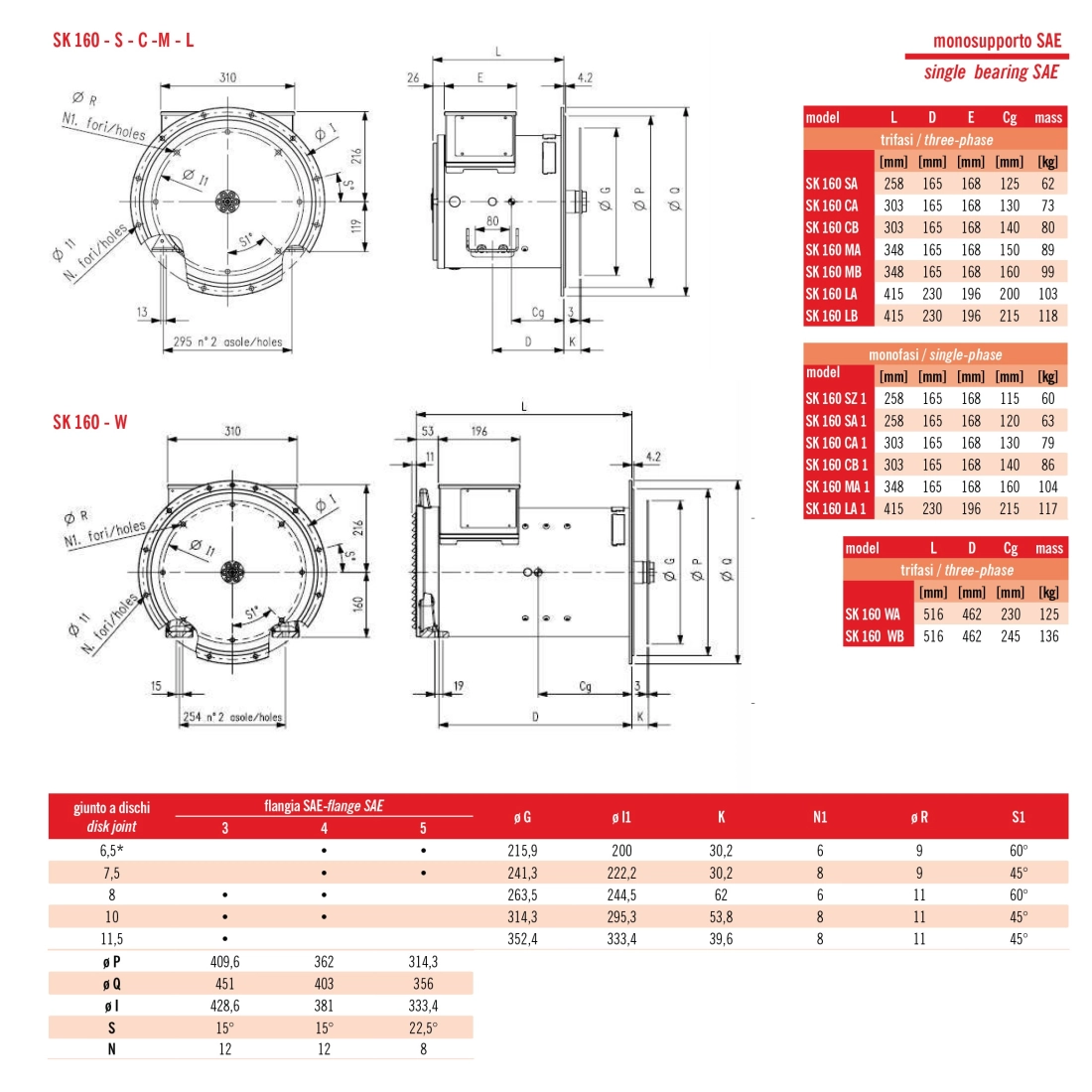

Technical Sheet / Manuals
