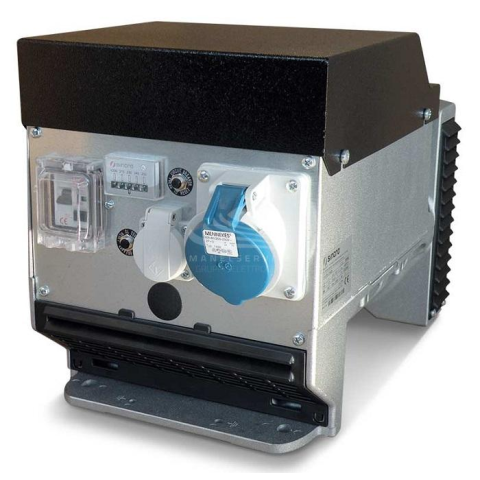

SINCRO FK2 MGS Single Phase Synchronous AC Alternator 13.5 kVA Capacitor
      SINCRO FK2 MGS Single Phase Synchronous AC Alternator 13.5 kVA Capacitor
      SINCRO FK2 MGS Single Phase Synchronous AC Alternator 13.5 kVA Capacitor

      SINCRO FK2 MGS Single Phase Synchronous AC Alternator 13.5 kVA Capacitor

      FK2 MGS J609b C25.4

      Phase Type: Single-phase
      Maximum singlephase output: 13.0 KW
      Maximum singlephase continuous output: 10.8 KW
      Maximum singlephase output: 16.2 KVA
      Maximum singlephase continuous output: 13. 5 KVA
      Frequency: 50-60 Hz
      Voltage: 230 V
      Protection class: IP23
      Alternator speed: 3000 rpm
      Number of poles: 2
      Weight: 67Kg
      Brushless
      Voltage regulator: Condenser
      Type of alternator: constant speed

      List price
      1,464.00 € tax incl.
      1,200.00 € tax excl.
      Discounted Price
      890.60 € tax incl.
      730.00 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      SINCRO
      FK2 MGS J609b C25.4

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine rpm (rpm)
      3000
      Poles
      2
      Single-phase power (KW)
      13.5
      Single-phase power (KVA)
      13.5
      Efficiency (%)
      82.5
      Protection degree
      IP23
      Dry weight (Kg)
      67
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      Capacitor

      Specific References

      New

      SINCRO FK2 MGS ALTERNATOR 16,2 KVA SINGLE-PHASE

      Alternator SINCRO FK2 MGS singlephase with a power of 16,2KVA, this unit has a Brushless operation equipped with capacitor voltage regulator.

      The alternator is foreseen to work at frequency 50 or 60 HZ, the possibility to work on these two frequencies makes possible its application for any service voltage increasing its versatility, for a correct operation.

      All the components that make up the SINCRO FK2 MGS alternator are subjected to a specific coating and/or impregnation process aimed at safeguarding the functionality of the generator and protecting the critical peers in the various conditions of use.

      For extreme weather conditions, models are available that also guarantee IP23 standard protection against water up to 60° from vertical. SINCRO FK2 MGS is a brushless alternator, this feature together with the high efficiency of the regulator ensure a low level of interference with radio waves.

      SINCRO alternators are all equipped with a voltage regulator, in the case of the FK2 MGS model with capacitor.

      Thanks to the regulator you will have a greater security avoiding to "burn" your working tools or daily use, always having a constant current value. The voltage regulator is essential for the power supply of sensitive electronic equipment and can be used in different areas, both private and professional for example for appliances, PC, audio systems, mixers etc. ...

      Select the alternator that reflects the technical specifications you require, visit our dedicated section to understand how.

      TECHNICAL FEATURES SINCRO FK2 MGS

      Phase Type: Single-phase
      Maximum singlephase output: 13.0 KW
      Maximum singlephase continuous output: 10.8 KW
      Maximum singlephase output: 16.2 KVA
      Maximum singlephase continuous output: 13. 5 KVA
      Frequency: 50-60 Hz
      Voltage: 230 V
      Protection class: IP23
      Alternator speed: 3000 rpm
      Number of poles: 2
      Weight: 67Kg
      Brushless
      Voltage regulator: Condenser
      Type of alternator: constant speed

      Looking for a product with different features? Here you can find the full range SINCRO and other specialized brands.

      Images and technical data are not binding and subject to changes by the manufacturer

      qwert yuifytd suushi bdsi ububs ipub suibuibas bxu bsaibsbb iabis bsbba ypbspy bdyb uud fux bsbc cb asbs bcfb sufw eds Alternator

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
