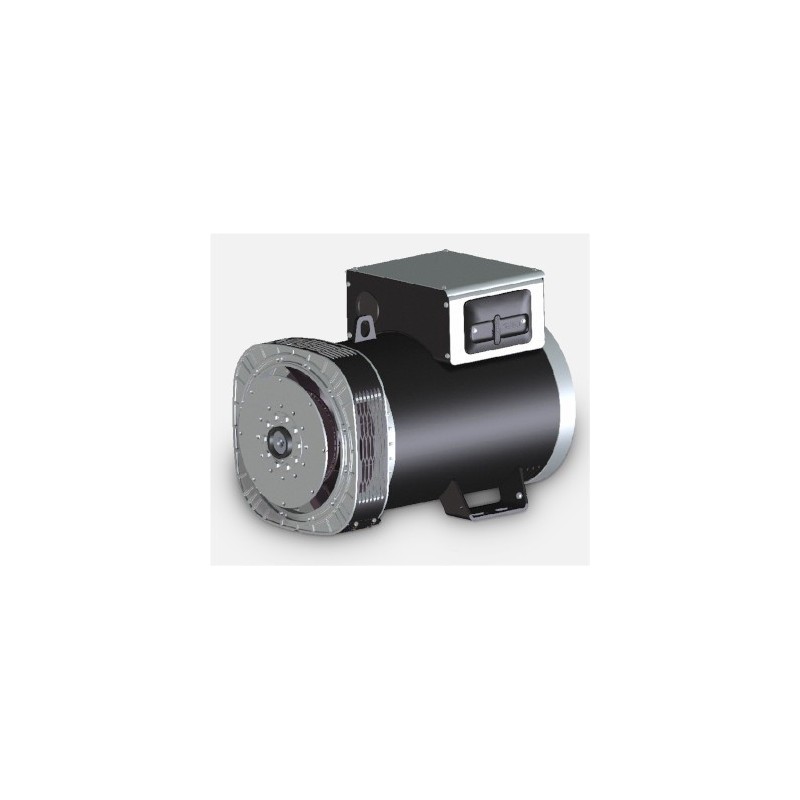

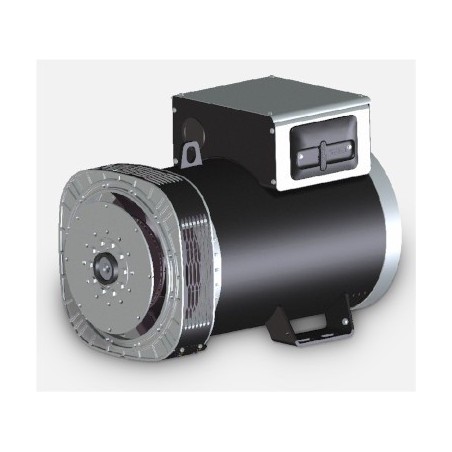

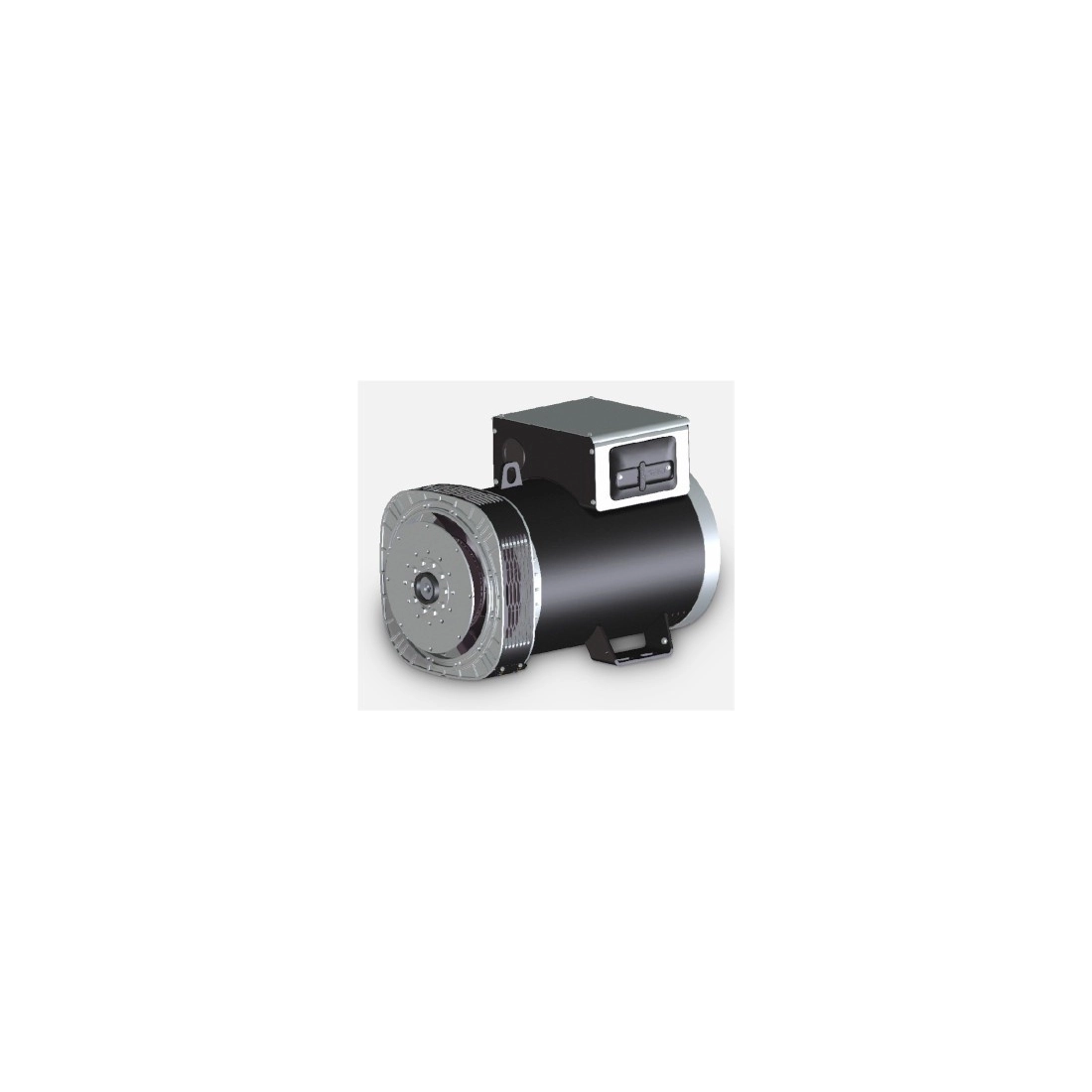

MECC ALTE ECP34-1S/4 C-TYPE THREE PHASE ALTERNATOR 87.5 KVA AVR

MECC ALTE ECP34-1S/4 C-TYPE THREE PHASE ALTERNATOR 87.5 KVA AVR
search
  • MECC ALTE ECP34-1S/4 C-TYPE THREE PHASE ALTERNATOR 87.5 KVA AVR
  • MECC ALTE ECP34-1S/4 C-TYPE THREE PHASE ALTERNATOR 87.5 KVA AVR
MECC ALTE
ECP34-1S/4 C B3/B14
New product

Phase Type: Three-phase
Maximum three-phase power: 96 KVA / 76.8 KW
Three-phase continuous use power: 87. 5 KVA / 70 KW
Maximum single-phase power: 64 KVA / 64 KW
Continuous single-phase power use: 59 KVA / 59 KW
Frequency: 50 / 60 Hz
Voltage: 230 / 400 V
Protection class: IP23
Alternator speeds: 1500 / 1800 rpm
Number of poles: 4
Efficiency: 92. 2%
Weight: 302 Kg
Constant speed alternator
Brushless
Voltage regulator: DSR (AVR)

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
64
Continuous power single phase (KW)
59
Maximum power single phase (KVA)
64
Continuous power single phase (KVA)
59
Maximum power three phase (KW)
76.8
Continuous power three phase (KW)
70
Maximum power three phase (KVA)
96
Continuous power three phase (KVA)
87.5
Frequency (Hz)
50 / 60
Voltage (V)
230 / 400
Engine rpm (rpm)
1500 / 1800
Poles
4
Single-phase power (KVA)
64
Three-phase power (KVA)
96
Efficiency (%)
92.2
Protection degree
IP23
Acoustic pressure
65 dB(A) at 7 m
Brushes
No
PMG
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
302
Details

The ECP34 C-Type range has many product features designed into the alternator.
C-Type alternators make the most of energy conversion to produce the maximum power to size ratio.
C-Type is now one of the simplest alternators to assemble, integrate, configure and maintain with OEM equipment.

Our aim was to deliver maximum power from the smallest, lightest and strongest alternators and Mecc Alte's designers have lavished the C-Type with much more flexibility.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

Not binding images and technical data.
