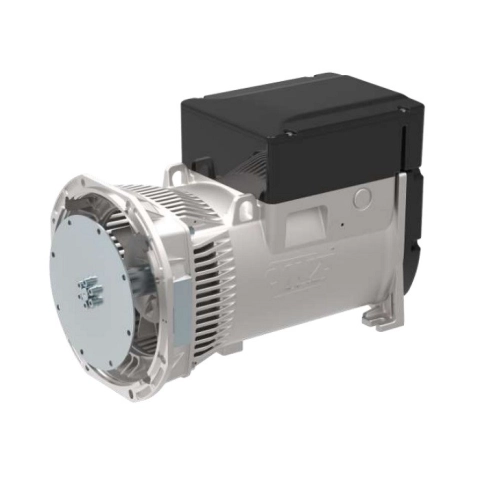

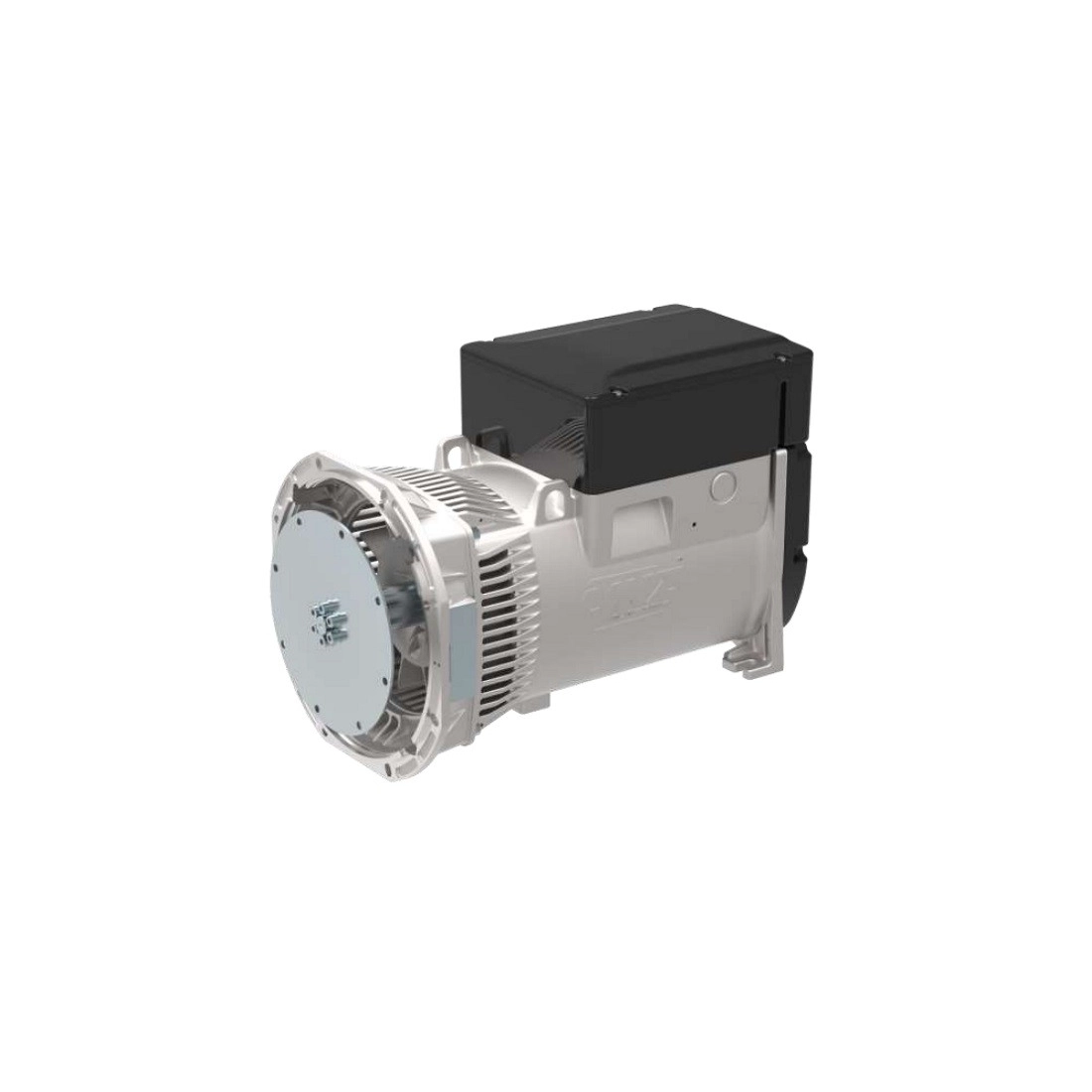

LINZ E1C13M D/2 Single-phase alternator 115/230V 15 kVA 50 Hz Brushless

LINZ E1C13M D/2 Single-phase alternator 115/230V 15 kVA 50 Hz Brushless
LINZ E1C13M D/2 Single-phase alternator 115/230V 15 kVA 50 Hz Brushless
LINZ E1C13M D/2 Single-phase alternator 115/230V 15 kVA 50 Hz Brushless
LINZ E1C13M D/2 Single-phase alternator 115/230V 15 kVA 50 Hz Brushless
E1C13M D/2 J609b 50 Hz

Rated power at 50Hz (kVA): 15
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Protection: IP21
Frequency: 60 Hz - 50 Hz
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 9.2 at 50Hz
Suppression standard R.F.F.I. EN55011

Download Technical Data E1C13M D2

Phase
Single phase
Maximum power single phase (KW)
15
Maximum power single phase (KVA)
15
Frequency (Hz)
50 / 60
Voltage (V)
115 / 230
Engine rpm (rpm)
3000
Alternator
Synchronous, brushless
Poles
2
Single-phase power (KVA)
15
Protection degree
IP21
Motor insulation class
H
Length (mm)
495
Width (mm)
270
Height (mm)
375
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Weight (Kg)
77.7
Brand

The E1C13M series consists of single-phase, brushless, 2-pole alternators with auxiliary winding (charged on the condenser) that ensures voltage regulation.

CHARACTERISTICS

  • Compact and easy to assemble
  • Possibility of feeding any type of load
  • Wide range of accessories
  • High efficiency
  • Gamma: Single-phase alternators
  • Poles: 2
  • Phases: Single-phase
  • Adjustment: CONDENSER
  • Application: FLOW-UP
  • Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€920.84 €920.84
Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 6.5
  • SAE3 disk joint 7.5
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE4 disk joint 11.5
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE5 disk joint 10
  • SAE5 disk joint 11.5
  • STD Lombardini
  • Gear box coupling flange

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.

Download PDF
