SINCRO SK355 WL SINGLE-THREE PHASE ALTERNATOR 720KVA D-AVR

SINCRO THREE PHASE ALTERNATOR SK355
search
  • SINCRO THREE PHASE ALTERNATOR SK355
  • SINCRO THREE PHASE ALTERNATOR SK355
SINCRO
SK355 WL SAE1 d14
New product

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 720
Constant Speed Alternator
D-AVR
Brushless
Weight (Kg): 1630
Protection: IP23

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
576
Three-phase power (KVA)
720
Efficiency (%)
94.8
Protection degree
IP23
Dry weight (Kg)
1630
Brushes
No
PMG
Optional
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

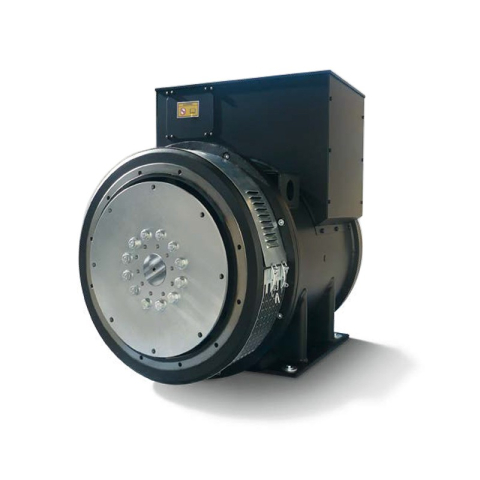

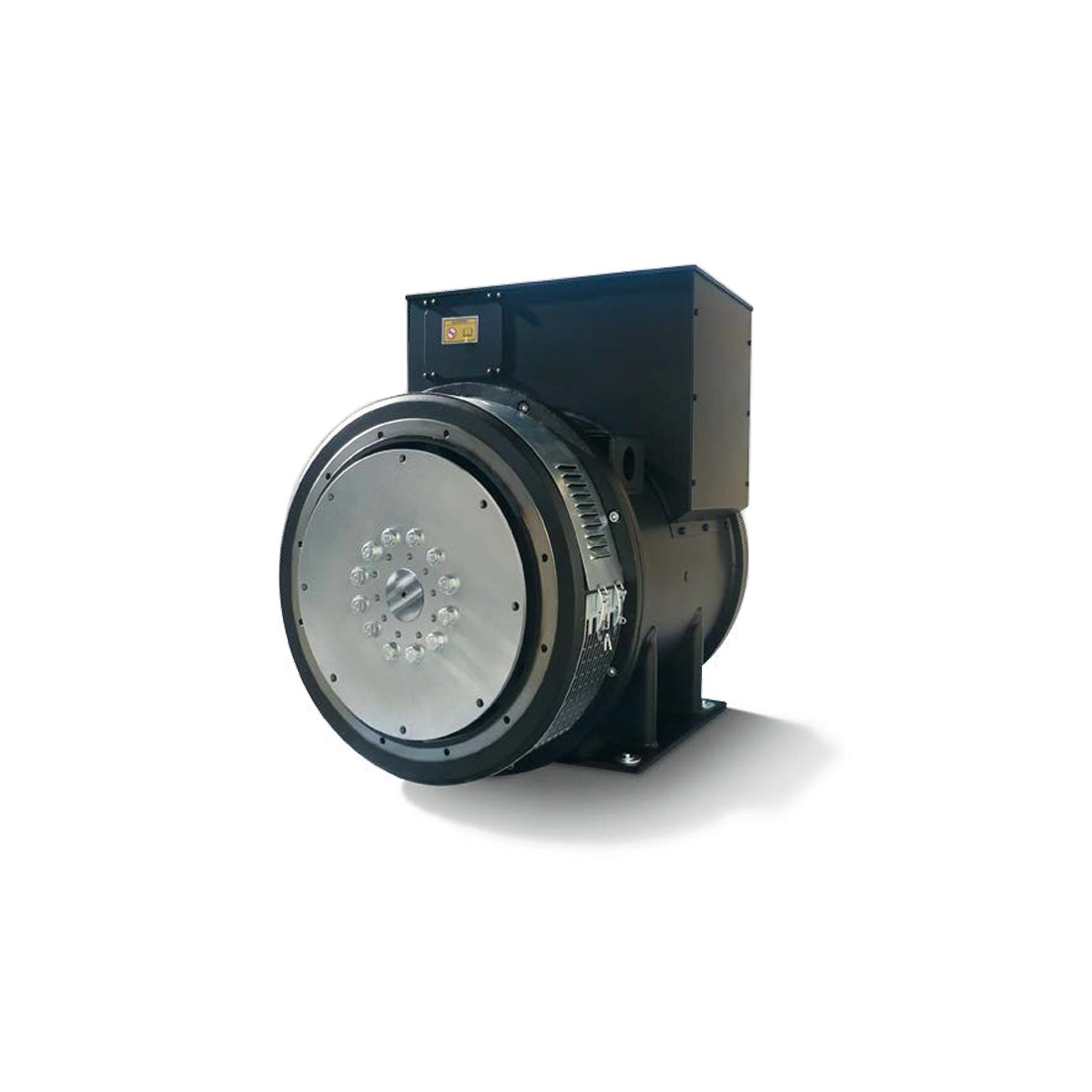

The image is purely indicative.

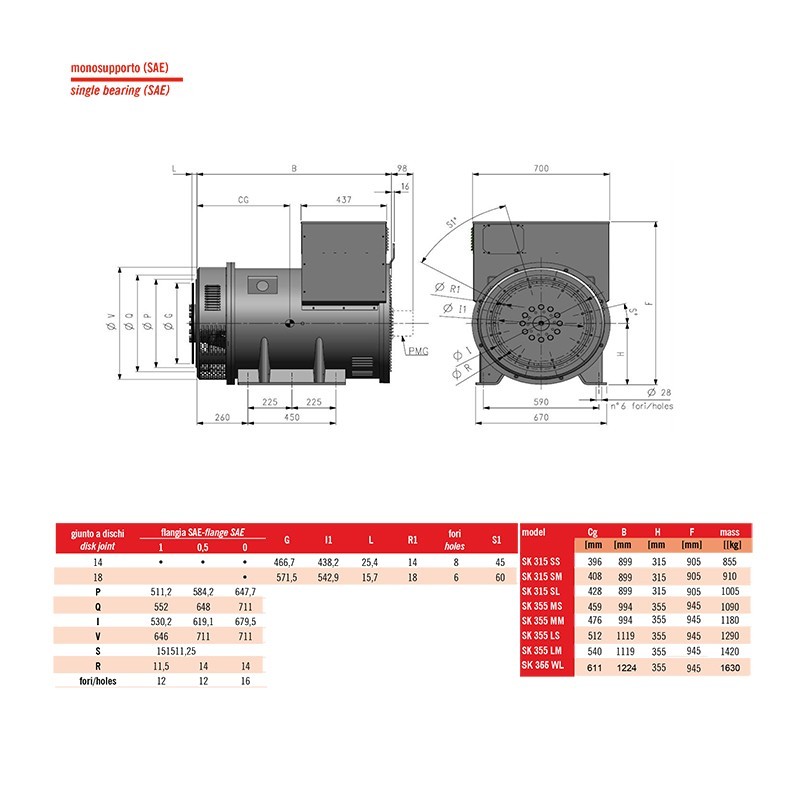

Technical Sheet / Manuals
Related Accessories
List price
32.360,50 € tax incl.
26.525,00 € tax excl.
Discounted Price
19.617,60 € tax incl.
16.080,00 € tax excl.
