SINCRO SK450 MG SINGLE-THREE PHASE ALTERNATOR 1600KVA D-AVR

SINCRO THREE PHASE ALTERNATOR SK450
SINCRO THREE PHASE ALTERNATOR SK450
SINCRO THREE PHASE ALTERNATOR SK450
SINCRO THREE PHASE ALTERNATOR SK450
SK450 MG SAE1/2 d18

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 1600
Constant Speed Alternator
D-AVR
Brushless
PMG
Weight (Kg): 2660
Protection: IP23

Download Technical data SK450

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
1280
Three-phase power (KVA)
1600
Efficiency (%)
95.9
Protection degree
IP23
Dry weight (Kg)
2660
Brushes
No
PMG
Yes
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Winding pitch: 2/3
- Excitation PMG: standard
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

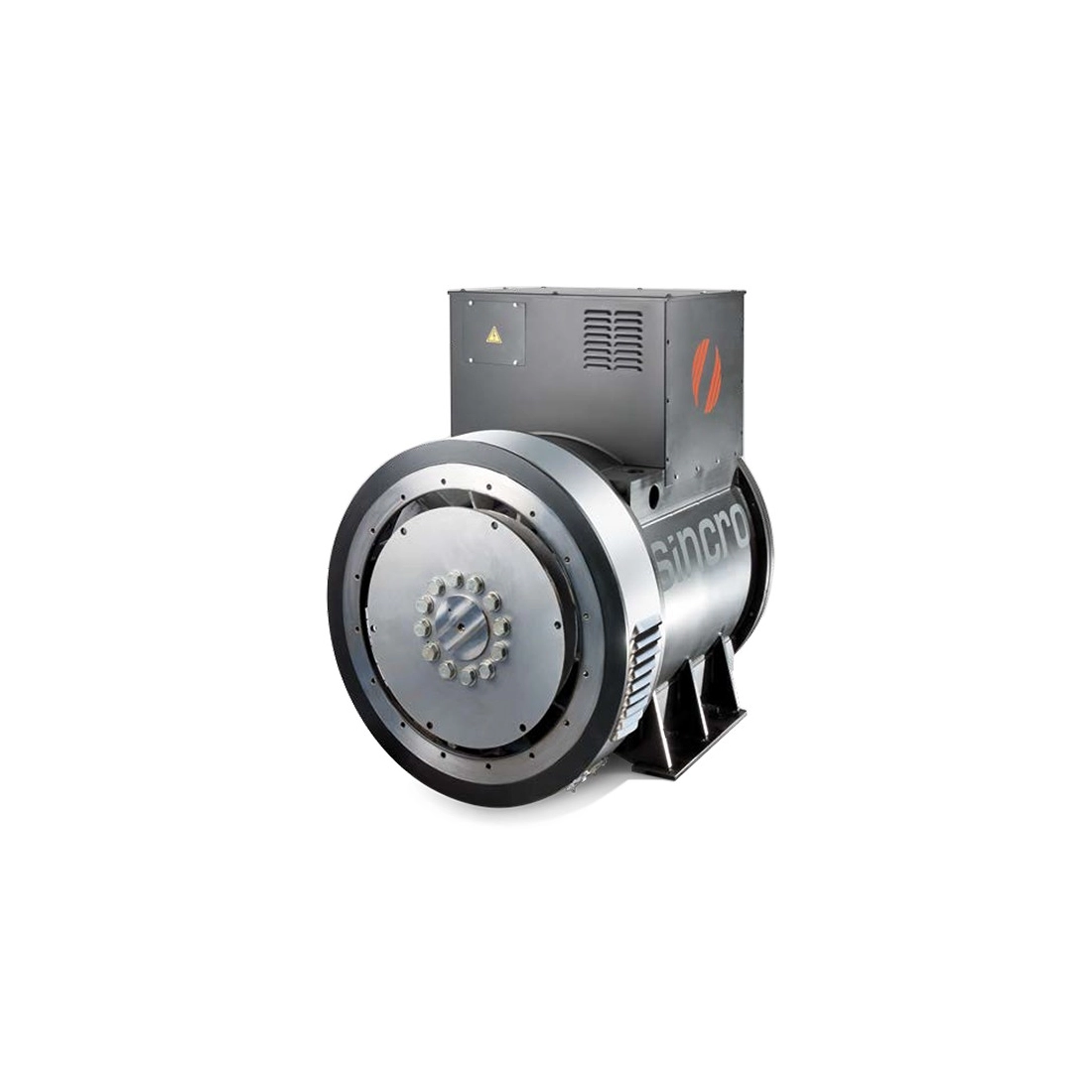

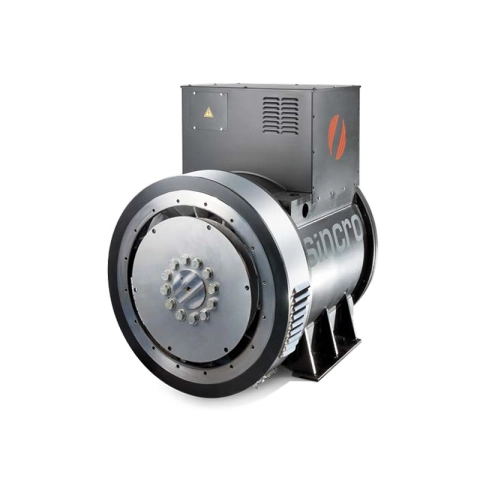

The images are purely indicative.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€31,070.00 €31,070.00
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE1/2 disk joint 18
  • SAE0 disk joint 18
  • SAE00 disk joint 18
  • SAE00 disk joint 21

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
