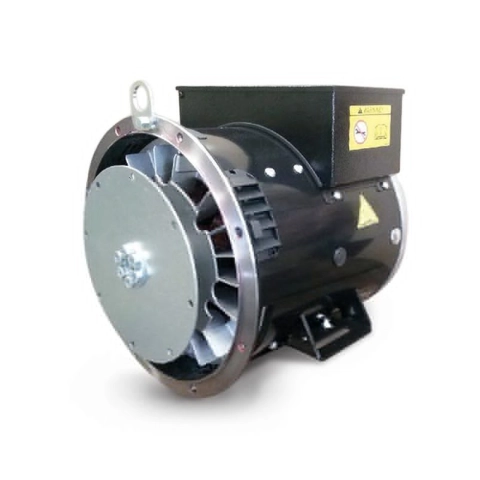

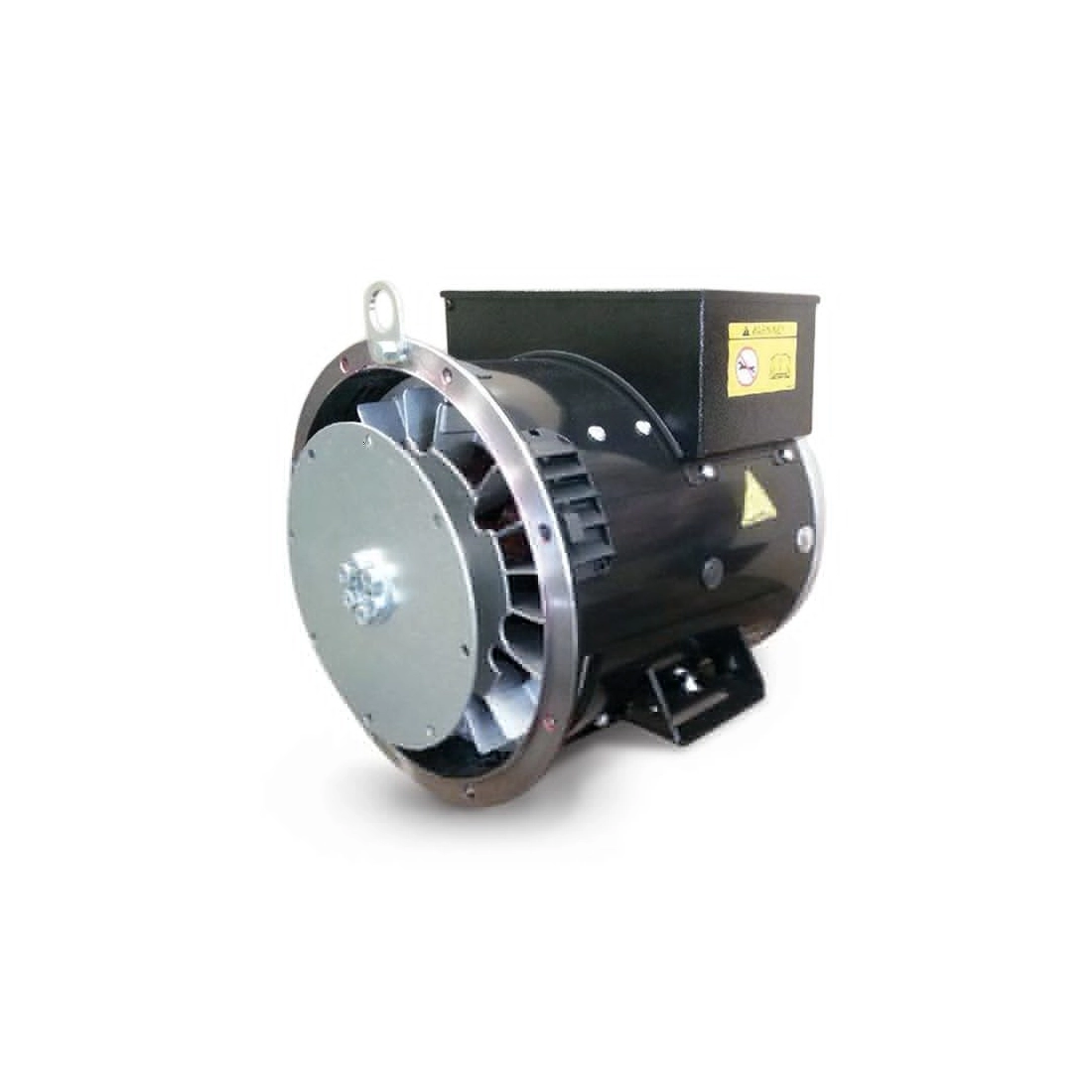

SINCRO SK160 CA2 SINGLE-THREE-PHASE ALTERNATOR 15KVA AVR

SINCRO THREE PHASE ALTERNATOR SK160
search
  • SINCRO THREE PHASE ALTERNATOR SK160
  • SINCRO THREE PHASE ALTERNATOR SK160
SINCRO
SK160 CA2 SAE5 d6.5
New product

Phase: Single / Three Phase
Poles: 4
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 9
Three Phase Output (kVA): 15
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 68
Protection: IP23

Technical features
Phase
Single phase / Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Single-phase power (KW)
7.2
Single-phase power (KVA)
9
Three-phase power (KW)
12
Three-phase power (KVA)
15
Efficiency (%)
82.5
Protection degree
IP23
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
68
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: IB4 alternators can be connected for single-phase use
- Tropicalizzation: standard

Not binding images and technical data.

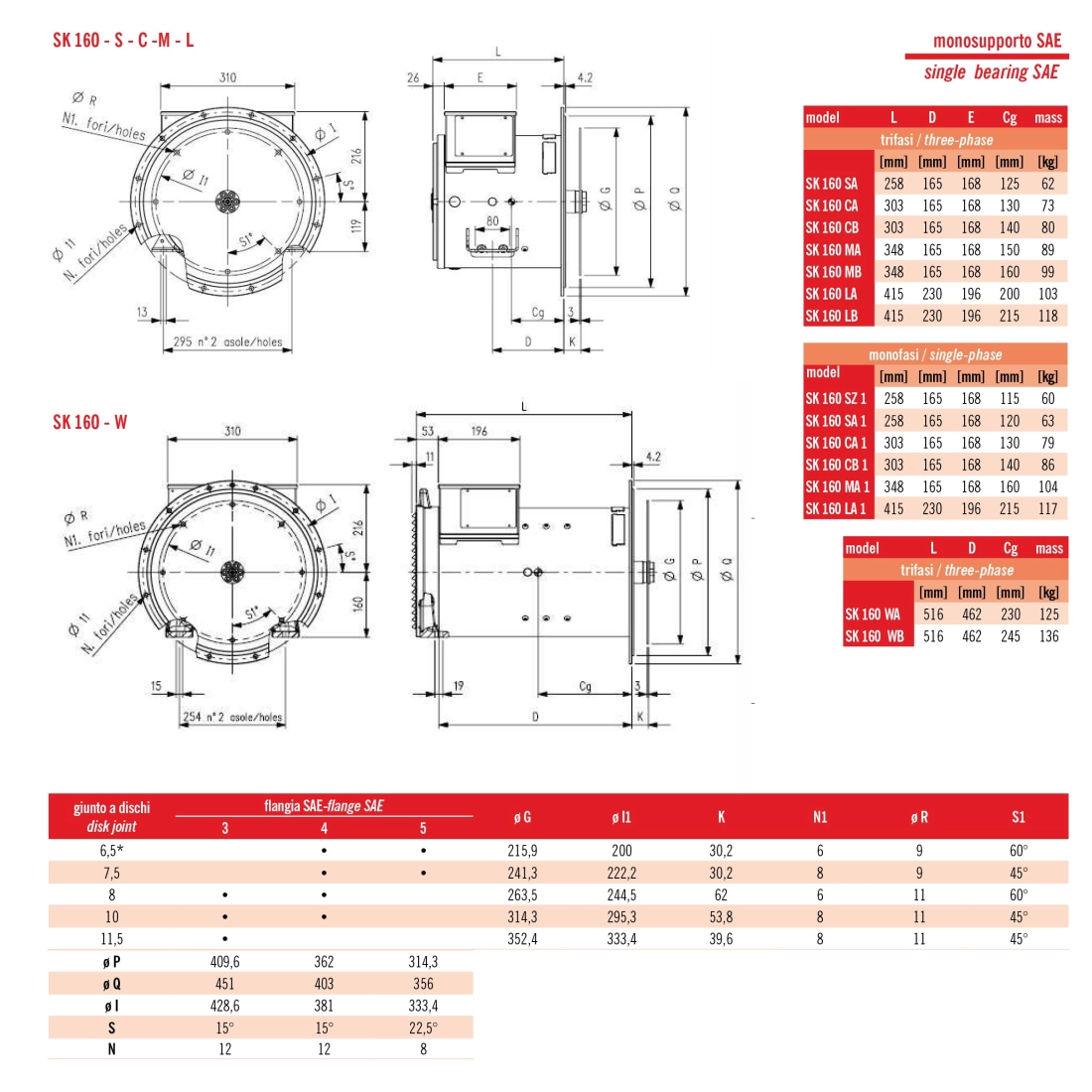

Technical Sheet / Manuals
List price
2.721,82 € tax incl.
2.231,00 € tax excl.
Discounted Price
1.649,44 € tax incl.
1.352,00 € tax excl.
