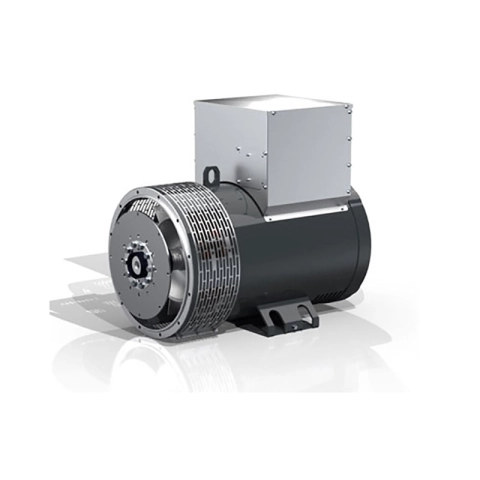

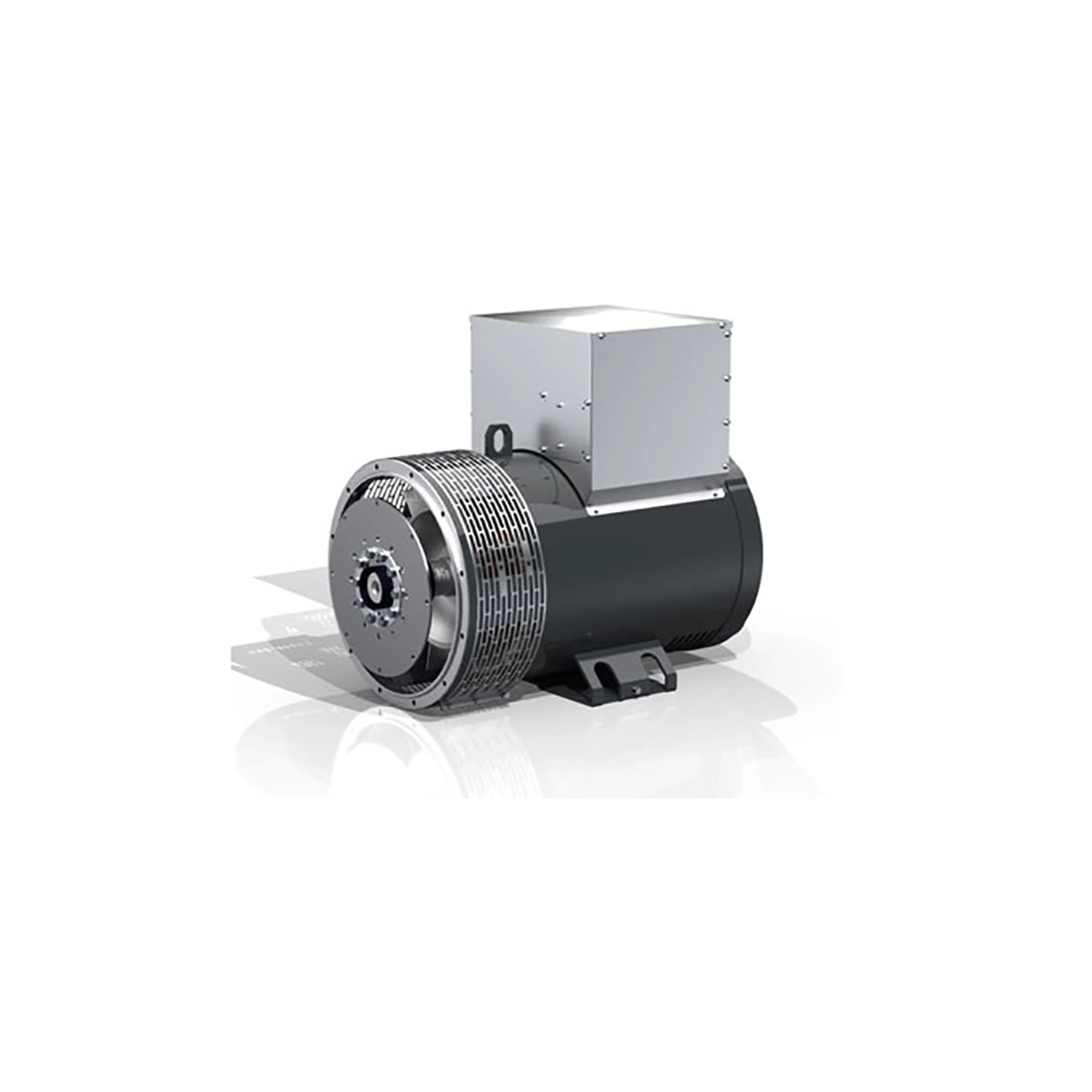

MECC ALTE ECP34-1S/2 THREE PHASE ALTERNATOR 100 KVA AVR
      MECC ALTE ECP34-1S/2 THREE PHASE ALTERNATOR 100 KVA AVR
      MECC ALTE ECP34-1S/2 THREE PHASE ALTERNATOR 100 KVA AVR
      MECC ALTE ECP34-1S/2 THREE PHASE ALTERNATOR 100 KVA AVR

      MECC ALTE ECP34-1S/2 THREE PHASE ALTERNATOR 100 KVA AVR

      ECP34-1S/2 SAE3 d11.5

      Phase Type: Single Phase / Three Phase
      Maximum Single Phase Output:
      (50Hz) 67KVA / 67KW
      (60Hz) 80.4KVA / 80.4KW
      Continuous Single Phase Output:
      (50Hz) 60.3KVA / 60. 3KW
      (60Hz) 72.4KVA / 72.4KW
      Maximum three-phase output:
      (50Hz) 100KVA / 80KW
      (60Hz) 120KVA / 96KW
      Continuous three-phase output:
      (50Hz) 90KVA / 72KW
      (60Hz) 108KVA / 86. 4KW
      Frequency: 50 / 60 Hz
      Voltage: 230 / 400 V
      Degree of protection: IP23
      Alternator speed: 3000 rpm
      Number of poles: 2
      Efficiency: 90%

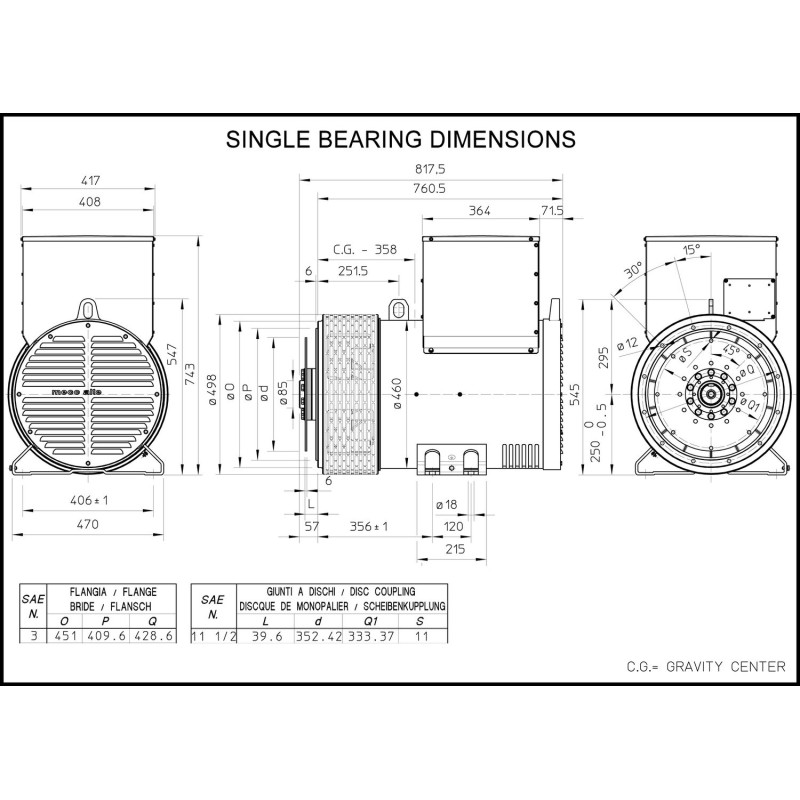

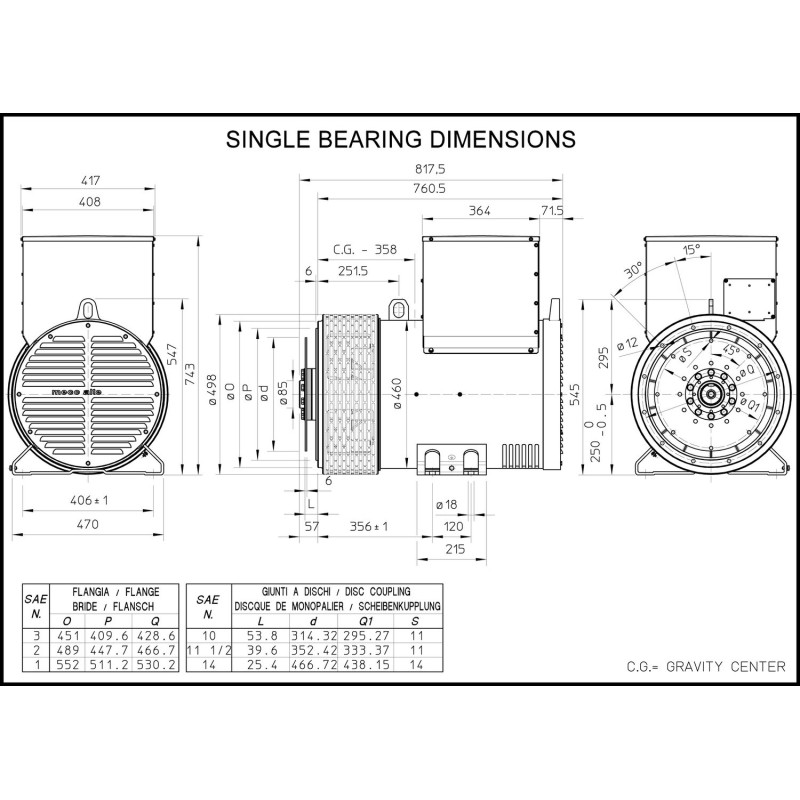

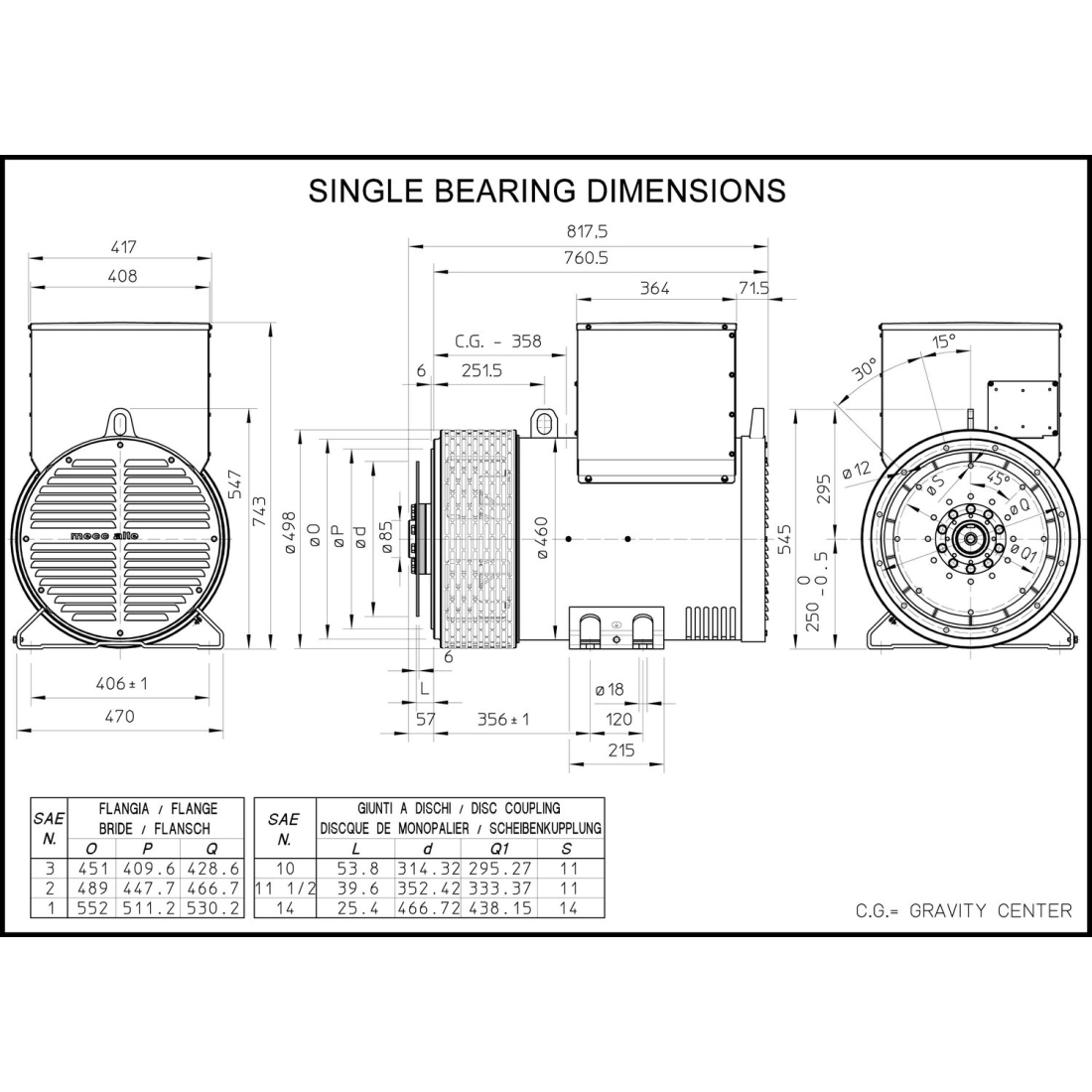

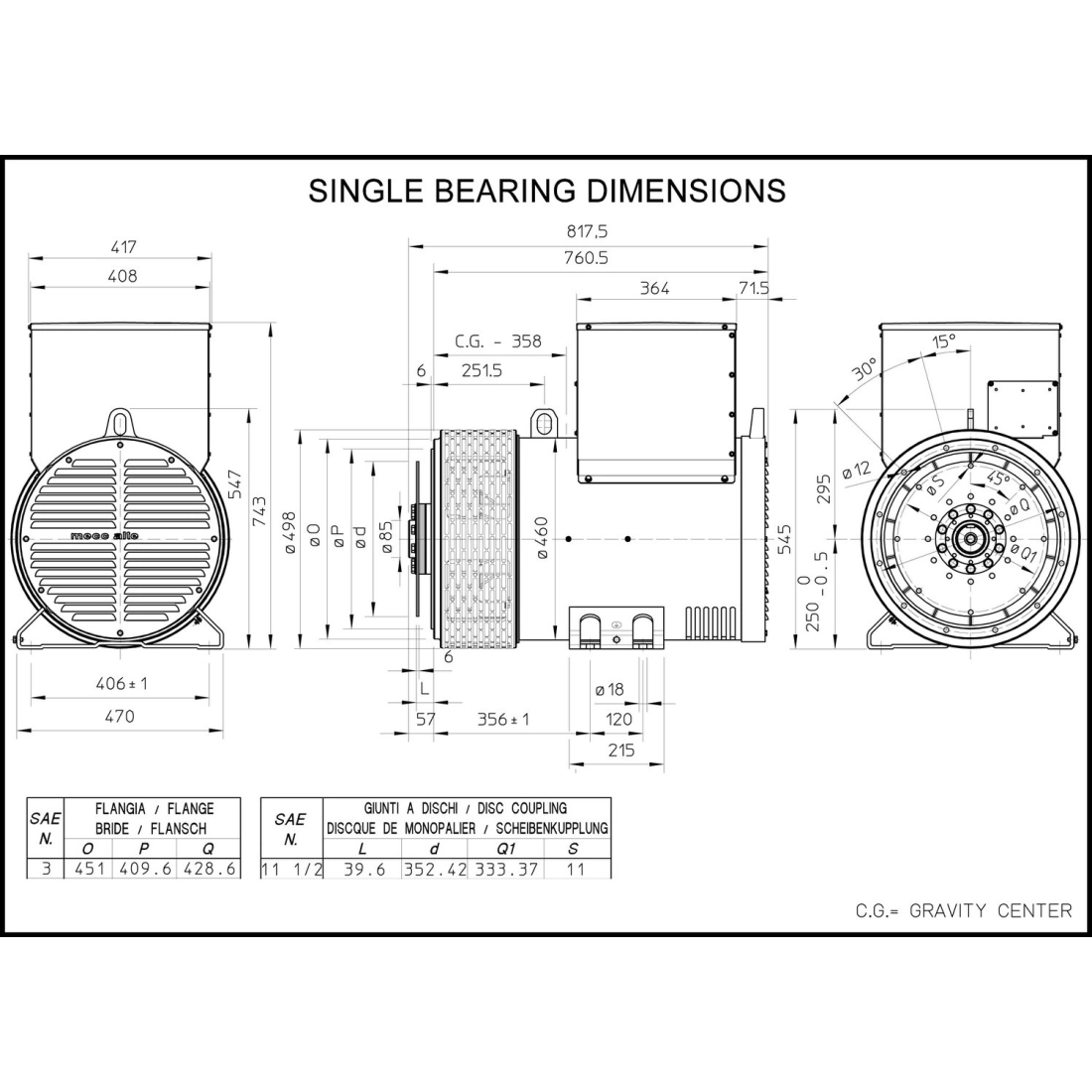

      Width: 417 mm
      Length: 817.5 mm
      Height: 743 mm
      Weight: 334 Kg
      Constant speed alternator
      Brushless
      Voltage regulator: AVR

      Choose the type of coupling :
      Download PDF
      Custom Quote
      Product: MECC ALTE ECP34-1S/2 THREE PHASE ALTERNATOR 100 KVA AVR

      PERSONAL DATA


      Ask a question
      Product: MECC ALTE ECP34-1S/2 THREE PHASE ALTERNATOR 100 KVA AVR
      Offer on letterhead
      Product: MECC ALTE ECP34-1S/2 THREE PHASE ALTERNATOR 100 KVA AVR
      MECC ALTE
      ECP34-1S/2 SAE3 d11.5

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      67 (50Hz) - 80.4 (60Hz)
      Continuous power single phase (KW)
      60.3 (50Hz) - 72.4 (60Hz)
      Maximum power single phase (KVA)
      67 (50Hz) - 80.4 (60Hz)
      Continuous power single phase (KVA)
      60.3 (50Hz) - 72.4 (60Hz)
      Maximum power three phase (KW)
      80 (50Hz) - 96 (60Hz)
      Continuous power three phase (KW)
      72 (50Hz) - 86.4 (60Hz)
      Maximum power three phase (KVA)
      100 (50Hz) - 120 (60Hz)
      Continuous power three phase (KVA)
      90 (50Hz) - 108 (60Hz)
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      3000
      Poles
      2
      Single-phase power (KVA)
      80.4
      Three-phase power (KVA)
      120
      Efficiency (%)
      90
      Protection degree
      IP23
      Acoustic pressure
      77 dB(A) at 7 m
      Length (mm)
      417
      Width (mm)
      817.5
      Height (mm)
      743
      Dry weight (Kg)
      334
      Brushes
      No
      PMG
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      225

      Specific References

      New

      MECC ALTE ECP34-1S/2 THREEPHASE ALTERNATOR 100 KVA DSR

      Alternator MECC ALTE ECP34-1S/2 threephase with a power of 100KVA, this unit has a Brushless self-exciting and self-regulating operation equipped with voltage regulator DSR.

      The MECC ALTE ECP34-1S/2 alternators are self-regulating, 2-pole brushless. They are equipped with a rotating inductor provided with a damping cage and a fixed armature with inclined slots. The windings have a shortened pitch to reduce the harmonic content.
      Tests for electromagnetic compatibility have been carried out in compliance with the conditions prescribed by the standards, with the neutral connected to earth. Executions in accordance with other specifications can be carried out at the customer's request.

      The mechanical structure of the ECP34-1S/2 alternator, which is always very robust, allows easy access to the connections and enables checks on the various components to be carried out just as easily. The casing of the MECC ALTE is in cast iron, the shaft in C45 steel with splined fan. The degree of protection is IP23 (on request it is possible to realize a higher degree of protection). Insulations are made in class H. The impregnations are performed with polyester resins for the rotating parts and with vacuum treatments for the parts of higher tension, for example the stators. Special treatments can also be carried out on request.

      The high quality bi-component insulating resin used by Mecc Alte ECP34-1S/2, is a polyester specially developed to be used in vacuum or immersion and drip impregnation machines. It has superior adhesion strength characteristics, high chemical and humidity resistance and is suitable for use up to 212° C.

      The ECP34-1S/2 alternators conform to the Italian CEI 2-3 file 11111 . This standard corresponds to the European EN 60034-1 and the international IEC 60034-1, is linked to the British BS 4999 Part 101, is equivalent to the German standard VDE 0530 Part 1 and is included in the French standard NF 51.111.

      TECHNICAL CHARACTERISTICS MECC HIGH ALTERNATOR ECP34-1S/2

      Phase Type: SinglePhase / ThreePhase
      Maximum SinglePhase Output:
      (50Hz) 67KVA / 67KW
      (60Hz) 80.4KVA / 80.4KW
      Continuous SinglePhase Output:
      (50Hz) 60.3KVA / 60. 3KW
      (60Hz) 72.4KVA / 72.4KW
      Maximum threephase output:
      (50Hz) 100KVA / 80KW
      (60Hz) 120KVA / 96KW
      Continuous threephase output:
      (50Hz) 90KVA / 72KW
      (60Hz) 108KVA / 86. 4KW
      Frequency: 50 / 60 Hz
      Voltage: 230 / 400 V
      Degree of protection: IP23
      Alternator speed: 3000 rpm
      Number of poles: 2
      Efficiency: 90%
      Width: 417 mm
      Length: 817.5 mm
      Height: 743 mm
      Weight: 334 Kg
      Constant speed alternator
      Brushless
      Voltage regulator: AVR

      Looking for a product with different features? Here you can find the full range MECC ALTE and other specialized brands.

      Images and technical data are not binding and subject to changes by the manufacturer

      Mecc Alte - Radio-VDE 0875 CLASS K interference suppressor kit for ECP
          Radio-VDE 0875 CLASS K interference suppressor kit for ECP32 alternators.
          155.00 €Price
          Mecc Alte - Parallel TA for ECP32 alternators.
              Parallel current transformer TA (including saddle when required) for ECP32 alternators.
              185.00 €Price
              Mecc Alte - Voltage control potentiometer for ECP32 alternators.
                  Voltage control potentiometer for ECP32 alternators.
                  48.31 €Price
                  Mecc Alte - Diode RBD-1 failure sensor for ECP32 alternators.
                      Diode RBD-1 failure sensor for ECP32 alternators.
                      356.15 €Price
                      Mecc Alte - Coupling bell for type B3-B14 for ECP32 alternators.
                          Coupling bell for type B3-B14 for ECP32 alternators.
                          601.07 €Price
                          Mecc Alte - PTCK150 temperature sensor for ECP32 alternators.
                              PTCK150 temperature sensor (1 set of 3) for ECP32 alternators.
                              235.30 €Price
                              Mecc Alte - PT100 RTD sensor on windings for ECP32 alternators.
                                  PT100 RTD sensor on windings (1 of 3) for ECP32 alternators.
                                  252.20 €Price
                                  Mecc Alte - PT100 RTD sensor on windings for ECP32 alternators.
                                      PT100 RTD sensor on windings (2 of 3) for ECP32 alternators.
                                      478.40 €Price
                                      Mecc Alte - PT100 RTD (for bearing) for ECP32 alternators.
                                          PT100 RTD (for bearing) for ECP32 alternators.
                                          404.46 €Price
                                          Mecc Alte - Bimetallic probe (thermal protection) for ECO alternators.
                                              Bimetallic probe (thermal protection) for ECP32 alternators.
                                              209.95 €Price
                                              Mecc Alte - DER1 AVR (three phase sensing) for ECP32 alternators.
                                                  DER1 AVR (three phase sensing) (+/- 0.5%) (factory fitted only) for ECP32 alternators.
                                                  200.20 €Price
                                                  Mecc Alte - USB 2 DxR digital interface for ECP32 alternators.
                                                      USB 2 DxR digital interface for ECP32 alternators.
                                                      200.20 €Price
                                                      Mecc Alte - DER2 AVR (three phase sensing) for ECP32 alternators.
                                                          DER2 AVR (three phase sensing integrated USB) (+/- 0.5%) (factory fitted only) for ECP32 alternators.
                                                          280.15 €Price
                                                          Mecc Alte - High terminal box for ECP32 alternators.
                                                              High terminal box for ECP32 alternators.
                                                              53.93 €Price
                                                              Mecc Alte - IP23 protection (Recommended for marine use) for ECP32.
                                                                  IP23 protection (Recommended for marine use) for ECP32 alternators.
                                                                  180.88 €Price
                                                                  Mecc Alte - Air filter for rear inlet (loss 7%) for ECP32 alternators.
                                                                      Air filter for rear inlet (loss 7%) for ECP32 alternators.
                                                                      281.45 €Price
                                                                      Mecc Alte - IP45 protection screen for ECP32 alternators.
                                                                          IP45 protection screen (Derating applies) for ECP32 alternators.
                                                                          923.65 €Price
                                                                          Mecc Alte - Anti-condensation heater - rear part for ECP32 alternators.
                                                                              Anti-condensation heater - rear part (factory fitted) for ECP32 alternators.
                                                                              204.48 €Price
                                                                              Mecc Alte - Anti-condensation heater - front part for ECP32 alternators
                                                                                  Anti-condensation heater - front part (factory fitted) for ECP32 alternators.
                                                                                  204.48 €Price
                                                                                  Mecc Alte - Anti-condensation heater on the rear shield for ECP32.
                                                                                      Anti-condensation heater on the rear shield (can be integrated) for ECP32 alternators.
                                                                                      204.48 €Price
                                                                                      Mecc Alte - Grey impregnation (exciter and main stator Grey) for ECP32
                                                                                          Grey impregnation (exciter and main stator Grey) for ECP32 alternators.
                                                                                          241.00 €Price
                                                                                          Mecc Alte - Grey impregnation + for ECP32 alternators.
                                                                                              Grey impregnation + (Grey main stator and Black exciter stator) for ECP32 alternators.
                                                                                              297.05 €Price
                                                                                              Mecc Alte - Total Impregnation + for ECP32 alternators.
                                                                                                  Total Impregnation + (Black main stator & exciter stator, Grey rotor) for ECP32 alternators.
                                                                                                  390.00 €Price

                                                                                                  4 other products in the same category:

                                                                                                  MECC ALTE ECP34-1S/2 THREE PHASE ALTERNATOR 100 KVA AVR

                                                                                                  MECC ALTE ECP34-1S/2 THREE PHASE ALTERNATOR 100 KVA AVR

                                                                                                  List price
                                                                                                  8,483.88 € tax incl.
                                                                                                  6,954.00 € tax excl.
                                                                                                  Discounted Price
                                                                                                  6,405.33 € tax incl.
                                                                                                  5,250.27 € tax excl.
