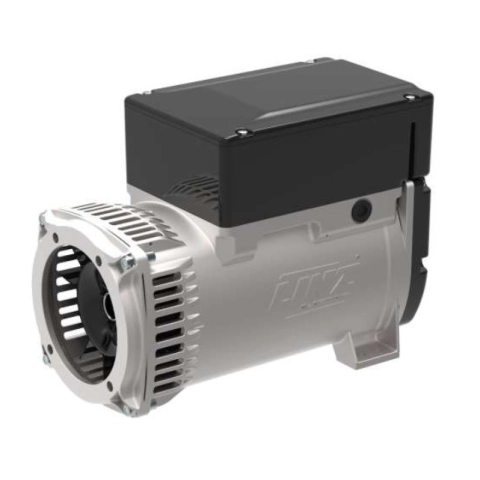

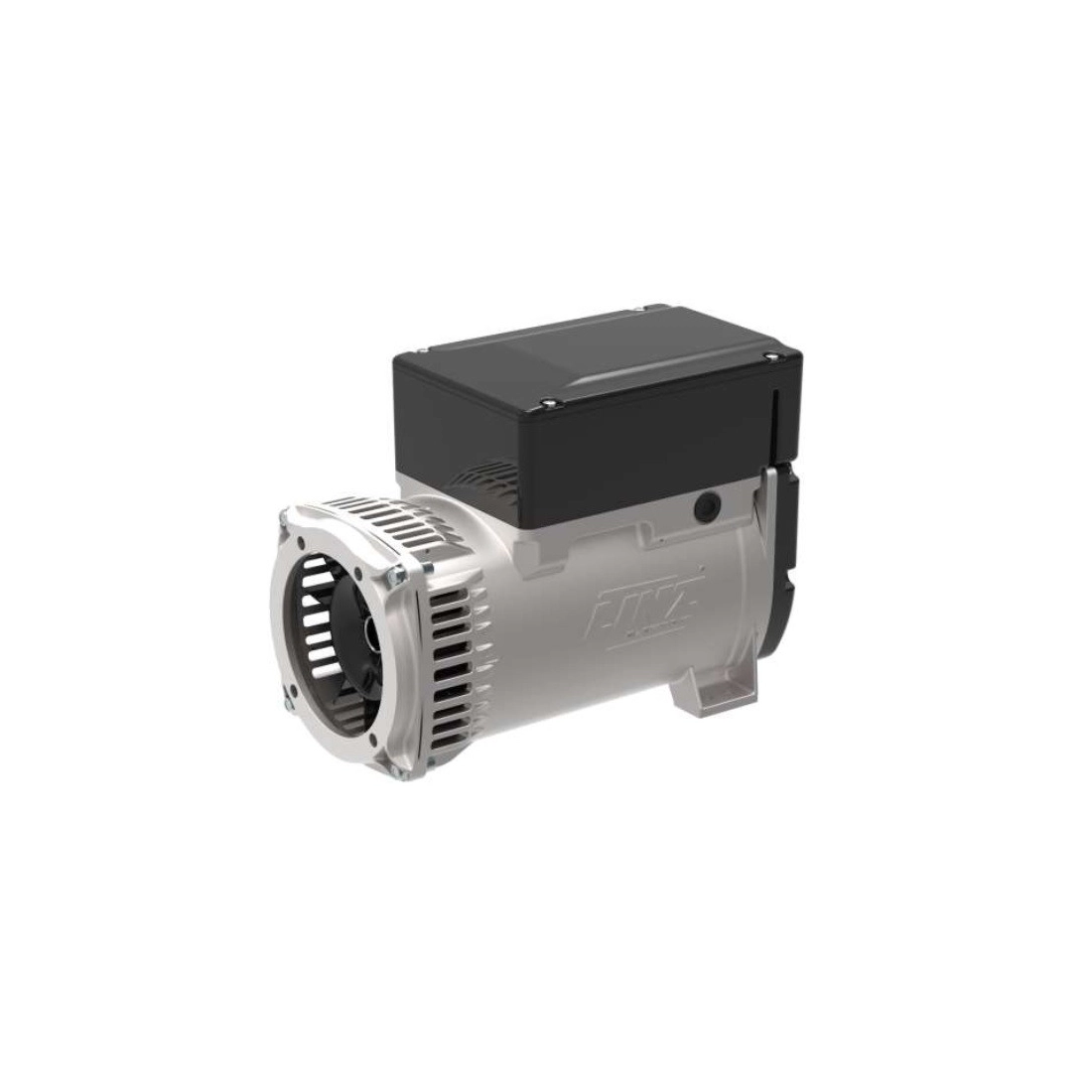

LINZ E1S10L L KE Three-phase alternator 277V/480V 11 kVA 60 Hz AVR + Compound
      LINZ E1S10L L KE Three-phase alternator 277V/480V 11 kVA 60 Hz AVR + Compound
      LINZ E1S10L L KE Three-phase alternator 277V/480V 11 kVA 60 Hz AVR + Compound

      LINZ E1S10L L KE Three-phase alternator 277V/480V 11 kVA 60 Hz AVR + Compound

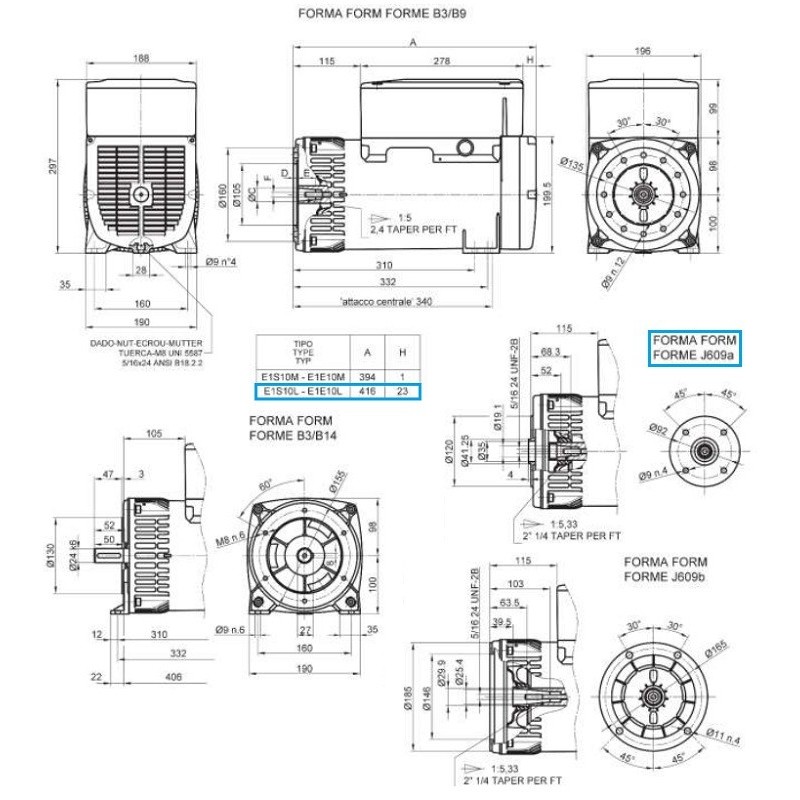

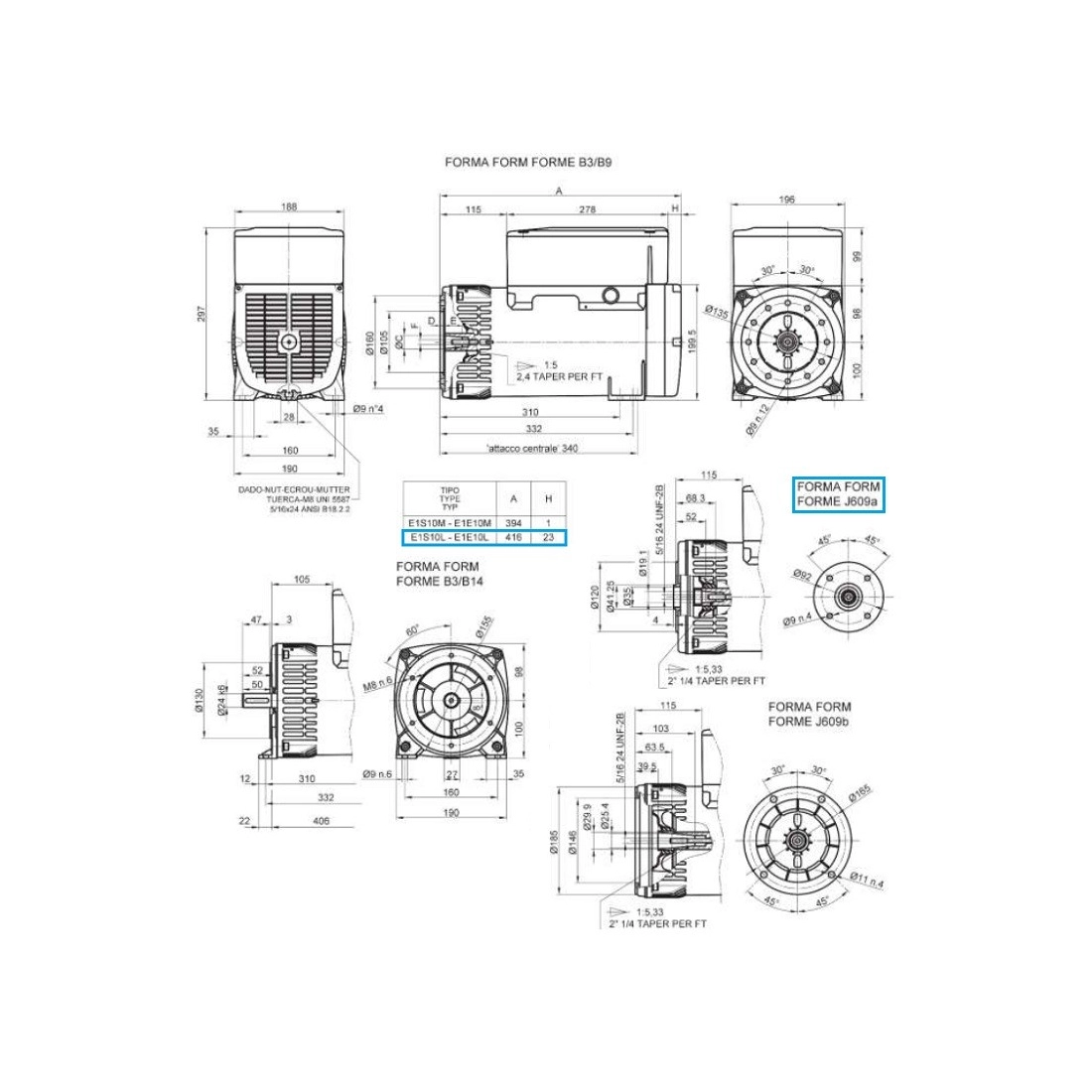

      E1S10L L KE 60 Hz J609a

      Rated power at 60 Hz (kVA): 11
      Rated power factor: 0.8
      Rated temperature (°C): 40
      Control system: self-excited
      Design: brushes
      Type of regulation: AVR + compound
      Insulation class: H
      Protection: IP21
      Maximum excess travel speed (rpm): 4500
      110% overload of rated power for one hour in a 6-hour cycle
      Airflow requirement (m3/min): 4.5 at 60 Hz
      Suppression standard R.F.F.I. EN55011

      List price
      1,052.86 € tax incl.
      863.00 € tax excl.
      Discounted Price
      842.56 € tax incl.
      690.62 € tax excl.
      Ask a question
      Offer on letterhead
      Choose the type of coupling :
      Ask for availability
      Download PDF
      Custom Quote

      PERSONAL DATA

      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      LINZ ELECTRIC
      E1S10L L KE 60 Hz J609a

      Data sheet

      Phase
      Three phase
      Continuous power three phase (KW)
      8.8
      Continuous power three phase (KVA)
      11
      Frequency (Hz)
      60
      Voltage (V)
      277 / 480
      Engine rpm (rpm)
      3600
      Alternator
      Synchronous
      Poles
      2
      Single-phase power (KVA)
      11
      Protection degree
      IP21
      Motor insulation class
      H
      Length (mm)
      294
      Width (mm)
      195
      Height (mm)
      295
      Brushes
      Yes
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR+Compound
      Weight (Kg)
      41.4

      Specific References

      New

      E1S-KE series are three-phase 2 poles alternators with brushes and mixed regulation: compound and electronic (AVR).

      CHARACTERISTICS

      • Possibility to feed any type of load
      • Compact and easy to assemble
      • High starting capacity
      • High efficiency
      • Type: Three-phase alternators
      • Poles: 2
      • Phases: Three-phase
      • Regulation: COMPOUND AND AVR
      • Application: PORTABLE

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
