NPE 31-B/2 SAE3 d6.5

Phase: Single phase / Three phase
Maximum three phase power: 10.5 KVA
Maximum single phase power: 7 KVA
Frequency: 50 Hz
Voltage: 230 V / 400 V
Protection: IP21
Rpm speed: 3000 rpm
Poles: 2
Efficiency: 78.5%
Weight: 81 Kg
Constant speed alternator
Brushless
Voltage regulator: AVR

Download Technical Data NPE 31-2

Phase
Single phase / Three phase
Maximum power single phase (KVA)
7
Maximum power three phase (KVA)
10.5
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Single-phase power (KVA)
7
Three-phase power (KVA)
10.5
Efficiency (%)
82.2
Protection degree
IP21
Acoustic pressure
75 dB(A) at 7 m
Brushes
No
PMG
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
83
Precision of voltage regulation
± 1%
Brand

NPE31 2 pole generator

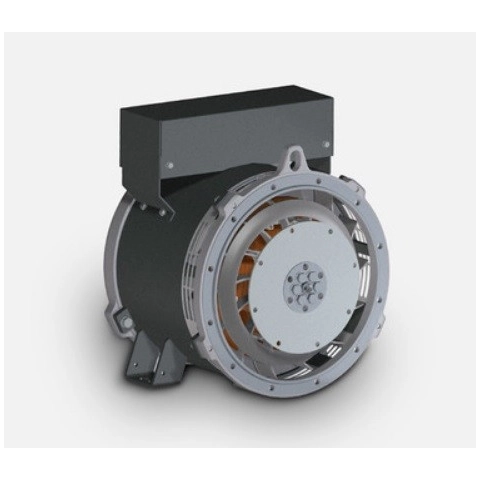

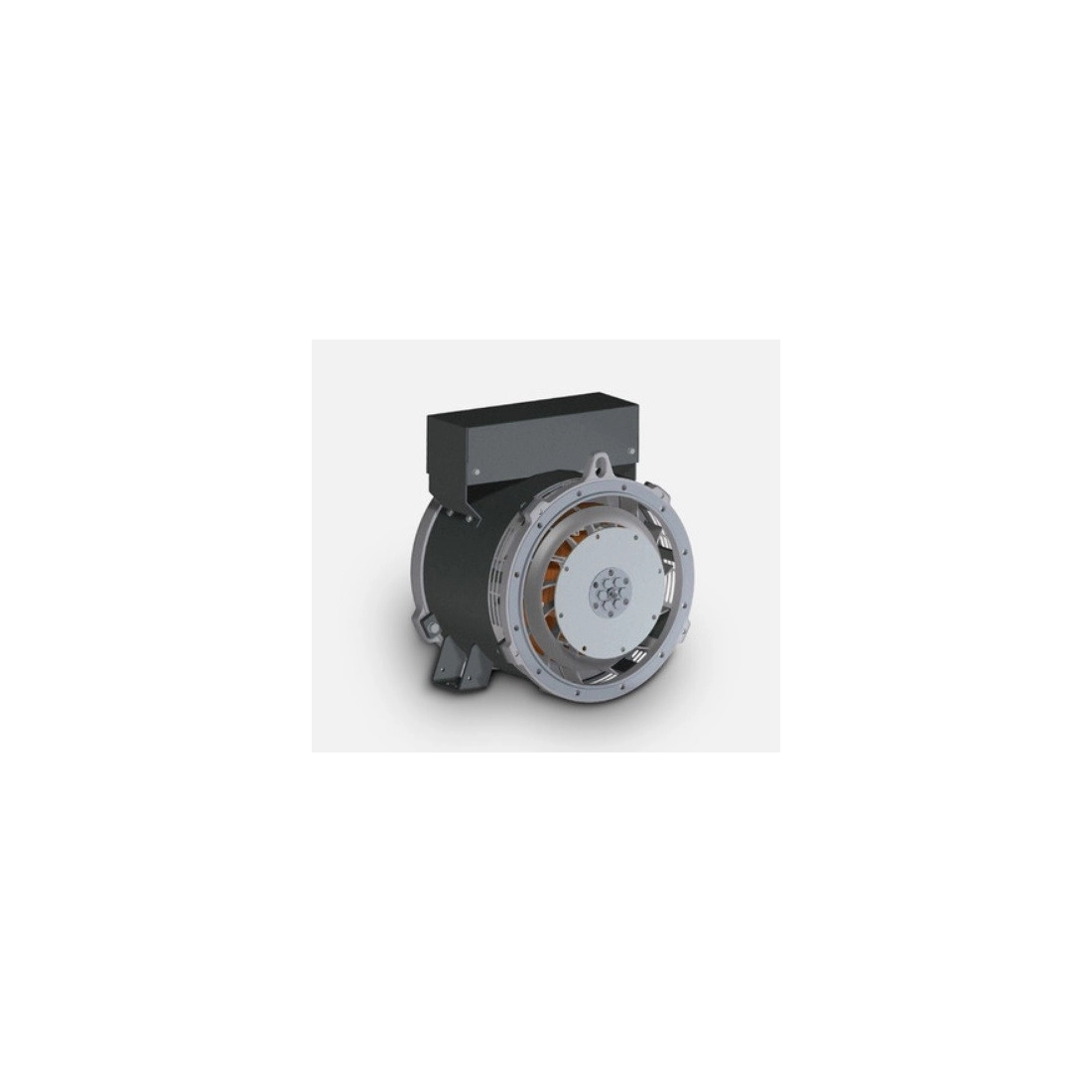

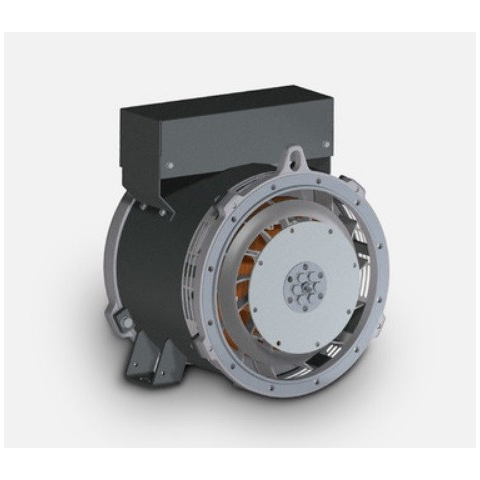

MECC ALTE NPE 31-B/2 THREE PHASE ALTERNATOR 10.5 KVA AVR

The NPE31 range has many product features designed into the alternator.
Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.
We guarantee an almost constant supply from the generator – under any possible operating condition.
A rotating inductor is fitted with a damper cage.
The windings have a 2/3 pitch in order to reduce the harmonic content of voltage.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.



Not binding images and technical data.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€1,724.57 €1,724.57

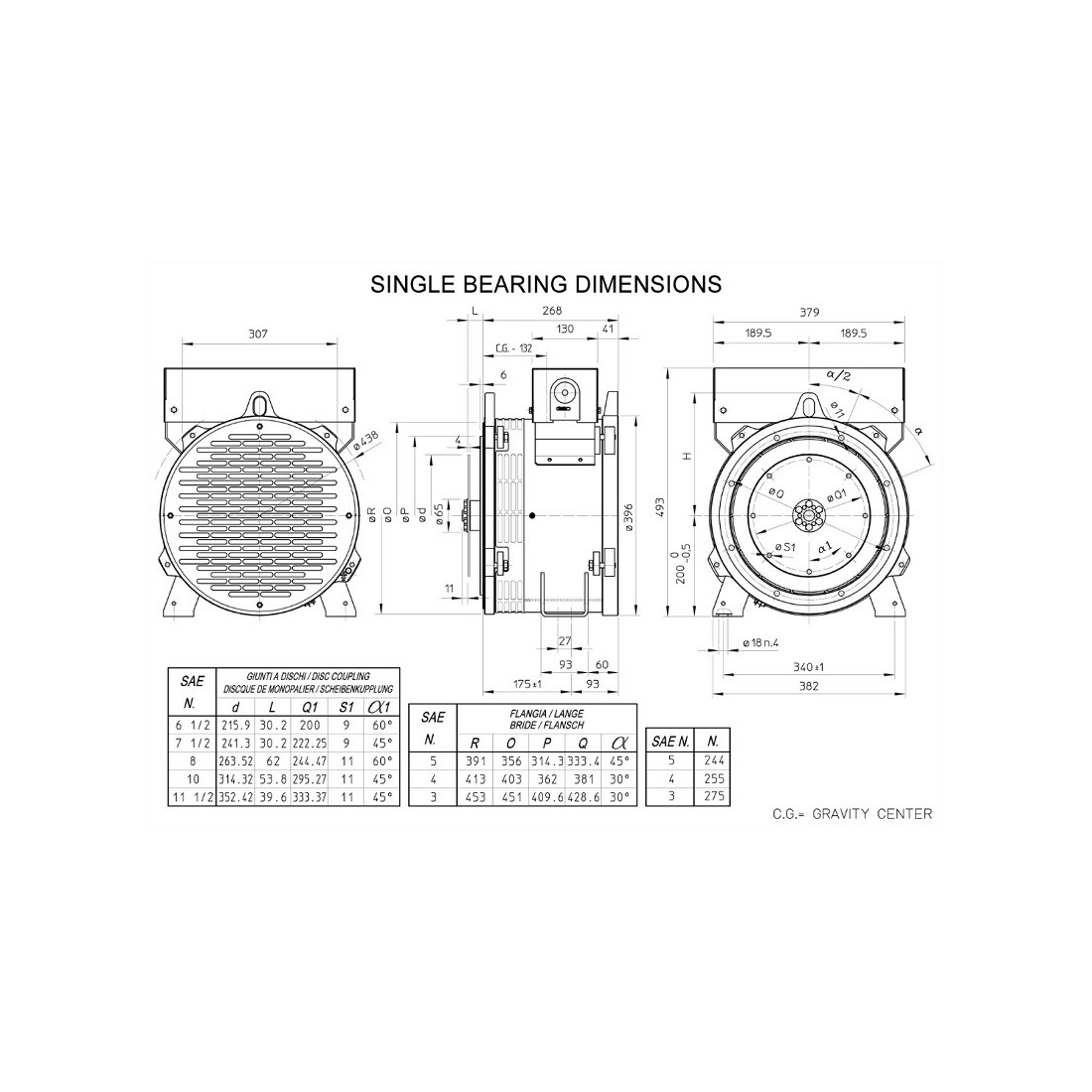

Choose the type of coupling
  • SAE3 disk joint 6.5
  • SAE3 disk joint 7.5
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE4 disk joint 11.5
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE5 disk joint 10
  • SAE5 disk joint 11.5

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
