SINCRO SK500 MD Three Phase Synchronous AC Alternator 2600 kVA PMG D-AVR

SINCRO THREE PHASE ALTERNATOR SK500
search
  • SINCRO THREE PHASE ALTERNATOR SK500
  • SINCRO THREE PHASE ALTERNATOR SK500
SINCRO
SK500 MD SAE0 d18
New product

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 2300
Constant Speed Alternator
D-AVR
Brushless
PMG
Weight (Kg): 3885
Protection: IP23

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
1840
Three-phase power (KVA)
2300
Efficiency (%)
96.3
Protection degree
IP23
Dry weight (Kg)
3885
Brushes
No
PMG
Yes
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 4
- Excitation PMG: standard
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

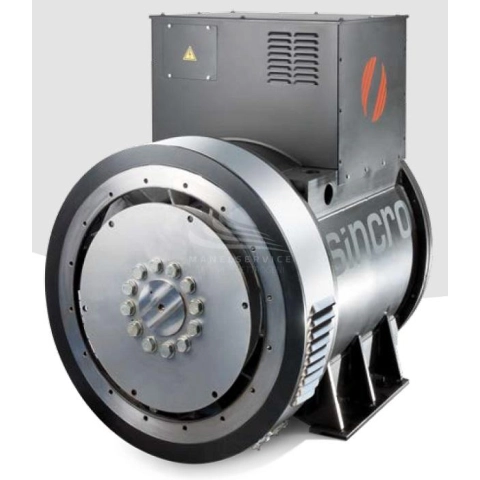

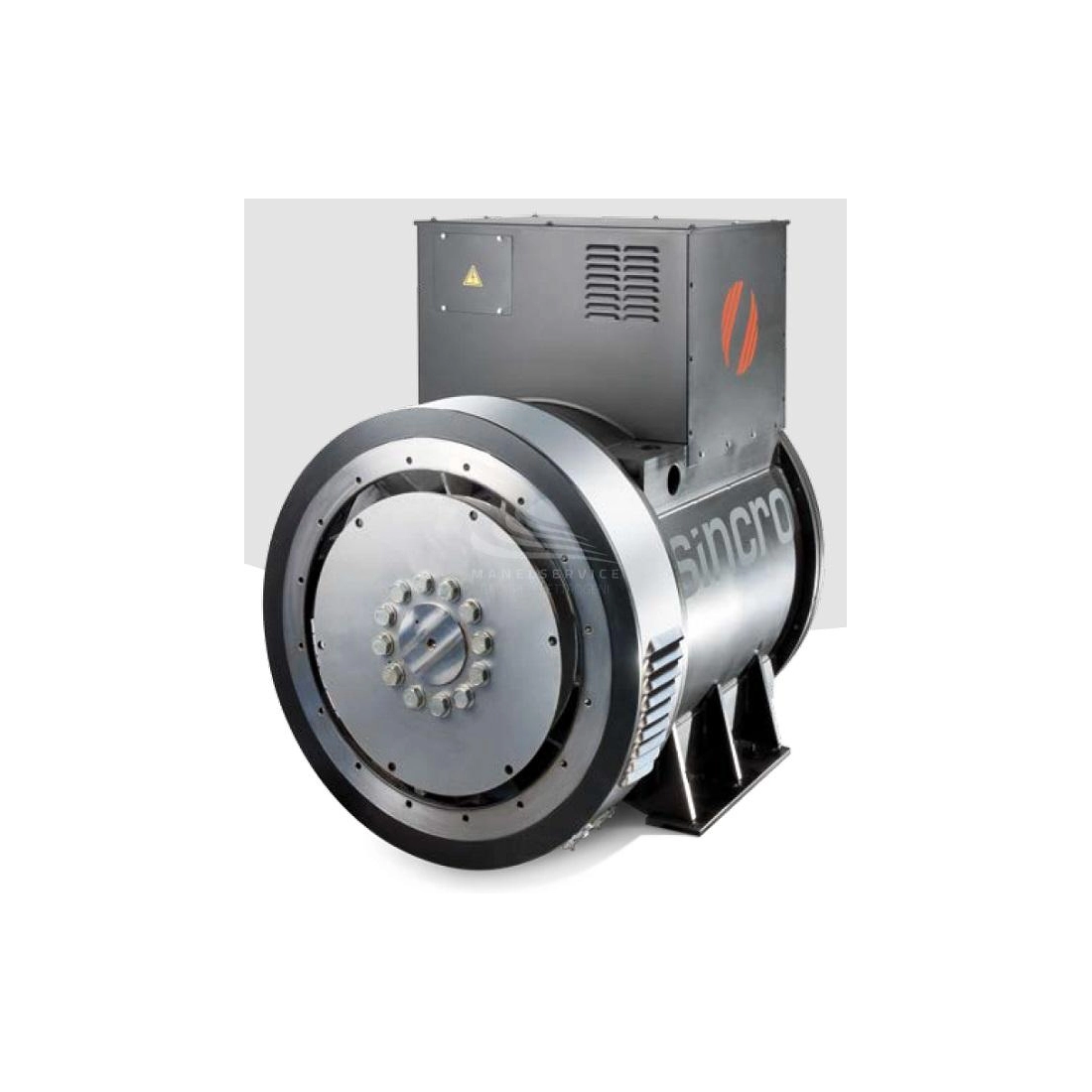

The images are purely indicative.
