SINCRO FTR2 LC Three Phase Synchronous AC Alternator 24 kVA D-AVR

      SINCRO FTR2 LC Three Phase Synchronous AC Alternator 24 kVA D-AVR
      SINCRO FTR2 LC Three Phase Synchronous AC Alternator 24 kVA D-AVR
      SINCRO FTR2 LC Three Phase Synchronous AC Alternator 24 kVA D-AVR
      SINCRO THREE PHASE ALTERNATOR FTR2
      SINCRO THREE PHASE ALTERNATOR FTR2 SINCRO THREE PHASE ALTERNATOR FTR2
      FTR2 LC J609b c25.4

      Phase: Three phase
      Poles: 2
      Voltage (V): 230 / 400
      Frequency (Hz): 50
      Rpm Speed: 3000
      Single Phase Output (kVA): ----
      Three Phase Output (kVA): 24
      Constant Speed Alternator
      D-AVR
      Brushes
      Weight (Kg): 82
      Protection: IP23

      List price
      2,135.00 € tax incl.
      1,750.00 € tax excl.
      Discounted Price
      1,294.34 € tax incl.
      1,060.94 € tax excl.
      Choose the type of coupling :
      Ask for availability
      Ask a question
      Offer on letterhead
      Download PDF
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      SINCRO
      FTR2 LC J609b c25.4

      Data sheet

      Phase
      Three phase
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      3000
      Poles
      2
      Three-phase power (KW)
      19.2
      Three-phase power (KVA)
      24
      Efficiency (%)
      87
      Protection degree
      IP23
      Dry weight (Kg)
      82
      Brushes
      Yes
      Type of alternator
      Constant Speed
      Voltage regulator
      Digital AVR

      Specific References

      New

      Three phase brushes alternator - DIGITAL AVR.

      - Self-regulated
      - IP23
      - Standard voltage 230/400 V - 50 Hz
      - Short circuit current greater than 3 In
      - Standard coupling IM B35 cone 25.4 / cone 35
      - Couplings IM B34, IM B35, SAE
      - DIGITAL AVR

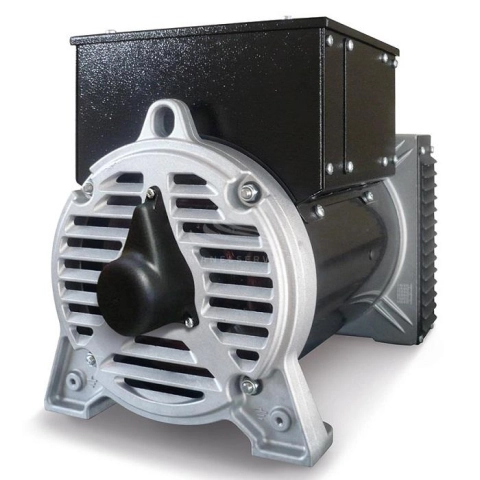

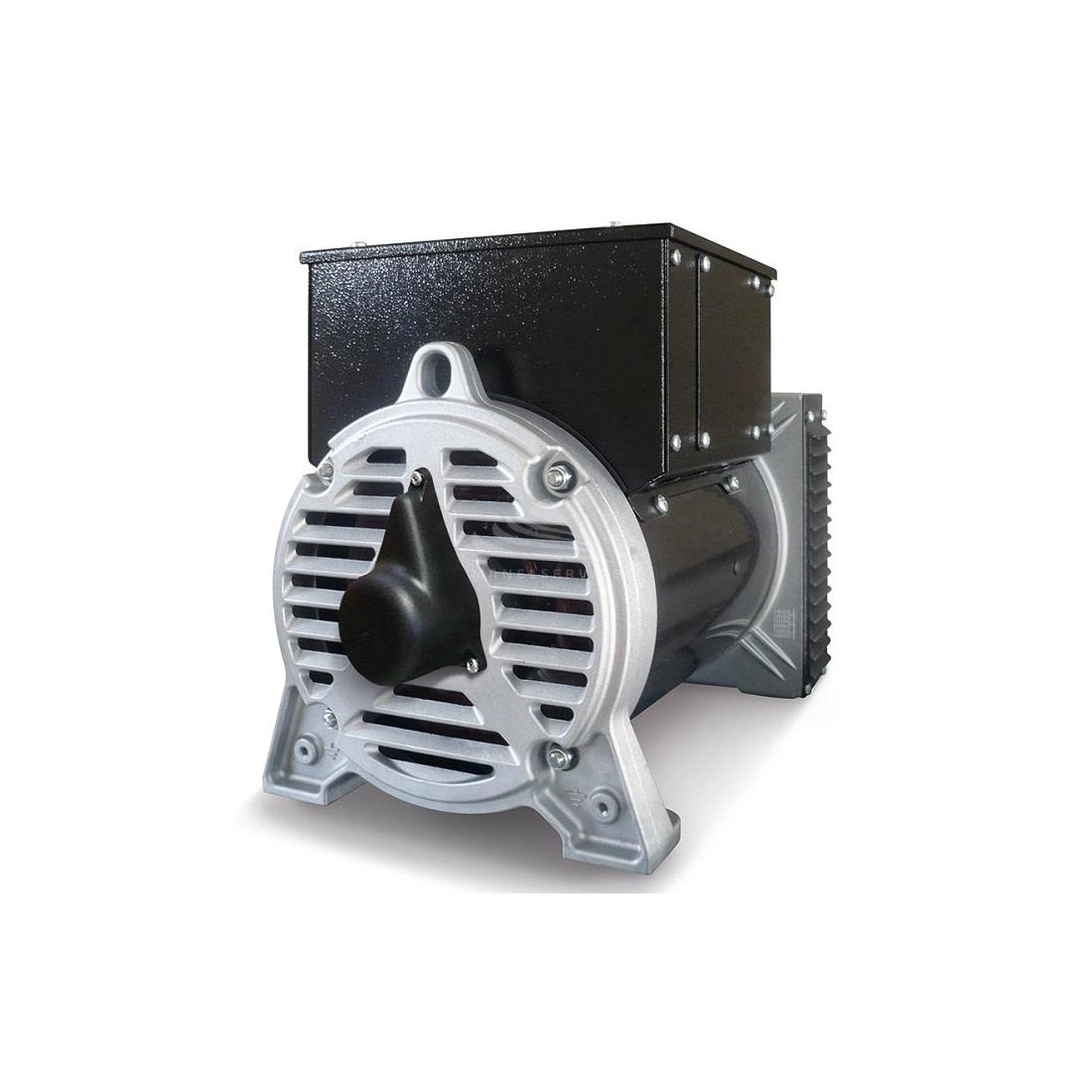

      The image is purely indicative.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
