SINCRO FB4 MA 10KVA AVR
      SINCRO FB4 MA 10KVA AVR
      SINCRO FB4 MA 10KVA AVR

      SINCRO FB4 MA 10KVA AVR

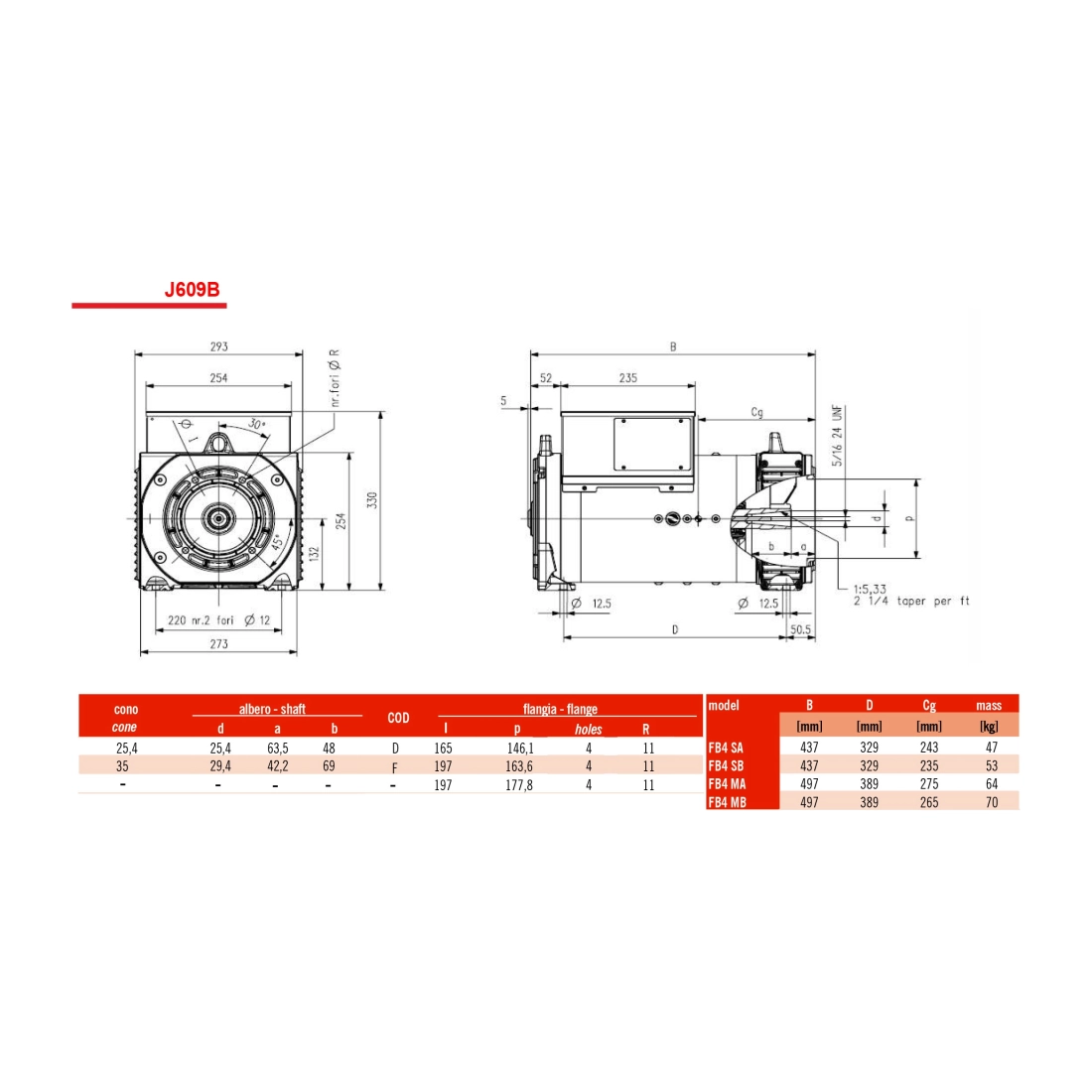

      FB4 MA J609b c25,4


      Phase: Single / Three Phase
      Poles: 4
      Voltage (V): 230 / 400
      Frequency (Hz): 50
      Rpm Speed: 1500
      Single Phase Output (kVA): 6
      Three Phase Output (kVA): 10
      Constant Speed Alternator
      AVR
      Brushless
      Weight (Kg): 68.5
      Protection: IP23

      Choose the type of coupling :
      Download PDF
      Custom Quote
      Product: SINCRO FB4 MA 10KVA AVR

      PERSONAL DATA


      Ask a question
      Product: SINCRO FB4 MA 10KVA AVR
      Offer on letterhead
      Product: SINCRO FB4 MA 10KVA AVR
      SINCRO
      FB4 MA J609b c25,4

      Data sheet

      Phase
      Single phase / Three phase
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      1500
      Poles
      4
      Single-phase power (KW)
      3.12
      Single-phase power (KVA)
      3.9
      Three-phase power (KW)
      5.2
      Three-phase power (KVA)
      6.5
      Efficiency (%)
      83
      Protection degree
      IP23
      Dry weight (Kg)
      51.5
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR

      Specific References

      New

      Three phase brushless alternator - AVR.

      - Insulation class H
      - IP23
      - Standard voltage 230/400 V - 50 Hz
      - Leads 6
      - Bearings: Bearings are dimensioned for heavy duty
      - Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
      - Single-phase operation: FB4 alternators can be connected for single-phase use

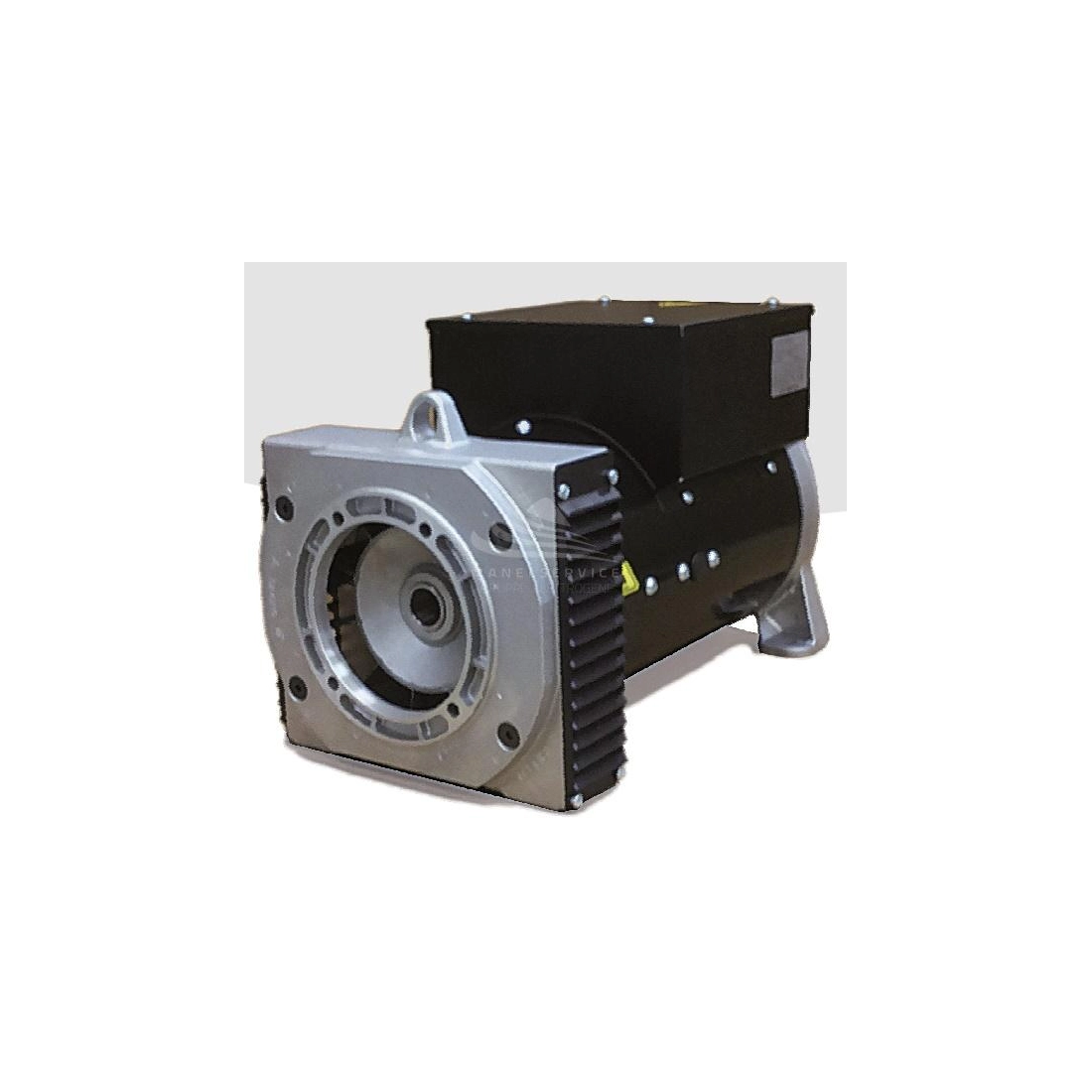

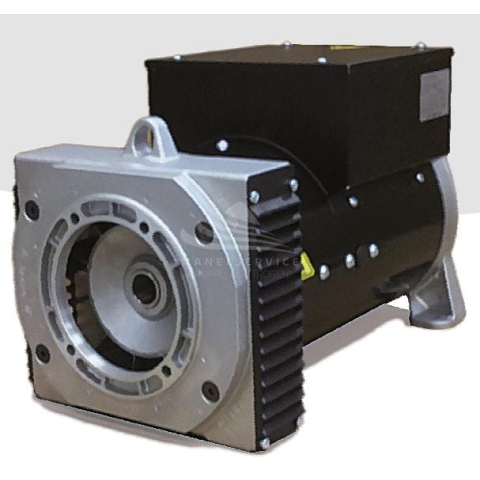

      The image is purely indicative.

      12 Leads for FB models.
          12 Leads for FB models.
          48.00 €Price
          Tropicalizzation of ventilation for FB models.
              Tropicalizzation of ventilation for FB models.
              89.00 €Price
              APD Advanced Parallel Device + Transformer for FB models.
                  APD Advanced Parallel Device + Transformer (parallel operation) for FB models.
                  286.00 €Price
                  Potentiometer (voltage remote control) for FB models.
                      Potentiometer (voltage remote control) for FB models.
                      132.00 €Price
                      RD2 Digital AVR (instead of the analogic AVR) for FB models.
                          RD2 Digital AVR (mounted on the alternator instead of the analogic AVR) for FB models.
                          200.00 €Price
