LINZ SLS18 MC Single-phase alternator 10 kVA 50 Hz with AVR
      LINZ SLS18 MC Single-phase alternator 10 kVA 50 Hz with AVR
      LINZ SLS18 MC Single-phase alternator 10 kVA 50 Hz with AVR

      LINZ SLS18 MC Single-phase alternator 10 kVA 50 Hz with AVR

      SLS18 MC 50 Hz SAE3 d6.5

      Rated power at 50 Hz (kVA): 10
      Rated power factor: 1
      Rated temperature (°C): 40
      Control system: self-excited
      Design: brushless
      Type of regulation: capacitor
      Insulation class: H
      Protection: IP23
      1500 rpm
      Maximum excess travel speed (rpm): 2250
      110% overload of rated power for one hour in a 6-hour cycle
      Airflow requirement (m3/min): 5.5 at 50 Hz
      Suppression standard R.F.F.I. EN55011

      List price
      2,227.72 € tax incl.
      1,826.00 € tax excl.
      Discounted Price
      1,790.45 € tax incl.
      1,467.58 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      LINZ ELECTRIC
      SLS18 MC 50 Hz SAE3 d6.5

      Data sheet

      Phase
      Single phase
      Continuous power single phase (KW)
      10
      Continuous power single phase (KVA)
      10
      Frequency (Hz)
      50
      Voltage (V)
      220 / 230 / 240
      Engine rpm (rpm)
      1500
      Alternator
      Synchronous, brushless
      Poles
      4
      Single-phase power (KVA)
      10
      Protection degree
      IP23
      Motor insulation class
      H
      Length (mm)
      370
      Width (mm)
      450
      Height (mm)
      450
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      112

      Specific References

      New

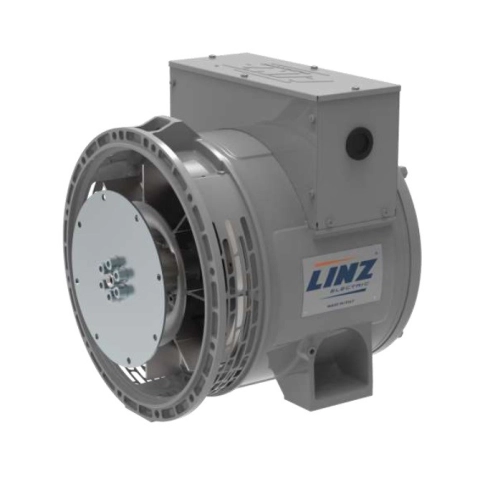

      LINZ SLS18 MC ALTERNATOR 10KVA SINGLE-PHASE

      Alternator LINZ SLS18 MC Singlephase with a power of 10KVA, this unit has a Brushless operation equipped with AVR voltage regulator.

      The alternator is foreseen for the operation at frequency 50 or 60 HZ, the possibility to work on these two frequencies makes possible the application for any service voltage increasing its versatility, for the correct operation.

      All components that make up the LINZ SLS18 MC alternator are subjected to a specific coating and/or impregnation process to safeguard the functionality of the generator and to protect the critical peers in various conditions of use.

      LINZ SLS18 MC is a brushless alternator, this feature together with the high efficiency of the regulator ensure a low level of interference with radio waves.

      Linz alternators are all equipped with a voltage regulator, in the case of the SLS18 MC AVR model.

      The voltage regulator is an electronic device that regulates the alternating current coming from the alternator and transforms it into direct current.

      In our field voltage regulators are widely used in the latest generation of synchronous generators.

      All synchronous machines need an electronic control system to work, and this device, known as "voltage regulator" or "AVR" (acronym of Automatic Voltage Regulator), guarantees the good working of the machine and above all of the electric network underneath it.

      Select the alternator that reflects thetechnical specifications you require, visit our dedicated section to understand how.

      TECHNICAL FEATURES LINZ SLS18 MC

      Phase Type: Single-phase
      Maximum singlephase output: 9.6 KW
      Maximum singlephase continuous output: 8.0 KW
      Maximum singlephase output: 12 KVA
      Maximum singlephase continuous output: 10 KVA
      Frequency: 50-60 Hz
      Voltage: 230 V
      Protection Class: IP23
      Isolation class: H
      Alternator speed: 1500 rpm
      Efficiency: 83.6%
      Number of poles: 4
      Weight: 112 Kg
      Brushless
      Voltage regulator: AVR
      Type of alternator: constant speed

      Looking for a product with different features? Here you can find the full range LINZ and other specialized brands.

      Images and technical data are not binding and subject to change by the manufacturer

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
