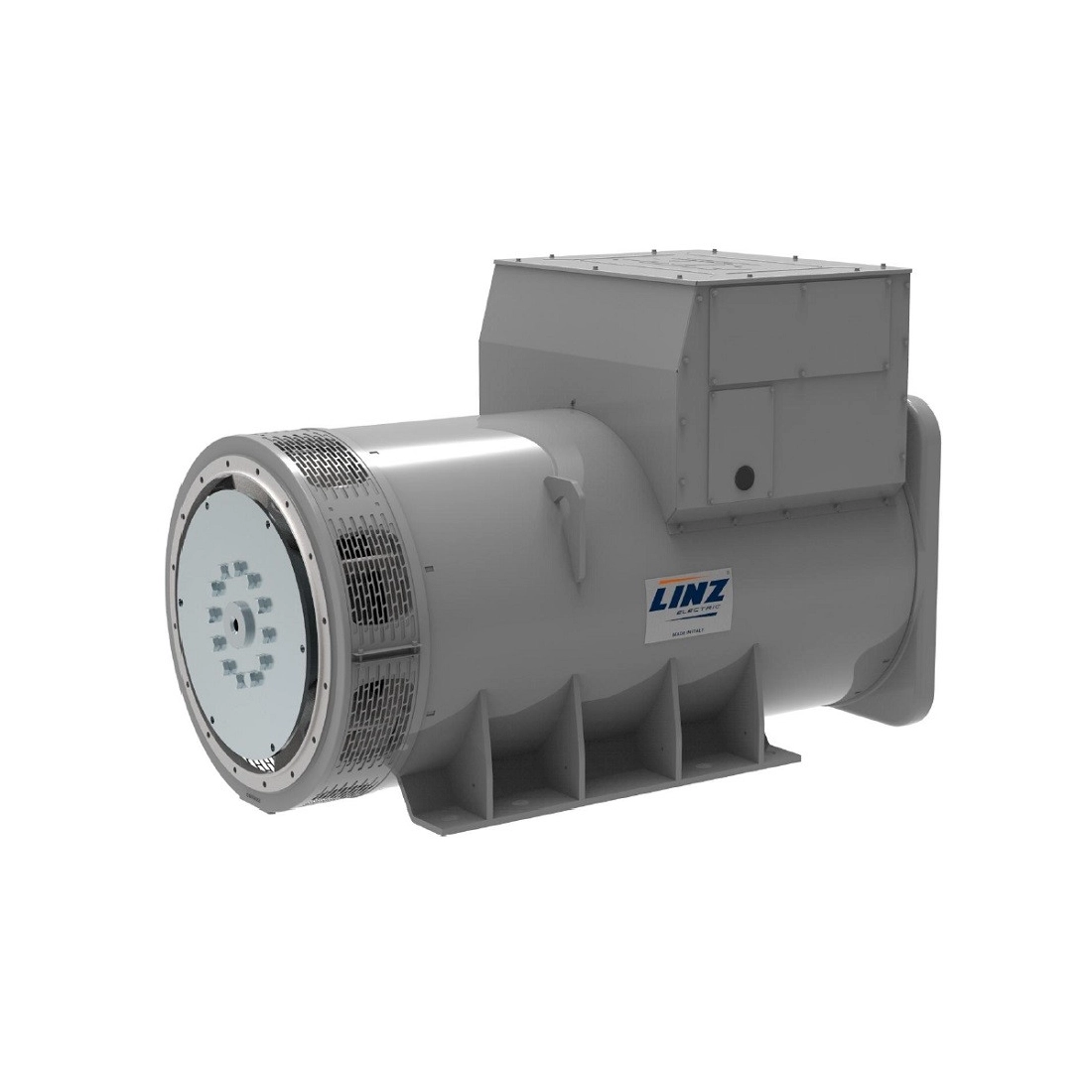

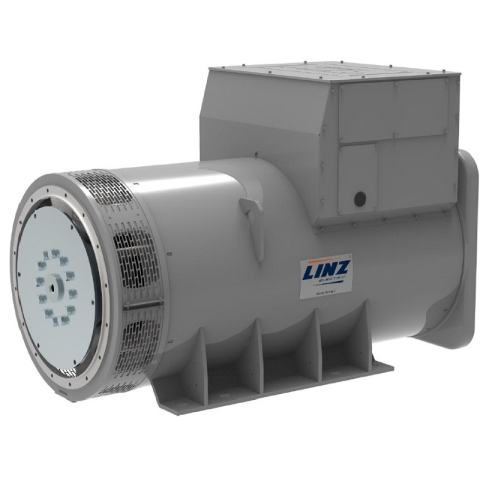

LINZ PRO40L E/4 Three-phase alternator 4 poles 1800 kVA 60 Hz AVR

  • New
LINZ PRO40L E/4 Three-phase alternator 4 poles 1500 kVA 50 Hz AVR
search
  • LINZ PRO40L E/4 Three-phase alternator 4 poles 1500 kVA 50 Hz AVR
  • LINZ PRO40L E/4 Three-phase alternator 4 poles 1500 kVA 50 Hz AVR
LINZ ELECTRIC
PRO40L E/4 60 Hz SAE0 d14
New product

Rated power at 60 Hz (kVA): 1800
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KVA)
1800
Frequency (Hz)
60
Voltage (V)
230 / 400
Engine rpm (rpm)
1800
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
1500
Protection degree
IP23
Motor insulation class
H
Length (mm)
1625
Width (mm)
800
Height (mm)
1110
Brushes
No
PMG
Optional
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
3275
Details

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

CHARACTERISTICS

  • Compact and mechanically resistant
  • Excellent wave form
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: INDUSTRIAL, COGENERATION

Related Accessories
List price
60.930,46 € tax incl.
49.943,00 € tax excl.
Discounted Price
33.077,80 € tax incl.
27.112,95 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
