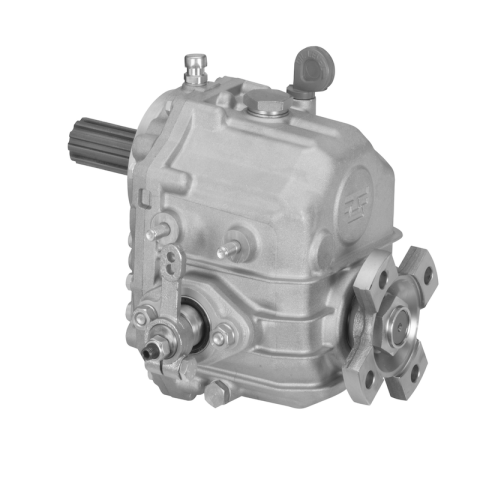

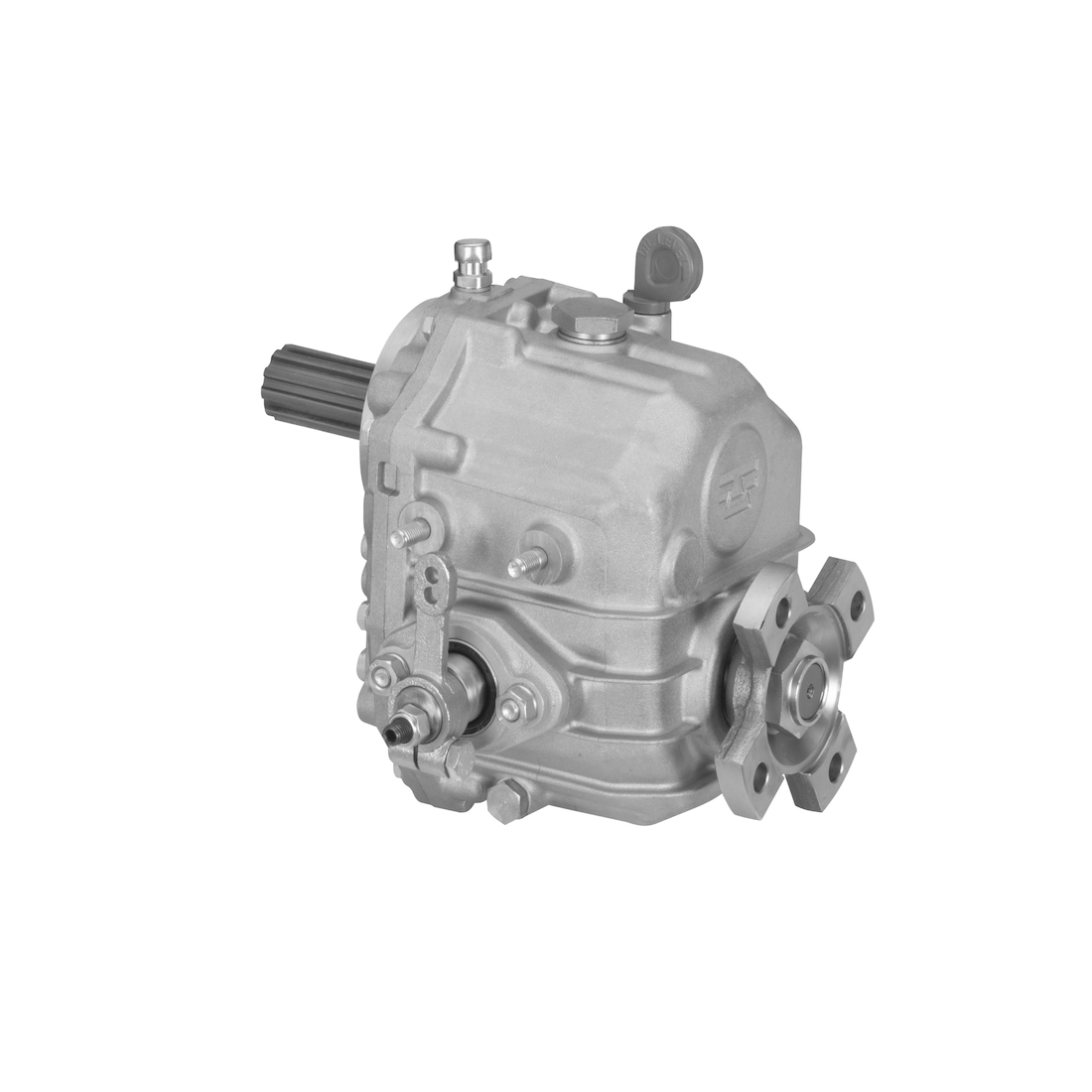

TMC40P Marine Inverter

Marine Inverter TMC40P is the ideal choice for those who want a reliable

high-performance and silent product for your boat.

Key features:

Servo-assisted mechanical conical clutches: guarantee smooth and precise engagement,

without jerks or annoying noises.

Specially designed gears: reduce operating noise to a minimum,

provide smoother running and improved durability.

Generously dimensioned bearings: ensure high reliability and a long service life.

OPTIONAL:

Bell housing: available in BW or SAE 5 version

Cotter guard: included for greater system protection

Cable bracket: facilitates installation and maintenance

Technical Specifications Marine TMC40P Inverter

Bell housing: available in BW or SAE 5 version
Cotter guard: included for enhanced system protection
Cable bracket: facilitates installation and maintenance
Maximum motor speed: 4500 Rpm
Maximum motor power: 26 Kw
Maximum power in reverse: limited to 33% of engine power
Reverse ratio: 2.13
Dry weight: 8.8 Kg
Oil quantity: 0.20 L
Oil type: ATF

The TMC40P marine inverter is made of high-quality, corrosion- and wear-resistant materials.

The die-cast aluminium housing guarantees strength and lightness at the same time.

The internal components undergo rigorous quality control to ensure maximum reliability.

If you are looking for a product with similar specifications to Marine Inverter TMC40P click HERE.

Images and technical data purely indicative.
