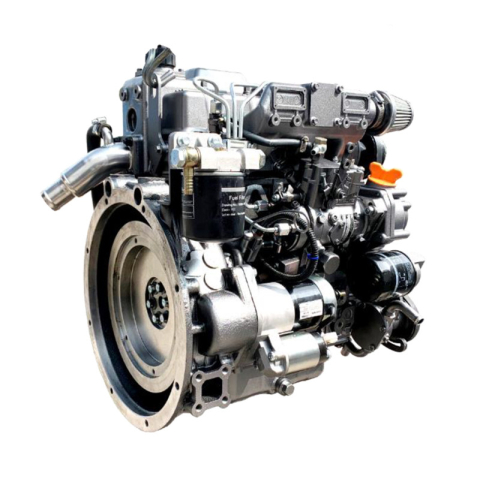

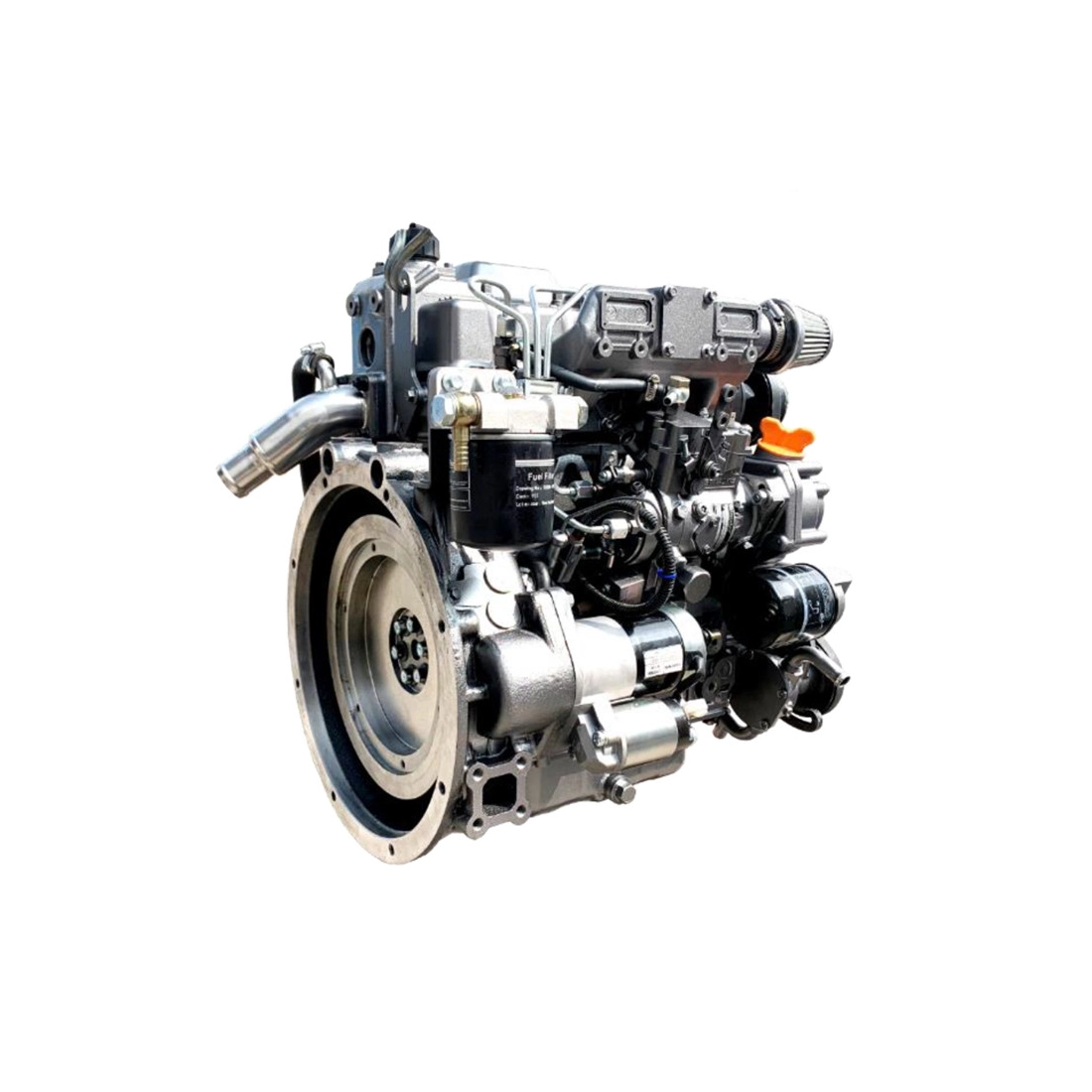

RAYWIN 3C11 MARINE ENGINE 18,5 KW DIESEL 3600 RPM

RAYWIN 3C11 is a four-stroke marine engine for marine applications, powered by Diesel, capable of delivering a net power of 18,5 KW at 3600 rpm.

The RAYWIN 3C11 marine engines are recommended for a wide range of applications, thanks to the incredible power delivered, this marine engine can be used both for energy production by connecting to an alternator with SAE 5 coupling, and for the propulsion of the boat itself.

The indicated data was recorded on the RAYWIN 3C11 during production, and was measured according to the SAE 5 procedure at a specific number of revolutions. Variations with respect to these values ​​can be found in mass production. The power of the RAYWIN 3C11 installed in the machine can depend on many factors, including the number of revolutions at which the  marine engine is used, the environmental conditions, the level of maintenance and other variables.

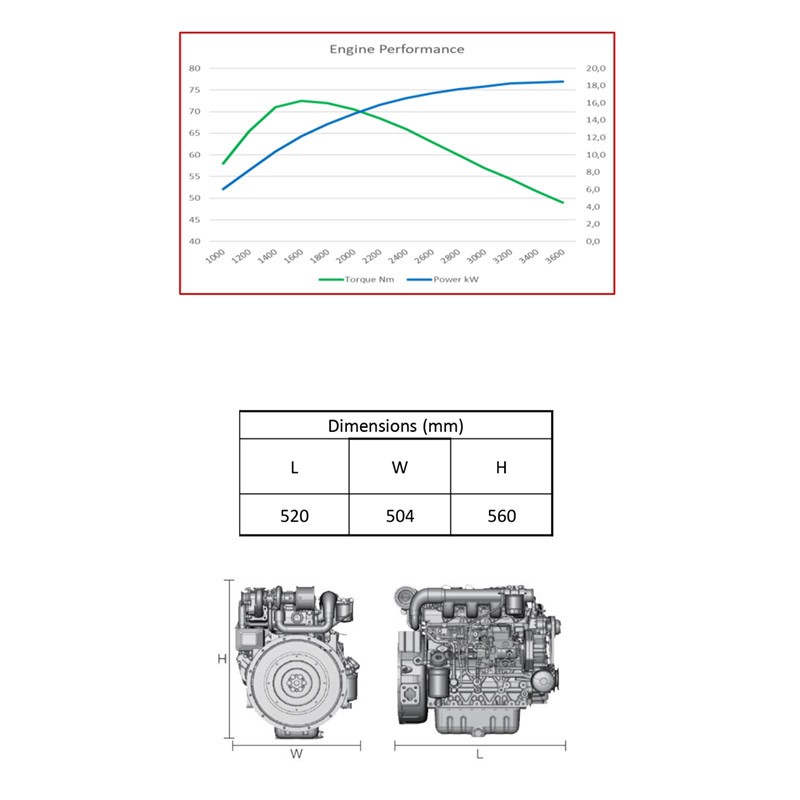

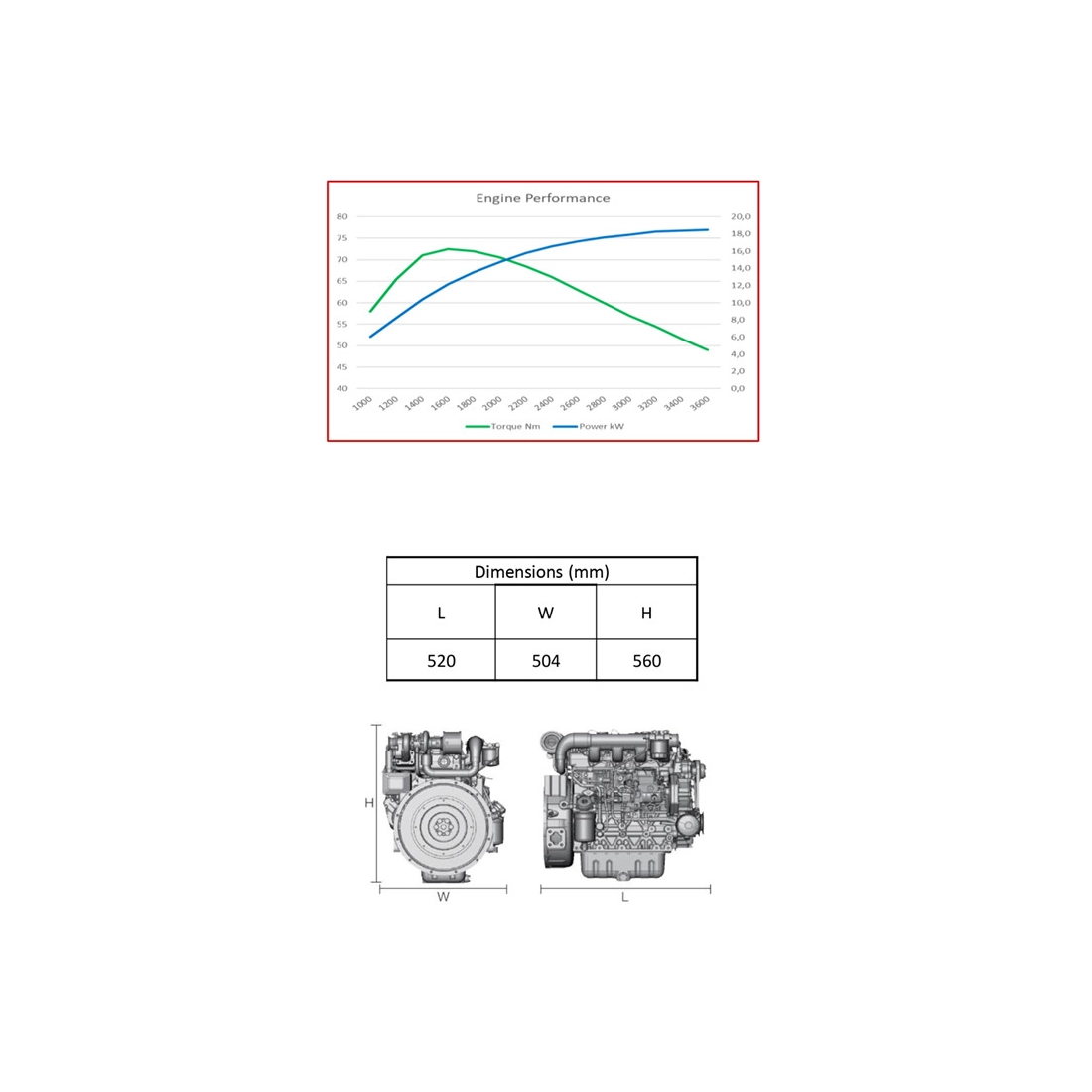

TECHNICAL FEATURES RAYWIN 3C11

Marine Engine type: RAYWIN 3C11
N ° cylinders: 3
Cylinder arrangement: In-line
Cooling: water-cooled with raw water pump
Bore x stroke: 76 x 78.4 mm
Displacement: 1 070 cc
Compression ratio: 24: 1
Net power: 18.5 kW (25 HP) / 3 600 rpm
Continuous rated power 1 500 rpm: 9 kW (12 HP)
Nominal continuous power 1800 rpm: 10 kW (13 HP)
Starting: electric
Induction system: naturally aspirated
Ignition order: 1 - 2 - 3
Flywheel (inch): 6.5
Flywheel housing: SAE 5
Emissions standard:
RCD II - for propulsion applications
Stage IIIA - for auxiliary applications
Length: 520 mm
Depth: 504 mm
Height: 560 mm
Dry weight 115 kg

Are you looking for an marine engine with different technical characteristics? HERE you can find the full range of RAYWIN engines or other specialized brands.

Images and technical data are not binding and may be subject to revision by supplier.
