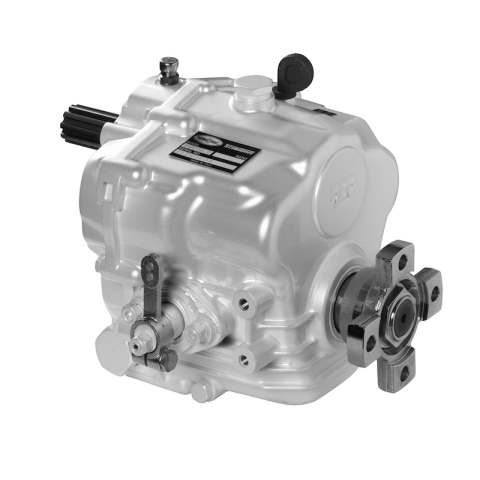

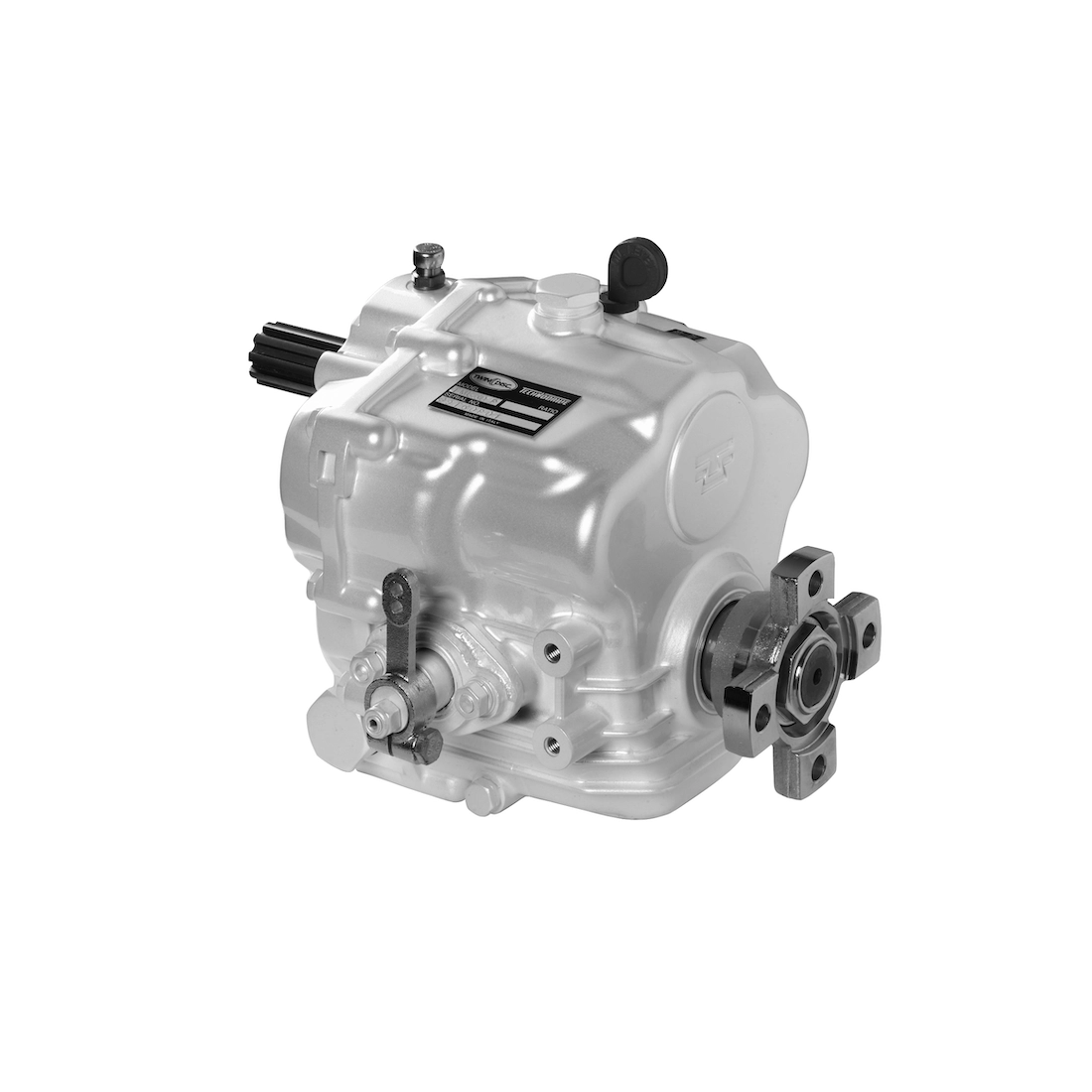

Marine Inverter TMC60P

The TMC60P Marine Inverter is a high-end product designed to deliver exceptional performance and unparalleled reliability.
With its mechanically driven servo-assisted bevel clutches, silent gears and generously dimensioned bearings
this inverter is capable of handling even the most demanding of vessels.
Unprecedented smoothness of travel: Enjoy a smooth and comfortable ride, as if you were gliding on water.
Durability: Trust the robustness of the TMC60P's gears, built to last and meet any challenge.

Marine Inverter TMC60P is not just a component, it is the beating heart of your boat,
the perfect combination of power and reliability.
Designed to meet the needs of those who want the most from their boat,
the TMC60P stands out for its high performance and attention to detail, offering an unrivalled sailing experience.

Key features:

Power-assisted mechanical cone clutches: they guarantee smooth and precise engagement, without jerks or annoying noises.
Specially designed gears: minimise operating noise.
of operation and offer greater running smoothness.
Generously dimensioned bearings: ensure high reliability and long service life.
Limited reduction ratio in reverse: ensures greater safety and manoeuvrability.
Available with different types of bellhousing: to adapt to any type of engine.
Optional cooling: for optimal operation even under heavy-duty conditions.

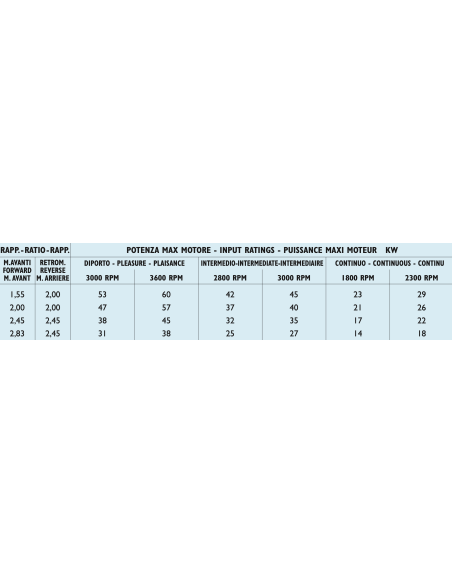

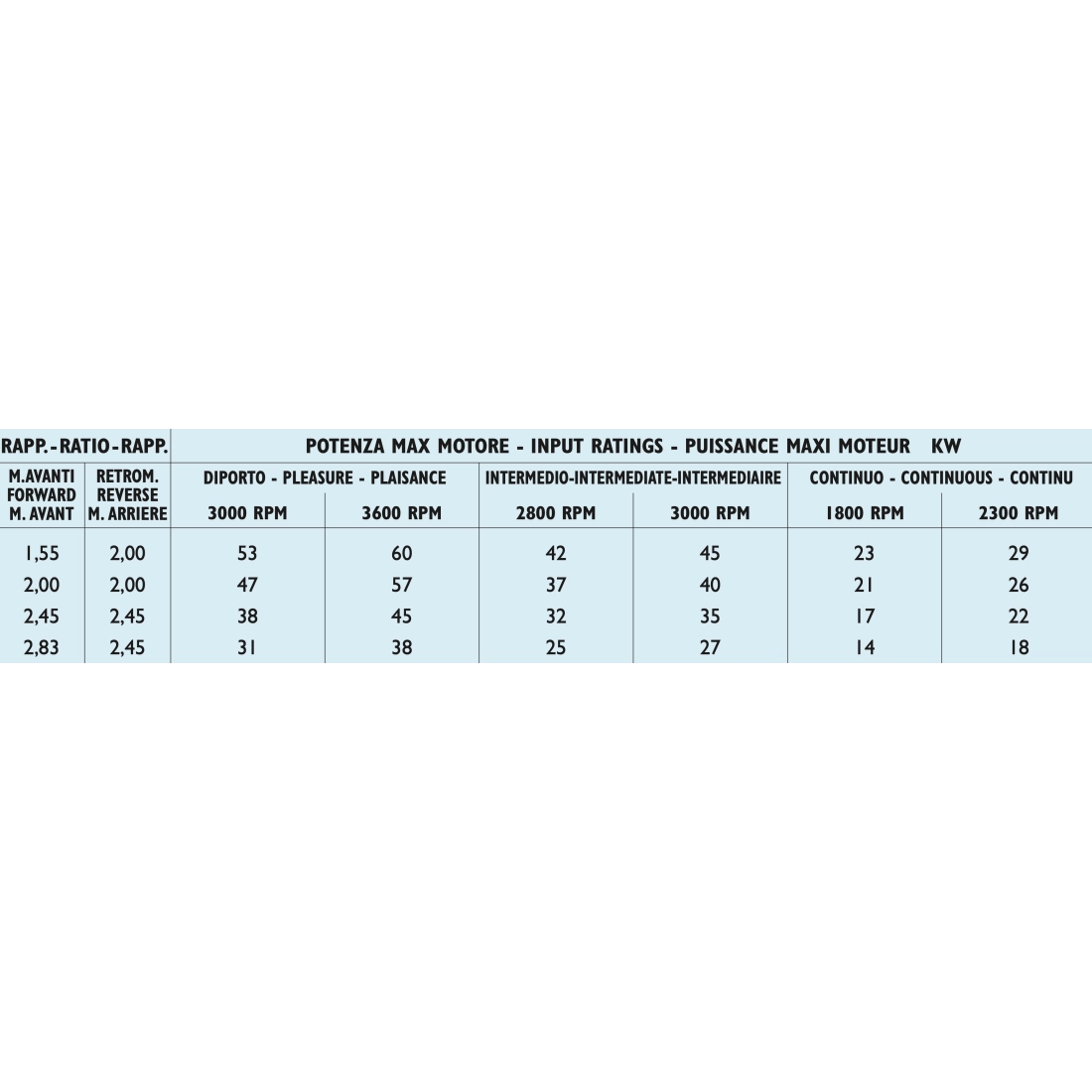

Technical Specifications Marine TMC60P Inverter:

Maximum motor speed: 5000 Rpm
Maximum motor power: 44 Kw
Dry weight: 14 Kg
Oil quantity: 0.65 L
Oil type: ATF

Torsional compatibility:

Torsional incompatibility can cause damage to the inverter components to the point of breaking.
At idling engine speeds, this incompatibility can cause transmission noise.
Technodrive is not liable for noise or damage to the inverter,
the coupling or other transmission parts caused by vibrations due to torsional incompatibility.
The analysis of torsional compatibility is the responsibility of the transmission assembler.

If you are looking for a product with similar specifications click HERE.

Images and technical data purely indicative.
