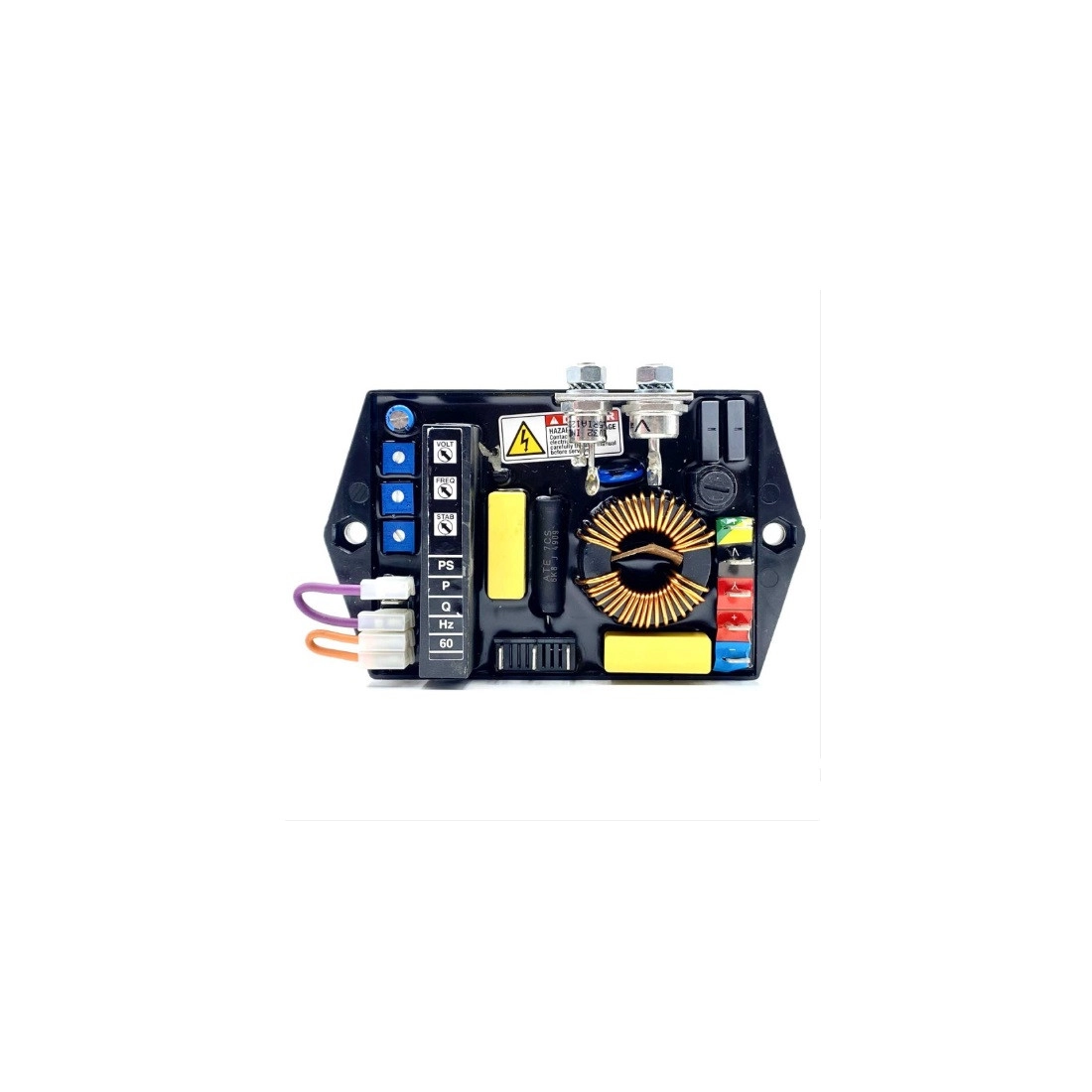

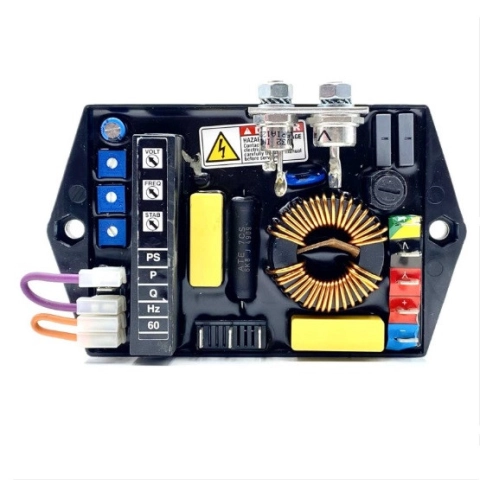

MARELLIMOTORI AVR M25FA645A
      MARELLIMOTORI AVR M25FA645A

      MARELLIMOTORI AVR M25FA645A

      10004750

      Power supply voltage: 170 ÷ 277 Vac @ 50/60 Hz
      Power supply source: Auxiliary windings, mains
      Voltage build-up: 5 Vac
      Voltage sensing type: 1-phase
      Voltage sensing range: 170 ÷ 277 Vac
      Maximum continuative field current: 0 ÷ 5 Adc
      Maximum forcing field current: 0 ÷ 8 Adc
      Maximum field voltage: 100 Vdc
      Field resistance: 8 Ω ÷ 20 Ω
      Regulation accuracy from no load to full load: ±0.5 %
      Steady state accuracy: ±0.1 %
      Accuracy with ±4% engine governing: ±1 %
      Thermal Drift: ±0.5 %
      Response time: 1 cycle
      Operating temperature: -30°C ÷ +70°C
      Storage temperature: -40°C ÷ +80°C

      Prezzo
      1,207.80 € tax incl.
      990.00 € tax excl.
      Shipped in 7-10 days from order
      Shipping from 9.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MARELLI MOTORI
      10004750

      Data sheet

      Frequency (Hz)
      50 / 60
      Temperature range for use (°C)
      Type of regulator
      Voltage
      Voltage regulator
      AVR
      Weight (Kg)
      1
      Supply Voltage
      Precision of voltage regulation
      ± 1%

      Specific References

      MARELLIMOTORI AVR M25FA645A ELECTRONIC VOLTAGE REGULATOR

      The MARELLIMOTORI AVR M25FA645A voltage regulator technologically advanced and extremely reliable with very compact dimensions and low costs.

      The MARELLIMOTORI AVR M25FA645A  an electronic device mounted on the alternators, which automatically adjusts the output voltage as the load varies. The electronic voltage regulator is mainly used to make the voltage stable and the current clean, thus avoiding sudden changes in voltage that can damage sensitive devices such as PCs, smartphones or connected appliances. The main and most common voltage regulators are the AVR and the inverter are modern, but in some alternators or generator sets there are also capacitor or compound regulators.

      It includes low speed protections; and overload protection with adjustable tripping threshold, 50/60 Hz operation, adjustable droop and the possibility of overloading. to adjust the voltage remotely.

      TECHNICAL FEATURES MARELLIMOTORI AVR M25FA645A

      REGULATION ACCURACY : +/- 1%
      VOLTAGE DRIFT: +/- 0.5 % voltage change, for 50°C ambient temperature change
      RESPONSE TIME: 1 cycle
      OPERATING TEMPERATURE: : -20 °C ÷ +60 °C
      EXCITER FIELD RESISTANCE: 3 W (min) ÷ 25 W(max)

      INPUT DATA:
      -SUPPLY VOLTAGE: 170 -270 V
      -POWER SUPPLY: 1000 VA (max)
      -POWER DISSIPATED: 30 W (max)
      -VOLTAGE SENSING: 170 – 270 V
      -OUTPUT VOLTAGE (DC): 30 V
      -OUTPUT CURRENT (DC):  8 A (max, continuos)
      -OUTPUT CURRENT (DC): 15 A (max forcing one minute)

      Are you looking for a regulator with different technical characteristics? HERE you can find the area dedicated to voltage regulators from Marelli or other specialized brands.

      Non-binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
