LUXTOWER Lux M11 Light Tower LED

Name: LUXTOWER Lux M11 Light Tower LED
Brand: LUXTOWER
SKU: LUXM11
Price: 8614 EUR
Availability: InStock

Phase type: Single-phase
Maximum single-phase power: 3.5 KVA
Voltage: 230 V
Fuel: Diesel
Engine: Kubota Z482
Engine speed: 1500 rpm
Lamp type: LED
Lamps: 4 x 320 W
Telescopic mast: Vertical
Illuminated area: 9300 m²
Lifting: Manual
Maximum height: 8 m
Mast rotation: 340°
Minimum dimensions: 1780 x 1380 x 2600 mm
Maximum dimensions: 2410 x 2520 x 8000 mm
Transportability: Slow Towing Cart
Wind stability: 80 km/h
Weight: 700 kg

List price

10,509.08 € tax incl.

8,614.00 € tax excl.

Discounted Price

10,509.08 € tax incl.

8,614.00 € tax excl.

Shipping from 215.00 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Product: LUXTOWER Lux M11 Light Tower LED

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: LUXTOWER Lux M11 Light Tower LED

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: LUXTOWER Lux M11 Light Tower LED

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference LUXM11

Data sheet

Phase: Single phase
Maximum power single phase (KVA): 3.5
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Engine: Kubota Z482
Emissions Regulations: STAGE V
Engine rpm (rpm): 1500
Starting system: Elettrico
Number cylinders: 2
Cooling: Liquid
Alternator: Linz Synchronous or equivalent
Maximum height (m): 8
Type of lamps: LED
Lamps: 4 x 320 W
Telescopic pole: Vertical
Illuminated area (m²): 9300
Lifting System: Manual lifting system
Mast rotation: 350°
With generator / Without generator: With generator
Transportability: Slow Trailer
Stability to wind (Km/h): 80 Km/h
Fuel tank capacity (L): 80
Consumption (L/h): 0.55
Running time (h): 145
Acoustic pressure: 65 dB(A) at 7 m
Silenced: Yes
Super silenced: Yes
Product type: Light tower
Engine manufacturer: Kubota
Weight (Kg): 700
Auxiliary socket (kVA): 1.3

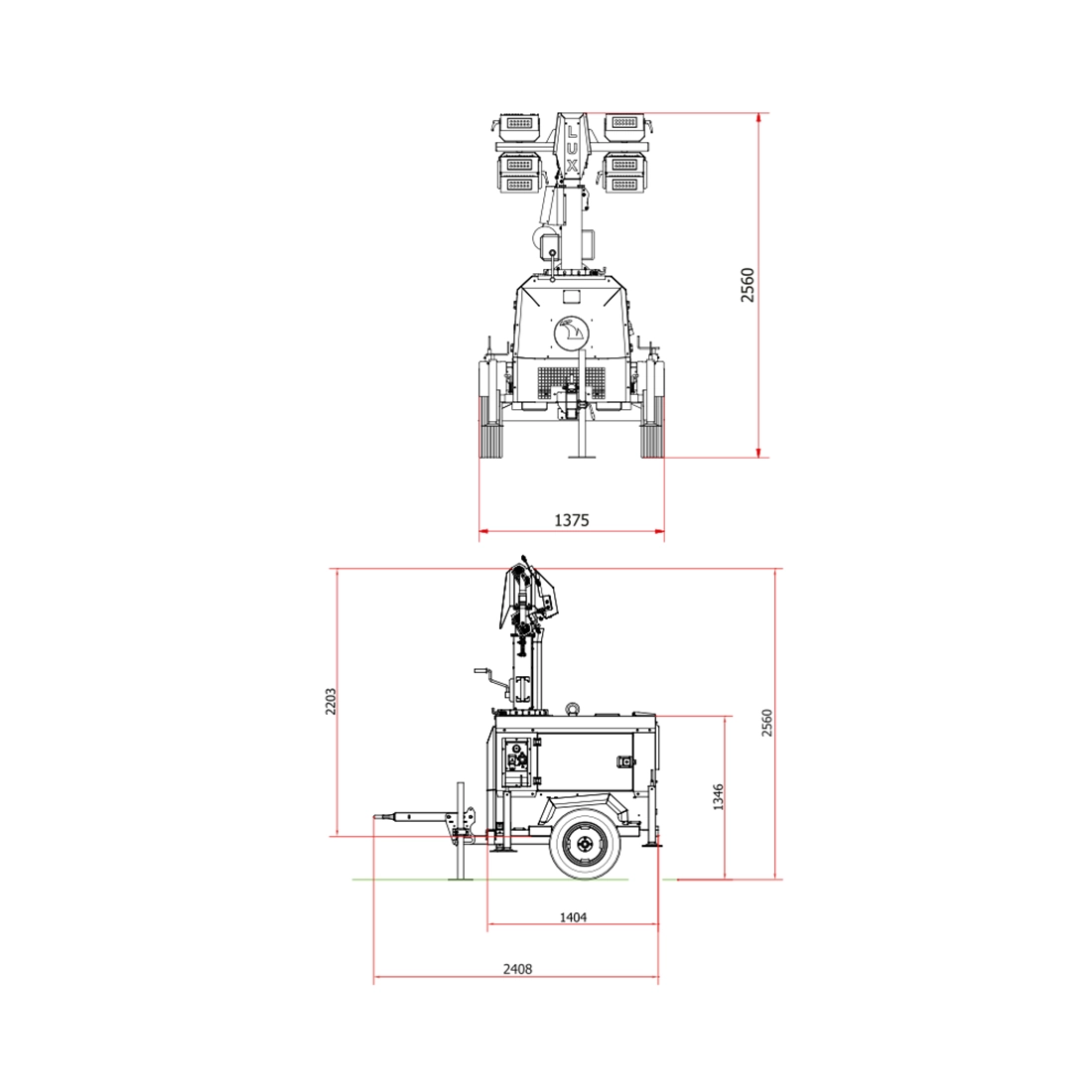

Dimensioni min. (mm): 1780 X 1380 X 2600
Dimensioni max. (mm): 2410 X 2520 X 8000

Specific References

Condition New

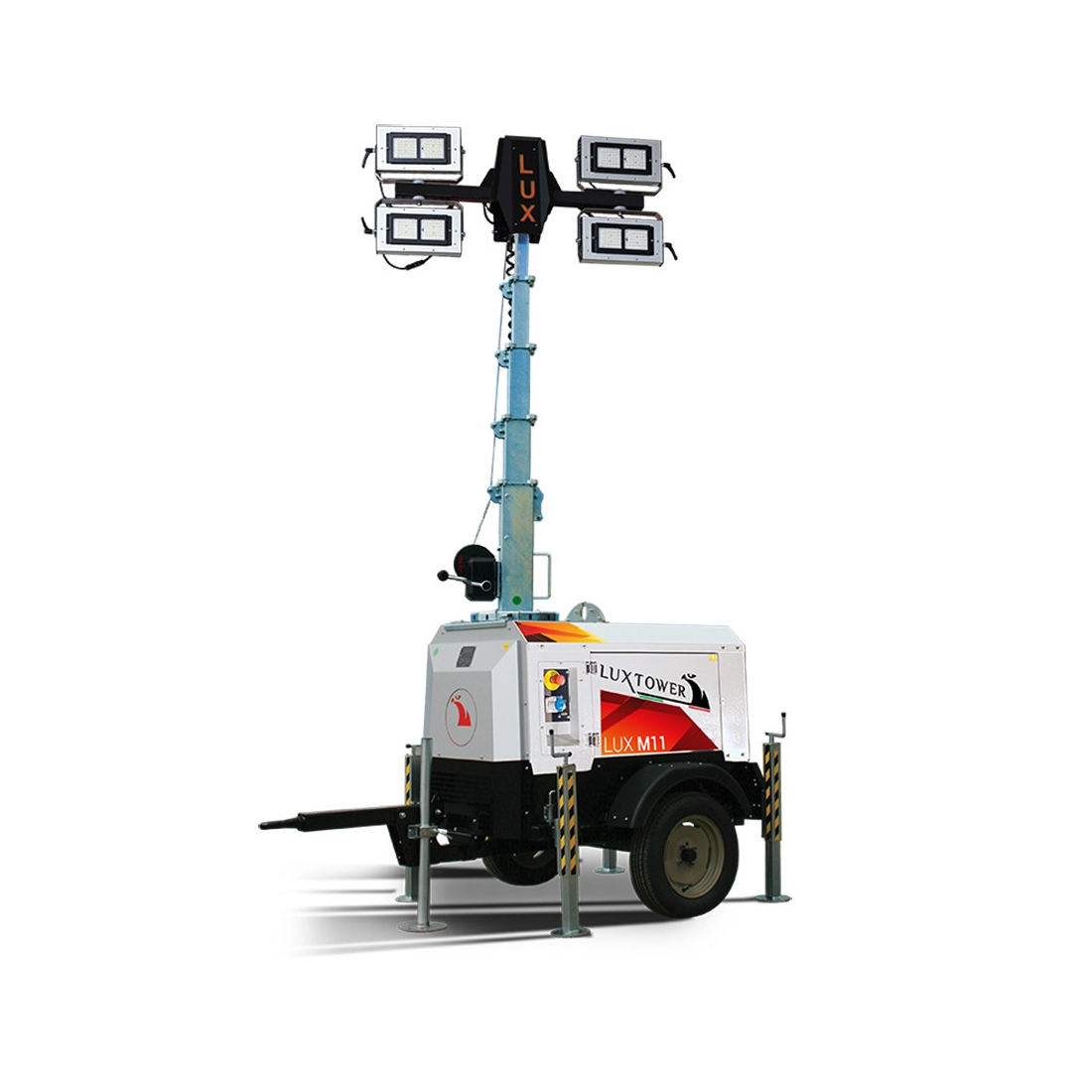

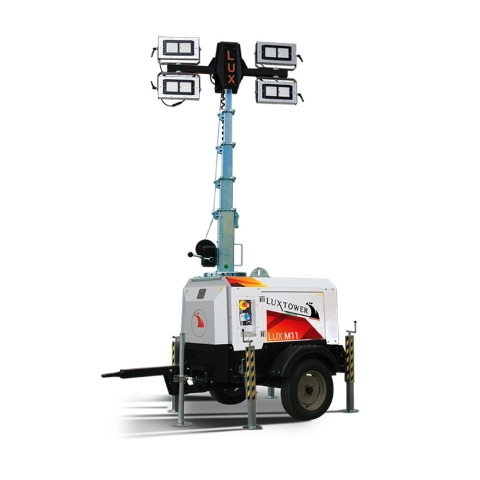

LUXTOWER LUX M11 LED LIGHT TOWER

The LUXTOWER Lux M11 LED Light Tower is a versatile and powerful lighting solution designed to deliver excellent performance in outdoor environments. The LUXTOWER Lux M11 is a compact and easily portable light tower capable of efficiently illuminating areas up to 9300 m², with a reduced environmental impact.
The LUXTOWER Lux M11 light tower is equipped with an 8-meter vertical telescopic mast, manually liftable, and 4x320 W high-efficiency LED floodlights.

The LUXTOWER Lux M11 light tower consists of a single-phase generator with 3.5 KVA power, featuring a Kubota Z482 diesel engine running at 1500 rpm and a soundproof enclosure, making it ultra-quiet. Thanks to its towing trailer setup, it can be easily maneuvered by a single operator.

The LUXTOWER Lux M11 is one of the brilliant results of a development process featuring the application of innovative LED technology. The new LED machines are ideal for the rental sector and stand out for their low consumption, compactness, robustness, and immediate usability.

Main Features of the LUXTOWER Lux M11:
LED Power: 4 x 320 W.
Rotation: 340°.
Wind resistance: up to 50 km/h.
Twilight sensor and remote control.
Kubota Z482 diesel engine.
Long autonomy, 80-liter fuel tank.
Low noise (65 db at 7 m).
Optional: LS version Kit DSE3110.

Unlike metal halide lamps, LED floodlights offer:
- Instant lighting, with no waiting time for cooling.
- Fuel savings of up to 60% compared to incandescent systems.
- Lamp life five times longer than traditional lamps.
- Low environmental impact with a CO2 reduction of about 50%.

The LUXTOWER Lux M11 light tower is the ideal solution for the following outdoor applications:
- Construction sites
- Rental companies
- Extraction sites
- Events

If you're looking for other light towers like the LUXTOWER M11, you can browse our full catalog dedicated to light towers from LUXTOWER or other brands.

Images and technical data are not binding. Please always consult the technical data sheet issued by the manufacturer. Manel Service accepts no liability for any changes made by the manufacturer.
