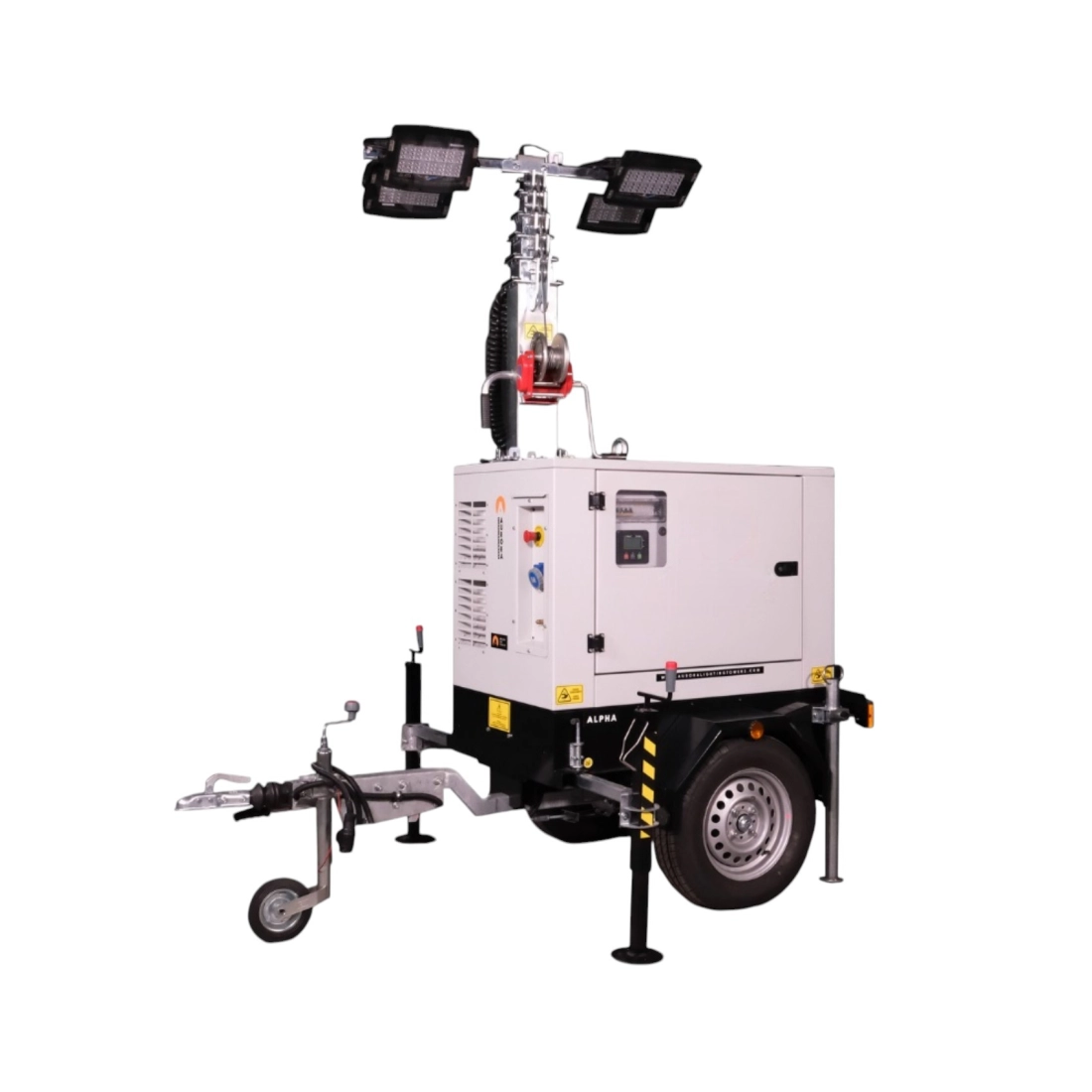

Stage V 4x320W Light Tower

Stage V 4x320W Light Tower

4x320W Light Tower: Powerful and Reliable LED Lighting The 4x320W light tower from   is the ideal solution for those seeking highly efficient, low-emission mobile lighting. Perfect for construction sites, events, and nighttime work areas, this diesel-powered light tower guarantees excellent performance and long battery life.

Lighting and Performance Specifications The light tower is equipped with a powerful 4 x 320W Multi-LED light system that delivers an impressive 255,000 lumens of brightness, Illuminated Area: 8,800. The maximum mast height is 7.60 m with manual lifting and 350-degree rotation.
Resistance: Designed to withstand a maximum wind speed of 100 km/h

Engine, Efficiency, and Battery Life This light tower is powered by a Kohler 15LD350 diesel engine, which complies with STAGE V emissions standards, ensuring a reduced environmental impact. Exceptional Battery Life: With an 80-liter tank and a fuel consumption of just 0.55 liters/hour, it offers up to 145 hours of battery life with the lights on.
Quiet Operation: The noise level at 7 meters is only 61 dB (A).

Additional Features and Safety The unit is mounted on a trailer approved for road use and is equipped with all the main safety and control features: Control: InteliNano AMF5 ComAP control unit, battery disconnect switch, and emergency stop. Hood and Frame: Made of galvanized steel with engine fluid/fuel collection tray. Manoeuvrability: Equipped with 4 manual stabilizers (plus 1 on the wheel) and guides for the passage of the forks (forklift pockets).

Technical Features:
Fuel: Diesel
Frequency: 50
Voltage: 230
Engine rpm : 3000
Starting: Electric
Type of lamps: MULTILED
Illuminated area: 8,800
Total lumens: 255,000
Lifting: Manual lifting system
Maximum height: 7.6
Dimensions open mm: 2026 mm x 1804 mm x 7600 mm
Dimensions closed mm: 2026 mm x 1140 mm x 2390 mm
Wind stability (Km/h): 100
Dry weight (Kg): 525
Pole rotation: 350
Brand Engine: Kohler 15LD350
Lamps: 4 x 320 Multiled
With generator / Without generator: With generator
Emissions Regulation: Stage 5
Cooling: Air
Displacement (cc): 349
Tank capacity (L): 80
Autonomy (h): 145
Alternator: Linz Electric – Alumen
Protection class: {IP}21
Insulation class: H
Control unit: InteliNano {AMF}5 ComAP
Lifting hook: Standard
Fixed drawbar: Standard
Manual outriggers: 4 + 1 (Wheel)
Operating temperature: -25 / - 50 {C}
Noise pressure (dB(A): 61
