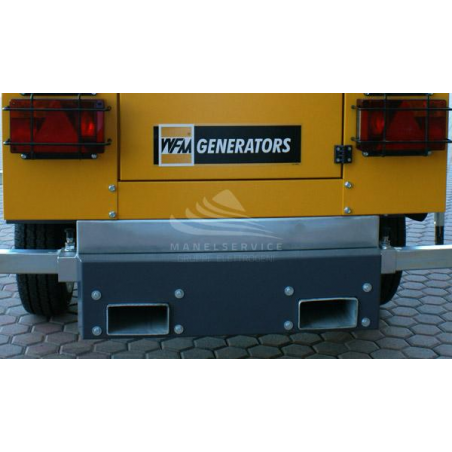

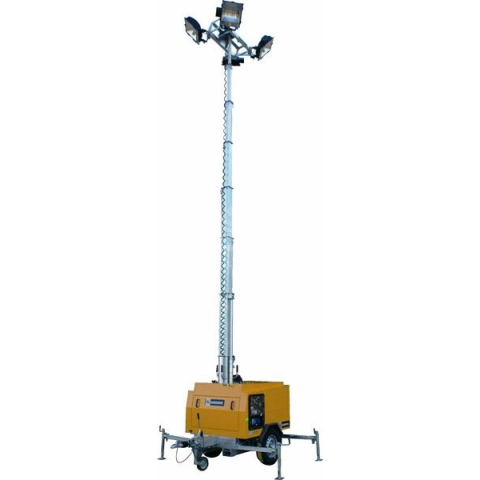

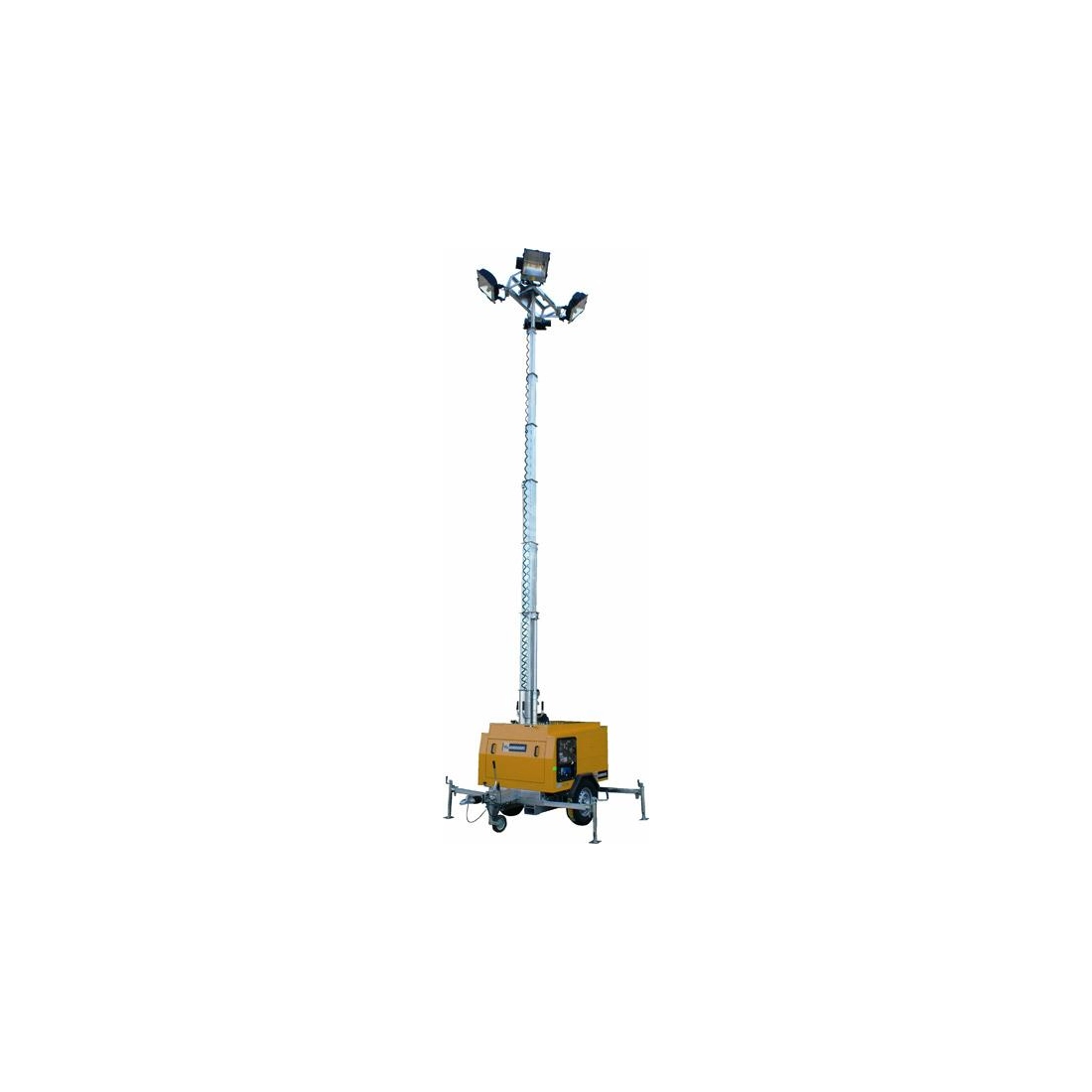

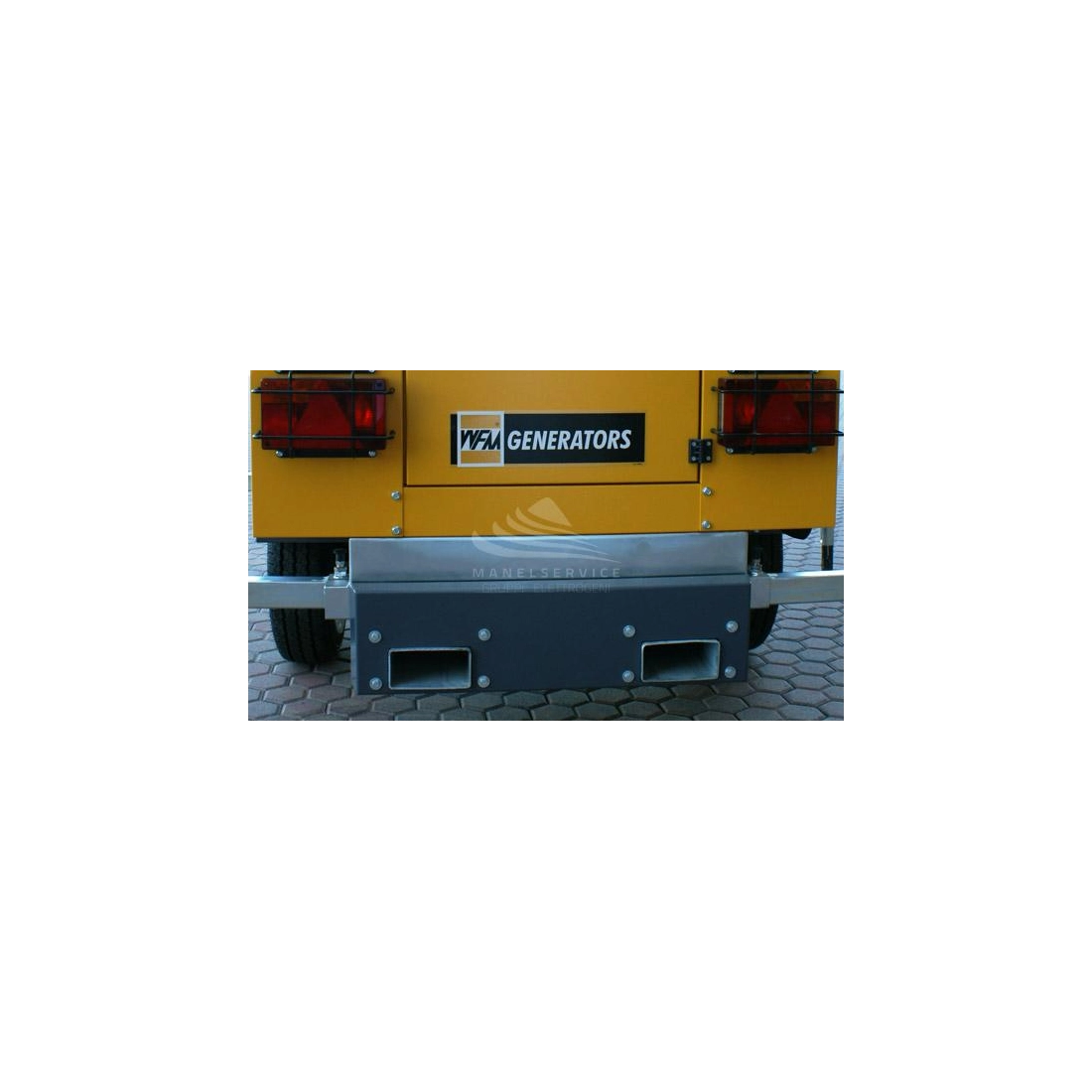

WFM TD-8000IM Metal Halide Lighting Tower with 8.8 kVA Genset

Name: WFM TD-8000IM Metal Halide Lighting Tower with 8.8 kVA Genset
Brand: WFM
SKU: 06039
Price: 16267.48 EUR
Availability: InStock

Reference 06039

Maximum Height (mt.): 9
Lifting System: Hidraulic
Illuminated Area: -----
Floodlihts: Metal Halide
Projectors: 4 x 1000 W
Transportability: fast tow trailer
Wind Stability (Km/h): Not reported
Mast rotation: 360°
Stabilizers: 4
Min. Dimensions (mm): 2450 x 1300 x 2300
Max. Dimensions (mm): 2450 x 2800 x 9200
Dry Weight (Kg): 1030
Single Phase Max. Output (kVA): 8.8
Engine: Perkins 403D-1163
Voltage: 230 V
Lumen (Lm): 80000
Tank Capacity (l): 140
Consumption (l/h): 1.64
Operating Time (h): 85

Prezzo

13,334.00 € tax excl.

16,267.48 € tax incl.

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 06039

Data sheet

Phase: Single phase
Maximum power single phase (KW): 7
Maximum power single phase (KVA): 8.8
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Sockets configuration: 1 x 230V 32A
Engine: Perkins 403D-1163
Starting system: Electric
Engine capacity (cm³): 1131
Number cylinders: 3
Oil capacity (L): 6
Type of lamps: Metal halide
Lamps: 4 x 1000 W
Telescopic pole: Galvanized steel
Total lumens (Lm): 80000
Lifting System: Hydraulic lifting system
Maximum height (m): 9
Mast rotation: 360°
Open size (mm): 2450 x 2800 x 9200
Lenght closed (mm): 2450
Width closed (mm): 1300
Height closed (mm): 2300
Transportability: Fast Trailer
Fuel tank capacity (L): 140
Consumption (L/h): 1.64 at 100% of the load
Running time (h): 85 at 100% of the load
Acoustic power: 90 dB(A)
Acoustic pressure: 65 dB(A) at 7 m
Dry weight (Kg): 1030

Specific References

Condition New

Key features of the WFM TD-8000IM lighting tower

- Lighting tower hidraulic 9 mt.
- Mast rotation 360°
- 4 1000W metal halide floodlights
- Genset and alternator of leading brands
- Tank 140 lt., operating time 85 hours
- Noise 65 dbA at 7 meters.

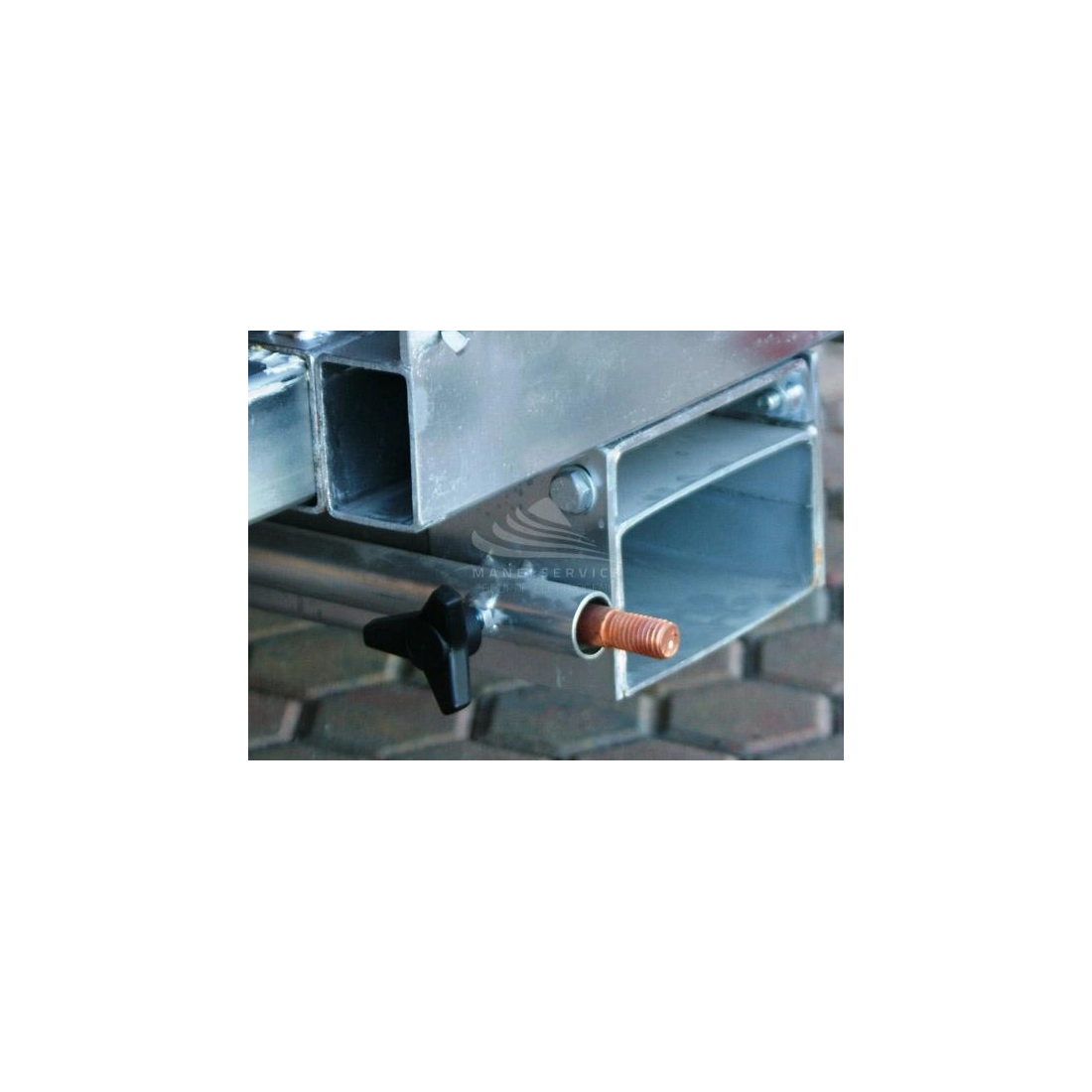

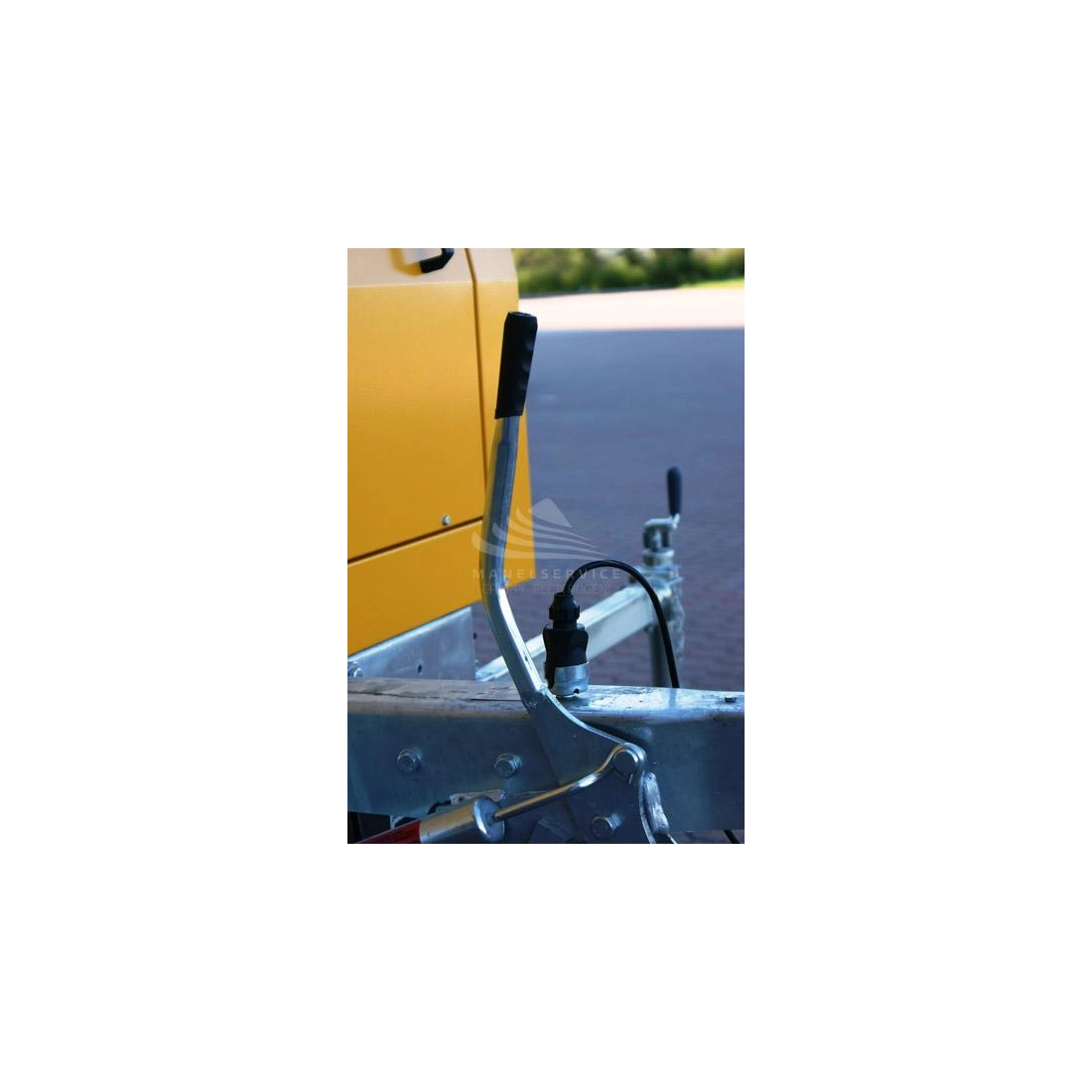

- Stabilizer feet and parking brake for a high level of operational safety
- Full load test with test certificate
- User's manual in compliance with safety regulations

Le immagini sono puramente indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
