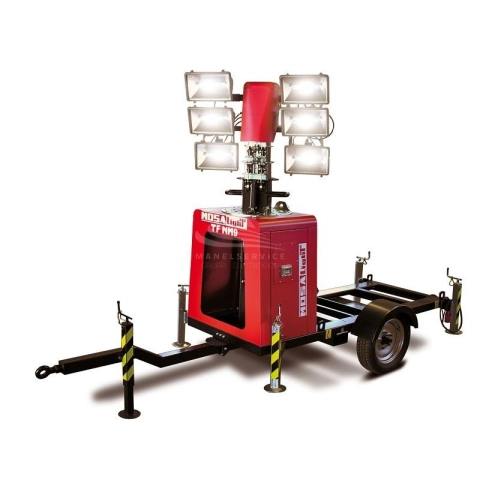

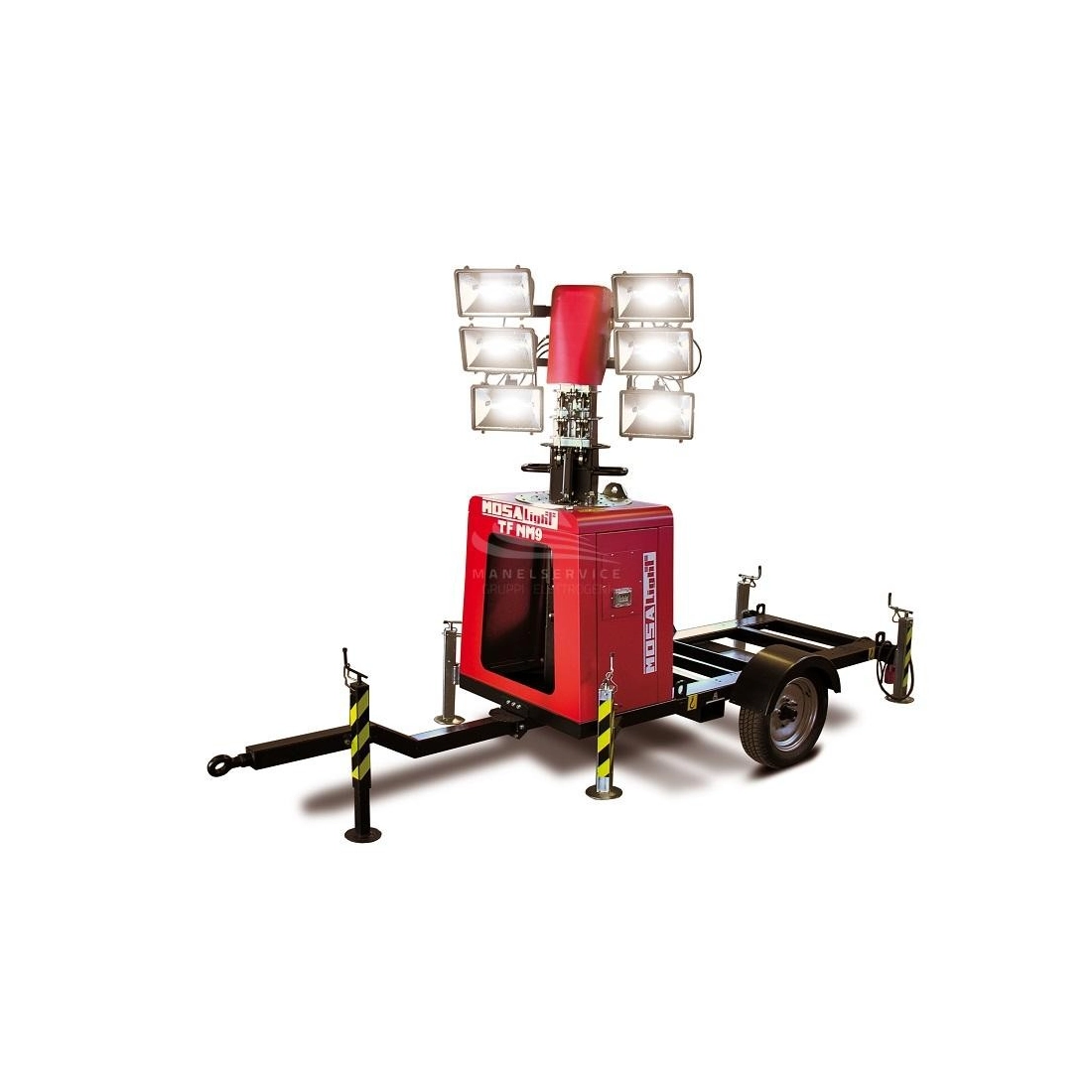

MOSA TF NM9 L-4x240 LED LIGHTER TOWER

MOSA TF NM9 L-4x240 is a light tower equipped with 4 x 240W halogen lamps, providing a high illuminated area of over 4800 square meters.

MOSA TF NM9 L-4x240 are mobile lighting units designed to ensure maximum reliability of operation even in the harshest environments.

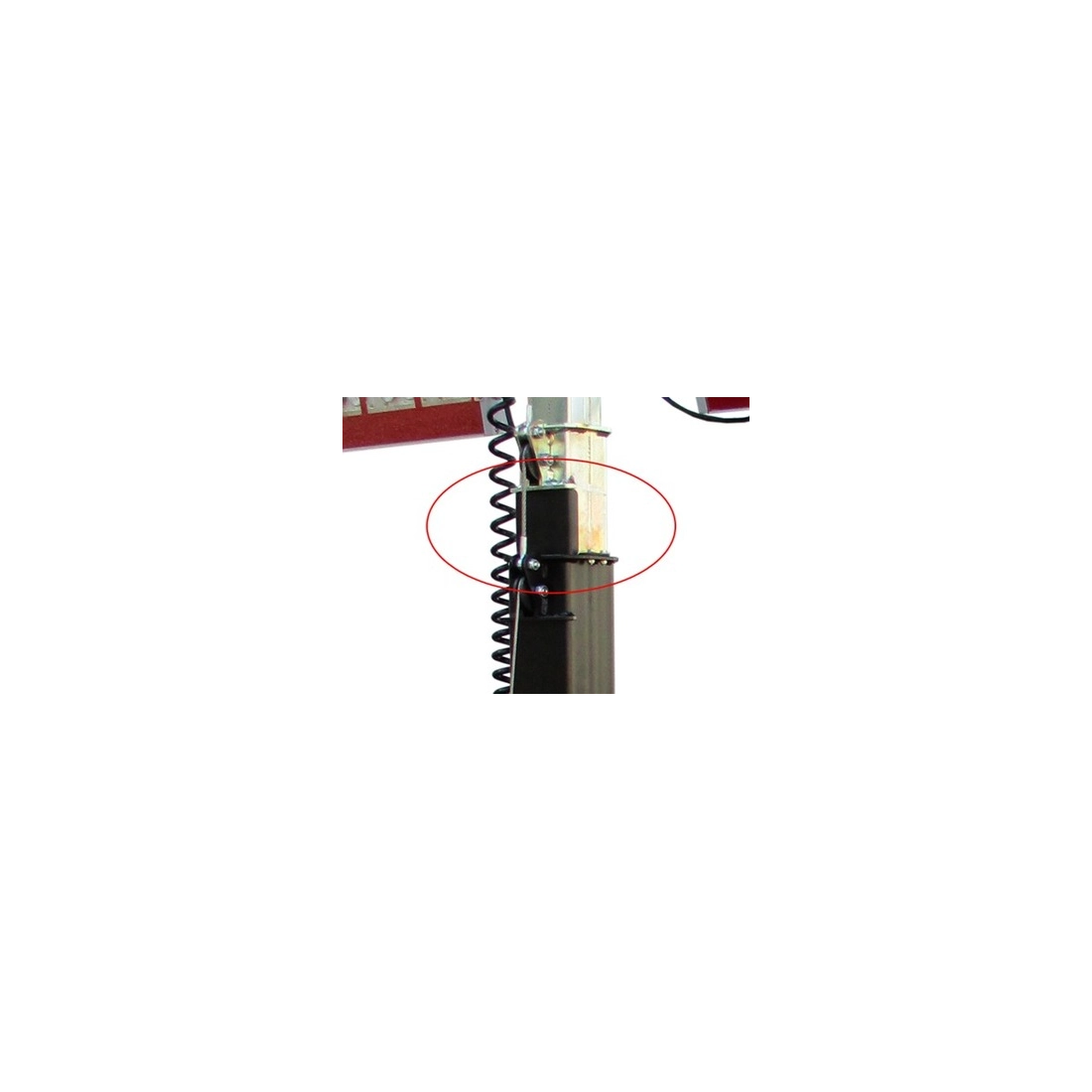

One of the most distinguishing elements is the upper protection of the telescopic pole, a MOSA exclusive, which safeguards one of the most delicate points of the entire MOSA TF NM9 L-4x240 from atmospheric agents, yard waste, dust and leaves.
MOSA TF NM9 L-4x240 is essentially composed of:
- a support frame or base on which the generator set is fixed
- four height-adjustable stabilizers, two of which are extendable, to ensure the stability of the tower on any working surface
- a single-axle slow towing trolley with wheels and mudguards, complete with drawbar with parking foot adjustable in height
- a telescopic pole with manual lifting, vertical elevation with maximum working height of 9 meters and manual rotation of 340°
- an electrical panel and power cable, complete with all the protection devices command and control required for a simple and safe use of the light tower.

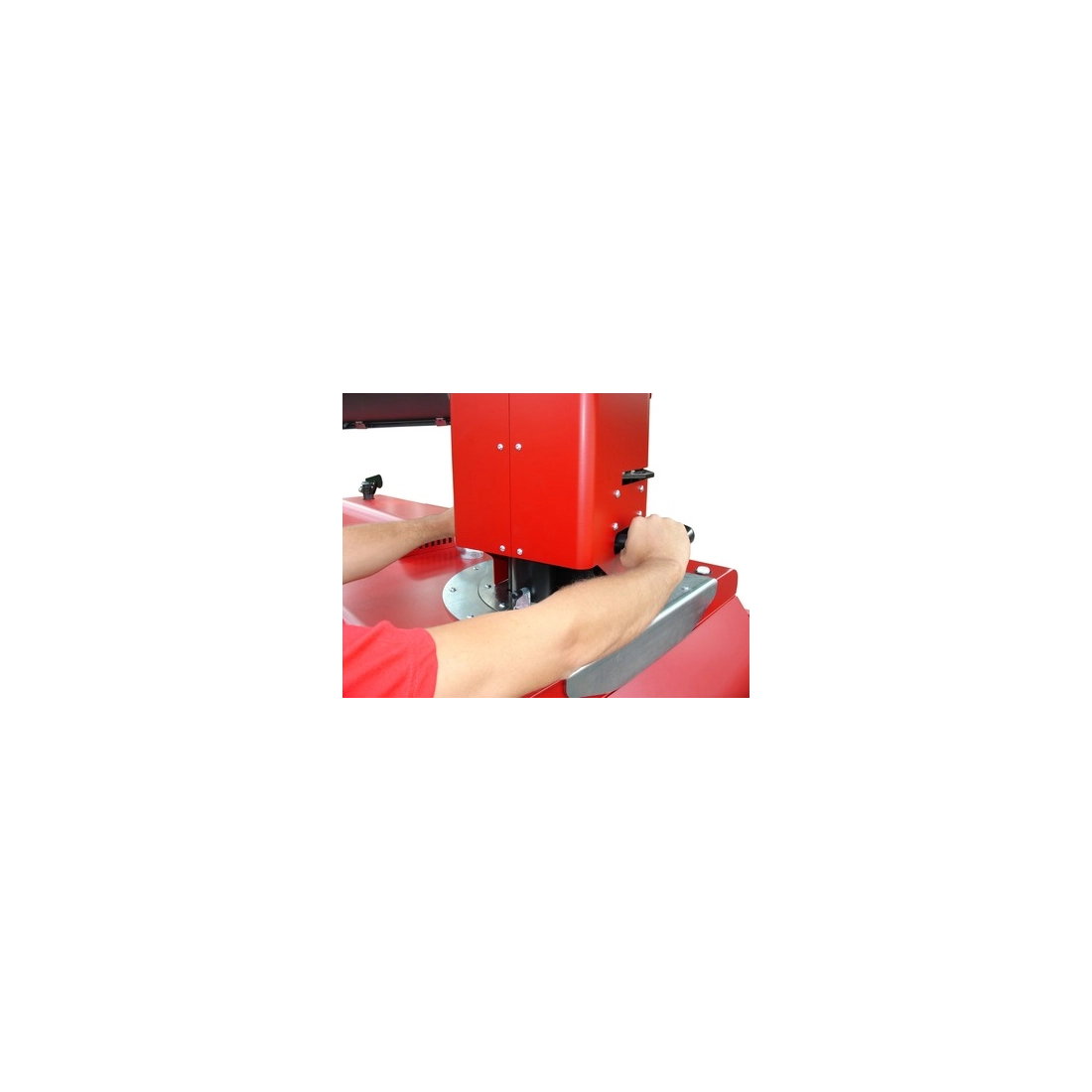

Thanks to the lateral handles, placed at the base of the pole, it is possible to direct the light beam of the floodlights according to the needs.

TECHNICAL CHARACTERISTICS MOSA TF NM9 L-4x240

Maximum height (mt.): 9
Rise: Manual

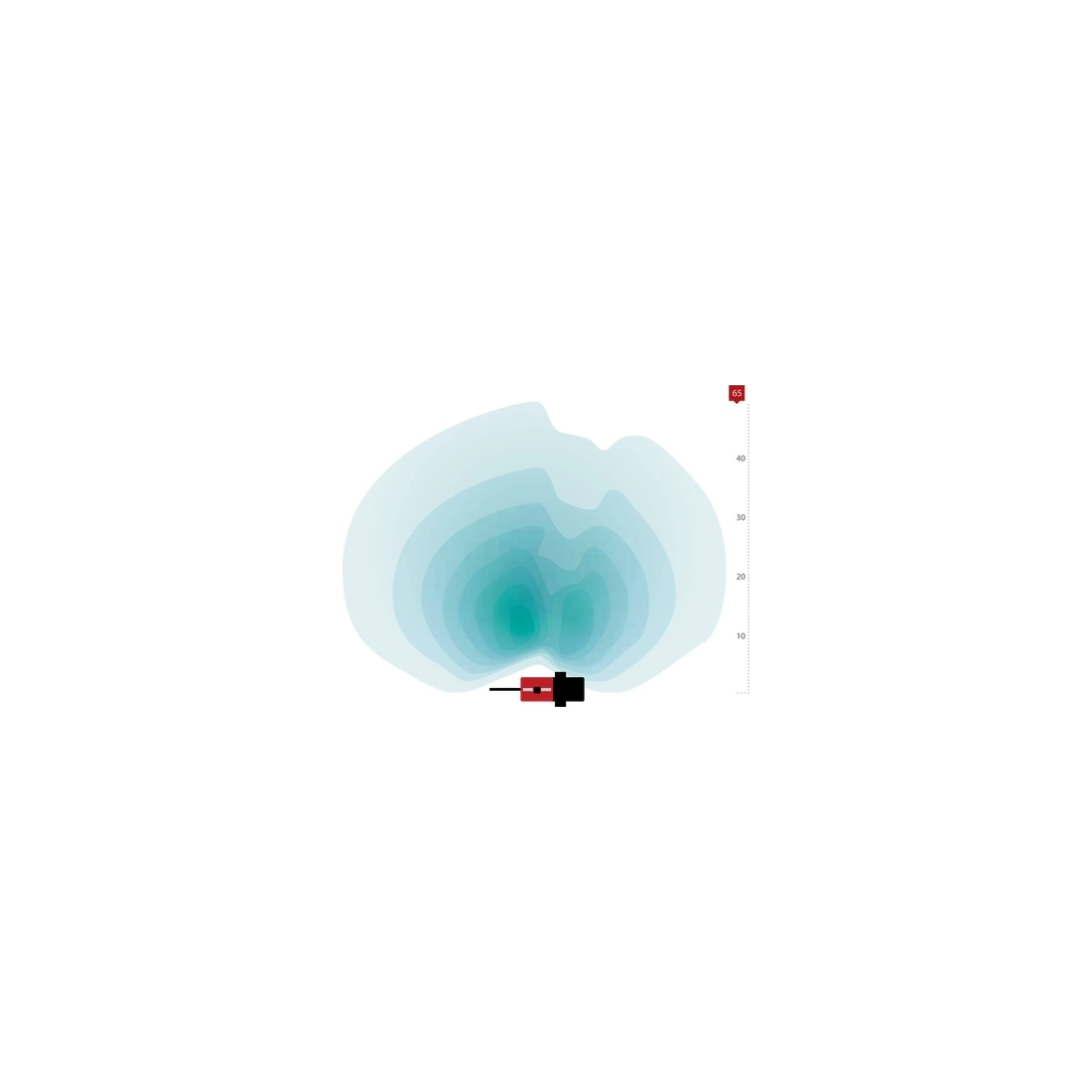

Lit area: 4800 m²
Lamps: LED
Projectors: 4 x 240 W
Transportability: Slow Towing Trolley
Dry weight (Kg): 790
Min. (mm): 3920 x 1410 x 2240
Max. (mm): 3920 x 1975 x 9000
Wind stability (Km/h): 80
Pole rotation: 340°
Frame designed for coupling with three-phase power generators from 8 to 20 KVA

Looking for a light tower with different characteristics? Here you can find the entire range Mosa or other brands specializing in the field.
The images are purely indicative.
