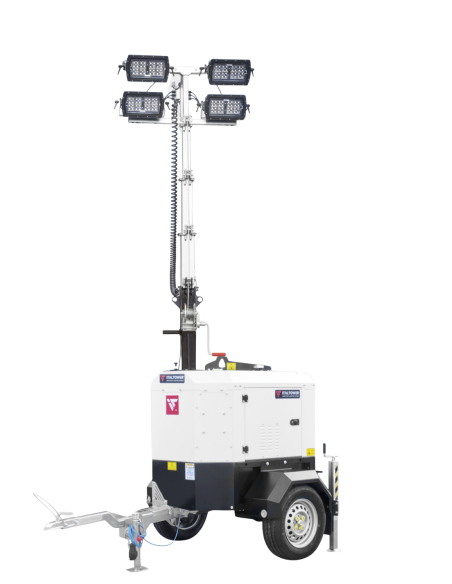

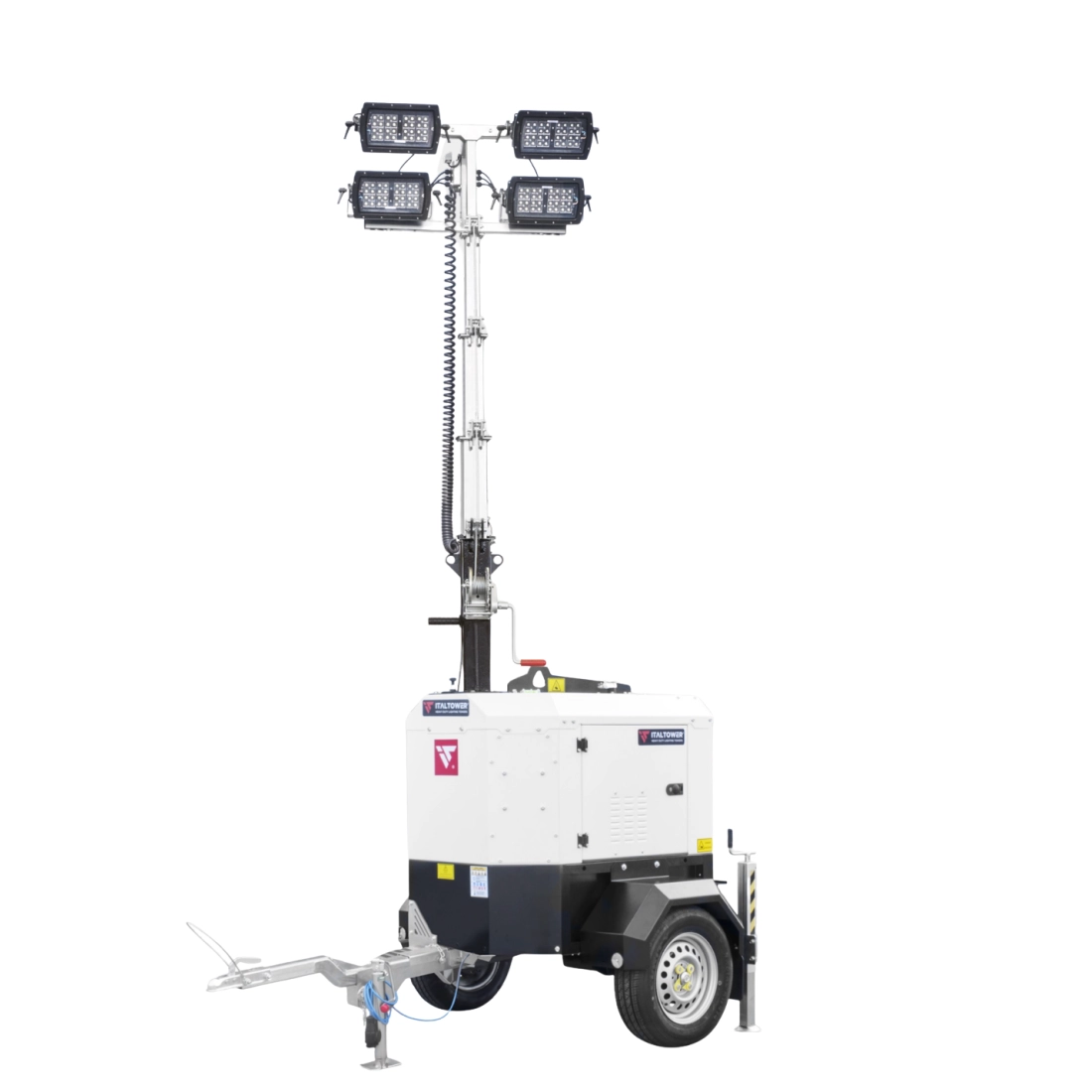

ITALTOWER MANTISM PRO02 LIGHT TOWER 6X160W MultiLED Road trolley approved max 750kg STAGEV

ITALTOWER MANTISM PRO02 LIGHT TOWER 6X160W LED Approved Road Cart Max 750kg STAGEV

ITALTOWER MANTIS PRO02 LIGHT TOWER 6X160W LED Approved Road Cart Max 750kg STAGEV is a compact and versatile diesel-powered light tower,
designed to guarantee high performance and maximum reliability on construction sites and in professional environments. Equipped with a 3000 rpm Yanmar L70V engine,
Linz Alumen alternator and ComAp AMF5 control unit, it ensures a power output of 4.2 kVA with low consumption of 0.55 l/h and a range of up to 72 hours thanks to the 40-liter tank.

The structure is designed for practicality and durability: maximum height of 7 meters, manual lifting system, 350° rotation, road trailer approved for up to 750 kg,
185/70R13 tires, 110% collection tank, 2+1 stabilizers and powder coating. The air-cooled engine, compliant with Stage V standards,
guarantees reliable operation even in extreme environmental conditions, from -30 °C to +50 °C, with noise emissions limited to 65 dB at 7 meters.

TECHNICAL CHARACTERISTICS ITALTOWER MANTIS PRO02

Frequency 50 Hz
Voltage 230 V
Operating temperature -30/+50
Noise emissions 65 dB @7m
Control unit ComAp AMF5
Model Yanmar L70V
Speed ​​3000 rpm
Coolant Air
Cylinders 1
Emissions Stage V
Model Linz Alumen
Output power 4.2 kVA
Power consumption Fuel: 0.55 l/h
Tank: 40 l
Diesel Fuel: Diesel
Autonomy: 72 h
Height: 7 m
Elevation System: Manual
Rotation: 350°
Aerodynamic Resistance: 110 km/h
Trolley: Approved road trolley <750 kg
Tyre Size: 185/70R13
Base: 110% collection tank
Stabilizers: 2+1
Painting: Powder coating

Looking for a light tower with different features? HERE you can find the entire range of ITALTOWER towers and other specialized brands.
