Italtower POLAR PRO RT-L Light Tower Stage V 4x320W LED

Italtower POLAR PRO RT-L Stage V 4x320W LED Light Tower

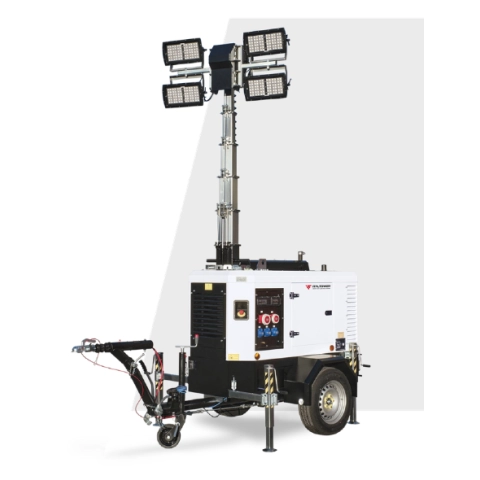

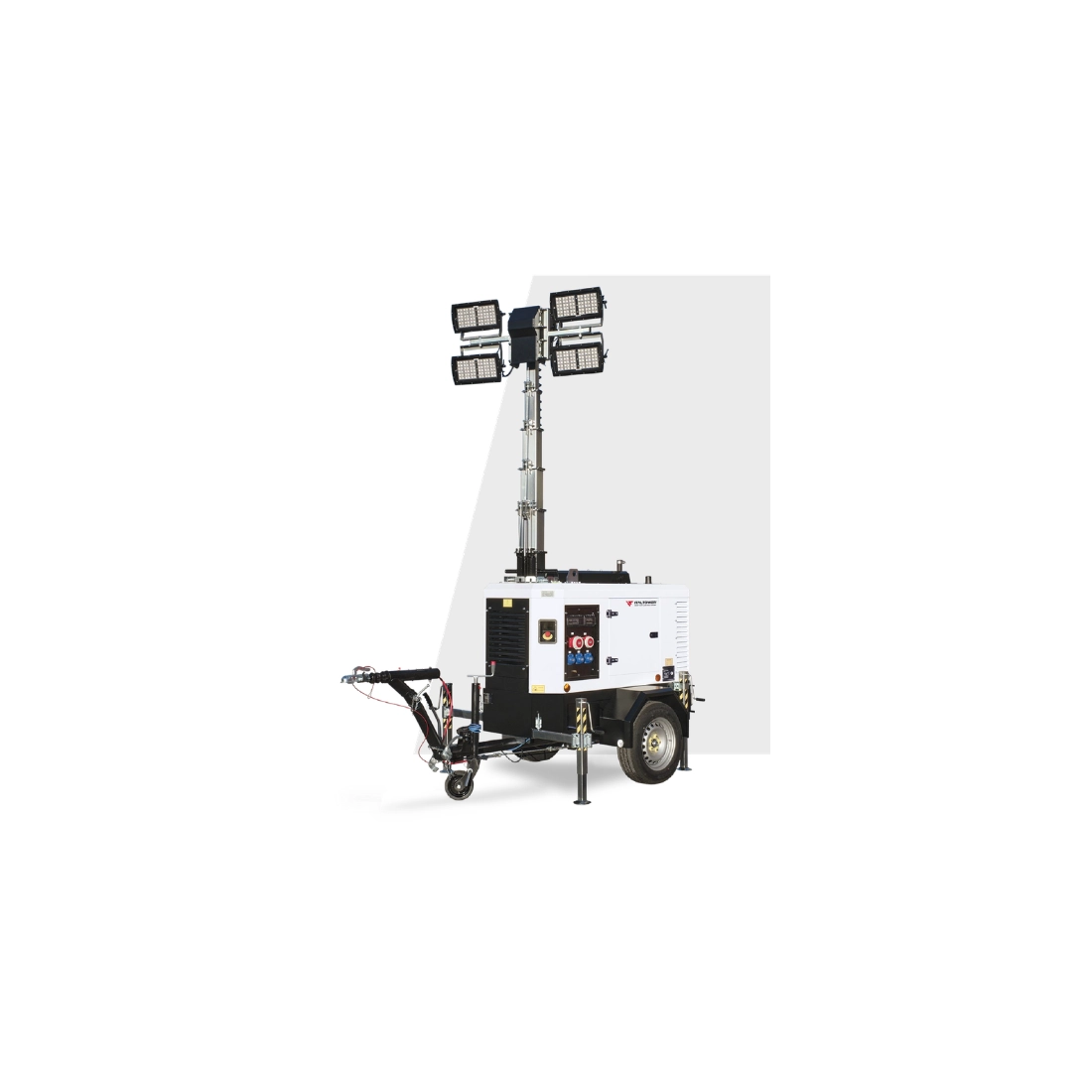

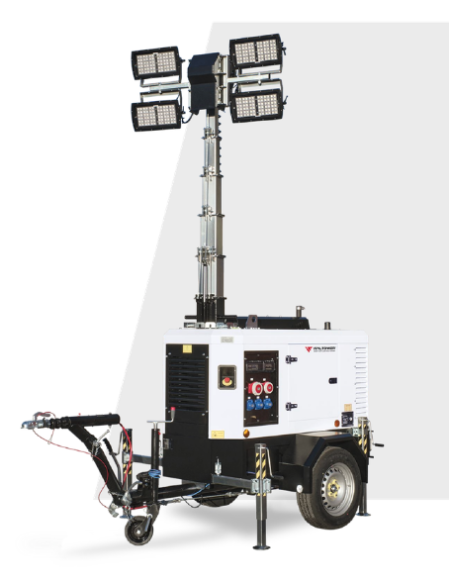

The POLAR PRO RT-L light tower is a mobile lighting solution equipped with four 320W LED floodlights, delivering a total luminous flux of 180,000 lumens.
It is capable of illuminating an area of ​​5,000 m² at 20 lux and 9,300 m² at 1 lux. The galvanized mast features hydraulic lifting,
reaching a height of 8.5 meters and offering 350° rotation to direct the light according to operational needs.
Powered by a 3-cylinder Kohler KDI 1903 M diesel engine compliant with Stage V emission standards,
the tower integrates a Linz alternator with an AVR voltage regulator and a Comap LTC80 control unit. The 240-liter fuel tank provides a stated runtime of 108 hours. The road-towable trailer,
stabilizers, and auxiliary sockets complete the equipment, while the dusk sensor with automatic activation allows lighting to be managed based on ambient light levels.

Technical Specifications:

Model: POLAR PRO RT-L
Floodlights: 4 × 320 W LED
Luminous flux: 180,000 lm
Illuminated area at 20 lux: 5,000 m²
Illuminated area at 1 lux: 9,300 m²
Frequency: 50 Hz
Voltage: 230–400 V
Power: 20 kVA
Operating temperature: −40 to +50 °C
Control unit: Comap LTC80
CEE auxiliary socket: 1 × 5-pin, 32 A, IP67
CEE auxiliary socket: 1 × 5-pin, 16 A, IP67
Schuko auxiliary sockets: 3 × 16 A, IP54
Engine model: Kohler KDI 1903 M
Rotation speed: 1,500 rpm
Cooling: Liquid
Number of cylinders: 3
Emission standard: Stage V
Alternator: Linz
Output power: 16 kW
Regulation: Brushless
Voltage regulator: AVR
Voltage accuracy: ±5%
Consumption and autonomy
Fuel: Diesel
Fuel consumption at 50% load: 2.3 L/h
Tank capacity: 240 L
Stated runtime: 108 hours
Mast material and treatment: galvanized
Height: 8.5 m
Lifting system: hydraulic
Rotation: 350°
Stated wind resistance: 110 km/h
Trailer: road-towable
Tire size: 185/70 R13
Base containment tank capacity: 110%
Stabilizers: 4 + 1 wheel
Finish: powder-coated
Standard equipment included
Twilight sensor with automatic activation
Options included in the standard model:
Twilight sensor with automatic activation
Battery disconnect switch
Load bank
AMOSS-KIT (mast safety system).
