CGM TP4-160L BE TOWER 4 X 160W

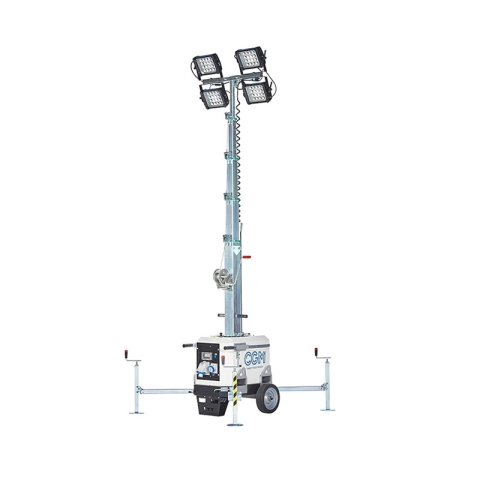

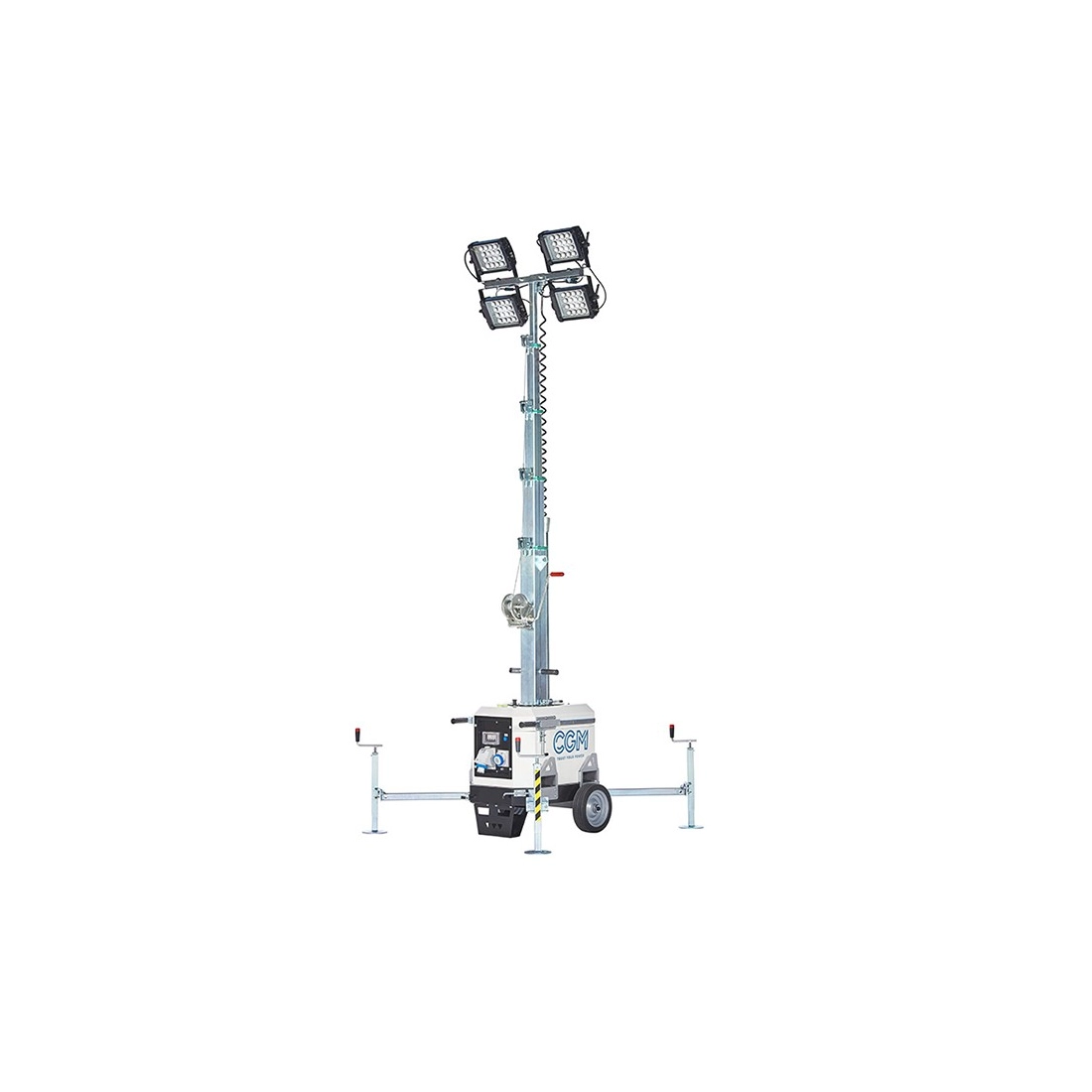

CGM TP4-160L BE TOWER is a light tower with manual winch lift, equipped with 4 floodlights capable of delivering a light output of 160W each.

CGM TP4-160L is equipped with a galvanized steel lifting tower capable of extending up to 7 meters in maximum height, including 4 feet of stabilization to secure the light tower when opened. The lifting tower is manually operated by winch which allows maximum extension without effort.

CGM TP4-160L BE TOWER is equipped with an input plug and a 16A 230V output socket for series connection of multiple units. This allows you to connect multiple lighting units to a single power source.

The CGM TP4-160L lighting tower has no generator, but it can be effectively connected with any power generator.

Images and technical data are not binding and may be subject to revision by the supplier.

TECHNICAL FEATURES CGM TP4-160L BE TOWER

Lights: 4 Led 160W
Lighted Area: 2600 Mq
Max Height: 7 Mt
Lift: manual
Telescopic Pole: In galvanized steel
Wind Stability: nr 4 stabilizers
Guides for forklift: n.6
Lumen per spotlight: 20350 lm
Rotation: 360 degrees
Voltage: 230V
Frequency: 50 Hz
Output socket: 16A 3P
Input socket: 16A 3P
Maximum wind resistance: 80 km/h
Width : 930 mm
Length: 800 mm
Height Closed: 2300 mm
Height Open: 7000 mm
Dry weight: 235 Kg
