CGM PR4-160LSP

Reference PR4-160LSP /

OUT OF PRODUCTION

Floodlights: 4 LED 160W
Illuminated Area: 2200 Mq
Max Height: 5.5 Mt
Lift: Manual
Telescopic pole: galvanized steel
Wind Stability: nr 3 stabilizers
Lumen per luminaire: 20350 lm
Electrical power: 6 KVA / 5,4 KW
Rotation: 355 degrees
Towing trolley: Lento
Guides for forklift forks: nr 2
Power outlet: 16A 230V
Voltage: 230V
Frequency: 50 Hz
Number of revolutions: 3000 revolutions/mn
Engine: 6000SP SUPER POWER CGM
Feeding: Gasoline
Starting type: Electric
Tank capacity: 25 Lt
Autonomy with working lights: 20 hr
Engine power: 14 Hp
N. Cylinders: 1
Suction: Aspirated
Cooling: Air
Width: 1300 mm
Length: 900 mm
Height Closed: 2160 mm
Height Opened: 5500 mm
Dry weight: 280 Kg
Cooling: Air
AVR

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference PR4-160LSP /

Data sheet

Phase: Single phase
Continuous power single phase (KW): 5.4
Continuous power single phase (KVA): 6
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230
Sockets configuration: 1 x 230V 16A
Engine: 6000SP SUPER POWER CGM
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 420
Number cylinders: 1
Cooling: Air
Alternator: CGM
Poles: 2
Type of lamps: LED
Lamps: 4 x 160 W
Telescopic pole: Galvanized steel
Illuminated area (m²): 2200
Total lumens (Lm): 81400
Lifting System: Manual lifting system
Maximum height (m): 5.5
Mast rotation: 355°
Open size (mm): 1300 x 900 x 5500
Closed size (mm): 1300 x 900 x 2160
Transportability: Slow Trailer
Fuel tank capacity (L): 25
Running time (h): 20
Acoustic pressure: 70 dB(A) at 7 m
Dry weight (Kg): 280
Silenced: Yes
Engine manufacturer: CGM

Specific References

Condition New

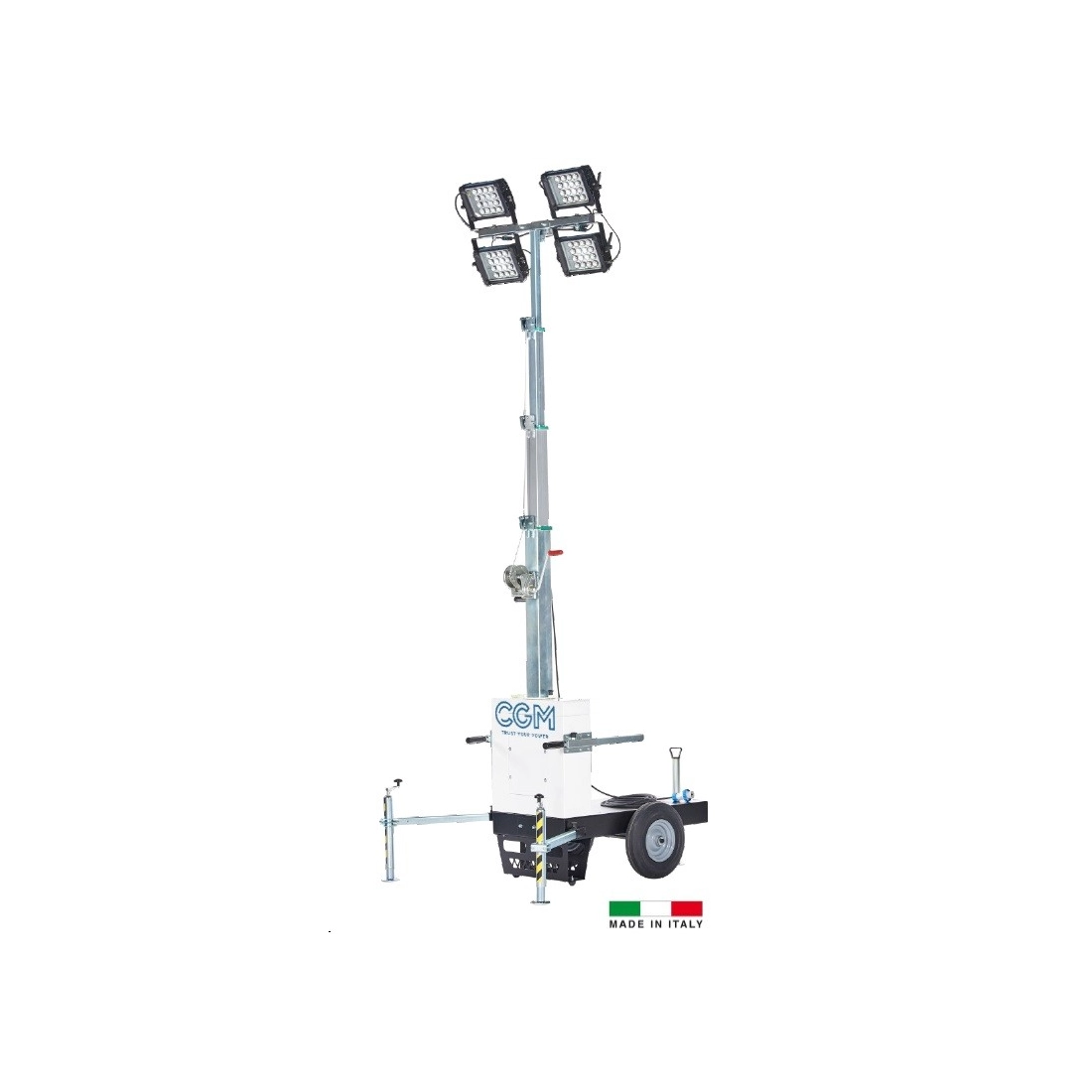

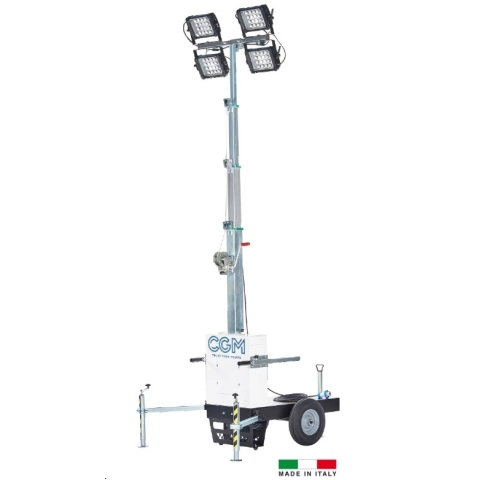

CGM PR4-160LSP LED Light Tower with CGM petrol engine

The CGM PR4-160LSP is a simple light tower with manual lifting winch equipped with 4 floodlights capable of delivering a light output of 160W each.

CGM PR4-160LSP consists of a trolley with lockable handles with safety grip.

CGM PR4-160LSP includes CGM 6000SP SUPER POWER gasoline engine with electric start, 3000 rpm and air cooling.

CGM PR4-160LSP is equipped with a galvanized steel lifting tower capable of extending to a maximum height of 5.5 meters, including 3 feet of stabilization to secure the light tower once opened.

CGM PR4-160LSP TECHNICAL SPECIFICATIONS

Lights: 4 160W LEDs
Lit Area: 2200 Sq Ft
Max Height: 5. 5 Mt
Lift: Manual
Telescopic Pole: galvanized steel
Wind stability: nr 3 stabilizers
Lumen per light: 20350 lm
Electrical power: 6 KVA / 5,4 KW
Rotation: 355 degrees
Trolley: Slow
Drives for forklift: nr 2
Power socket: 16A 230V
Voltage: 230V
Frequency: 50 Hz
Number of turns: 3000 turns/mn
Engine: 6000SP SUPER POWER CGM
Fueling: Gasoline
Type of starting: Electric
Tank capacity: 25 Lt
Autonomy with working lights: 20 hr
Engine power: 14 Hp
N. Cylinders: 1
Intake: Aspirated
Cooling: Air
Width: 1300 mm
Length: 900 mm
Height Closed: 2160 mm
Height Open: 5500 mm
Dry Weight: 280 Kg
Firing: Air
AVR

You can find many other different light towers in the section dedicated to lighting systems.

Images are purely indicative

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
