AURORA LIGHT TOWER BETA Y-L 4X320 -F WITH FAST TOWING TROLLEY

AURORA TOWER LIGHT GAMMA B-L 4X160
search
  • AURORA TOWER LIGHT GAMMA B-L 4X160
GREEN POWER
BETA Y-L 4X320 -F
New product

Manufacturer: Green Power
Projectors: 4 320W LEDs
Lighted Area: 5000 Square Meter
Max Height: 8.5 Mt
Lift: Hydraulic
Engine: Yanmar 2TNV70
Emissions: Stage V
Fueling: Diesel
Engine RPM: 1500 rpm
Telescopic Pole: Galvanized steel
Max Wind Resistance: 110 Km/h
Wind Stability: nr 4 stabilizers
Transport: Slow Towing Trolley
Noise level at 7 mt: 61 dB (A)
Total lumens: 166200 lm
Voltage: 230V
Frequency: 50 Hz
Autonomy 30% load: 200 hr
Closed tower dimensions: 2370x1473x2353 mm
Open tower dimensions: 2370x1818x8500 mm
Dry weight: 850 Kg

Technical features
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
1500
Starting system
Electric
Type of lamps
LED
Lamps
4 x 320W
Telescopic pole
Galvanized steel
Illuminated area (m²)
5000
Total lumens (Lm)
166200
Lifting System
Hydraulic lifting system
Maximum height (m)
8.5
Mast rotation
350°
Open size (mm)
2370x1818x8500
Closed size (mm)
2370x1473x2353
With generator / Without generator
With generator
Transportability
Fast Trailer
Stability to wind (Km/h)
110
Running time (h)
200 al 30% del carico
Acoustic pressure
61 dB(A) at 7 m
Dry weight (Kg)
850
Engine manufacturer
Yanmar 2TNV70
Details

AURORA LIGHT TOWER BETA Y-L 4X320 -F WITH FAST TOWING TROLLEY

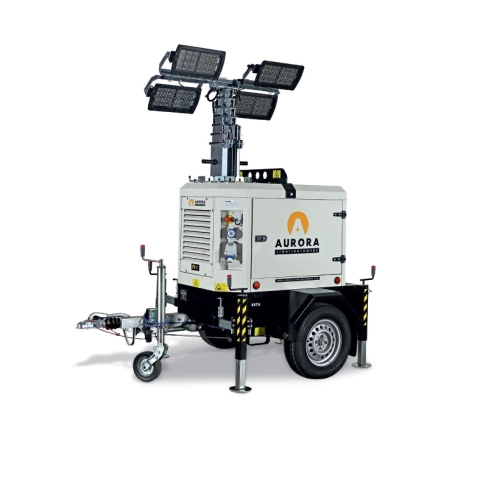

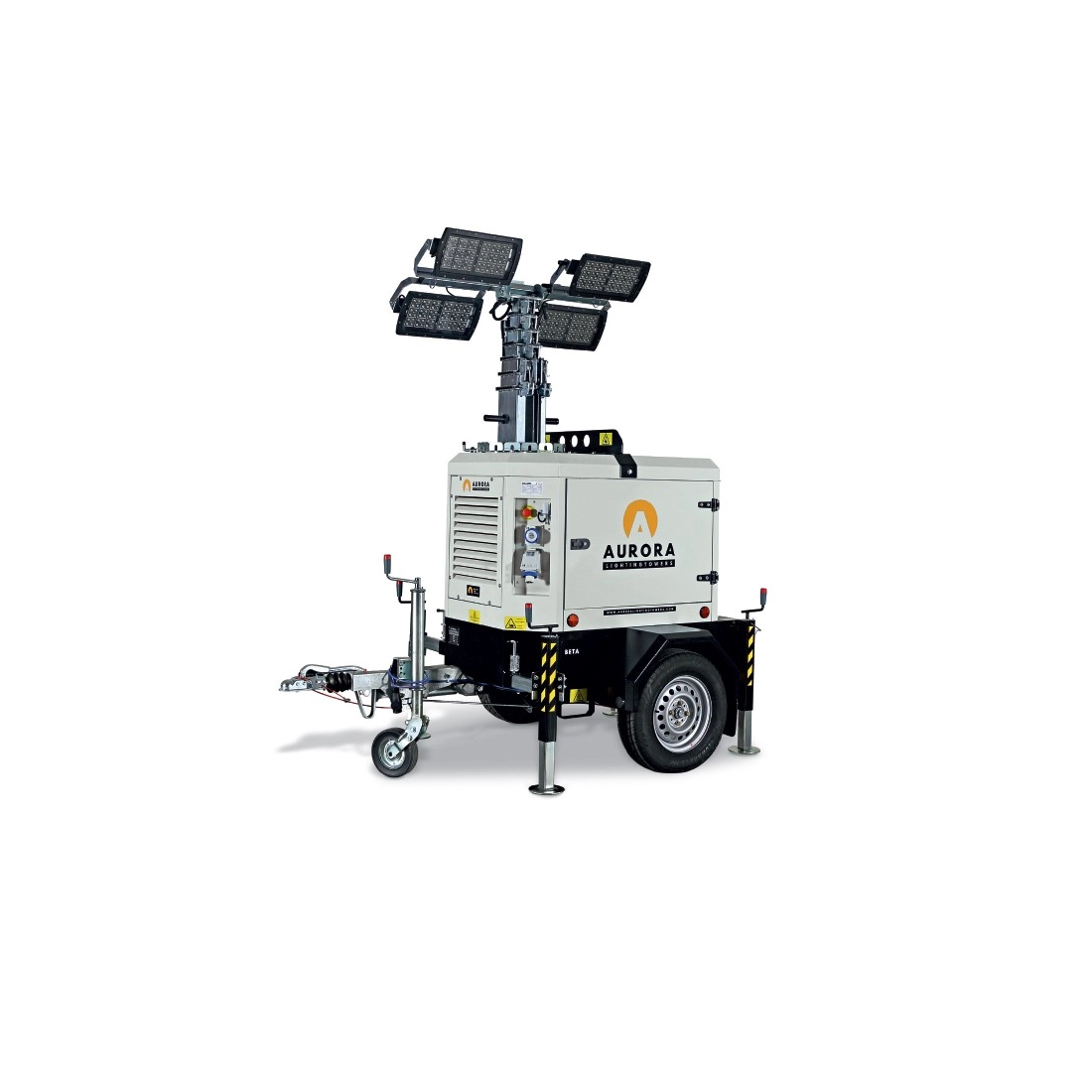

AURORA BETA Y-L 4X320 -F is a light tower with generator equipped with Yanmar 2TNV70 Diesel engine and hydraulic lifting equipped with 4 floodlights capable of delivering a light output of 320W each.

AURORA BETA Y-L 4X320 -F is equipped with a galvanized steel lifting tower capable of extending up to a maximum height of 8.5 meters, including 4 stabilization feet to secure the light tower once opened. The lifting system is operated manually and by a hydraulic system that allows for maximum effortless extension.

AURORA BETA Y-L 4X320 -F comes complete with Yanmar 2TNV70 Diesel engine, both of these engines are super efficient with 1500 rpm. The AURORA BETA Y-L 4X320 -F in addition guarantee you a range of 218 h of work at 30% load.

The AURORA BETA lenses feature extremely special optics designed specifically for the civil engineering and construction sectors. This innovative fully directional LED lens design ensures maximization of light spread and reduction of waste.

The safety stop stops the descent at a safe height that avoids the risk of collision with the projectors during the normal descent phase or in case of sudden breakage of the telescopic ropes or the automatic brake of the lifting winch.

AURORA BETA Y-L 4X320 -F is supplied complete with fast towing trolley complete with autonomous braking system, complete with rear lights with integrated reverse light and all the features for a proper urban and extra-urban transport.

TECHNICAL CHARACTERISTICS AURORA BETA Y-L 4X320 -F

Manufacturer: Green Power
Projectors: 4 320W LEDs
Lighted Area: 5000 Square Meter
Max Height: 8.5 Mt
Lift: Hydraulic
Engine: Yanmar 2TNV70
Emissions: Stage V
Fueling: Diesel
Engine RPM: 1500 rpm
Telescopic Pole: Galvanized steel
Max Wind Resistance: 110 Km/h
Wind Stability: nr 4 stabilizers
Transport: Slow Towing Trolley
Noise level at 7 mt: 61 dB (A)
Total lumens: 166200 lm
Voltage: 230V
Frequency: 50 Hz
Autonomy 30% load: 200 hr
Closed tower dimensions: 2370x1473x2353 mm
Open tower dimensions: 2370x1818x8500 mm
Dry weight: 850 Kg

Looking for a product with different characteristics? Here you can find the whole range Green Power Aurora or other specialized brands.

Images and technical data are not binding and may be subject to revision by the supplier.
