ALPHA BASE GY-L 4x320W LIGHT TOWER STAGE V

ALPHA BASE GY-L 4x320W Stage V Light Tower

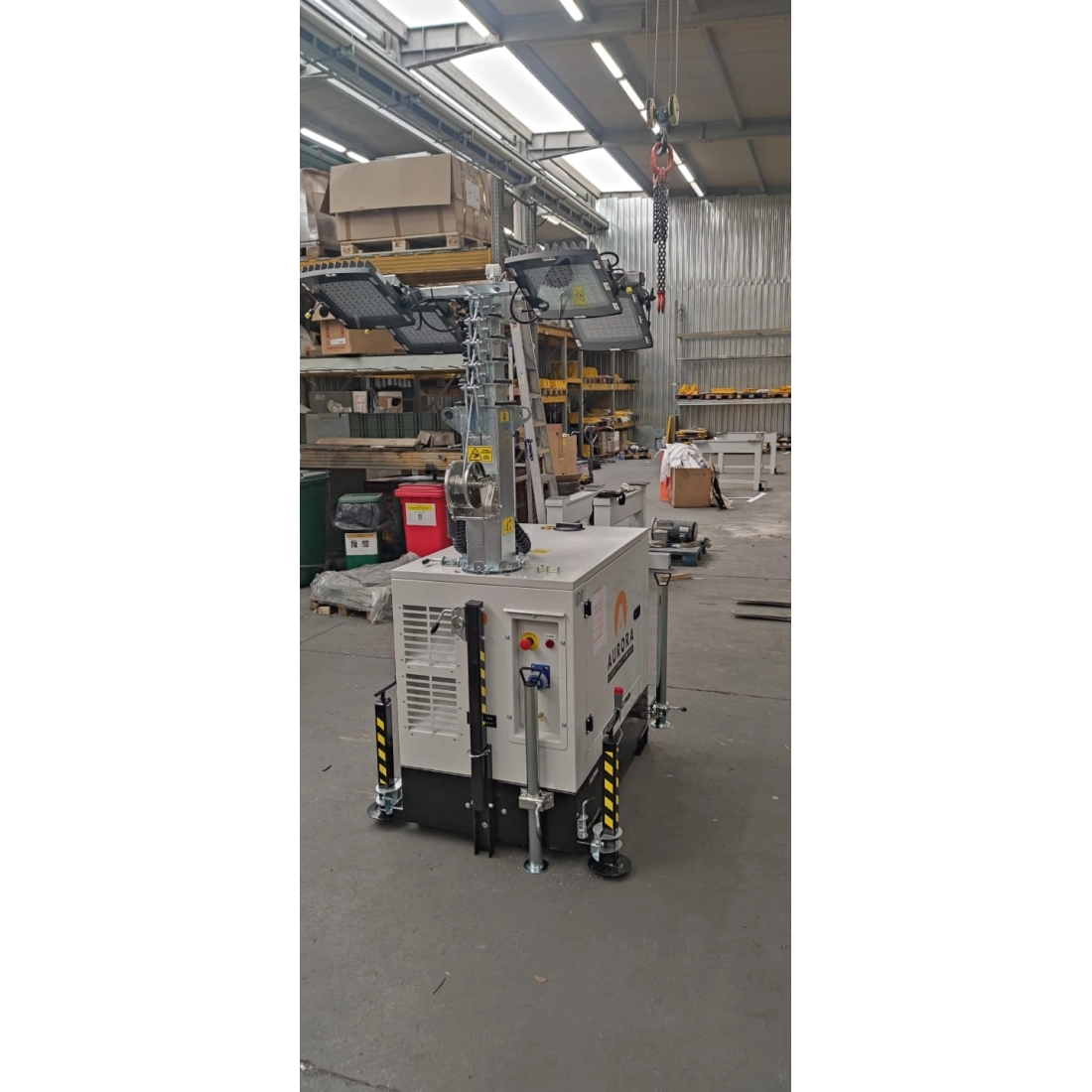

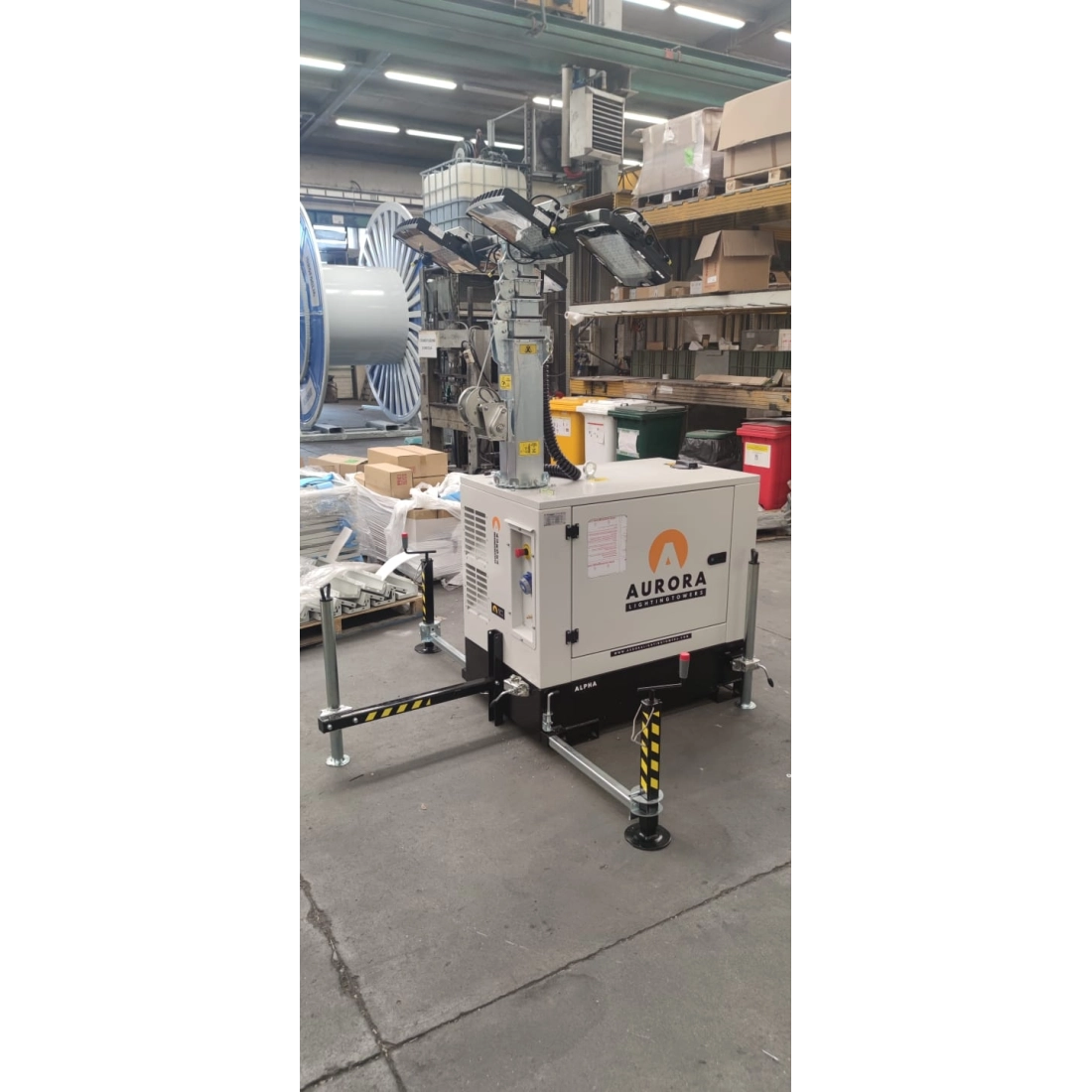

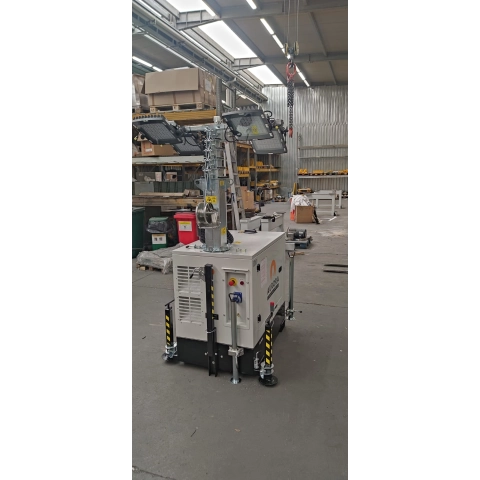

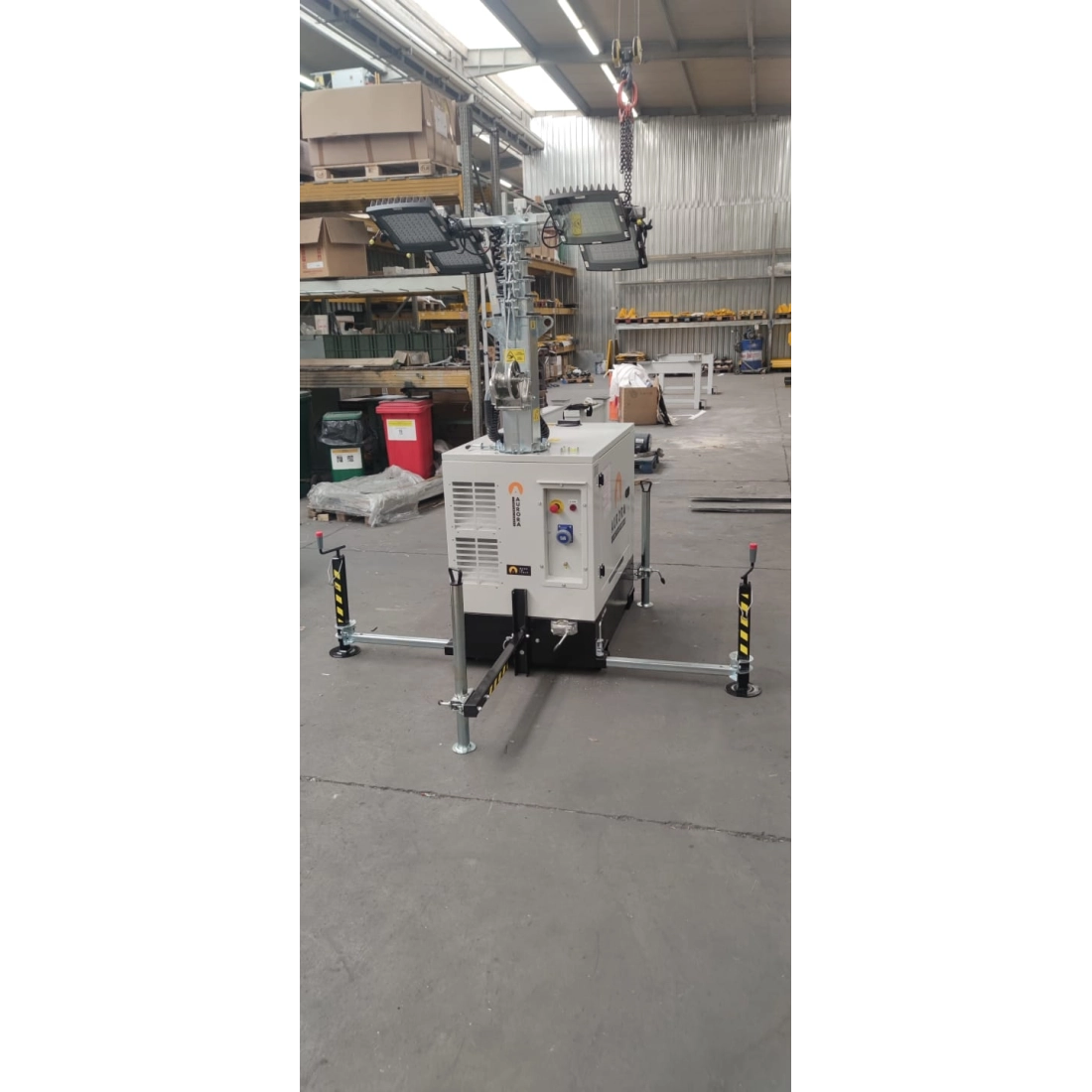

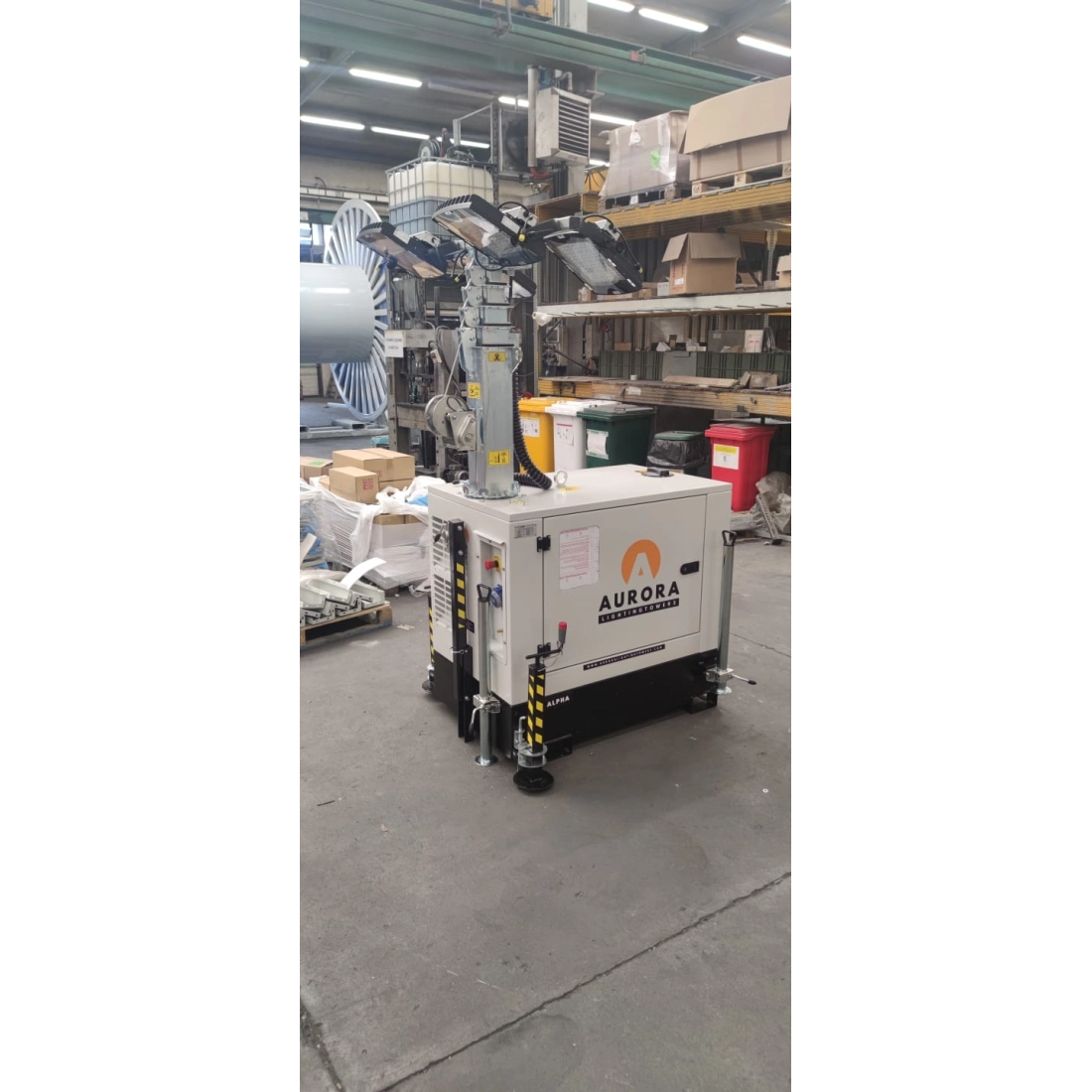

The ALPHA BASE GY-L 4x320W Stage V is a compact, powerful light tower designed to provide efficient and reliable illumination. Powered by a Stage V-compliant Yanmar 2TNV70 engine running at 1500 rpm, this diesel unit offers an exceptional runtime of 145 hours thanks to its 80-liter fuel tank. It features electric starting and a water-cooling system, ensuring stable, long-lasting operation.
The lighting system consists of four 320W MULTILED lamps producing a total luminous flux of 255000 lumens, illuminating an area of ​​8800 m². The mast extends to a maximum height of 7,6 meters; it is manually raised and features 350° rotation for precise light positioning. The unit is compact in both its deployed (1200x1912x7280 mm) and stowed (1200x1112x2150 mm) configurations.
With a dry weight of 510 kg, the ALPHA BASE GY-L 4x320W Stage V is easily transportable via either a slow-tow trailer or an EU-homologated road trailer. It features a robust structure with wind stability up to 100 km/h, while the Linz Electric – Alumen alternator—featuring IP21 protection and Class H insulation—ensures the safety and efficiency of the entire system.

Technical Specifications of the ALPHA BASE GY-L 4x320W:
Fuel: Diesel
Frequency: 50 Hz
Voltage: 230 V
Engine speed: 1500 rpm
Starting system: Electric
Lamp type: MULTILED
Lamps: 4 x 320W Multiled
Total lumens: 255000 lm
Illuminated area: 8800 m²
Lifting system: Manual
Maximum height: 7.6 m
Dimensions (open): 1200x1912x7280 mm
Dimensions (closed): 1200x1112x2150 mm
Wind stability: 100 km/h
Dry weight: 510 kg
Mast rotation: 350°
Engine brand: Yanmar 2TNV70
With/Without generator: With generator
Emission standard: Stage V
Cooling: Water
Displacement: 570 cc
Tank capacity: 80 L
Runtime: 145 h
Alternator: Linz Electric – Alumen
Protection class: IP21
Insulation class: H
