TECNOGEN HTPK10-4 Metal Halide Lighting Tower Highway Trailer

TECNOGEN HTPK10-4
search
  • TECNOGEN HTPK10-4
TECNOGEN
HTPK10-4
New product

Maximum Height (mt.): 9
Lifting System: Hydraulic
Illuminated Area: -----
Floodlihts: Metal halides
Projectors: 4 x 1000 W
Transportability: Fast highway Trailer
Wind Stability (Km/h): -----
Mast rotation: 350°
Stabilizers: 4 adjustable
Single Phase Max. Output (kVA): 8.8
Engine: PERKINS 403D-11G
Voltage: 230 V
Fuel: Diesel
Tank Capacity (l): 135
Consumption (l/h): 1.8 -2.7
Operating Time (h): 75 - 50
Min. Dimensions (mm): 2450 x 1300 x 2300
Max. Dimensions (mm): 2450 x 2800 x 9200
Dry Weight (Kg): 1030
Electric starter

Technical features
Phase
Single phase
Maximum power single phase (KW)
7
Continuous power single phase (KW)
6.4
Maximum power single phase (KVA)
8.8
Continuous power single phase (KVA)
8
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230
Engine
HONDA GC160
Engine rpm (rpm)
1500
Starting system
Electric
Engine capacity (cm³)
1131
Cooling
Water
Type of lamps
Halogen
Lamps
4 x 1000 W
Telescopic pole
Galvanized steel
Lifting System
Hydraulic lifting system
Maximum height (m)
9
Open size (mm)
1040 x 5500 x 1800
Lenght closed (mm)
2450
Width closed (mm)
1300
Height closed (mm)
2300
Transportability
Fast Trailer
Fuel tank capacity (L)
135
Consumption (L/h)
0,8 al 75% del carico
Running time (h)
75
Acoustic pressure
60 dB(A) at 7 m
Dry weight (Kg)
1030
Inverter
No
AVR
No
Compound
No
Silenced
Yes
Super silenced
No
Engine manufacturer
Perkins
Details

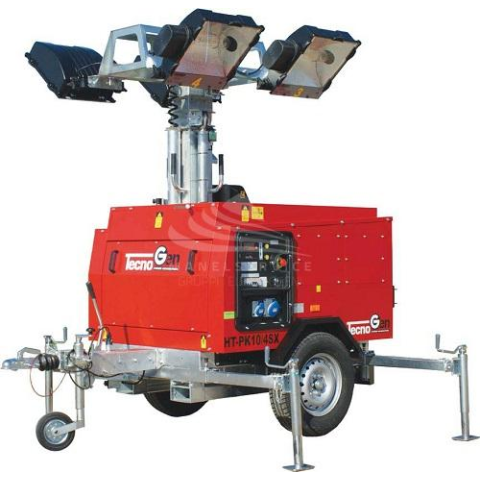

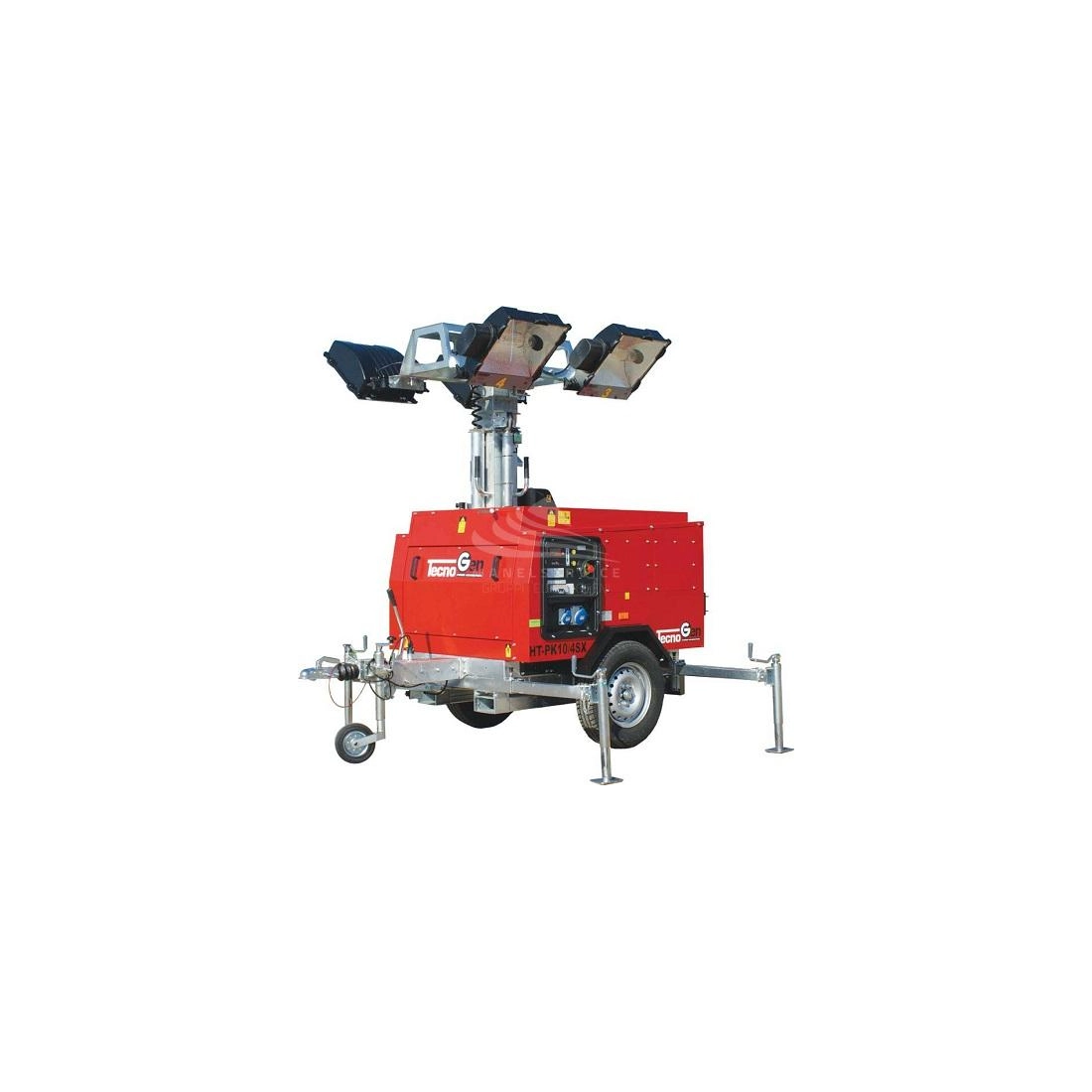

The Tecnogen HT PK 10/4 lighting tower is a real mobile lighting unit, easy to use and to transport thanks to its compact dimensions and the homologated trailer for road traffic.
The large area illuminated by the 4 metal halide lamps of 1000 W each, the particularly fast hydraulic system for raising and closing the floodlight tower and the 350° rotation of the column itself, make the HT PK 10/4 model particularly suitable for the construction sector and professional hire.

4 metal halides floodlights
(power 1000 W cad)
- Hydraulic column in galvanized steel
- Maximum height 9 m
- 350° rotation
- Fast lifting sistem (11 seconds) with protection system
- 135 litres tank, for more than 80 hours of battery life
- Sound level (-) at 7 meters: 60 dB (A)
- Liquid collection safety tank
- 4 adjustable outriggers feet

Emission engine covered by Directive 97/68/EC stage II N= natural
Noise according to Directive 200/14/EC

Non-binding images and technical data

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
Technical Sheet / Manuals

Scheda tecnica HTPK10-4

(245.61k)
