CGM MR4-75L
CGM MR4-75L /
OUT OF PRODUCTION
Floodlights: 4 LED 75W
Illuminated Area: 1500 Mq
Max Height: 5,5 Mt
Lift: Manual
Telescopic Pole: Galvanized steel
Wind Stability: nr 4 stabilizers
Lumen per luminaire: 9225 lm
Rotation: 360 degrees
Voltage: 230V
Frequency: 50 Hz
Width: 350 mm
Tripod Width: 2200 mm
Length: 350 mm
Tripod length: 2200 mm
Height Closed: 2050 mm
Height Opened: 5700 mm
Dry Weight: 97 Kg
CGM MR4-75L /
Data sheet
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Type of lamps
- LED
- Lamps
- 4 x 75W
- Telescopic pole
- Galvanized steel
- Illuminated area (m²)
- 1500
- Lifting System
- Hydraulic lifting system
- Maximum height (m)
- 5.5
- Mast rotation
- 360°
- Open size (mm)
- 350 x 350 x 5700
- Closed size (mm)
- 350 x 350 x 2050
- Dry weight (Kg)
- 97
Specific References
New
CGM MR4-75L 4 X 75W

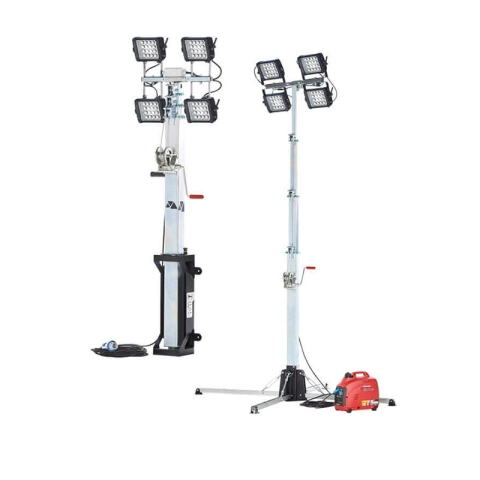

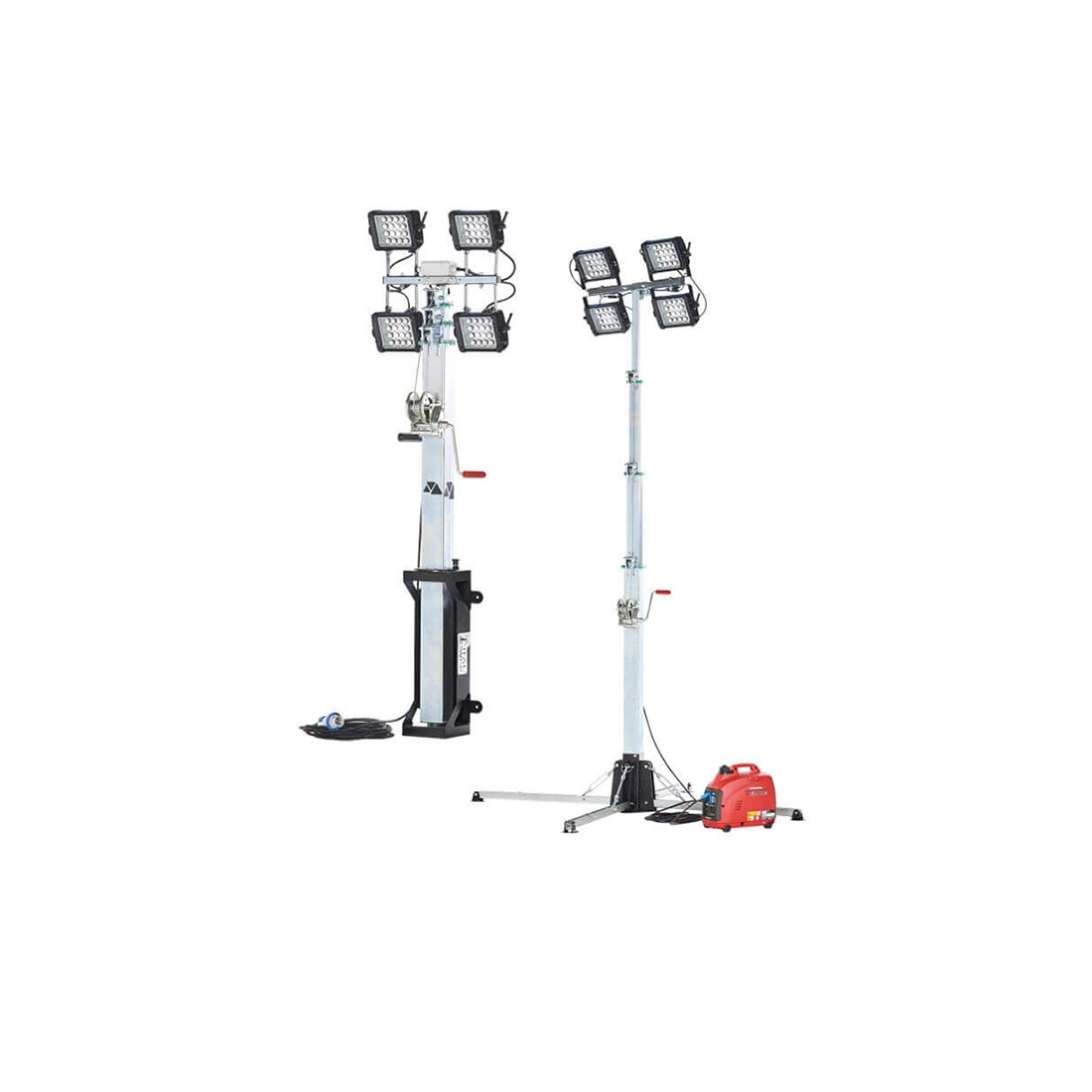

CGM MR4-75L is a light tower with manual winch lift, equipped with 4 floodlights capable of delivering a luminous power of 75W each.
CGM MR4-75L can be combined with a generator of your choice to best power the floodlights.
CGM MR4-75L features a galvanized steel lifting tower capable of extending up to a maximum height of 5.5 meters. The lifting tower is manually operated through a winch system that allows it to extend up to 5.5m
CGM MR4-75L can be combined with an optional tripod equipped with 4 stabilization feet to allow the tower to be opened with greater wind stability and safety.
Images and technical data are not binding and may be subject to revision by the supplier.
CGM MR4-75L TECHNICAL SPECIFICATIONS
Floodlights: 4 LED 75W
Illuminated Area: 1500 Mq
Max Height: 5,5 Mt
Lift: Manual
Telescopic Pole: Galvanized steel
Wind Stability: nr 4 stabilizers
Lumen per luminaire: 9225 lm
Rotation: 360 degrees
Voltage: 230V
Frequency: 50 Hz
Width: 350 mm
Tripod Width: 2200 mm
Length: 350 mm
Tripod length: 2200 mm
Height Closed: 2050 mm
Height Opened: 5700 mm
Dry Weight: 97 Kg
Are you looking for a product with different characteristics? Here you can find the full range CGM or other specialized brands.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
