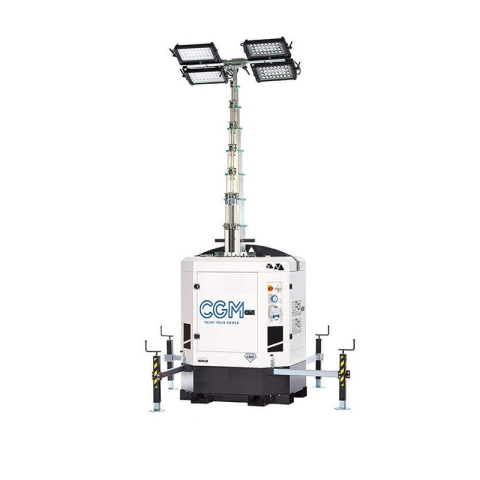

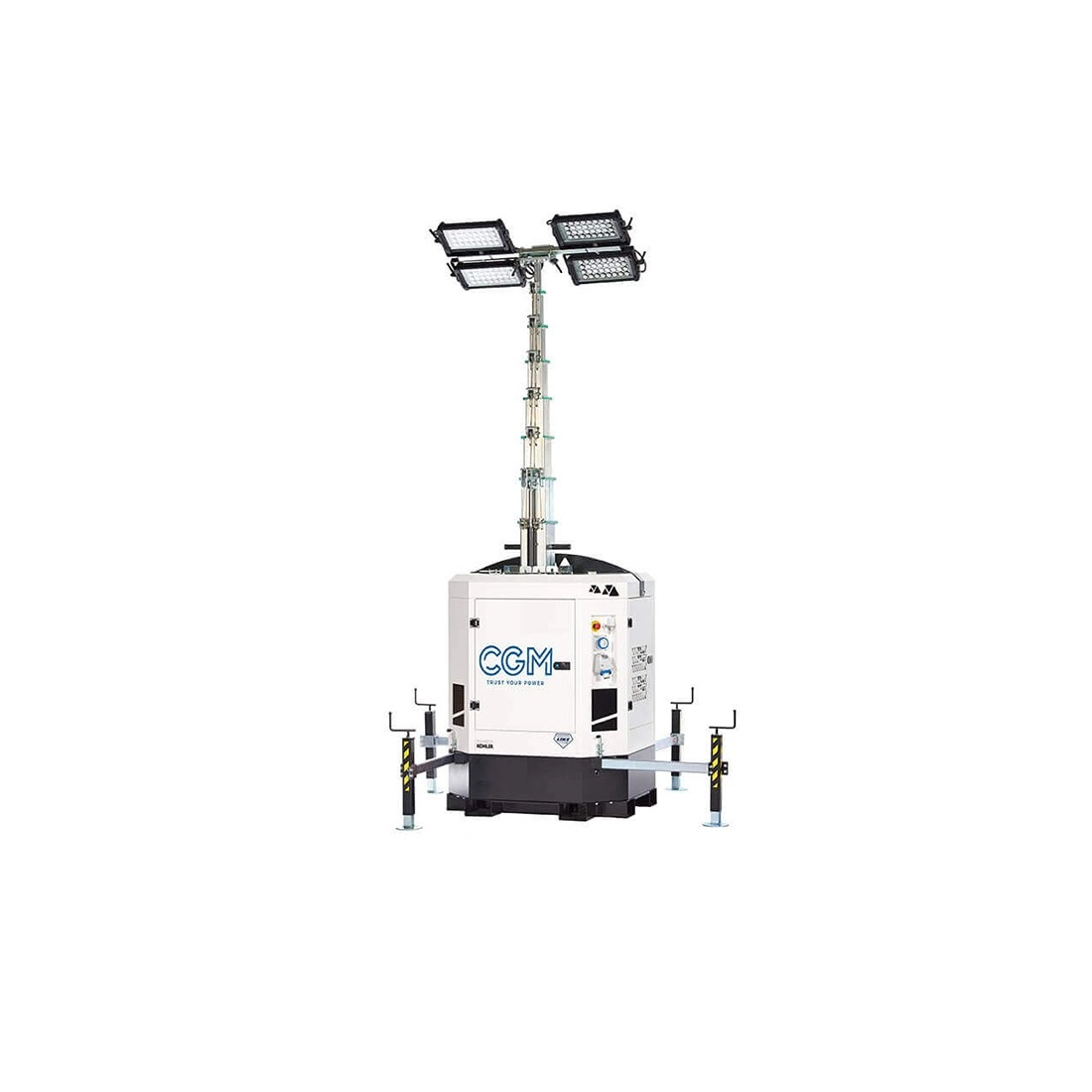

CGM OKB4-160L 4 X 160W

CGM OKB4-160L is equipped with a galvanized steel lifting tower capable of extending to a maximum height of 8.5 meters, including 4 stabilization feet to secure the light tower when opened. The lifting tower is operated electrically and by a hydraulic system that allows maximum extension without effort.

CGM OKB4-160Lis equipped with extremely efficient and completely environmentally friendly 2V AGM battery technology, coupled with an inverter that optimizes the voltage supply from the battery pack increasing its life.

CGM OKB4-160L TECHNICAL FEATURES

Floodlights: 4 LED 160W
Illuminated Area: 3000 Mq
Max Height: 8.5 Mt
Lift: Hydraulic
Telescopic pole: Galvanized steel
Wind Stability: nr 4 stabilizers
Guides for forklift forks: n.8
Lumen per luminaire: 20350 lm
Rotation: 359 degrees
Voltage: 230V
Frequency: 50 Hz
Autonomy with headlights working at 30%: 60 hr
Battery technology: AGM 2V
Control technology: Inverter - Onduleur
Battery pack capacity: 400 Ah
Number of batteries: 12
Recharge time: 12 hr
Expected battery life: 400 cycles
Width: 1200 mm
Length: 1130 mm
Height Closed: 2450 mm
Height Opened: 8500 mm
Dry weight: 910 Kg

Are you looking for a product with different characteristics? Here you can find the full range CGM or other specialized brands.

The images and technical data are not binding and may be subject to revision by the supplier.
