Discounted price
tax incl.
tax incl.
19,201.58 €
15,739.00 € tax excl.
15,739.00 € tax excl.
Contacts: +39 011 25 35 33 - info@manelservice.com
CGM UR4-320L UR TOWER
CGM UR4-320L /
OUT OF PRODUCTION
Floodlights: 4 LED 320W
Illuminated Area: 4500 Mq
Max Height: 7.5 Mt
Lift: Manual
Telescopic Pole: Galvanized steel
Wind Stability: nr 4 stabilizers
Guides for forklift forks: n.4
Lumen per light: 41550 lm
Rotation: 355 degrees
Towing trolley: Slow
Power outlet: 16A 230V
Voltage: 230V
Frequency: 50Hz
Width: 3320 mm
Length: 1450 mm
Height Closed: 2550 mm
Height Opened: 7500 mm
Dry weight: 660 / 920 Kg
CGM UR4-320L /
Data sheet
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Sockets configuration
- 1 x 230V 16A
- Type of lamps
- LED
- Lamps
- 4 x 320W
- Telescopic pole
- Galvanized steel
- Illuminated area (m²)
- 4500
- Lifting System
- Hydraulic lifting system
- Maximum height (m)
- 7.5
- Mast rotation
- 355°
- Open size (mm)
- 3320 x 1450 x 7500
- Closed size (mm)
- 3320 x 1450 x 7500
- Dry weight (Kg)
- 660 / 920
Specific References
New

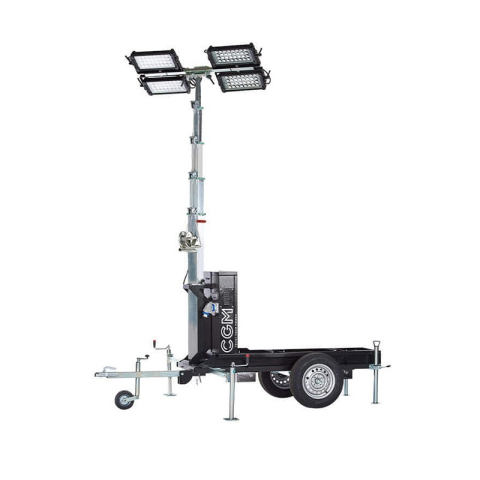

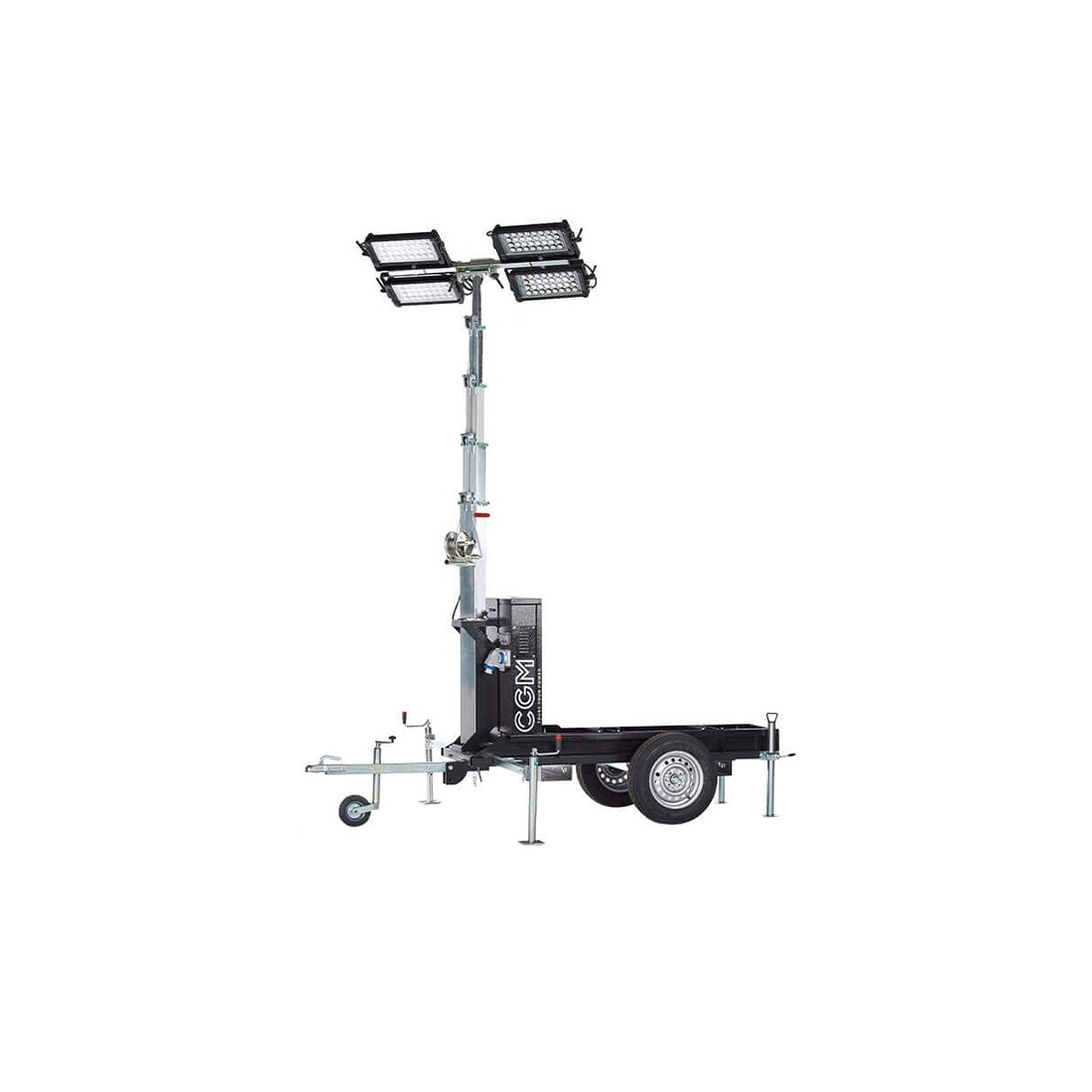

CGM UR4-320L UR TOWER 4 X 320W
CGM UR4-320L UR TOWER is a light tower have been designed to be compatible with a wide range of CGM 1500rpm series generators.
The models recommended to match the CGM UR4-320L are:
-10P-14P-20P with PERKINS 1500rpm diesel engine
-7.5LW-10.5LW-15LW-20KH-25KH with KOHLER 1500rpm diesel engine
CGM UR4-320L is equipped with a galvanized steel lifting tower capable of extending to a maximum height of 7.5 meters, including 4 feet of stabilization to secure the light tower when opened. The lifting tower is manually operated by means of a winch that allows for maximum extension without effort.
Images and technical data are not binding and may be subject to revision by the supplier.
TECHNICAL FEATURES CGM UR4-320L UR TOWER
Lights: 4 Led 320W
Lighted Area: 4500 Mq
Max Height: 7.5 Mt
Lift: Manual
Telescopic Pole: In galvanized steel
Wind Stability: nr 4 stabilizers
Guides for forklift: n.4
Lumens per headlight: 41550 lm
Rotation: 355 degrees
Trailing trolley: Slow
Power outlet: 16A 230V
Voltage: 230V
Frequency: 50 Hz
Width : 3320 mm
Length: 1450 mm
Height Closed: 2550 mm
Height Open: 7500 mm
Dry Weight: 660 / 920 Kg
Looking for a light tower with different characteristics? Here you can find the full range of CGM or other specialized brands.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
