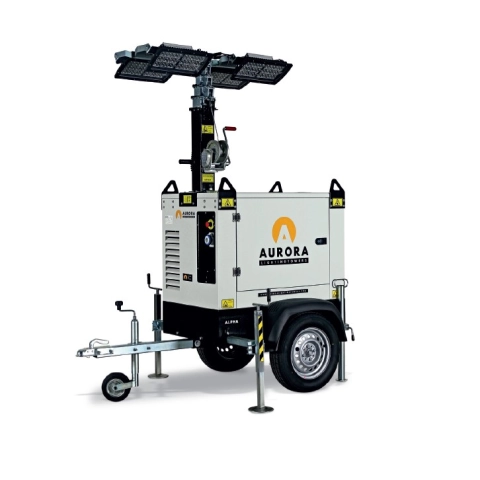

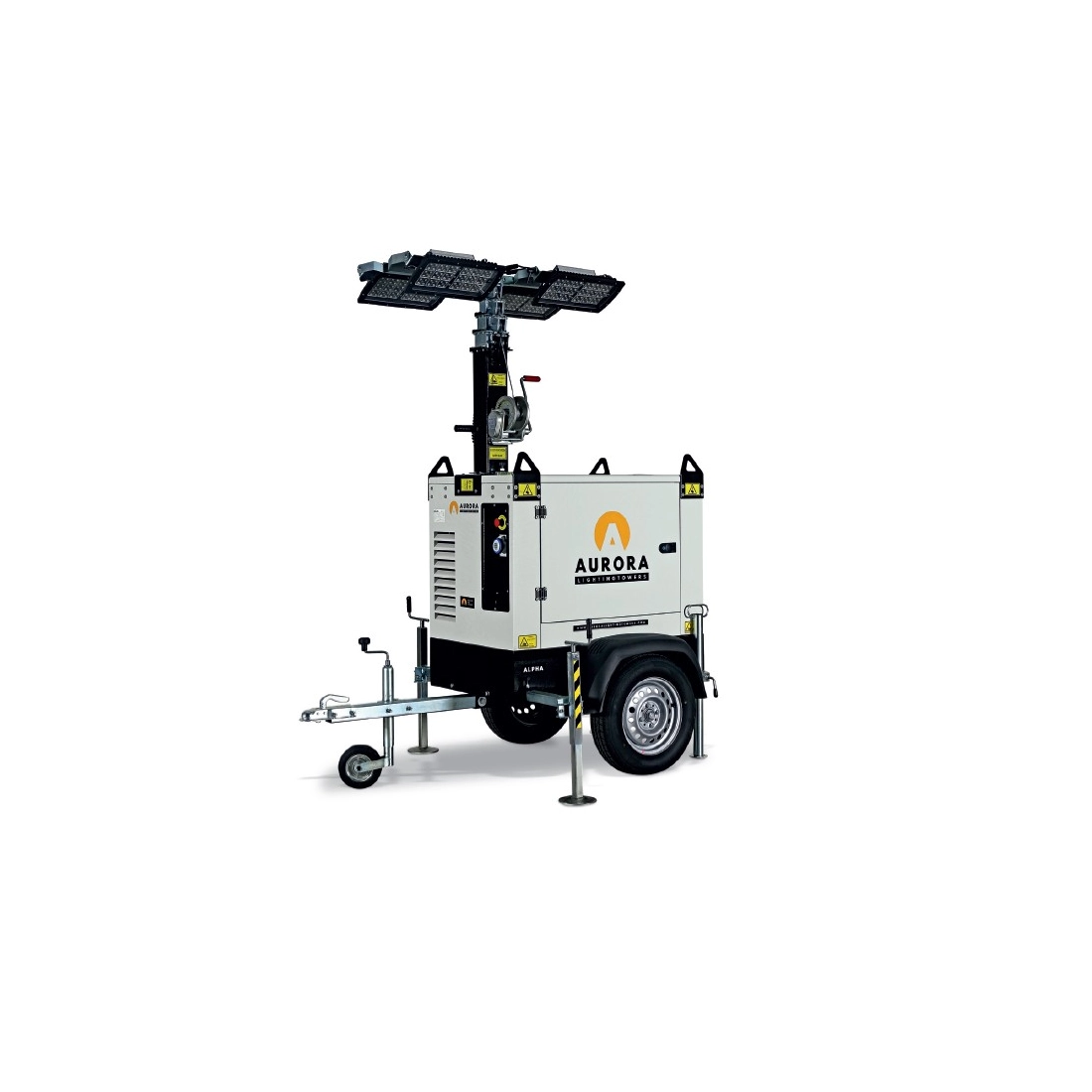

AURORA LIGHT TOWER ALPHA Y2-L 6X160 - S WITH SLOW TOWING TROLLEY
ALPHA Y2-L 6X160 - S /
OUT OF PRODUCTION
Manufacturer: Green Power
Projectors: 6 160W LEDs
Lighted Area: 4200 Sq Ft
Max Height: 8.5 Mt
Lift: Manual
Engine: Yanmar L70
Emissions: Stage V
Fueling: Diesel
Engine RPM: 3000 rpm
Telescopic Pole: Galvanized steel
Max Wind Resistance: 100 Km/h
Wind Stability: nr 4 stabilizers
Transport: Slow Towing Trolley
Noise level at 7 mt: 70 dB (A)
Total lumens: 122100 lm
Voltage: 230V
Frequency: 50 Hz
Autonomy 30% load: 180 hr
Closed tower dimensions: 1154x1118x2430 mm
Open tower dimensions: 2030x2202x8500 mm
Dry weight: 560 Kg
ALPHA Y2-L 6X160 - S /
Data sheet
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Engine rpm (rpm)
- 3000
- Starting system
- Electric
- Type of lamps
- LED
- Lamps
- 6 x 160W
- Telescopic pole
- Galvanized steel
- Illuminated area (m²)
- 4200
- Total lumens (Lm)
- 122100
- Lifting System
- Hydraulic lifting system
- Maximum height (m)
- 8.5
- Mast rotation
- 350°
- Open size (mm)
- 2030x2202x8500
- Closed size (mm)
- 1154x1118x2430
- Transportability
- Slow Trailer
- Dry weight (Kg)
- 560
- Engine manufacturer
- Yanmar L70
Specific References
New
AURORA LIGHTHOUSE TOWER ALPHA Y2-L 6X160 - S WITH TOWING CART
AURORA ALPHA Y2-L 6X160 - S is a light tower with generator equipped with Yanmar L70 Diesel engine and manual hoisting winch equipped with 6 floodlights capable of delivering a light output of 160W each.
AURORA ALPHA Y2-L 6X160 - S is equipped with a galvanized steel lifting tower able to extend up to 8,5 meters of maximum height, including 4 stabilization feet to secure the light tower once opened. The lifting system is operated manually and by a hydraulic system that allows the maximum extension without effort.
AURORA ALPHA Y2-L 6X160 - S is equipped with a super efficient 3000 rpm Yanmar L70 engine. The AURORA ALPHA light towers in addition guarantee you an autonomy of 180 h of work at 30% of the load.
The AURORA light tower lenses feature extremely special optics designed specifically for the civil engineering and construction sectors. This innovative fully directional LED lens design ensures maximization of light spread and reduction of waste.
A single AURORA ALPHA tower can cover an area of 4200 m2, ensuring a brighter, safer and more productive site.
AURORA ALPHA Y2-L 6X160 - S comes complete with a slow moving trolley, this gives the customer the ability to easily transport the light tower.
TECHNICAL CHARACTERISTICS AURORA ALPHA Y2-L 6X160 - S
Manufacturer: Green Power
Projectors: 6 160W LEDs
Lighted Area: 4200 Sq Ft
Max Height: 8.5 Mt
Lift: Manual
Engine: Yanmar L70
Emissions: Stage V
Fueling: Diesel
Engine RPM: 3000 rpm
Telescopic Pole: Galvanized steel
Max Wind Resistance: 100 Km/h
Wind Stability: nr 4 stabilizers
Transport: Slow Towing Trolley
Noise level at 7 mt: 70 dB (A)
Total lumens: 122100 lm
Voltage: 230V
Frequency: 50 Hz
Autonomy 30% load: 180 hr
Closed dimensions: 1154x1118x2430 mm
Open dimensions: 2030x2202x8500 mm
Dry weight: 560 Kg
Looking for a product with different characteristics? Here you can find the full range Green Power or other specialized brands.
Images and technical data are not binding and may be subject to revisions by the manufacturer
