GENERATOR SET GP33S-P-N-A SOUNDPROOF

GREEN POWER GP33S/P-N SOUNDPROOF WITH AVR-LINZ ALTERNATOR (MANUAL CONTROL UNIT)

Reference GP33S-P-N-A

Maximum three-phase power: 33 KVA
Maximum three-phase power: 26.4 KW
Fuel: Diesel
Voltage: 230/400 V
Engine: PERKINS 1103A-33G
Start: Electric
Length: 2100 mm
Width: 870 mm
Height: 1165 mm
Weight: 940 Kg

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 26.4
Continuous power three phase (KW): 24
Maximum power three phase (KVA): 33
Continuous power three phase (KVA): 30
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Terminal box
Engine: PERKINS 1103A-33G, 4 stroke naturally aspirated
Emissions Regulations: Stationary Use
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3300
Number cylinders: 3
Cylinders' position: In line
Cooling: Water
Alternator: Mecc Alte
Poles: 4
Fuel tank capacity (L): 100
Consumption (L/h): 5.4 at 75% of the load
Running time (h): 18.5 at 75% of the load
Acoustic pressure: 61 dB(A) at 7 m
Length (mm): 2100
Width (mm): 900
Height (mm): 1150
Dry weight (Kg): 940
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: AVR
Engine manufacturer: Perkins
Precision of voltage regulation: ± 1%

Brand

The GP33S-P-N-A 1500 rpm generator sets are designed for versatile use, from construction sites to industry, from agriculture to civil protection.
Sturdy electrowelded steel frames with built-in variable capacity tank, engines and alternators supplied by the world's leading manufacturers in the sector and state-of-the-art control units are the elements to guarantee excellent quality generators.
The casings are made of steel, which allows their use also in tropical environments. The casings of the GP33S-P-N-A guarantee maximum accessibility for maintenance and cleaning operations.

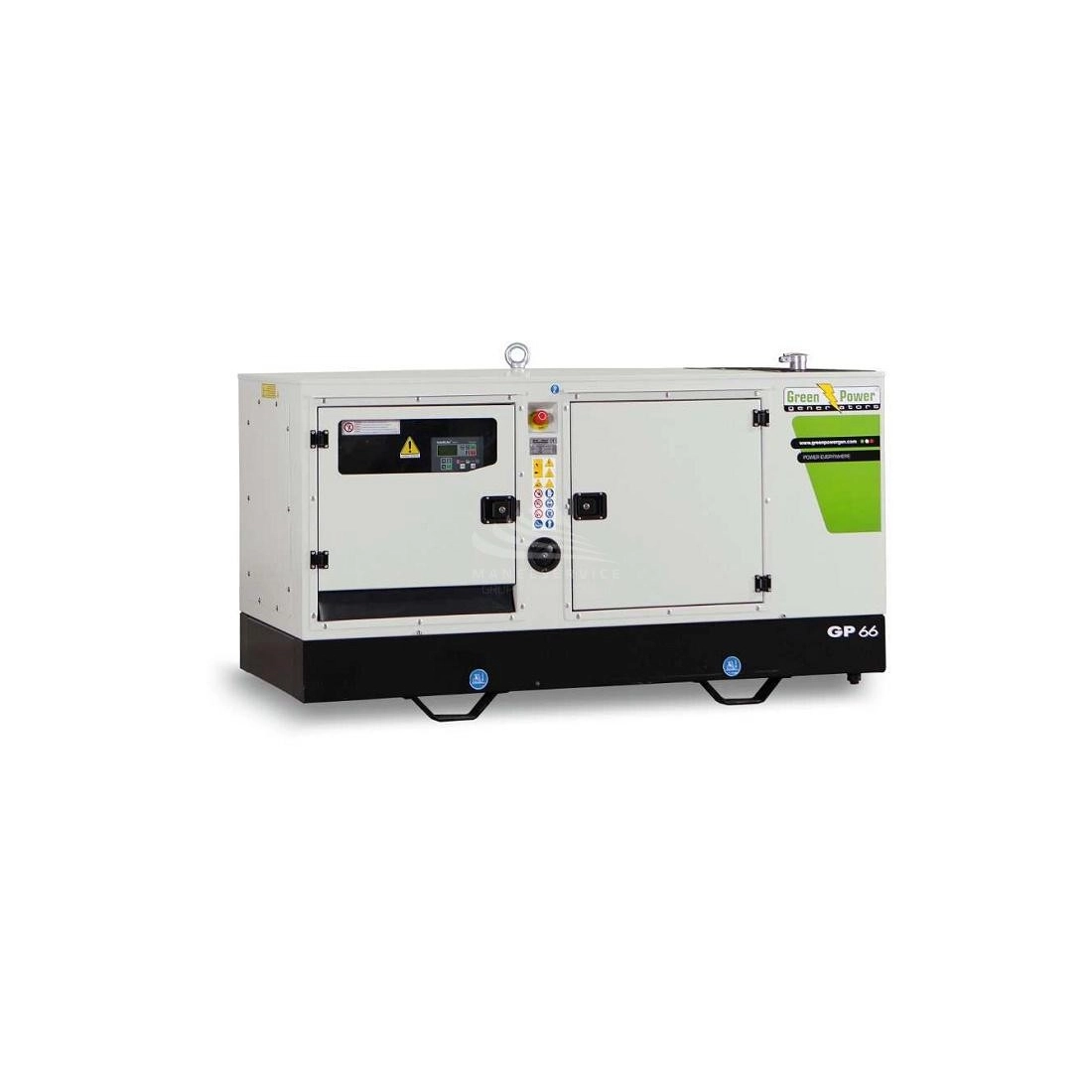

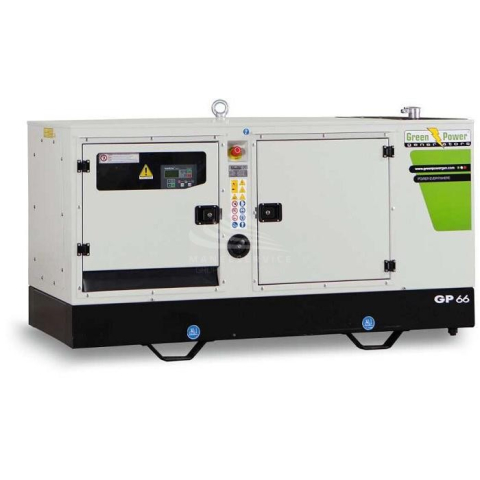

The image is purely indicative.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
