contains:
Parallel switchboard with ComAp IG200, without ATS
Maximum three-phase power: 80 KW / 110 KVA
displacement: 3595 cc
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: FPT NEF F36ETVP03.A94
Engine speed: 1500 rpm
Starting: Electric
Consumption: 17.6 Lt/h at 75% load
Length: 2800 mm
Width: 1150 mm
Height: 1785 mm
Weight: 1725 Kg
Standard tank capacity: 400 L
Supersilenced
AVR
Stage V

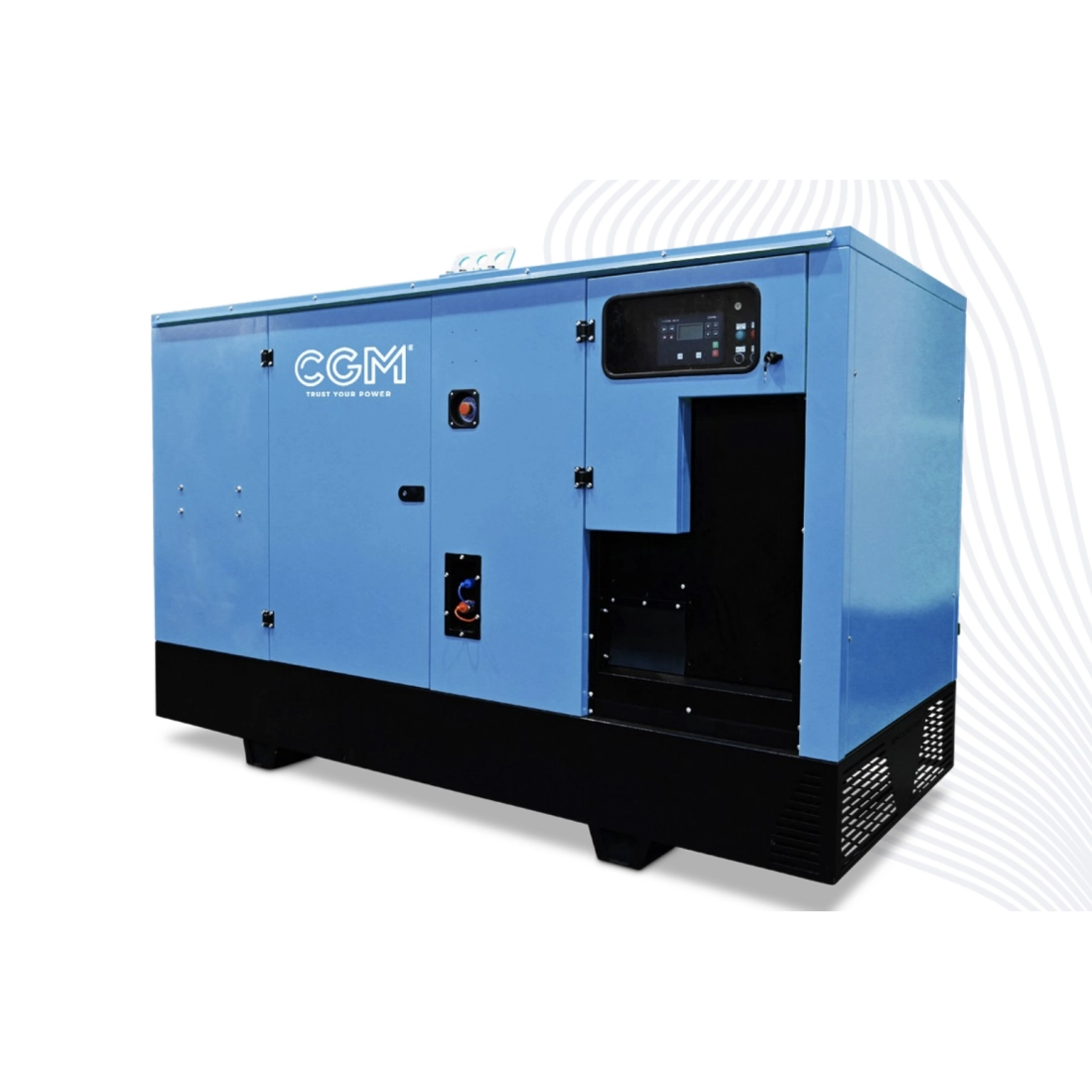

CGM V100F is a powerful three-phase genset designed to provide emergency or continuous power supply in various industrial and commercial applications. With a maximum power of 100 kVA and a voltage of 400V, this unit is capable of powering a wide range of electrical equipment.
Key features:
FPT NEF F36ETVP03.A94 engine: A robust and reliable diesel engine that complies with Stage V emissions regulations, ensuring a low environmental impact.
High performance: With a maximum power output of 100 kVA and consumption of only 17.6 litres/hour at 75% load, the CGM V100F offers excellent efficiency.
Quiet: Thanks to the soundproofing system, the noise level is extremely low, making it ideal for applications in noise-sensitive environments.
Compact and manoeuvrable: With its compact dimensions (2800x1150x1785 mm) and a weight of 1725 kg, the CGM V100F is easy to transport and install.
AVR system: Ensures a stable output voltage and protects connected equipment from voltage fluctuations.
Applications:
Construction: Power supply for construction sites and construction equipment.
Industry: Emergency power supply for industrial plants and machinery.
Events: Power supply for exhibition stands, concerts and other outdoor events.
Agriculture: Powering pumps, agricultural equipment and irrigation systems.
Images and technical data are not binding.
Technical Specifications CGM V100F:
Maximum three-phase power: 80 KW / 110 KVA
displacement: 3595 cc
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: FPT NEF F36ETVP03.A94
Engine speed: 1500 rpm
Starting: Electric
Consumption: 17.6 Lt/h at 75% load
Length: 2800 mm
Width: 1150 mm
Height: 1785 mm
Weight: 1725 Kg
Standard tank capacity: 400 L
Supersilenced
AVR
Stage V
If you are looking for a similar product then you can browse the entire range of generators or other types of products in our catalogue to find the one that best suits your needs.
Non-binding images and technical data.
* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
