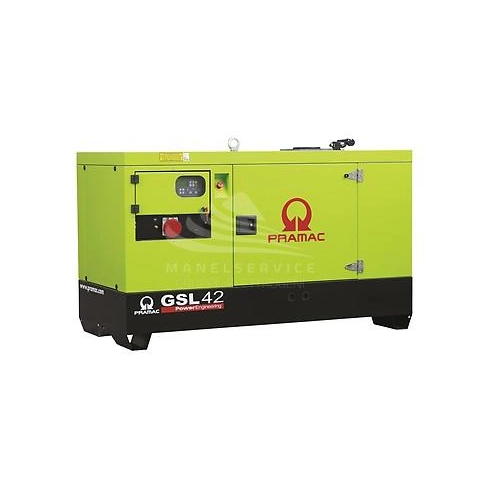

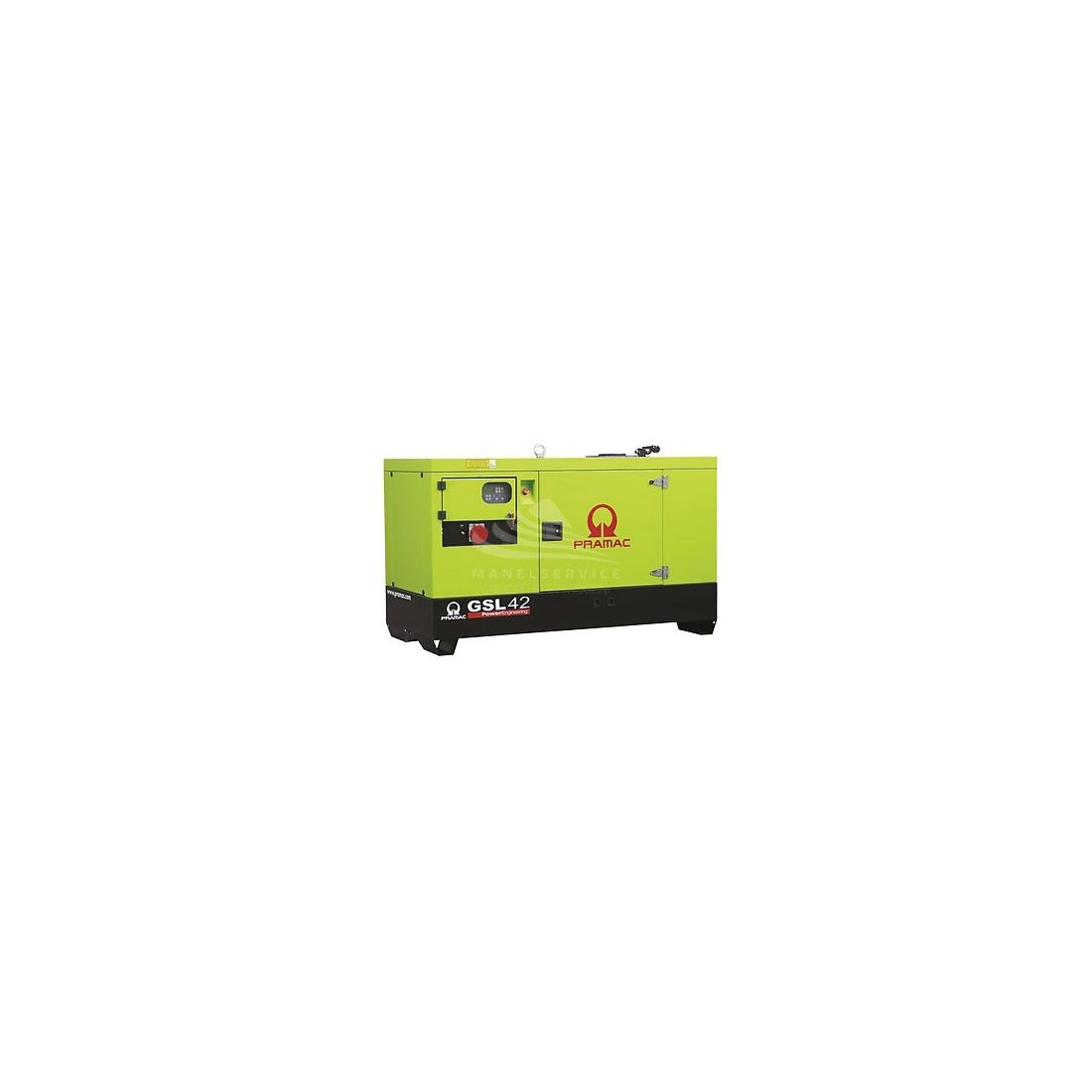

PRAMAC GSL42D COFANATO CON QUADRO COMANDO MANUALE

Reference SU390TDAP00 /

OUT OF PRODUCTION

Maximum power Three-phase: 35.62 KW
Power continuous use Three-phase: 33.85 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Deutz AG BF4M2011
Starting: Electric
Consumption: 11.2 Lt/h at 100% of the load
Length: 2000 mm
Width: 920 mm
Height: 1310 mm
Weight: 824 Kg
AVR

Download Scheda tecnica GSL42D COFANATO Download Technical data GSL42D COVERED Download Disegno installazione GSL42D Download Disegno installazione GSL42D EFT

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 35.62
Continuous power three phase (KW): 33.85
Maximum power three phase (KVA): 44.52
Continuous power three phase (KVA): 42.31
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400

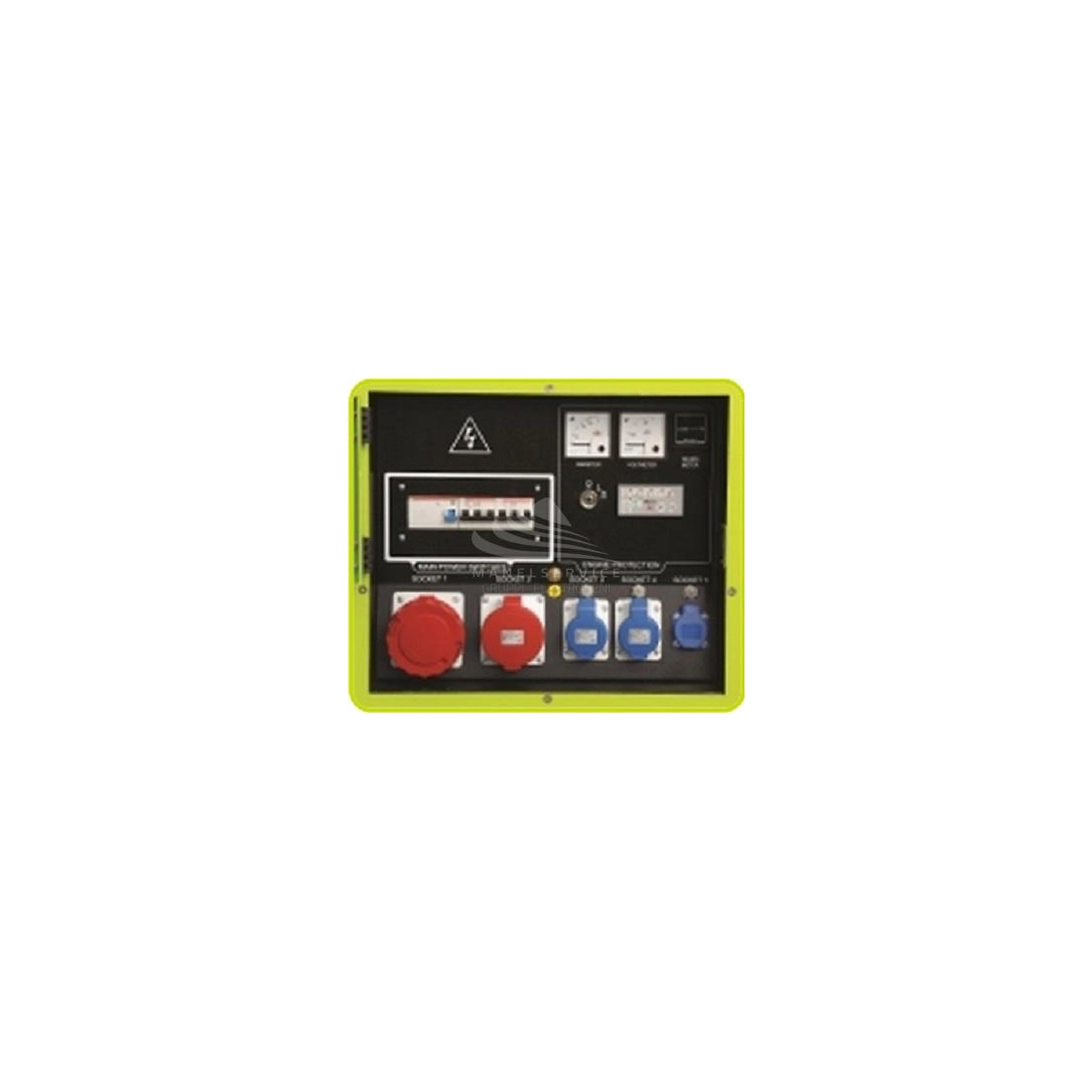

Sockets configuration: 1 x 400V 63A 3P+N+T - 1 x 400V 32A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Engine: Deutz AG BF4M2011, turbo
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3110
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 10
Cooling: Oil
Alternator: Mecc Alte ECO/P32-3S/4, brushless
Poles: 4
Fuel tank capacity (L): 68
Consumption (L/h): 8.1 at 75% of the load / 11.2 at 100% of the load
Running time (h): 8.4 at 75% of the load / 6 at 100% of the load
Acoustic power: 89 dB(A)
Acoustic pressure: 60 dB(A) at 7 m
Length (mm): 2000
Width (mm): 920
Height (mm): 1310
Dry weight (Kg): 824
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: AVR
Engine manufacturer: Deutz

Brand

Motore Diesel. Predisposto per Biodiesel. Raffreddamento ad olio con radiatore. Silenziatore industriale. Base forcabile con carrelli. Liquidi motore e batteria carica

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
