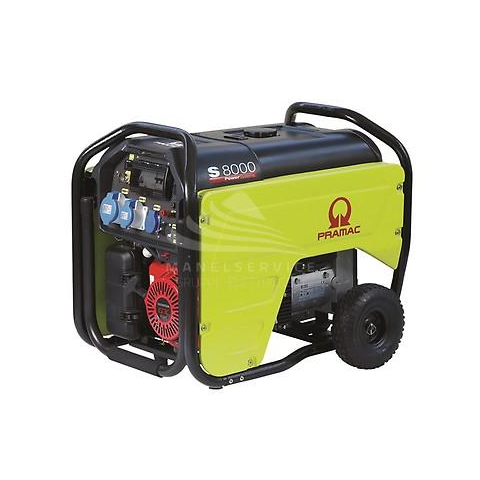

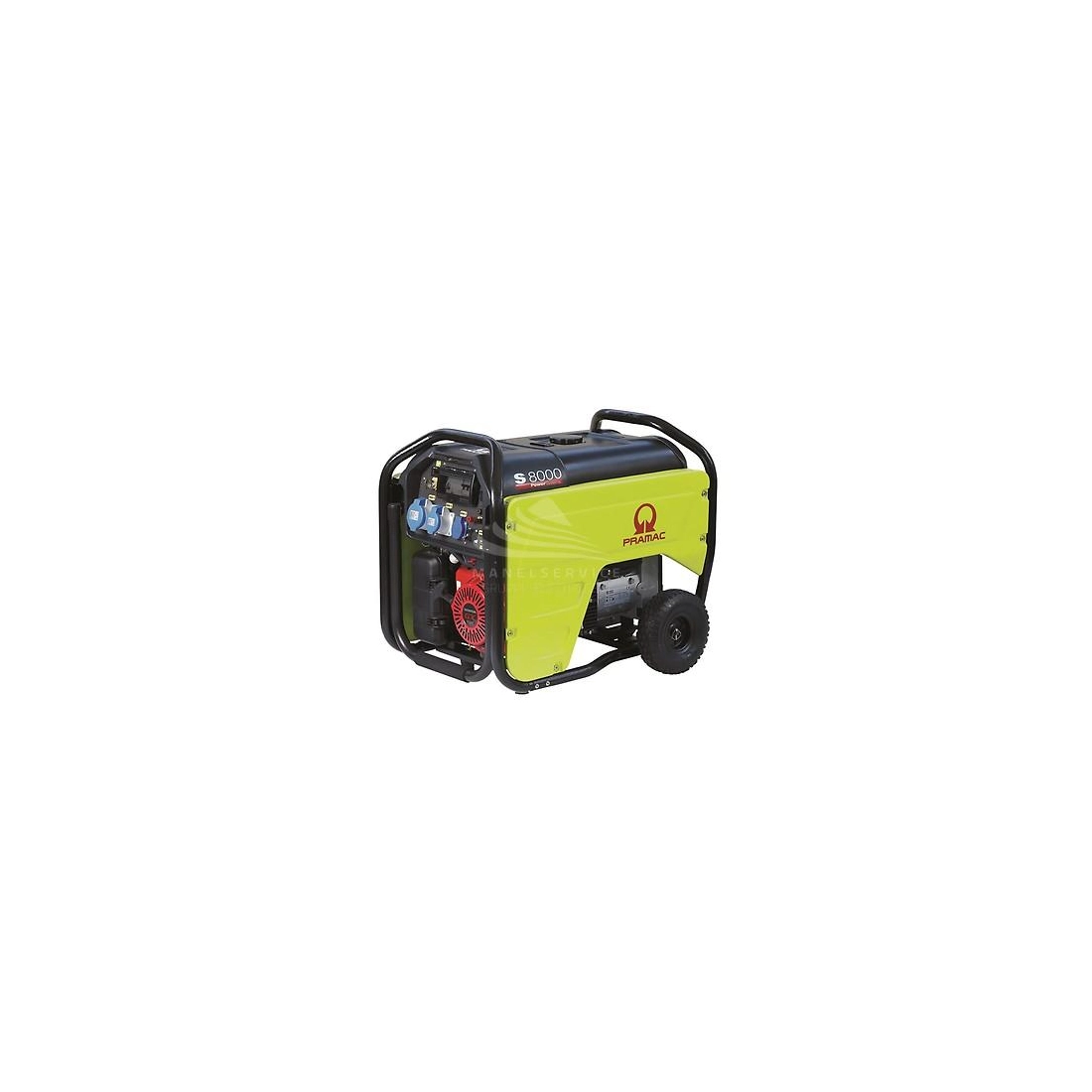

PRAMAC S8000 SINGLE PHASE

Reference PD612SH2Z01

Potenza Consumo uso continuativo: 10 kva
Tipo carburante: Benzina
Capacità serbatoio carburante: 24 LT
Autonomia: 6.1 h al 75% del carico
Dimensioni: L 96 cm x L 64.1 cm x A 66.7 cm
Peso a secco: 162 Kg
Potenza acustica LpA: 96 LWA dB(A)
Configurazione delle prese: 1 x Schuko ,1 x 230V 16A ,1 x 230V 32A

Download Scheda tecnica S8000 Monofase Download Technical data S8000 Monophase

Product Details
Description

Phase: Single phase
Maximum power single phase (KW): 6.4
Continuous power single phase (KW): 5.5
Maximum power single phase (KVA): 7.2
Continuous power single phase (KVA): 6
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230
Sockets configuration
Engine: Honda GX390 Electric, naturally aspirated
Engine rpm (rpm): 3000
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 389
Oil capacity (L): 1.1
Cooling: Air
Poles: 2
Fuel tank capacity (L): 26.5
Consumption (L/h): 2.14 at 75% of the load / 2.87 at 100% of the load
Running time (h): 12.38 at 75% of the load / 9.23 at 100% of the load
Acoustic power: 97 dB(A)
Acoustic pressure: 73 dB(A) at 7 m
Length (mm): 840
Width (mm)
Height (mm): 753
Dry weight (Kg): 109
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: Capacitor
Engine manufacturer: Honda

Brand

Motore Honda Serie GX. Raffreddamento ad aria. Batteria fornita di serie. Protezione Oil Guard. Tubazioni telaio maggiorate. Serbatoio maggiorato. Bandelle laterali di protezione

L'immagine è puramente indicativa

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
