GENERATOR RENTAL 100KVA LR100

search
NO BRAND
LR100 NOLEGGIO
New product

RENTAL SERVICE AVAILABLE IN ALL ITALY

Phase Type: Single-phase / Three-phase
Single-phase Continuous Power: 33.3 KVA / 26.6
Single-phase Maximum Power: 36.6 KVA / 29.3
Three-phase Continuous Power: 100 KVA / 80KW
Three-phase Maximum Power: 110 KVA / 88KW
Power Factor cos fiφ: 0. 8
VAC voltage: 230 / 400 V
Frequency (Hz): 50
Voltage regulator: Yes
Starting framework: Manual / Automatic
Engine: FPT (IVECO) NEF45TM2
RPM: 1500
Power supply: Diesel
Tank capacity: 200 l
Consumption @ 75 % of load: 16 l/h
Autonomy @ 75 % of load: 12. 5 h
Sound pressure: 75 dB(A) @ 7m
Length: 2500 mm
Width: 1100 mm
Height: 1700 mm
Net weight: 1800 Kg

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
29.3
Continuous power single phase (KW)
26.6
Maximum power single phase (KVA)
36.6
Continuous power single phase (KVA)
33.3
Maximum power three phase (KW)
88
Continuous power three phase (KW)
80
Maximum power three phase (KVA)
110
Continuous power three phase (KVA)
100
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
Terminal box
Engine
FPT NEF45TM2
Emissions Regulations
Stationary Use
Engine rpm (rpm)
1500
Speed governor
Mechanical
Starting system
Electric
Cooling
Air
Alternator
Mecc Alte
Poles
4
Fuel tank capacity (L)
200
Consumption (L/h)
16.2 Lt/h al 80% del carico
Running time (h)
12.35 h al 80% del carico
Acoustic pressure
75 dB(A) at 7 m
Length (mm)
2500
Width (mm)
1100
Height (mm)
1700
Dry weight (Kg)
1800
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional
Voltage regulator
Yes
Engine manufacturer
FPT Iveco
Details

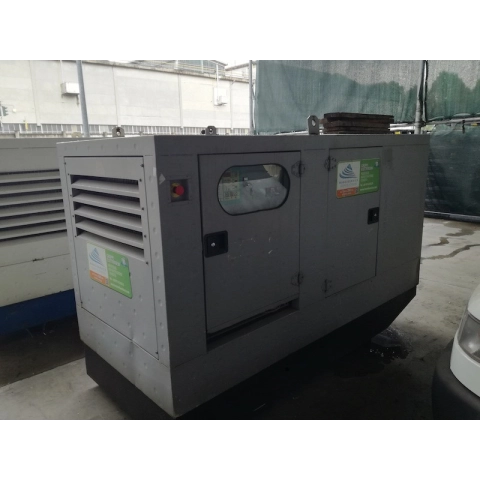

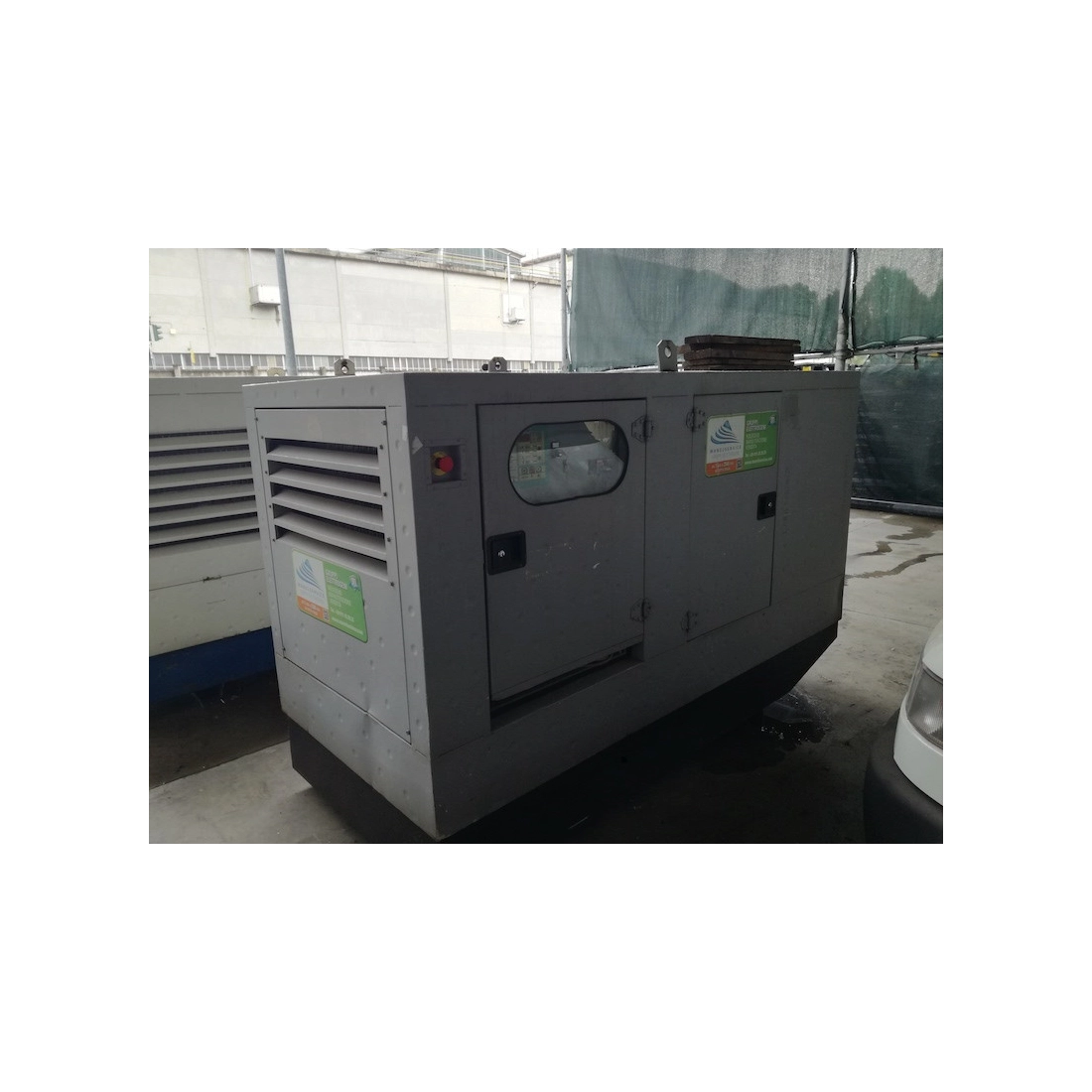

GENERATOR RENTAL 100KVA SET LR100 SINGLE-PHASE / THREE-PHASE POWER 100KVA

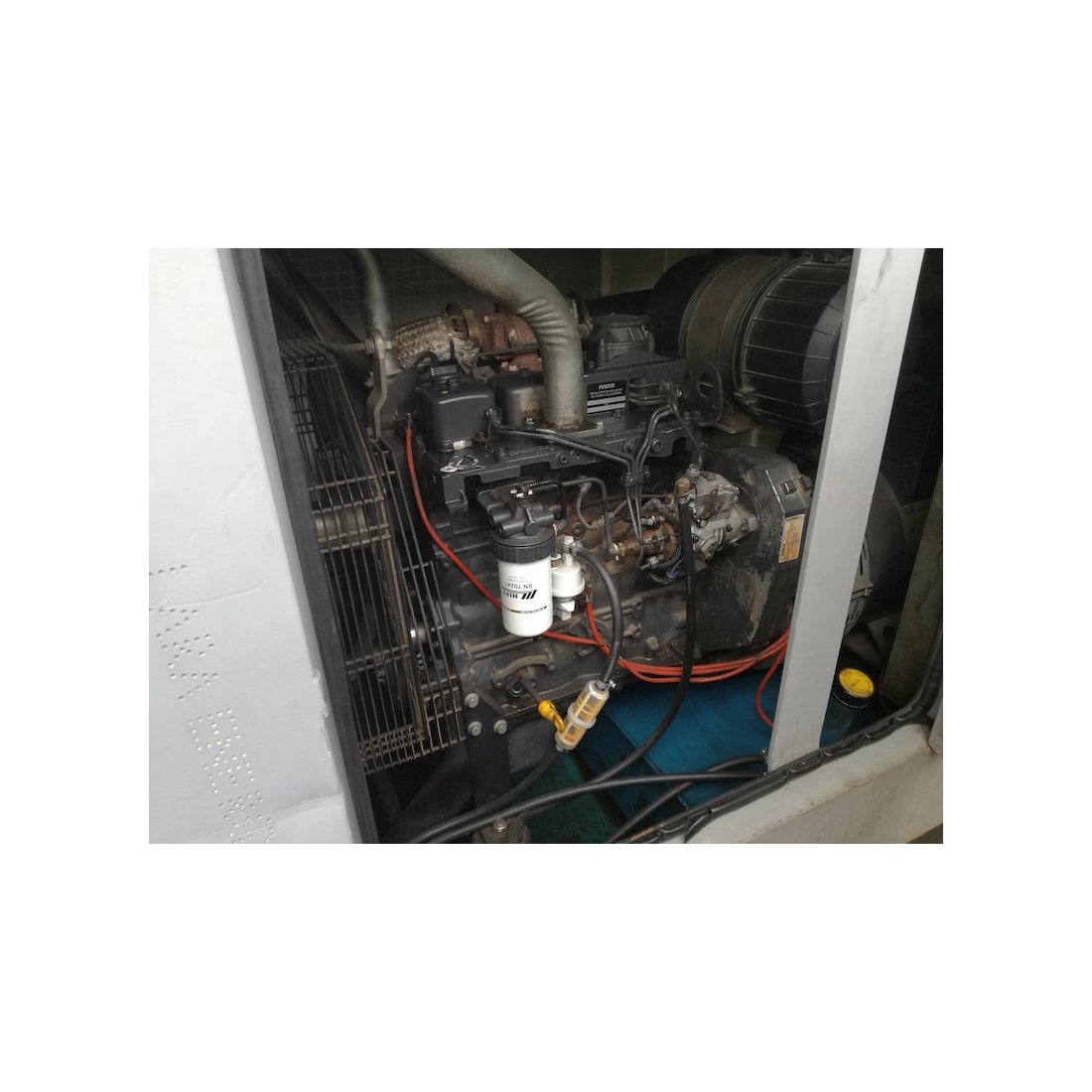

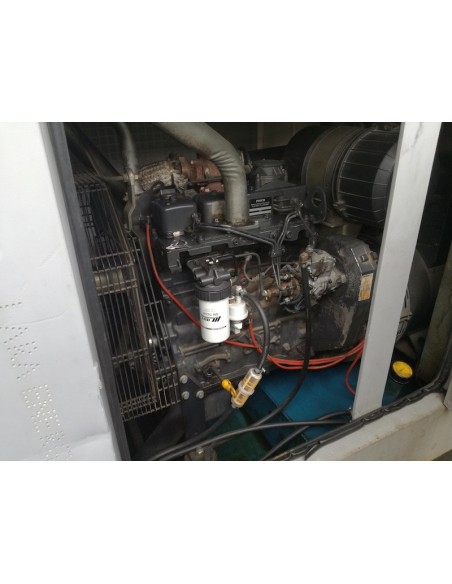

Rental LR100 single-phase / three-phase generator set equipped with a diesel engine FPT (IVECO) NEF45TM2 capable of delivering a maximum power of 100KVA, complete with voltage regulator.

GENERATOR 100KVA LR100 is compact and easy to use, equipped with sound-absorbing panels that greatly reduce noise emissions and makes it super-silenced. The GENERATOR 100KVA LR100 Generator set is composed of a Mecc Alte alternator with voltage regulator. LR100 generator set is equipped with electric start and with a low fuel consumption, in fact it consumes only 16,2 liters/hour at 80% of the load (221 gkW/h) for an autonomy up to 12 hours of operation. GENERATOR RENTAL 100KVA LR100 is equipped with electric start or automatic start via ATS panel, which allows automatic start in case of blackout.

ATS AUTHOMATIC TRANSFER SWITCH

The LR100 rental generator set is designed for the use of the ATS Authomatic Transfer Switchl. Thanks to it, you will no longer have to worry about blackouts because if the mains fails, this panel is able to automatically start the LR100 and allow you to continue your activity without losing your work data.

RENTAL SERVICE

Rental a generator set has never been so easy: choose the product you want to rent and FILL OUT THE FORM.

Our specialized staff will respond immediately with the offer that best suits you!

The equipment available for rental can be shipped throughout Italy and is always ready for action: our team of technicians will always keep it in perfect working condition.

It is advisable to book in advance for the rental of large quantities of machines: this is especially important in conjunction with trade fairs or events, where many people will use the rental service.

TECHNICAL CHARACTERISTICS GENERATOR 100KVA LR100 :

Phase Type: SinglePhase / ThreePhase
SinglePhase Continuous Power: 33.3 KVA / 26.6
Maximum SinglePhase Power: 36.6 KVA / 29.3
ThreePhase Continuous Power: 100 KVA / 80KW
ThreePhase Maximum Power: 110 KVA / 88KW
Factor cos fiφ: 0. 8
VAC voltage: 230 / 400 V
Frequency (Hz): 50
Voltage regulator: YES
Start-up switch: Manual / Automatic
Engine: FPT (IVECO) NEF45TM2
RPM: 1500
Power supply: Diesel
Fuel tank capacity: 200 l
Consumption @ 75 % load: 16 l/h
Autonomy @ 75 % load: 12. 5 h
Acoustic pressure: 75 dB(A) @ 7m
Length: 2500 mm
Width: 1100 mm
Height: 1700 mm
Net weight: 1800 Kg

Are you looking to rental a generator set with different technical characteristics? Here you can find our entire rental fleet in which you can find the perfect generator for you.

The images are purely indicative.


""
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
