GENERATOR RENTAL 45 KVA

CGM 45P 45 KVA - 380/460 V - 50/60 Hz
search
  • CGM 45P 45 KVA - 380/460 V - 50/60 Hz
  • CGM 45P 45 KVA - 380/460 V - 50/60 Hz
  • CGM 45P 45 KVA - 380/460 V - 50/60 Hz
  • CGM 45P 45 KVA - 380/460 V - 50/60 Hz
  • CGM 45P 45 KVA - 380/460 V - 50/60 Hz
  • CGM 45P 45 KVA - 380/460 V - 50/60 Hz
  • CGM 45P 45 KVA - 380/460 V - 50/60 Hz
  • CGM 45P 45 KVA - 380/460 V - 50/60 Hz
  • CGM 45P 45 KVA - 380/460 V - 50/60 Hz
NO BRAND
45P NOLEGGIO

RENTAL SERVICE AVAILABLE IN ALL ITALY

Phase Type: Single Phase / Three Phase

Single Phase Continuous Power:
(50 Hz) 15 KVA / 12 KW
(60 Hz) 16.6 KVA / 13.3 KW

Maximum Single-phase Power:
(50 Hz) 16.5 KVA / 13.2 KW
(60 Hz) 18.3 KVA / 14.6 KW

Three Phase Continuous Power:
(50 Hz) 45 KVA / 36 KW
(60 Hz) 50 KVA / 40 KW

Three Phase Maximum Power:
(50 Hz) 49.5 KVA / 39.6 KW
(60 Hz) 55 KVA / 44 KW

Power factor cos fiφ: 0.8
VAC voltage: 190÷230 / 380÷460 V
Frequency (Hz): 50 / 60
Voltage regulator: AVR
Start framework: Manual / Automatic
Motor: PERKINS 1103A-33TG1
RPM: 1500 - 1800
Power supply: Diesel
Tank capacity: 120 l
Consumption@ 75 % of load: 8. 2 l/h (1500 rpm) / 9.9 l/h (1800 rpm)
Autonomy @ 75 % of load: 14.6 h (1500 rpm) / 12.1 h (1800 rpm)
Sound pressure: 69 @ 7m
Length: 2000 mm
Width: 850 mm
Height: 1275 mm
Net weight: 930 Kg

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
13.2 (50 Hz) / 14.6 (60 Hz)
Continuous power single phase (KW)
12 (50 Hz) / 13.3 (60 Hz)
Maximum power single phase (KVA)
15 (50 Hz) / 16.6 (60 Hz)
Continuous power single phase (KVA)
15 (50 Hz) / 16.6 (60 Hz)
Maximum power three phase (KW)
39.6 (50 Hz) / 44 (60 Hz)
Continuous power three phase (KW)
36 (50 Hz) / 40 (60 Hz)
Maximum power three phase (KVA)
49.5 (50 Hz) / 55 (60 Hz)
Continuous power three phase (KVA)
45 (50 Hz) / 50 (60 Hz)
Fuel
Diesel
Frequency (Hz)
50 / 60
Voltage (V)
190÷230 / 380÷460

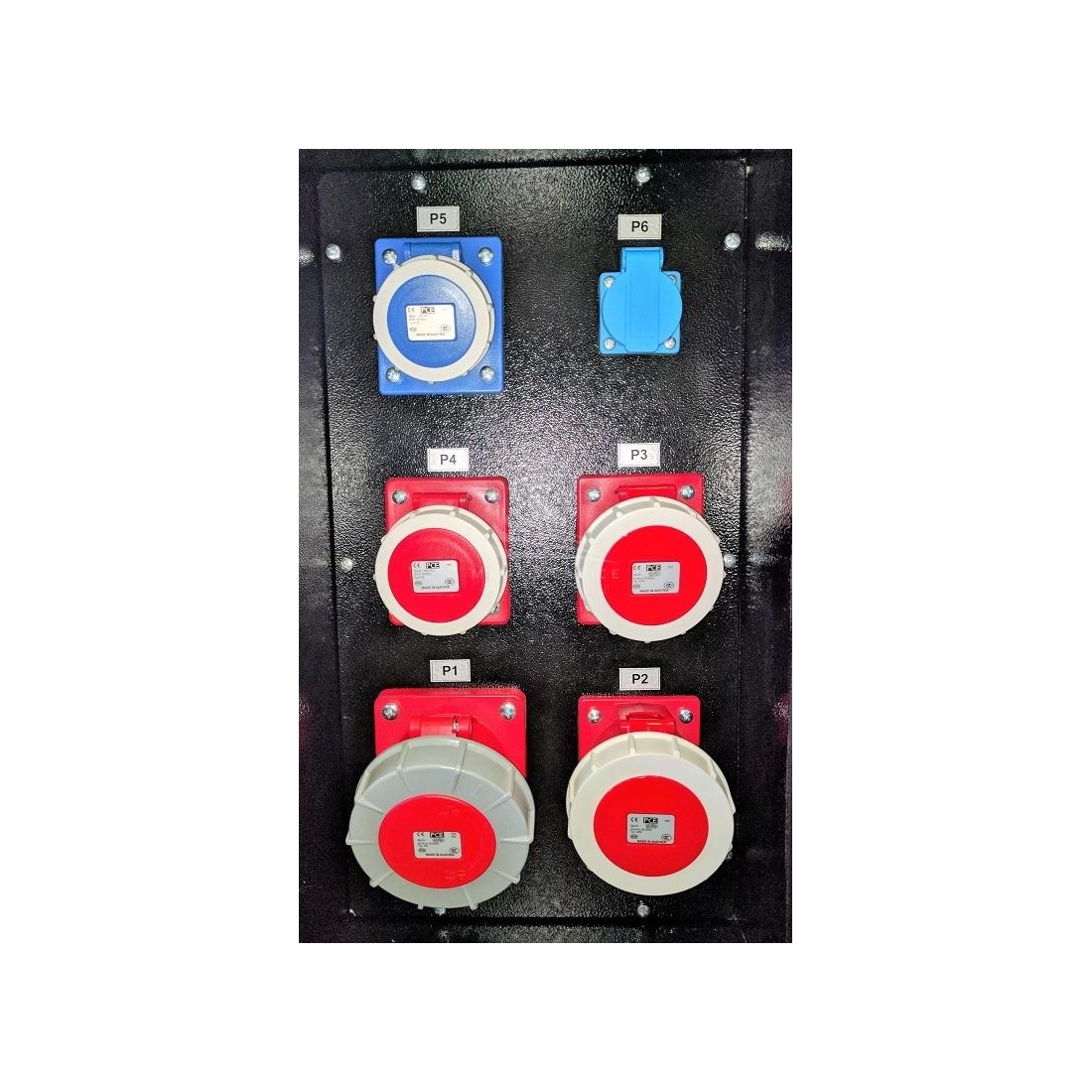

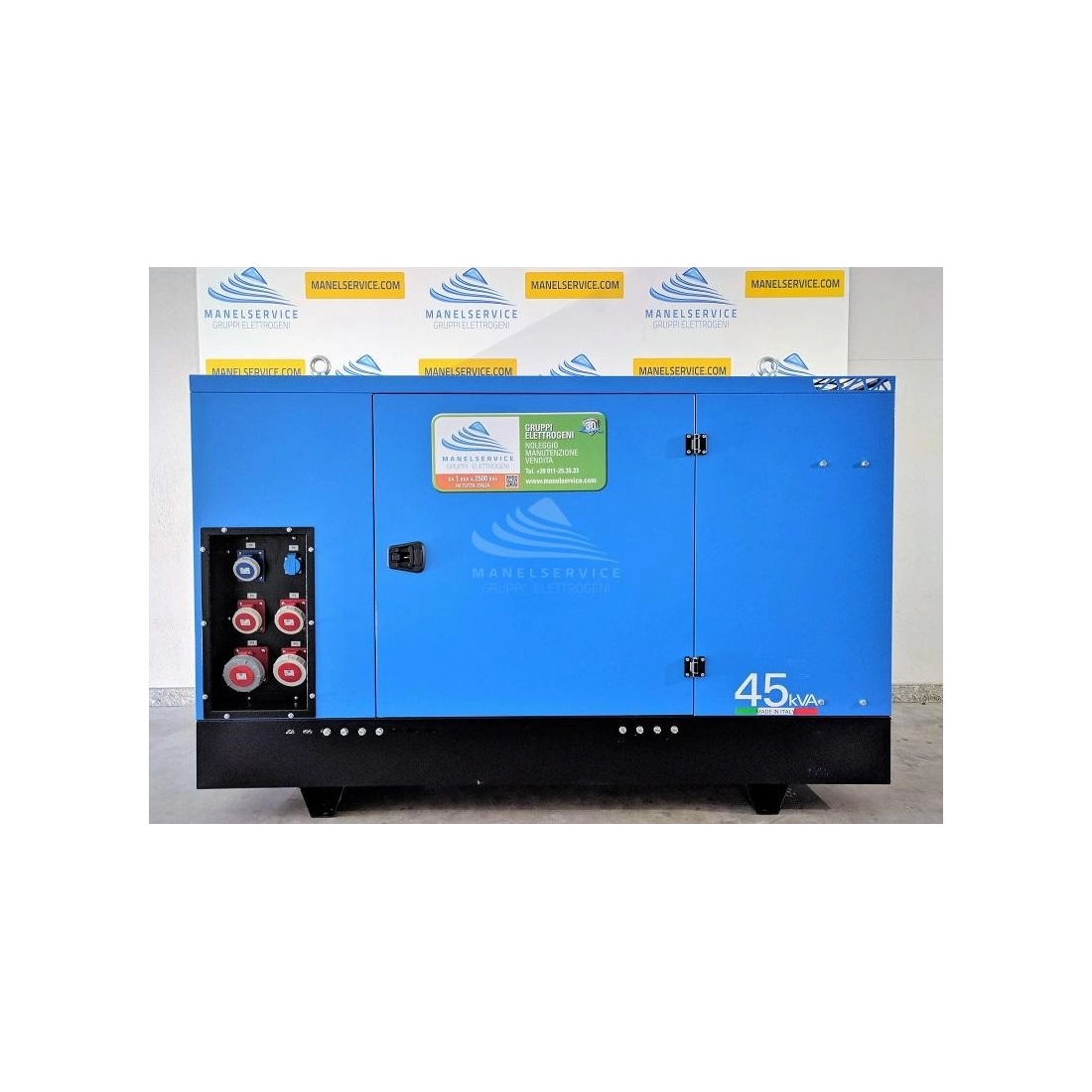

Sockets configuration
1x230V schuko - 1x230V 16A 3P - 1x400V 16A 4P - 1x400V 16A 5P - 1x400V 32A 5P - 1x400V 63A 5P
Engine
Perkins 1103A-33TG1, 4 stroke
Engine rpm (rpm)
1500 - 1800
Speed governor
Electronic
Starting system
Manual / Automatic
Engine capacity (cm³)
3300
Number cylinders
3
Cylinders' position
In line
Cooling
Water
Alternator
Sincrono trifase, autoeccitato, autoregolato, senza spazzole
Poles
4
Bore x stroke (mm)
105 x 127
Fuel tank capacity (L)
120
Consumption (L/h)
8.2 (1500 rpm) / 9.9 (1800 rpm)
Running time (h)
14.6 (1500 rpm) / 12.1 (1800 rpm)
Acoustic pressure
69 dB(A) at 7 m
Length (mm)
2000
Width (mm)
850
Height (mm)
1275
Dry weight (Kg)
930
Silenced
Yes
Super silenced
Yes
ATS Switch device
Yes
Voltage regulator
AVR
Engine manufacturer
Perkins
Details

GENERATOR RENTAL 45 KVA SET 45P SINGLE-PHASE / THREE-PHASE  50/60 Hz AVR AUTOMATIC PANEL

GENERATOR RENTAL 45 KVA set 45P single-phase / three-phase, equipped with PERKINS 1103A-33TG1 Diesel engine, 1500-1800 rpm, able to deliver a maximum power of 55KVA, complete with AVR voltage regulator and ATS automatic start panel.

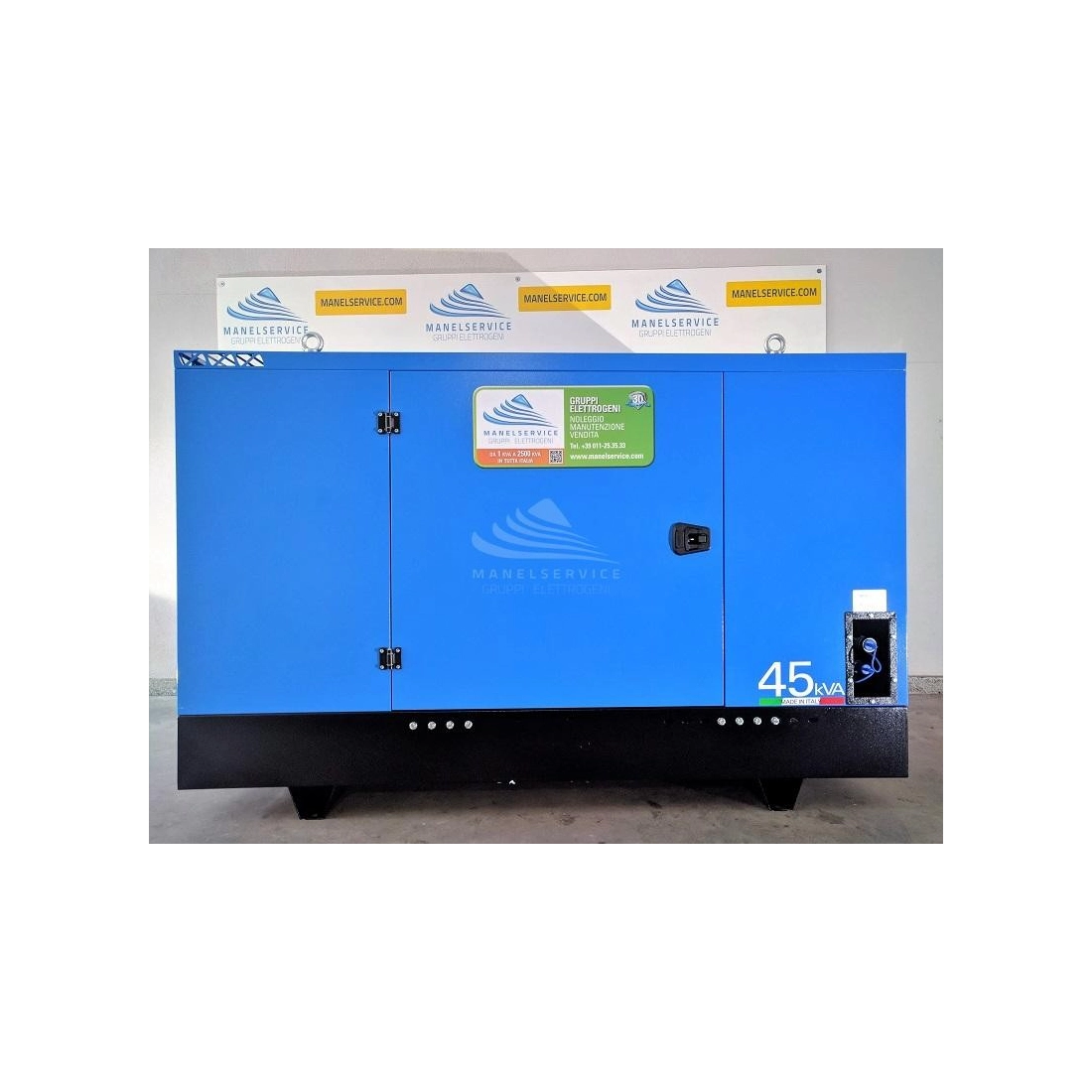

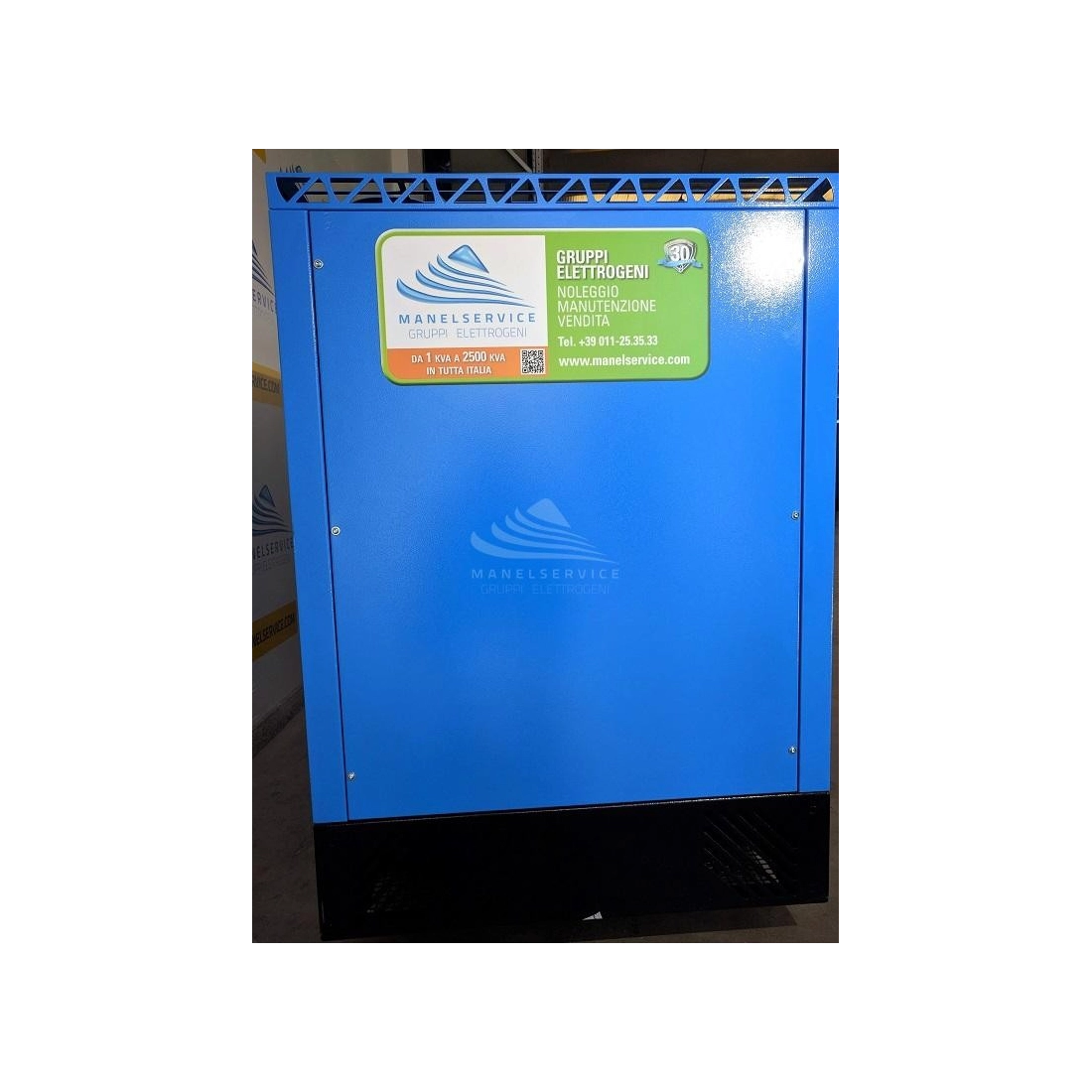

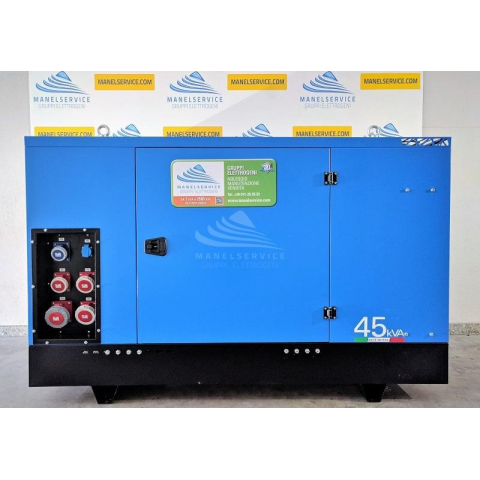

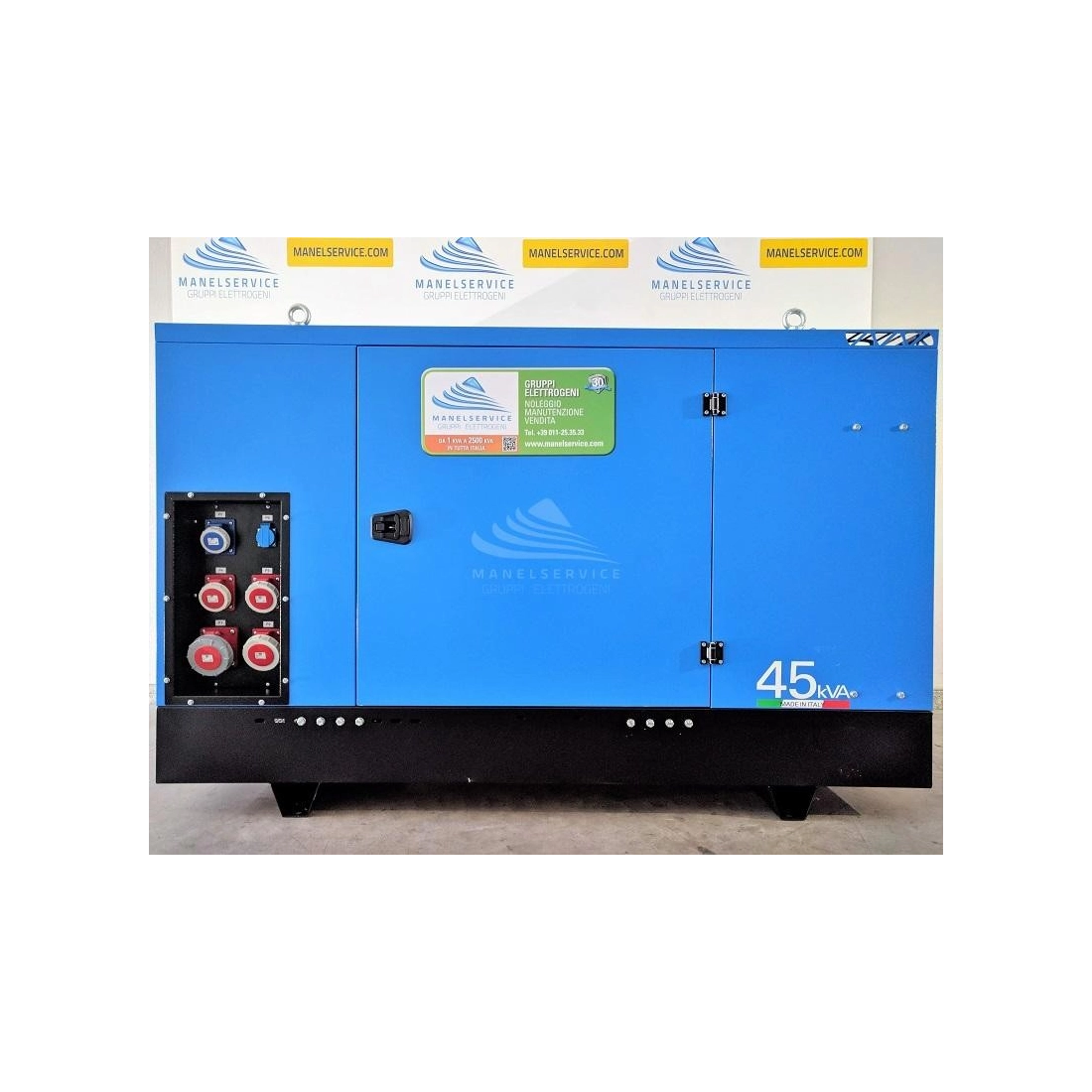

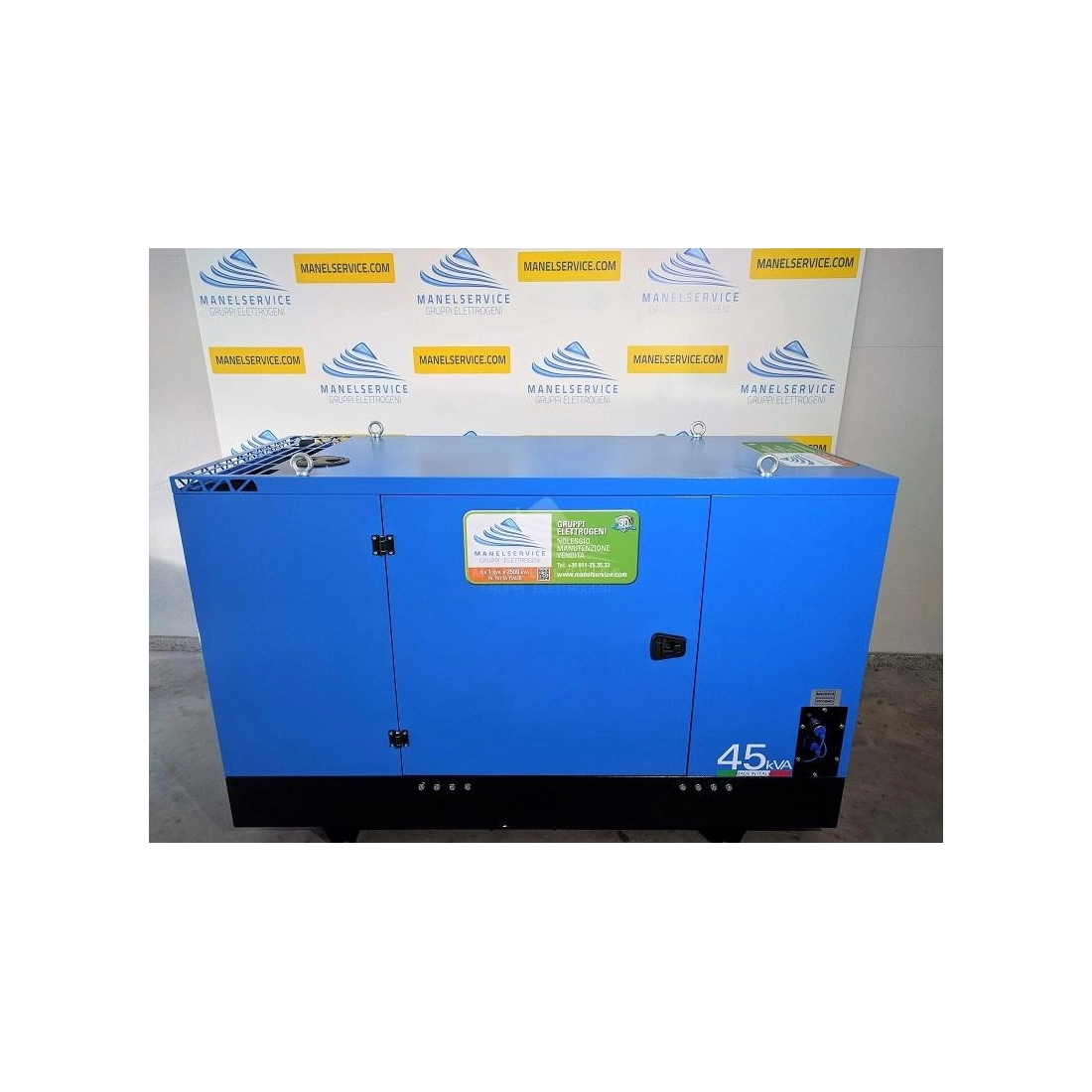

The GENERATOR 45 KVA set 45P consists of a soundproof and weatherproof cabin, made of structural steel sheet, thickness included between 1.5 and 4.5 mm, painted with epoxy powder RAL5015 textured. The internal covering material is made of soundproofing material with high noise reduction, finished with water-repellent and anti-oil material.

AUTHOMATIC TRANSFER SWITCH ATS

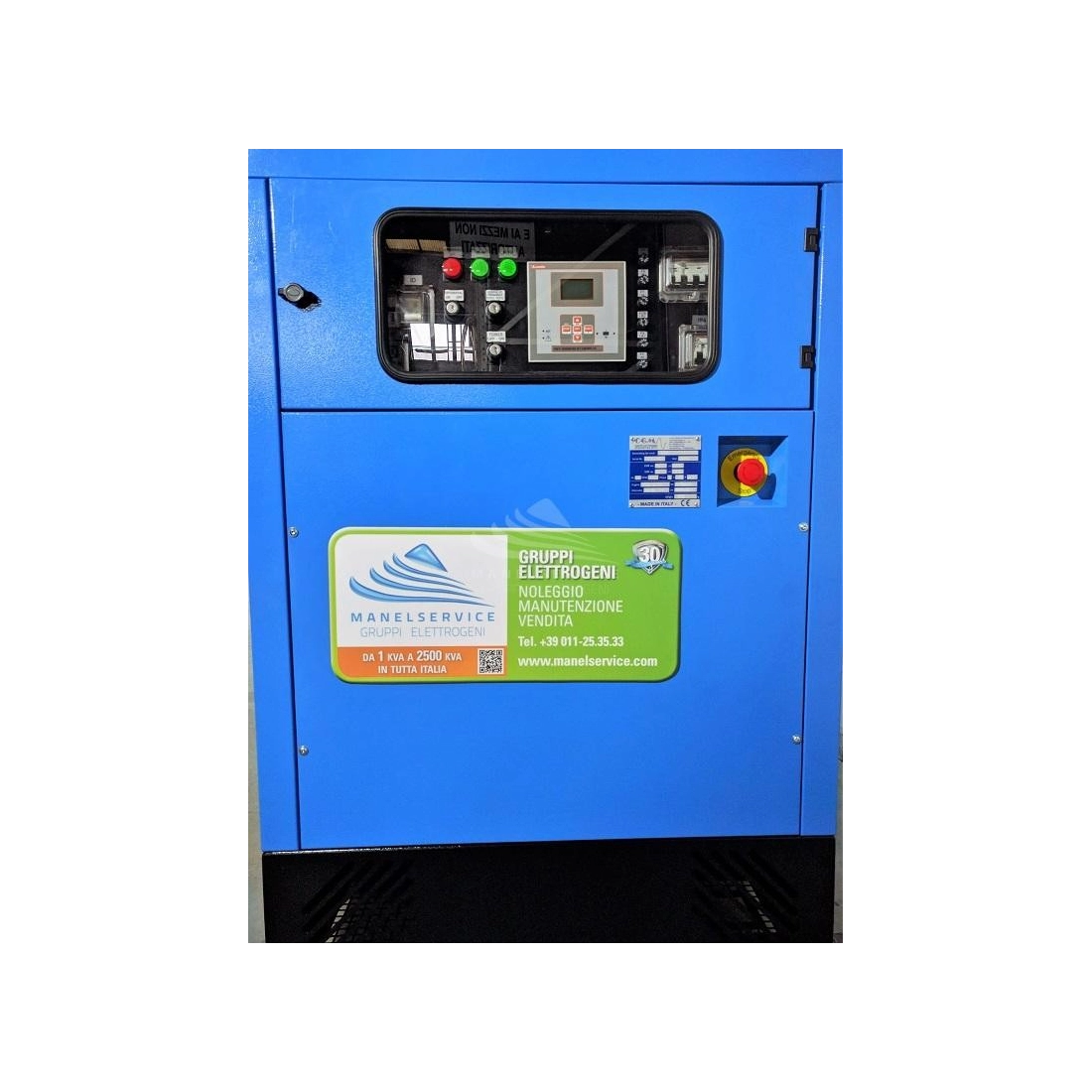

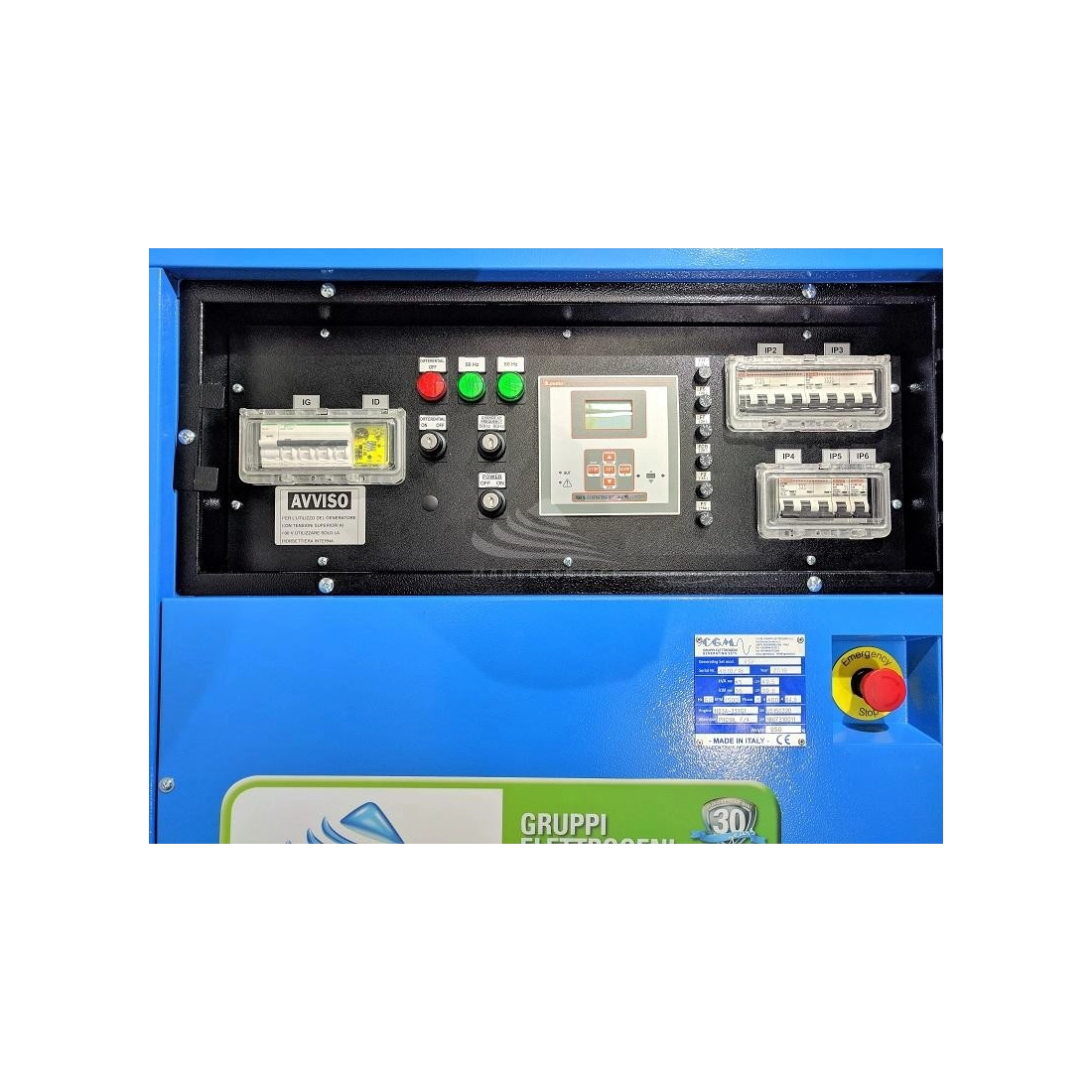

The GENERATOR 45 KVA 45P rental generator set comes complete with an ATS authomatic transfer switch. You won't have to worry about blackouts anymore because if the mains fails, this panel will automatically start the GENERATOR 45 KVA 45P and allow you to continue your activity without losing your work data.

RENTAL SERVICE

Rental a generator set 45P has never been so easy: choose the product you want to rent and FILL OUT THE FORM.

Our specialized staff will answer you immediately with the most suitable offer for you!

The equipment available for rental can be shipped throughout Italy and is always ready for action: our team of technicians will always keep it in perfect working condition.

It is advisable to book in advance for the rental of large quantities of machines: this is especially important during trade fairs or events, where many people will be using the rental service.

Voltage Regulator AVR

The 45P generator set comes complete with a 120-litre tank, has a fuel consumption of 9.9 litres/hour at 75% load for an autonomy of more than 12 hours. The alternator is synchronous, self-excited, self-regulated, brushless with class H insulation with AVR voltage regulator.

The 45P is equipped with a voltage regulator. The AVR is a device that allows you to keep the output more constant and less dependent on the load. Thanks to this card you have fewer drops or spikes in current and this makes it safer to use the various devices connected, improving performance and durability.

TECHNICAL SPECIFICATIONS GENERATOR RENTAL 45 KVA 45P SET:

Phase Type: SinglePhase / ThreePhase

SinglePhase Continuous Power:
(50 Hz) 15KVA / 12KW
(60 Hz) 16.6KVA / 13.3KW

Maximum SinglePhase Power:
(50 Hz) 16.5KVA / 13.2 KW
(60 Hz) 18.3KVA / 14.6 KW

ThreePhase Continuous Power:
(50 Hz) 45 KVA / 36 KW
(60 Hz) 50 KVA / 40 KW

ThreePhase Maximum Power:
(50 Hz) 49.5 KVA / 39.6 KW
(60 Hz) 55 KVA / 44 KW

Factor cos fiφ: 0. 8
Voltage VAC: 190÷230 / 380÷460 V
Frequency (Hz): 50 / 60
Voltage controller: AVR
Starting frame: Manual / Automatic
Motor: PERKINS 1103A-33TG1
RPM: 1500 - 1800
Supply: Diesel
Fuel tank capacity: 120 l
Consumption@ 75 % of load: 8. 2 l/h (1500 rpm) / 9.9 l/h (1800 rpm)
Autonomy @ 75 % of load: 14.6 h (1500 rpm) / 12.1 h (1800 rpm)
Acoustic pressure: 69 @ 7m
Length: 2000 mm
Width: 850 mm
Height: 1275 mm
Net weight: 930 Kg

Are you looking to rental a generator set with different technical characteristics? Here you can find our entire rental fleet where you can find the perfect generator for you.

The images are purely indicative.


""
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
