GENERATOR RENTAL 23KVA AVR
      GENERATOR RENTAL 23KVA AVR
      GENERATOR RENTAL 23KVA AVR
      GENERATOR RENTAL 23KVA AVR
      GENERATOR RENTAL 23KVA AVR
      GENERATOR RENTAL 23KVA AVR

      GENERATOR RENTAL 23KVA AVR

      RENTAL SERVICE AVAILABLE IN ALL ITALY

      Phase Type: Single-phase / Three-phase
      Single-phase Continuous Power: 6.6 KVA / 5.3 KW
      Single-phase Maximum Power: 7.6 KVA / 6.1 KW
      Three-phase Continuous Power: 20 KVA / 16 KW
      Three-phase Maximum Power: 23 KVA / 18.4 KW
      Power Factor cos fiφ: 0. 8
      VAC voltage: 230 / 400 V
      Frequency (Hz): 50
      Voltage regulator: AVR
      Starting framework: manual
      Engine: Perkins 404 D
      RPM: 1500
      Power supply: Diesel
      Fuel tank capacity: 46 l
      Consumption: 6. 2 l/h @ 100 % of load
      Autonomy: 7.4 h @ 100 % of load
      Sound pressure: 68 @ 7m
      Length: 1480 mm
      Width: 680 mm
      Height: 1140 mm
      Net weight: 570 Kg

      Custom Quote
      Product: GENERATOR RENTAL 23KVA AVR

      PERSONAL DATA


      Ask a question
      Product: GENERATOR RENTAL 23KVA AVR
      Offer on letterhead
      Product: GENERATOR RENTAL 23KVA AVR
      WFM
      M230-LDEW NOLEGGIO

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      6.1
      Continuous power single phase (KW)
      5.3
      Maximum power single phase (KVA)
      7.6
      Continuous power single phase (KVA)
      6.6
      Maximum power three phase (KW)
      18.4
      Continuous power three phase (KW)
      16
      Maximum power three phase (KVA)
      23
      Continuous power three phase (KVA)
      20
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Sockets configuration
      1 x 400V 16A 5P CEE - 1 x 230V 16A 3P CEE
      Engine
      Perkins 404D-22G
      Engine rpm (rpm)
      1500
      Starting system
      Electric
      Engine capacity (cm³)
      2216
      Number cylinders
      4
      Oil capacity (L)
      10.6
      Cooling
      Coolant Liquid
      Fuel tank capacity (L)
      46
      Consumption (L/h)
      6.2 at 100% of the load
      Running time (h)
      7.41 at 100% of the load
      Acoustic power
      93 dB(A)
      Acoustic pressure
      68 dB(A) at 7 m
      Length (mm)
      1480
      Width (mm)
      680
      Height (mm)
      1140
      Dry weight (Kg)
      570
      Silenced
      Yes
      Super silenced
      Yes
      ATS Switch device
      Optional
      Voltage regulator
      AVR
      Engine manufacturer
      Perkins

      Specific References

      New

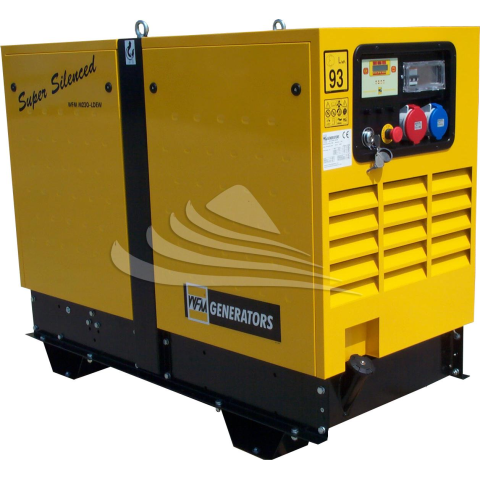

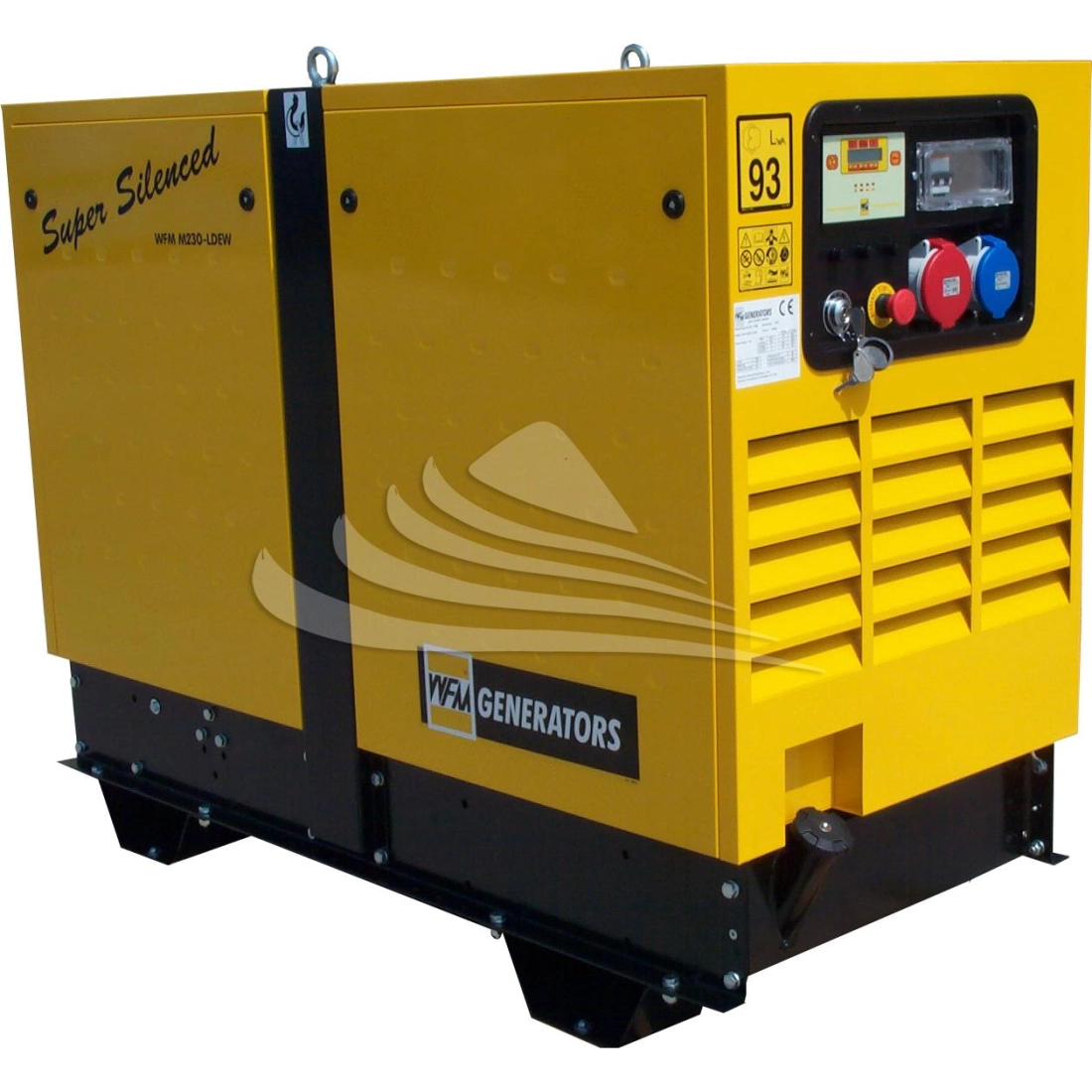

      GENERATOR RENTAL 23KVA AVR - WFM M230-LDEW

      Generator Rental 23KVA Set WFM M230-LDEW single-phase / three-phase generator set equipped with Perkins 404 D diesel engine capable of delivering a maximum power of 23KVA, complete with AVR voltage regulator.

      RENTAL SERVICE

      Generator Rental 23KVA has never been so easy: choose the product you want to rent and FILL OUT THE FORM.

      Our specialized staff will answer you immediately with the most suitable offer for you!

      The equipment available for rental can be shipped throughout Italy and is always ready for action: our team of technicians will always keep it in perfect working condition.

      It is advisable to book in advance for the rental of large quantities of machines: this is especially important in conjunction with trade fairs or events, where many people will use the rental service.

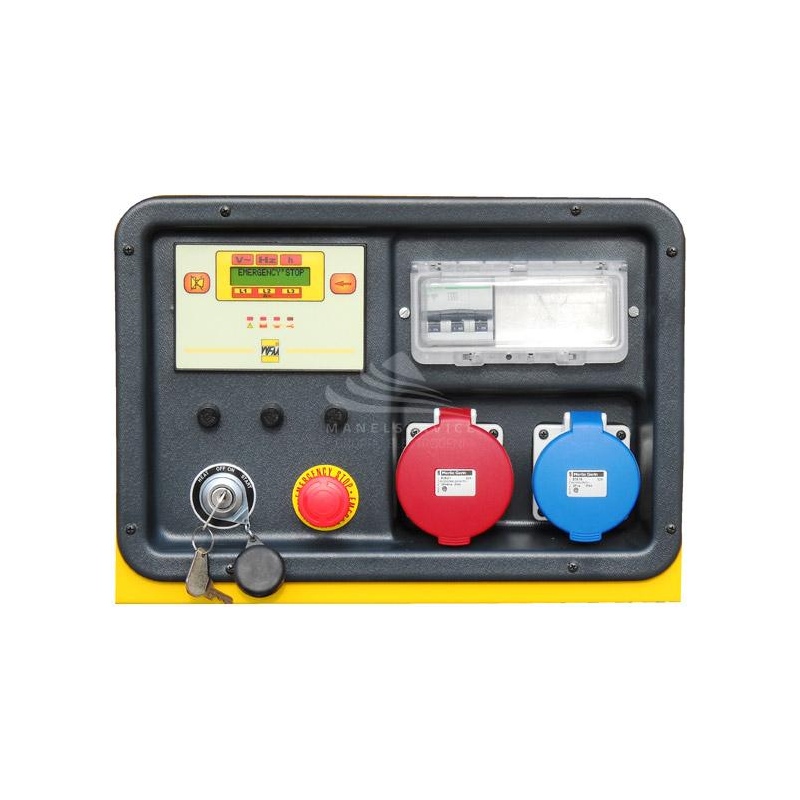

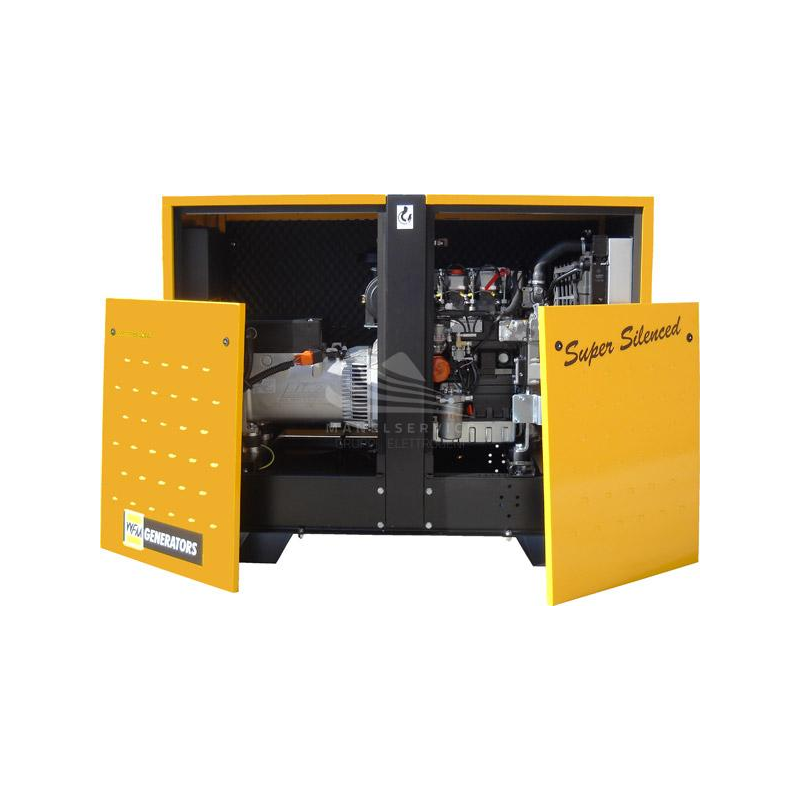

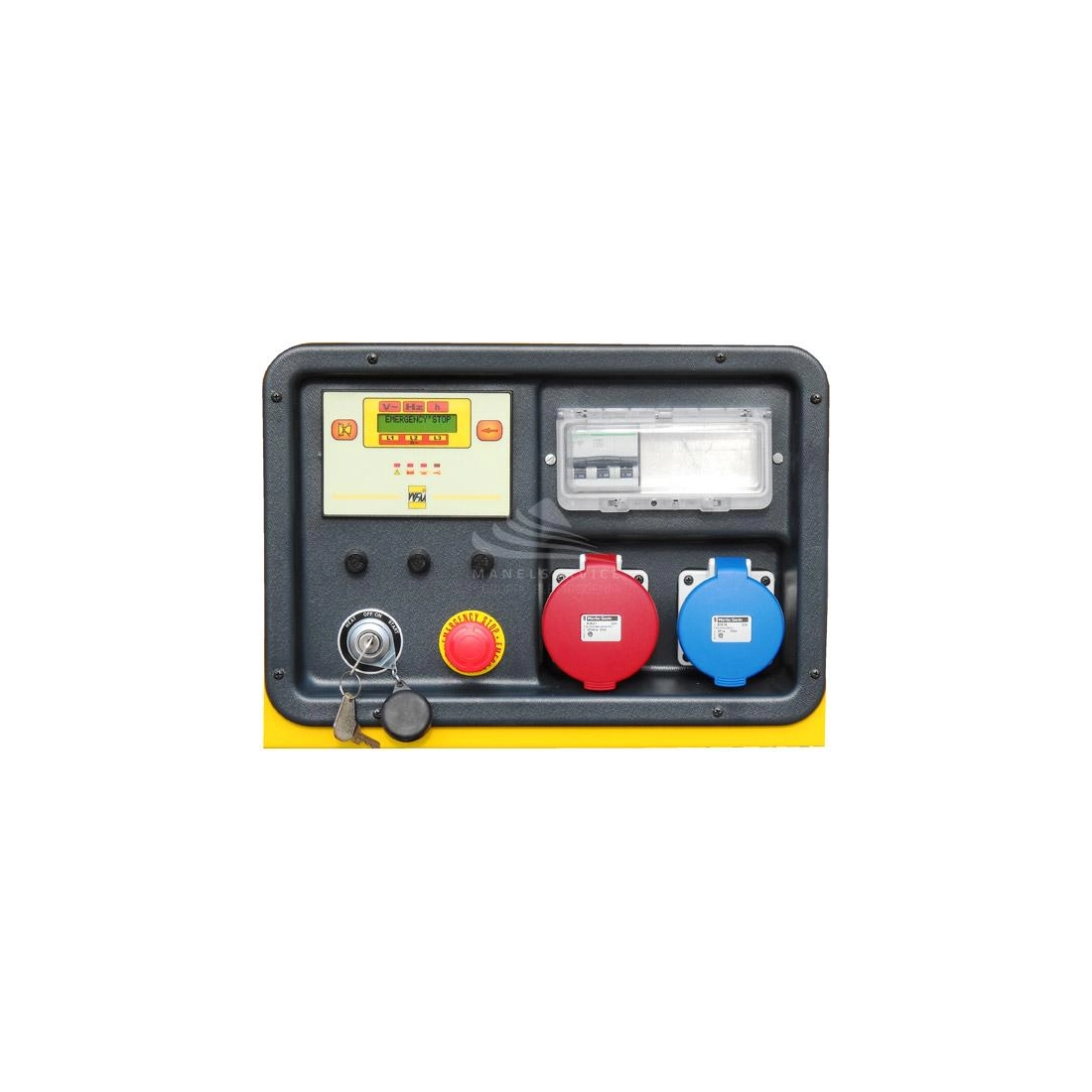

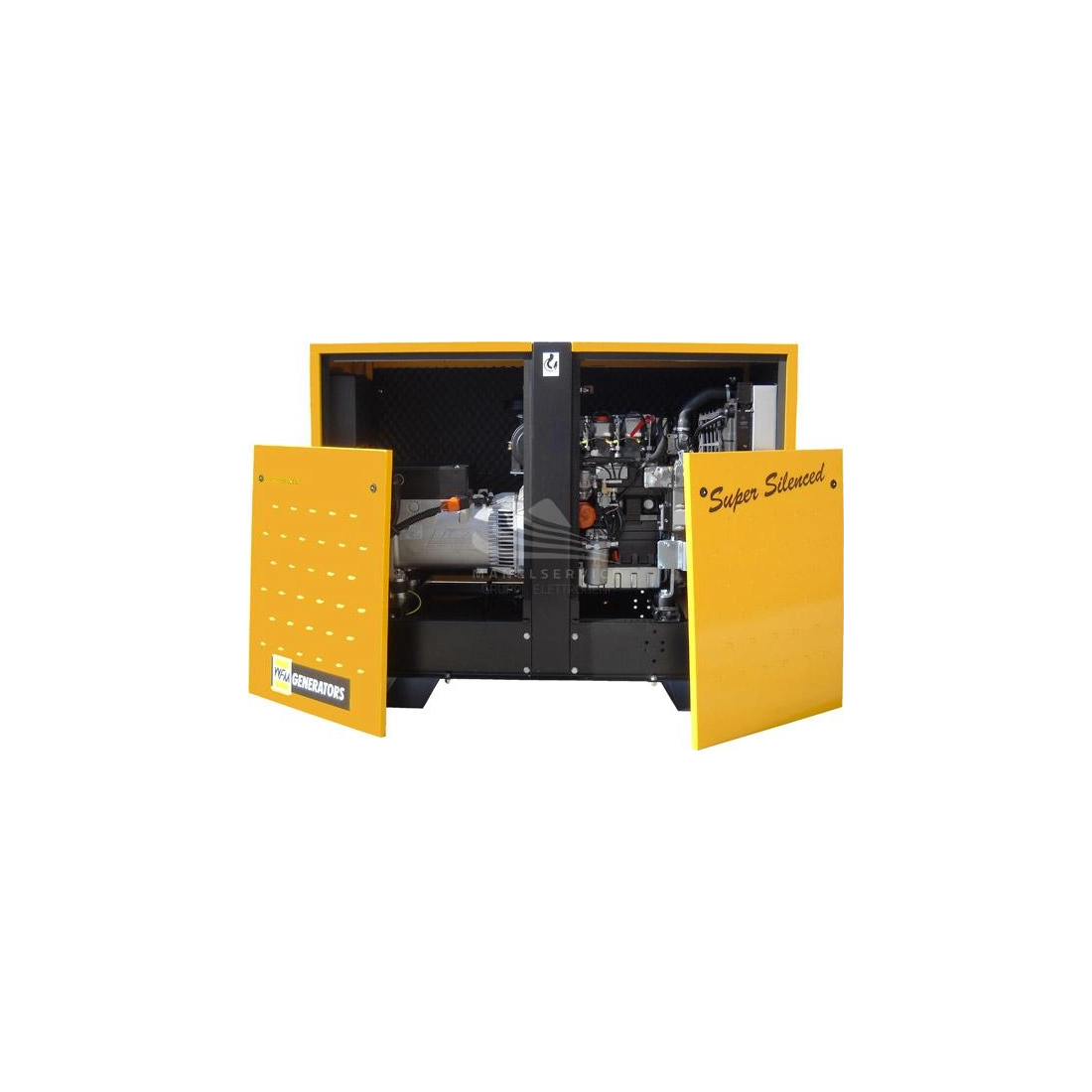

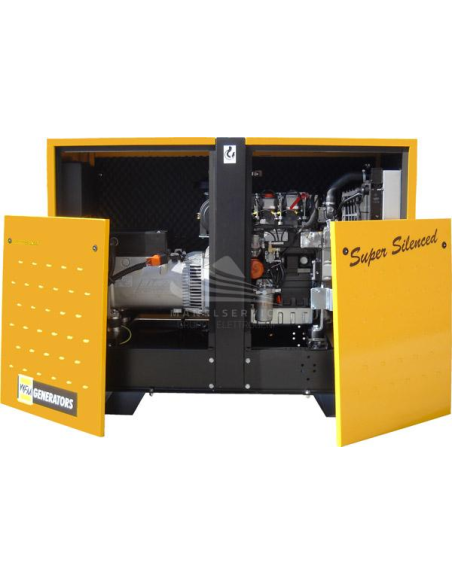

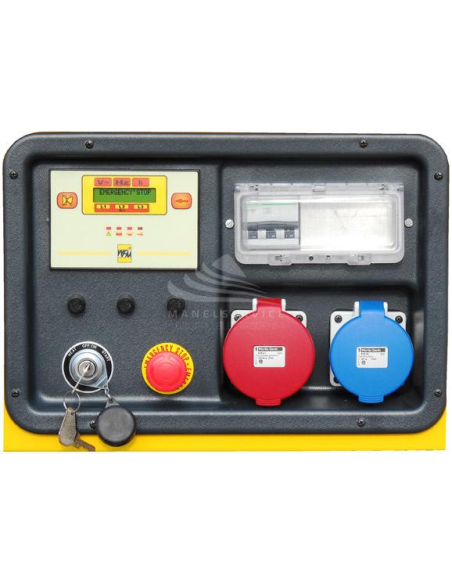

      The Generator 23KVA is equipped with a 1500 rpm Perkins diesel engine, a sturdy, super-soundproof frame with a tank for collecting engine fluids, key-operated starter including battery and electrical panel with sockets and protection as standard.
      The WFM M230-LDEW is complete with an alternator with built-in AREP system that turns on 3 times the rated power for 10 seconds. For purely professional use by construction sites or in all those situations where the use is continuous and heavy, even in case of blackouts.

      Voltage Regulator AVR

      The Generator WFM M230-LDEW generator set is equipped with an AVR. The AVR is a device that allows you to keep the output more constant and less dependent on the load. Thanks to this board there are fewer drops or spikes in current and this makes it safer to use the various devices connected, improving performance and durability.

      Main Features Generator 23KVA - WFM M230-LDEW:

      - Highly soundproof protection frame
      - Original 1500 rpm Perkins engine
      - Low oil level protection
      - Silencer muffler
      - Primary Italian brand alternator

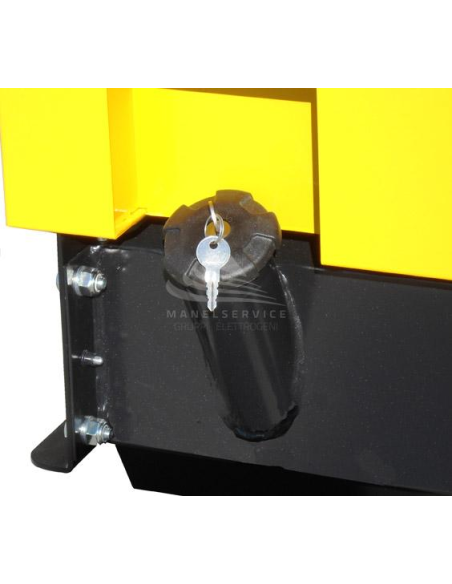

      - Increased 46 lt. fuel tank for a longer autonomy
      - Engine liquid collection tank
      - Electric start with 12V battery supplied with acid

      TECHNICAL FEATURES WFM M230-LDEW

      Phase Type: SinglePhase / ThreePhase
      Continuous SinglePhase Output: 6.6 KVA / 5.3 KW
      Maximum SinglePhase Output: 7.6 KVA / 6.1 KW
      Continuous ThreePhase Output: 20 KVA / 16 KW
      Maximum ThreePhase Output: 23 KVA / 18.4 KW
      Factor cos fiφ: 0. 8
      VAC voltage: 230 / 400 V
      Frequency (Hz): 50
      Voltage regulator: AVR
      Start-up switch: manual
      Engine: Perkins 404 D
      RPM: 1500
      Power supply: Diesel
      Tank capacity: 46 l
      Consumption: 6. 2 l/h @ 100 % load
      Autonomy: 7.4 h @ 100 % load
      Acoustic pressure: 68 @ 7m
      Length: 1480 mm
      Width: 680 mm
      Height: 1140 mm
      Net weight: 570 Kg

      Are you looking to rental a generator set with different technical characteristics? Here you can find our entire rental fleet in which you can find the perfect generator for you.

      Available for Turin and all of Italy. Request a quote.

      The images are purely indicative.

      ""
