      Phase Type: Single-phase / Three-phase
      Single-phase Continuous Power: 5.8 KVA / 4.6 KW
      Single-phase Maximum Power: 6.4 KVA / 5.1 KW
      Three-phase Continuous Power: 17.5 KVA / 14 KW
      Three-phase Maximum Power: 19.2 KVA / 15.3 KW
      Power Factor cos fiφ: 0. 8
      VAC voltage: 230 / 400 V
      Frequency (Hz): 50
      Voltage regulator: AVR
      Start framework: Manual / Automatic
      Engine: BRIGGS & STRATTON 31HP
      RPM: 3000
      Power supply: Gasoline
      Emissions standard: STAGE V
      Fuel tank capacity: 60 l
      Fuel consumption @ 75 % load: 6.5 l/h
      Autonomy @ 75 % load: 9.2 h
      Sound pressure: 72 dB(A) @ 7m
      Length: 1200 mm
      Width: 730 mm
      Height: 930 mm
      Net weight: 280 Kg

      Custom Quote
      Product: RENTAL POWER GENERATOR CS18000T SINGLE-PHASE / THREE-PHASE STAGE V

      PERSONAL DATA


      Ask a question
      Product: RENTAL POWER GENERATOR CS18000T SINGLE-PHASE / THREE-PHASE STAGE V
      Offer on letterhead
      Product: RENTAL POWER GENERATOR CS18000T SINGLE-PHASE / THREE-PHASE STAGE V
      NO BRAND
      CS18000T NOLEGGIO

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      5.1
      Continuous power single phase (KW)
      4.6
      Maximum power single phase (KVA)
      6.4
      Continuous power single phase (KVA)
      5.6
      Maximum power three phase (KW)
      15.3
      Continuous power three phase (KW)
      14
      Maximum power three phase (KVA)
      19.2
      Continuous power three phase (KVA)
      17.5
      Fuel
      Gasoline
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Sockets configuration
      1 x 230V 63A 3P CEE - 1 x 230V 16A 3P - 1 x 230V SCHUKO
      Engine
      BRIGGS & STRATTON 31HP
      Emissions Regulations
      Stage 5
      Engine rpm (rpm)
      3000
      Starting system
      Manual / Automatic
      Engine capacity (cm³)
      896
      Number cylinders
      2
      Cooling
      Air
      Alternator
      NSM, made in Italy
      Fuel tank capacity (L)
      60
      Consumption (L/h)
      6.5 @ 75 % del carico
      Running time (h)
      9.2 @ 75 % del carico
      Length (mm)
      1200
      Width (mm)
      730
      Height (mm)
      930
      Dry weight (Kg)
      280
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      ATS Switch device
      Optional
      Voltage regulator
      AVR
      Engine manufacturer
      Briggs&Stratton
      Video
      MKDdx7hAnHc

      Specific References

      New

      RENTAL GENERATOR CS18000T SINGLE-PHASE / THREE-PHASE STAGE V 19,2KVA

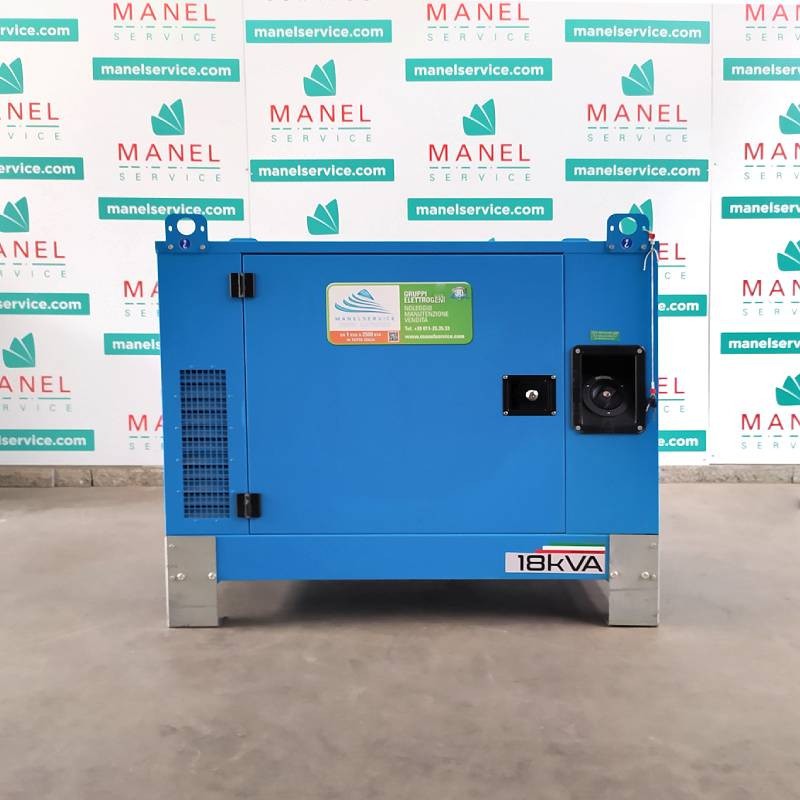

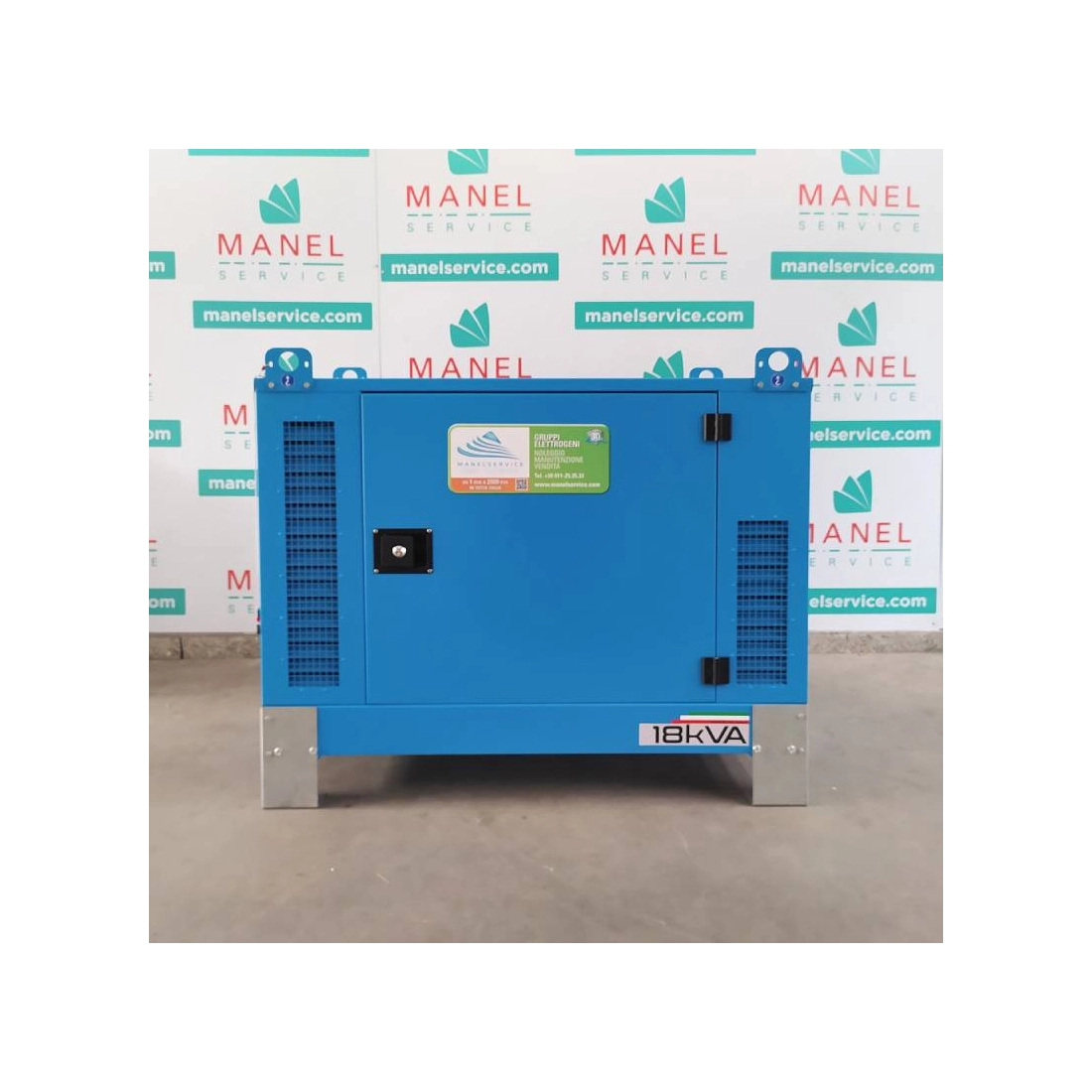

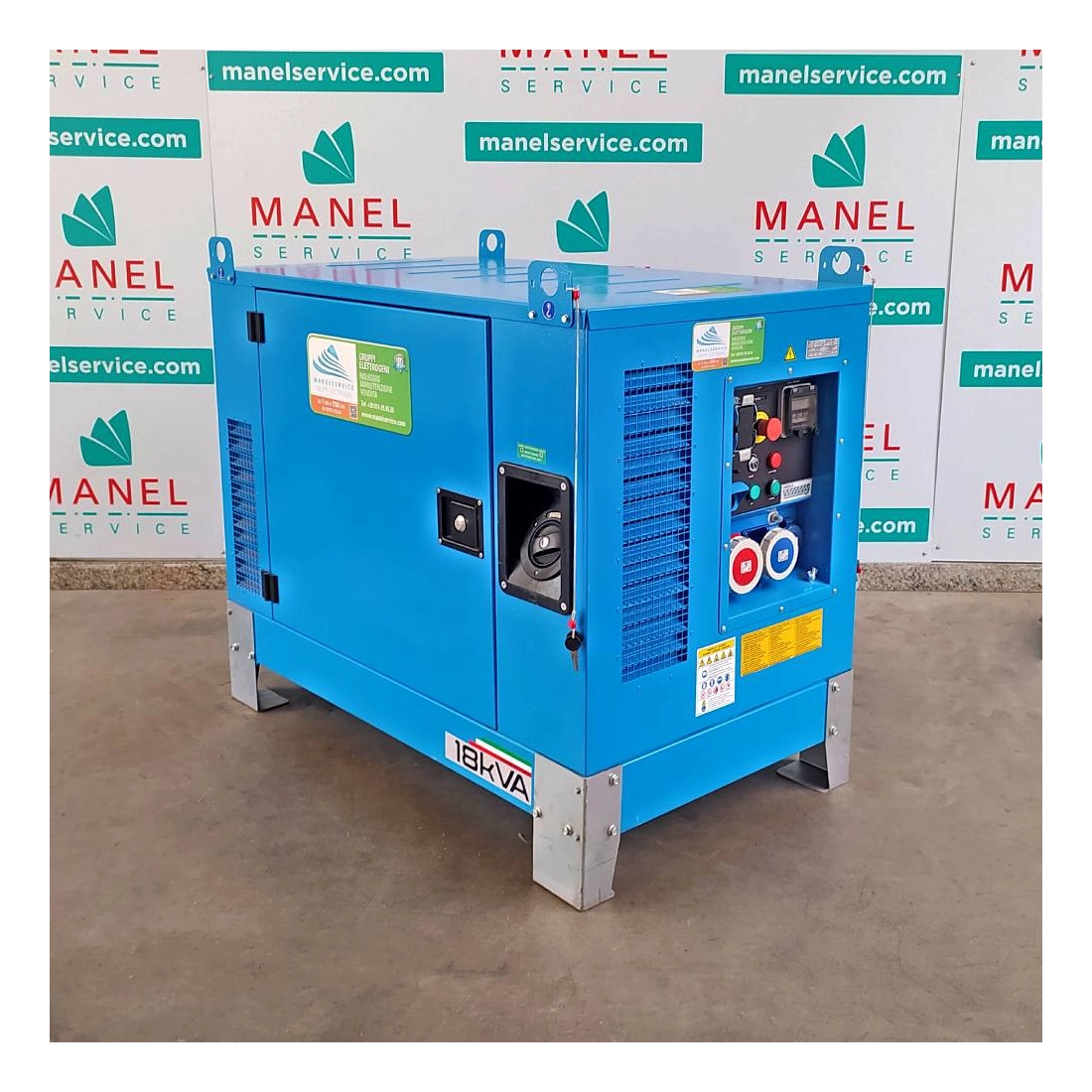

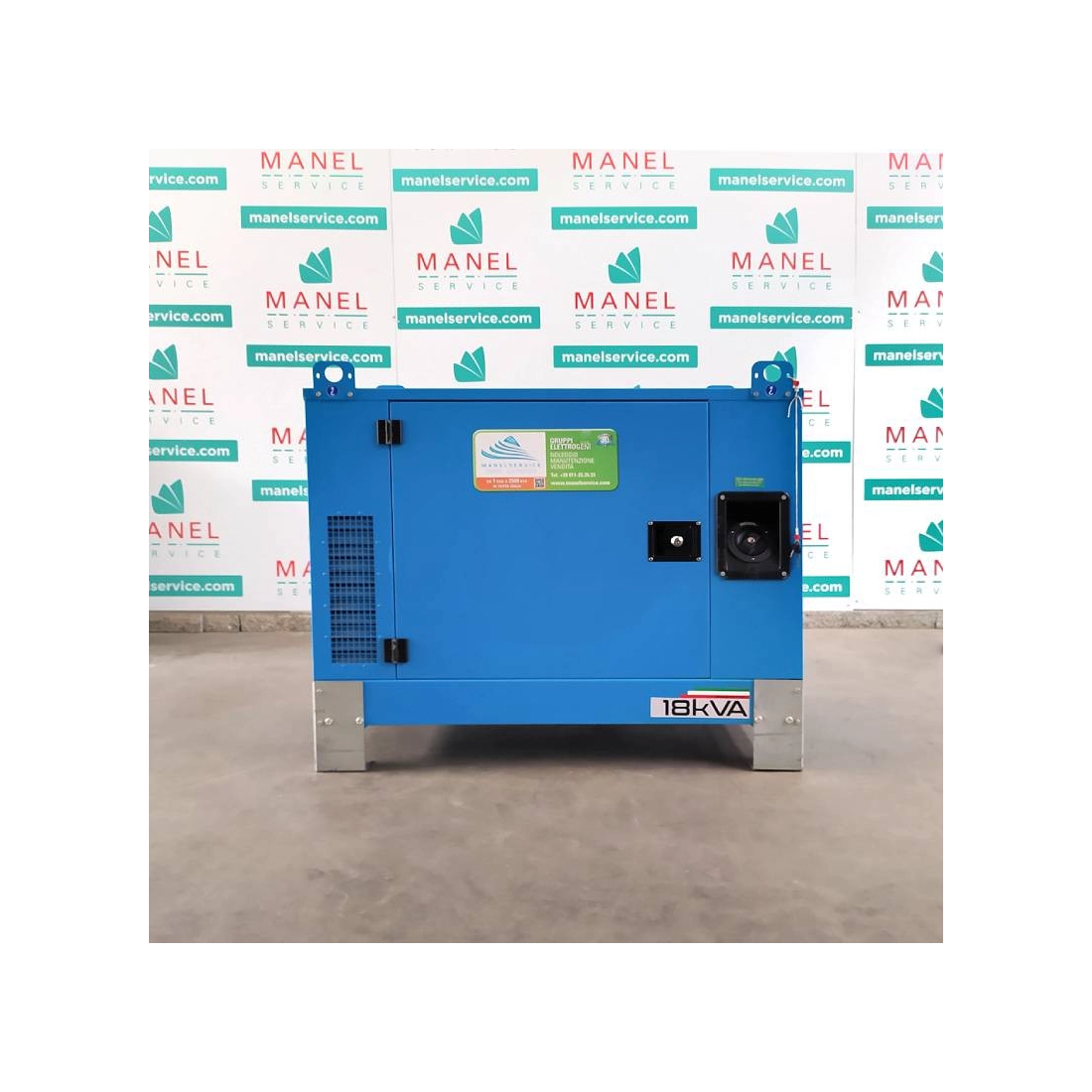

      Rental Power Generator CS18000T three-phase of 19,2 KVA with BRIGGS & STRATTON engine power by STAGE V Gasoline at 3000 rpm, compact and easy to use.

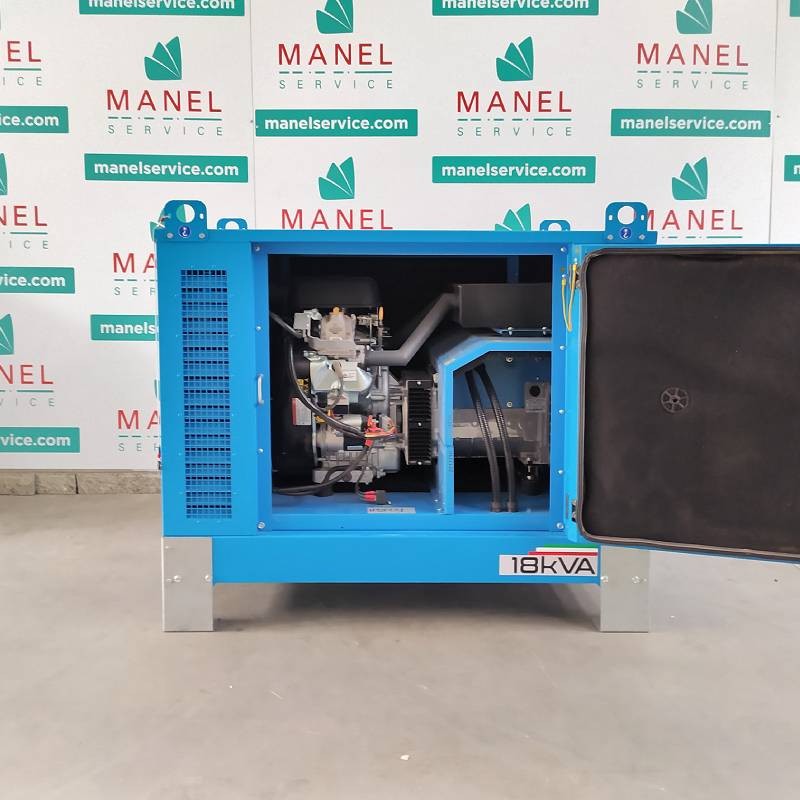

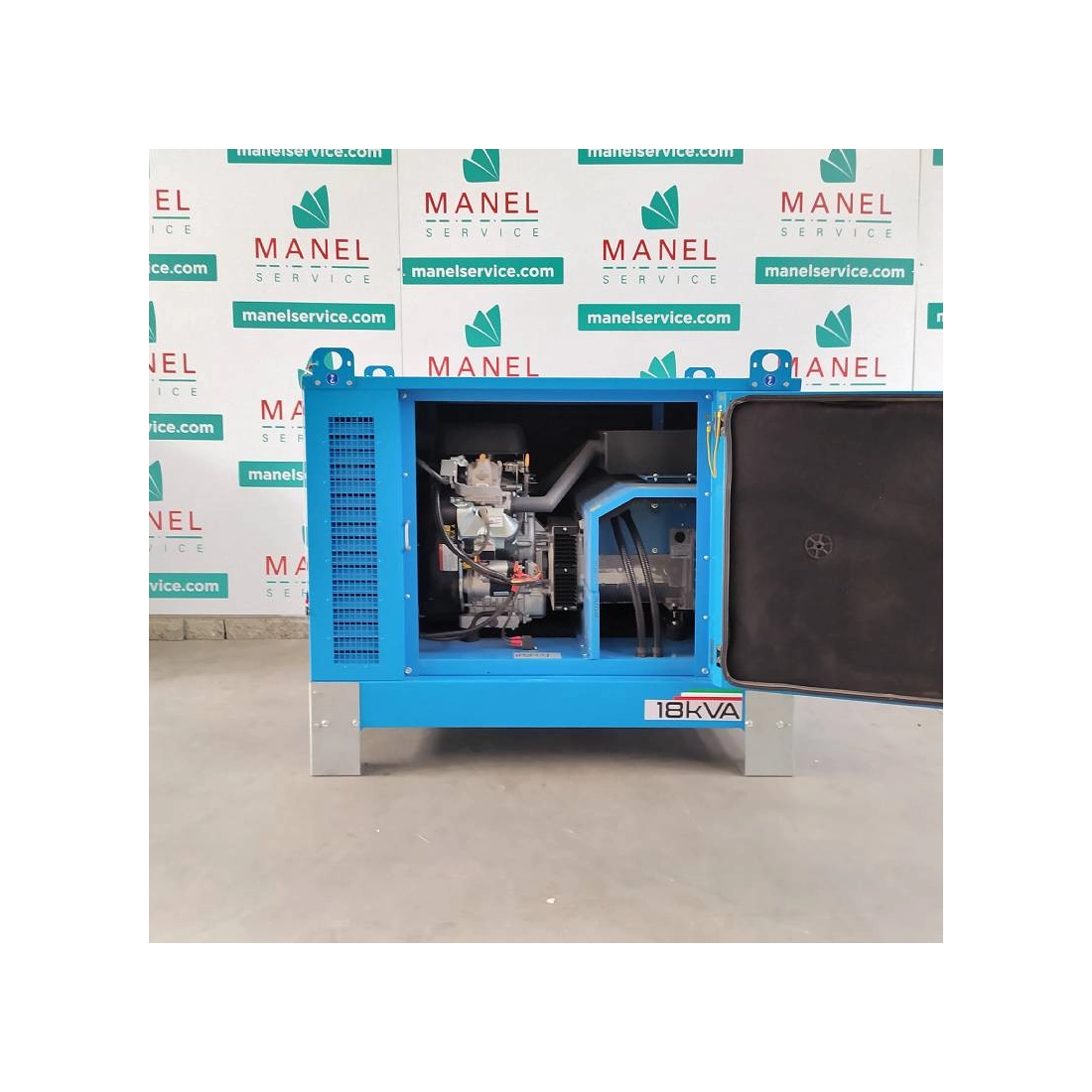

      The Rental  CS18000T generator consists of an NSM Made in Italy, self-excited brushless alternator with AVR voltage regulator. The CGM CS18000T is equipped with electric start with battery that allows a practical and fast use even when cold. The CGM CS18000T has a low fuel consumption, in fact it consumes only 6,5 liters/hour at 75% of the load.

      The Rental  generator CS18000T is part of the QUIET series because thanks to the hood has low noise emissions and is supersilenced. This Rental generator is 3000 RPM, with BRIGGS & STRATTON engine with electric start with key and battery.

      The rental service

      Generator rental has never been easier: choose the product you want to rent and FILL OUT THE FORM .

      Our specialized staff for the rental service will respond immediately with the most suitable offer for you!

      The equipment available for rental can be shipped all over Italy and is always ready for action: our team of technicians ensures that it is always in perfect working condition.

      It is advisable to book in advance for the rental of large quantities of machines: this is especially important in conjunction with trade fairs or events, where many people will use the rental service.

      Technical features of the CS18000T:

      Phase Type: Single-phase / Three-phase
      Singlephase Continuous Power: 5.8 KVA / 4.6 KW
      Singlephase Maximum Power: 6.4 KVA / 5.1 KW
      Threephase Continuous Power: 17.5 KVA / 14 KW
      Threephase Maximum Power: 19.2 KVA / 15.3 KW
      Power Factor cos fiφ: 0. 8
      VAC voltage: 230 / 400 V
      Frequency (Hz): 50
      Voltage regulator: AVR
      Start framework: Manual / Automatic
      Engine: BRIGGS & STRATTON 31HP
      RPM: 3000
      Power supply: Gasoline
      Emissions standard: STAGE V
      Fuel tank capacity: 60 l
      Fuel consumption @ 75 % load: 6.5 l/h
      Autonomy @ 75 % load: 9.2 h
      Sound pressure: 72 dB(A) @ 7m
      Length: 1200 mm
      Width: 730 mm
      Height: 930 mm
      Net weight: 280 Kg

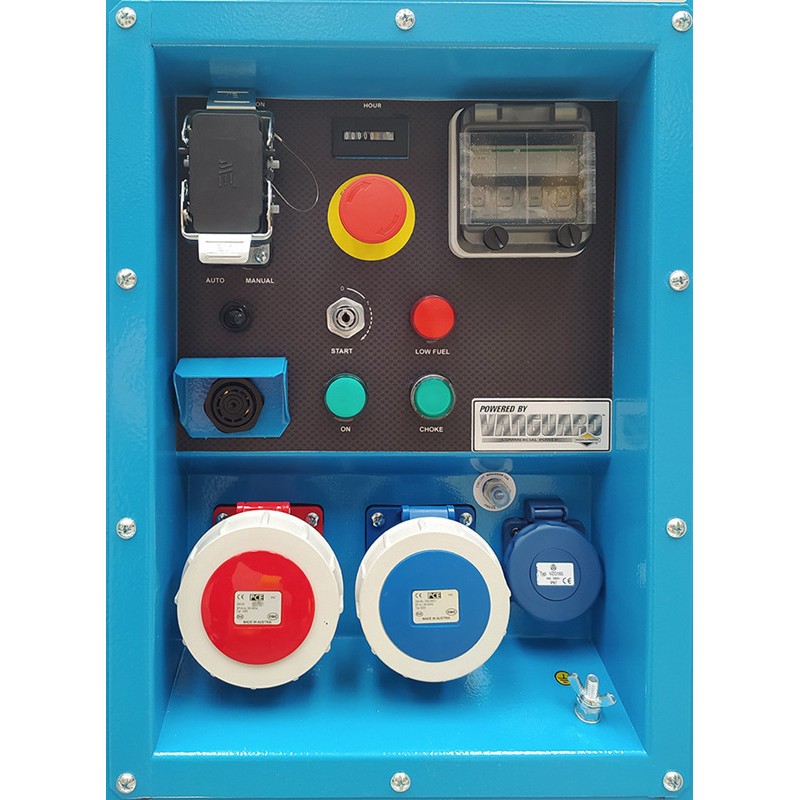

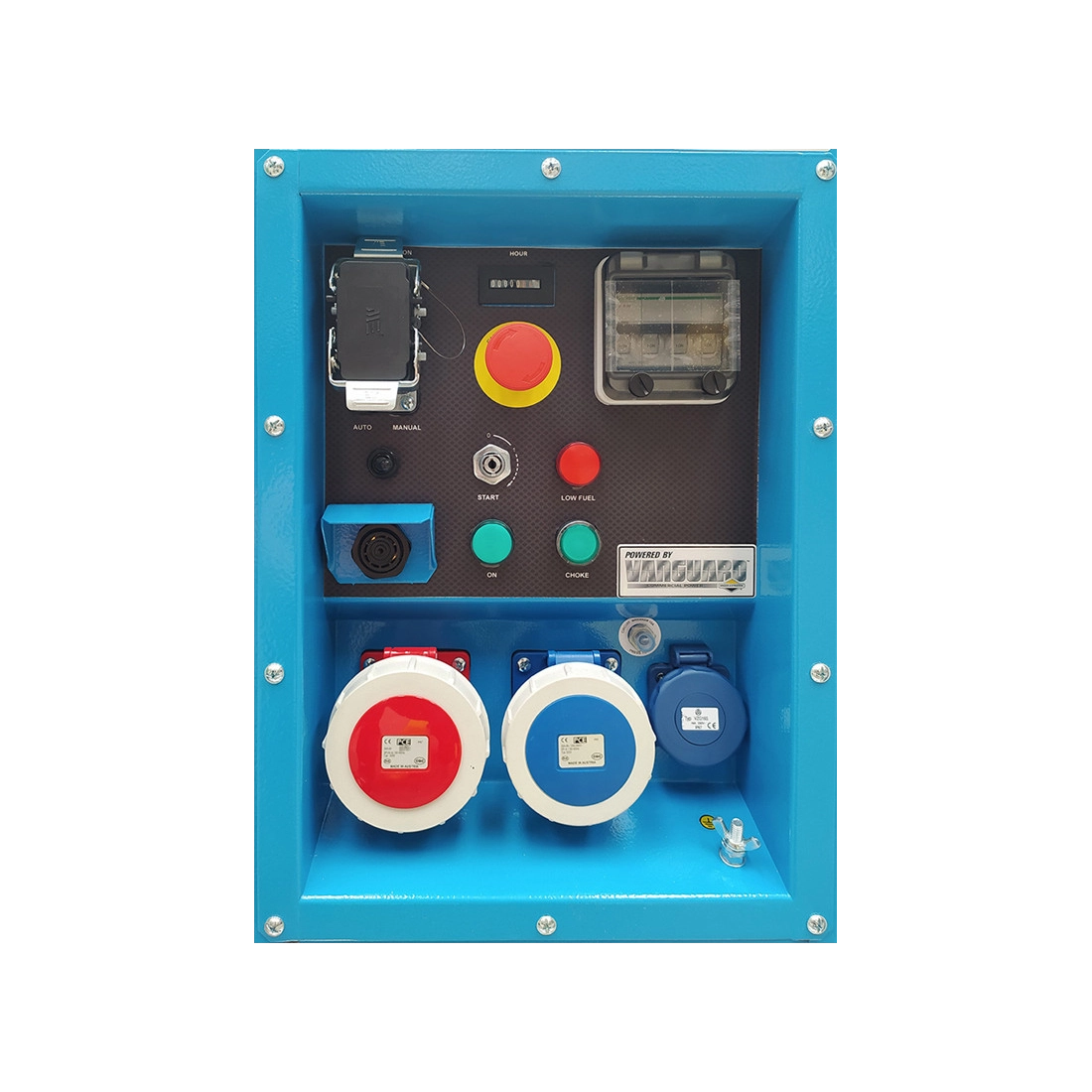

      Manual electric panel with:
      n. 1 CEE 16A 3P 230V socket
      n. 1 CEE 32A 5P 400V socket
      General switch
      connector for ATS
      hour counter

      Discover the full range of current generator on our catalog to find the one that best suits your needs.

      Pictures and technical data not binding.
