MASE VOYAGER 5010 DM GENERATOR 6,25KVA VEHICULAR SINGLE PHASE AVR STAGEV

Name: MASE VOYAGER 5010 DM GENERATOR 6,25KVA VEHICULAR SINGLE PHASE AVR STAGEV
Brand: MASE
SKU: 003396
Price: 10293.75 EUR
Availability: InStock

Reference 003396

Phase type: Single-phase
Maximum Power: 6.25 KVA / 5 KW
Continuous Power: 5.25 KVA / 4.2 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: Yanmar L100V
Mechanical power: 8.8 Hp
Number of cylinders: 1
Displacement: 435 cc
Engine rpm: 3000 rpm
Emissions standard: StageV
Consumption: 1.5 l / h at 75% load
Acoustic power: 64 dBA @ 7 m
Voltage regulator: AVR

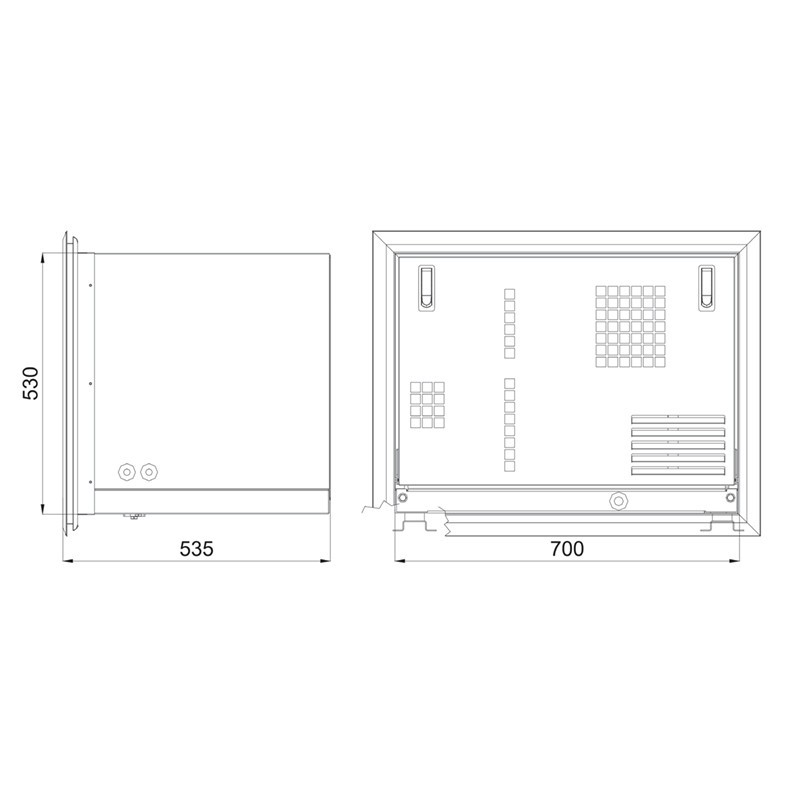

Length: 700 mm
Width: 535 mm
Height: 530 mm
Weight: 145 Kg

List price

13,725.00 € tax incl.

11,250.00 € tax excl.

Discounted Price

10,293.75 € tax incl.

8,437.50 € tax excl.

Shipping from 61.00 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 003396

Data sheet

Phase: Single phase
Maximum power single phase (KW): 5
Continuous power single phase (KW): 4.2
Maximum power single phase (KVA): 6.25
Continuous power single phase (KVA): 5.25
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Engine: Yanmar L100, 4 stroke
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Speed governor: Centrifugal, mechanical
Starting system: Electric
Engine capacity (cm³): 435
Number cylinders: 1
Cooling: Air
Inyección: Direct
Alternator: Sincrono, autoeccitato, autoregolato, senza spazzole
Poles: 2
Lubrication: Forced
Consumption (L/h): 1.5 at 75 % of load
Acoustic pressure: 64 dB(A) at 7 m
Length (mm): 700
Width (mm): 535
Height (mm): 530
Dry weight (Kg): 145
Silenced: Yes
Super silenced: Yes
Voltage regulator: AVR

Specific References

Condition New

MASE VOYAGER 5010 DM GENERATOR 6.25KVA VEHICLE SINGLE-PHASE AVR STAGEV

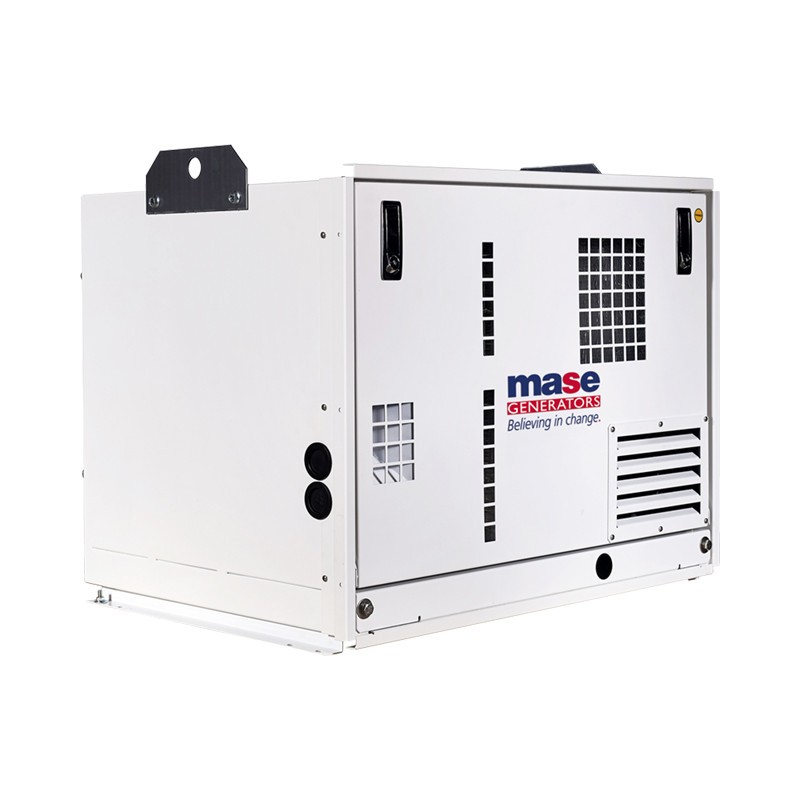

MASE VOYAGER 5010 DM single-phase vehicle generator with diesel-powered Yanmar L100V StageV engine delivers a power of 6.25KVA, complete with AVR voltage regulator.

The MASE VOYAGER 5010 DM is designed with a soundproof booth that makes it super silenced . The soundproofing cabin of the MASE VOYAGER 5010 DM generator is made up of a supporting structure in aluminum profile which supports extremely light and extremely light 5754 painted marine aluminum panels with very high resistance to external agents. The excellent accessibility to the internal compartment makes maintenance interventions easier even with the generator installed in confined spaces.

AVR VOLTAGE REGULATOR

The MASE VOYAGER 5010 DM is supplied complete with voltage regulator. The AVR is a device that allows you to keep the output more constant and less dependent on the load . Thanks to the AVR there are fewer current drops or peaks and this makes the use of the various connected devices safer, improving their performance and duration.

STAGEV EMISSIONS REGULATION

The MASE VOYAGER 5010 DM is equipped with a "mobile" STAGEV motor, as required by the European Regulation 2016/1628. These new engines make it possible to exponentially reduce the emissions of particulate matter and nitrogen oxides delivered by the generator into the environment, and ensure a reduction of the environmental impact of 200% compared to standard engines.

TECHNICAL FEATURES MASE VOYAGER 5010 DM:

Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to MASE marine generators or other specialized brands.

Non-binding images and technical data.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
