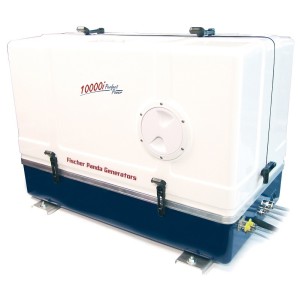

GENERATOR FISCHER PANDA PVMV-N AGT-DC

Reference 0015426

PRODUCT OUT OF PRODUCTION

Single Phase Vehicle Generator
Fuel: Diesel
Voltage: 400 V
Nominal Power: 6.40 kW
Continuous power: 6.40 kW
Frequency: 50 Hz
Insulation class: H
RPM: Variable speed 2200 - 2600 rpm
Permanent Magnets
Voltage regulator: Capacitor
Power factor Cos Pi: 0.85
Engine KUBOTA D722
Cylinders: 3
Displacement: 719 cm3
Starter: Electric 12V
Supersilenced: 52 dB(A) at 7 meters
Type of soundproofing cover: GFK (Glass fiber reinforced polyester)
Insulation material: 4DS
Length: 870 mm
Width: 580 mm
Height: 614 mm
Weight: 235 Kg.

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Product Details
Description

Reference 0015426

Data sheet

Phase: Three phase
Continuous power three phase (KW): 6.4
Continuous power three phase (KVA): 6.4
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 24 / 400
Engine rpm (rpm): 2200 - 2600
Starting system: Electric 12 Vcc
Engine capacity (cm³): 719
Number cylinders: 3
Cooling: Water
Motor insulation class: H
Acoustic pressure: 52 dB(A) at 7 m
Length (mm): 870
Width (mm): 580
Height (mm): 615
Dry weight (Kg): 235
Silenced: Yes
Super silenced: Yes
PMG: Yes
Product type: Generator
Voltage regulator: Inverter
Engine manufacturer: Kubota

Specific References

Fischer Panda PVMV-N AGT-DC 8000 24V vehicle generator

FISCHER PANDA PVMV-N AGT-DC is a generator for single-phase vehicles with diesel power supply, capable of delivering a power of 6.4KW.

The generator FISCHER PANDA PVMV-N AGT-DC is equipped with a silencer system that is fully integrated into the sound-absorbing capsule. This solves most of the installation problems inside the vehicle, since the exhaust is already mounted.

The FISCHER PANDA generator must be installed with an external radiator. We recommend mounting it on the roof or any other suitable location on the outside of the vehicle.

The Generator is available with the standard fiberglass soundproofing capsule or the premium MPL (stainless steel) version.

Suitable for indoor installation
Water-cooled silencer fully integrated into the capsule
Easy to install
Best choice, when space and length are available
Reinforced fiberglass (GRP) sound-insulating capsule is standard for models up to 12 kW.
Stainless steel (MPL) sound-insulating capsule for models 15 kW and above
Requires an outdoor radiator

Equipment

Start system 12v
GFK 3D soundproofing case
LCD remote control panel with 7
meters of cable, functions:
ON/OFF/ START/ HEAT
Counter and automatic stop in case of
alarms
Head Temperature
Exhaust Gas Temperature
Alternator Windings Temperature
Oil Pressure.
Air Filter
Auxiliary 12v fuses
Fuel pump 12v
Alternator 12V charger
Marmature

TECHNICAL FEATURES FISCHER PANDA PVMV-N AGT-DC

Singlephase Vehicular Generator
Fuel: Diesel
Voltage: 400 V
Rated output: 6.40 kW
Continuous output: 6. 40 kW
Frequency: 50 Hz
Isolation Class: H
Revolutions Per Minute: Variable Speed 2200 - 2600 rpm
Permanent Magnets
Voltage Regulator: Capacitor
Power Factor Cos Pi: 0. 85
Engine KUBOTA D722
Cylinders: 3
Displacement: 719 cm3
Power: Electric 12V
Supersilenced: 52 dB(A) at 7 meters
Type of soundproofing cover: GFK (Glass Fiber Reinforced Polyester)
Insulation Material: 4DS
Length: 870 mm
Width: 580 mm
Height: 614 mm
Weight: 235 Kg.

Are you looking for a marine generator with different characteristics? Here you can find the whole range FISCHER or other specialized brands

Price on request: contact us for a quote!

""* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
