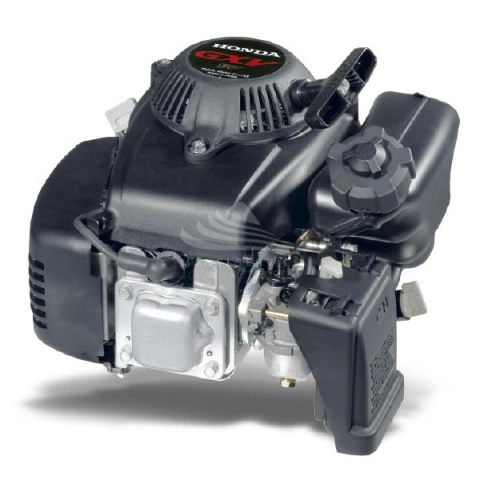

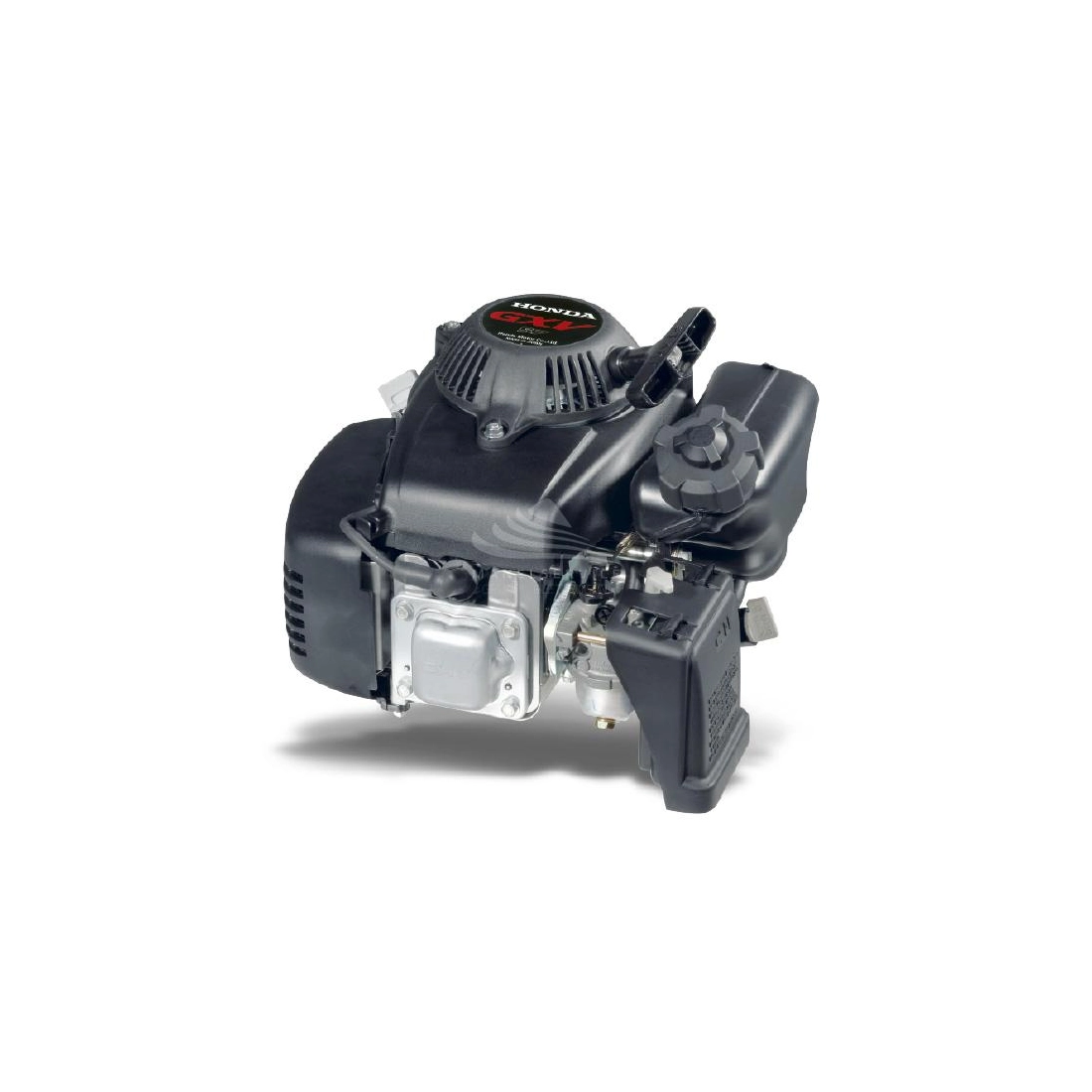

HONDA GXV57T N7E4 Engine

Name: HONDA GXV57T N7E4 Engine
Brand: Honda

Reference GXV57T N7E4

Potenza netta (kW): 6.6
Potenza netta (Hp): 8.9
Carburante: Benzina
Avviamento: Manual
Giri motore (giri/min): 3600
Cilindrata (cm3): 337
Lunghezza (mm): 430
Larghezza (mm): 385
Altezza (mm): 410
Peso a secco (Kg): 5.4
Rapporto di compressione: 7.7 : 1
Capacità serbatoio: 0.27 Lt

Download Scheda tecnica GXV57 Download Technical data GXV57

Product Details
Description

Fuel: Gasoline
Engine: OHV vertical shaft, 4 stroke
Ignition: A transistor contactless
Starting system: Manuale
Engine capacity (cm³): 57
Number cylinders: 1
Oil capacity (L): 0.25
Cooling: Forced air
Bore x stroke (mm): 45 x 36
Net power (kW): 1.5

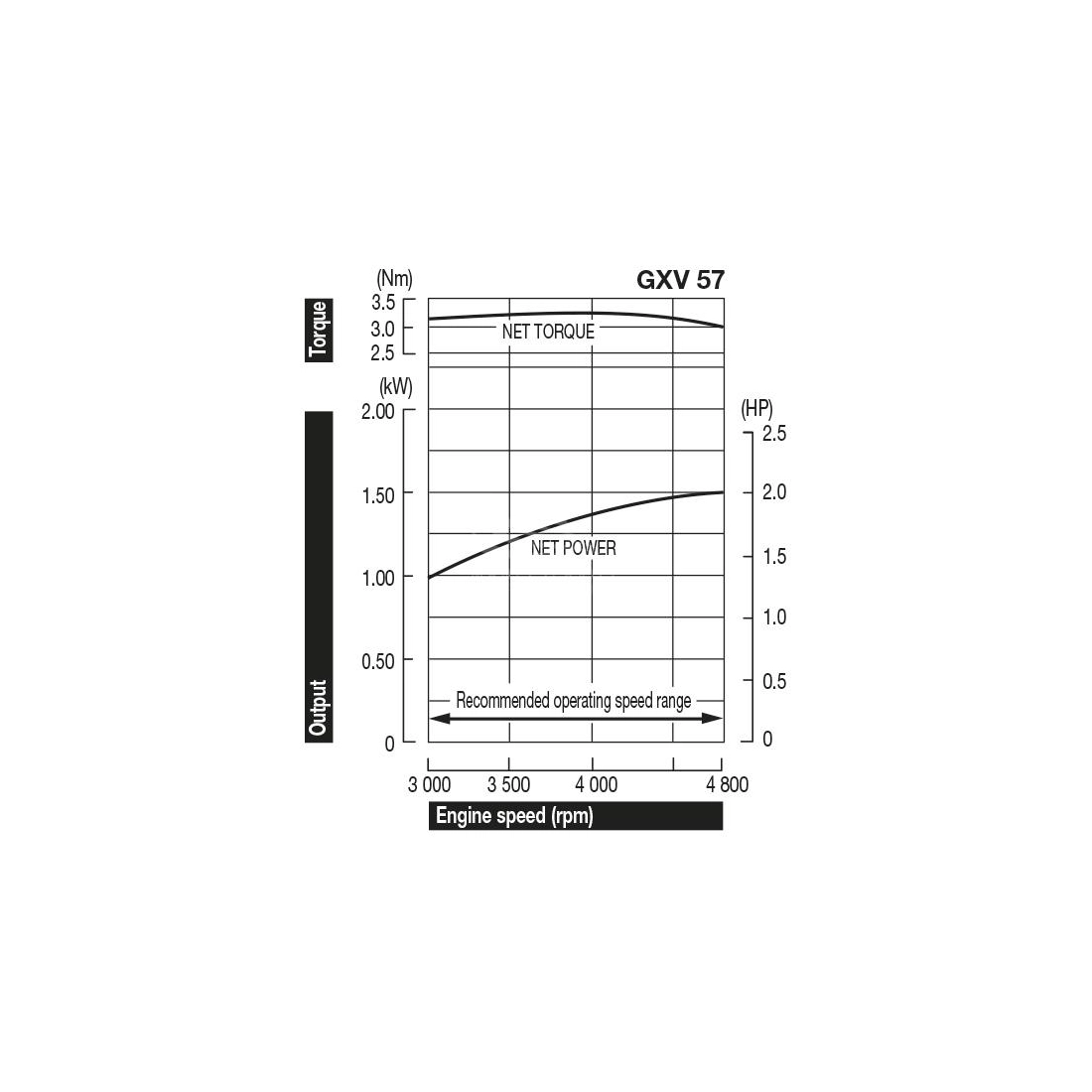

Nominal power continuous: 1.1 KW (1.5 HP) / 4600 rpm
Maximum torque: 3.2 Nm / 0.33 kgfm / 4000 rpm
Fuel tank capacity (L): 0.27
Consumption (L/h): 0.58
Running time (h): 0.46
Length (mm): 249
Width (mm): 286
Height (mm)
Dry weight (Kg): 5.4
Compression ratio: 8.0 : 1
Engine manufacturer: Honda

Brand

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
