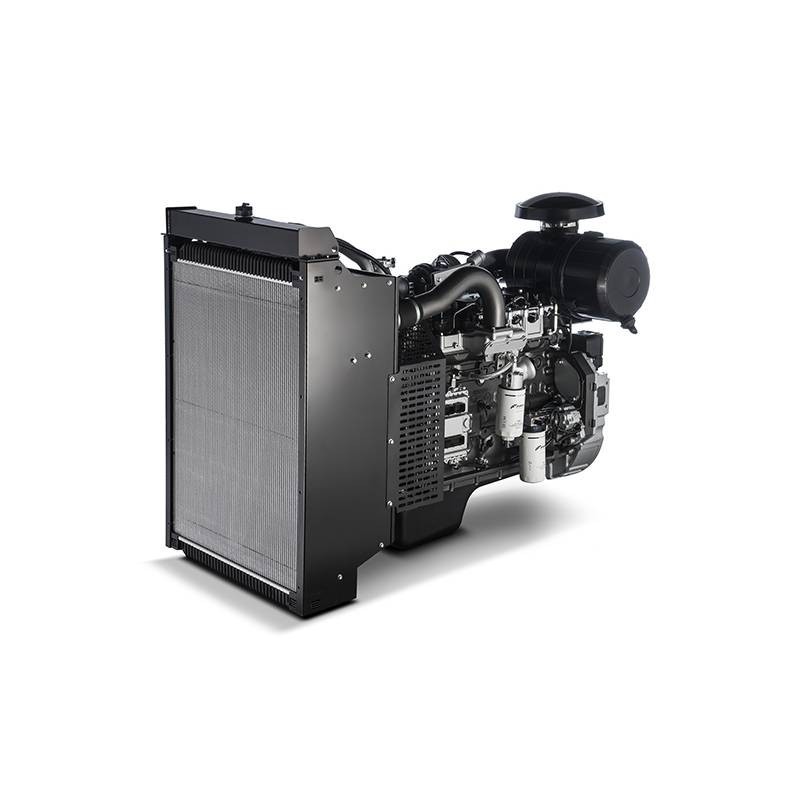

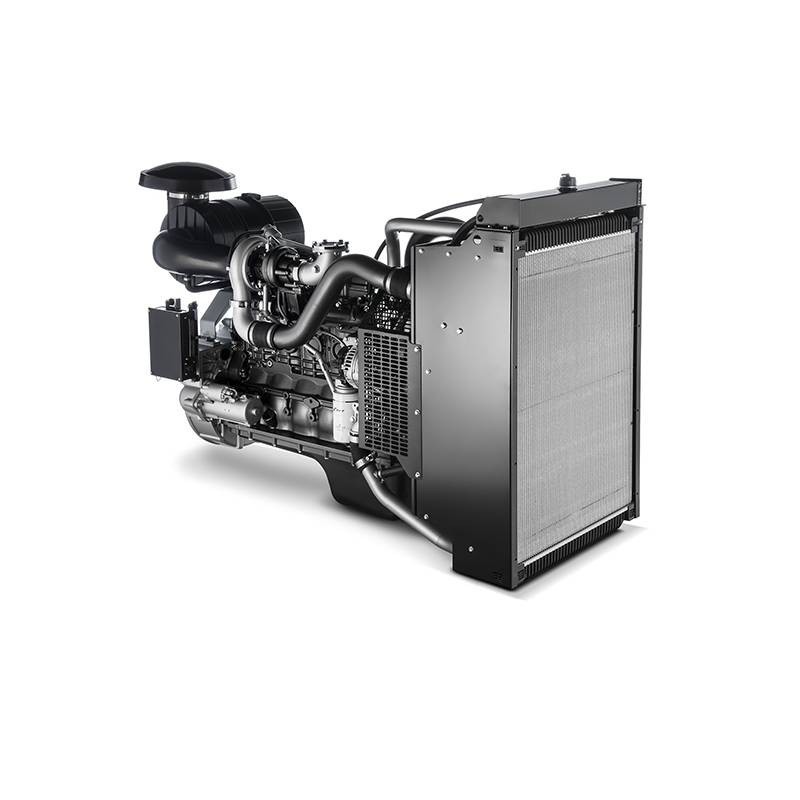

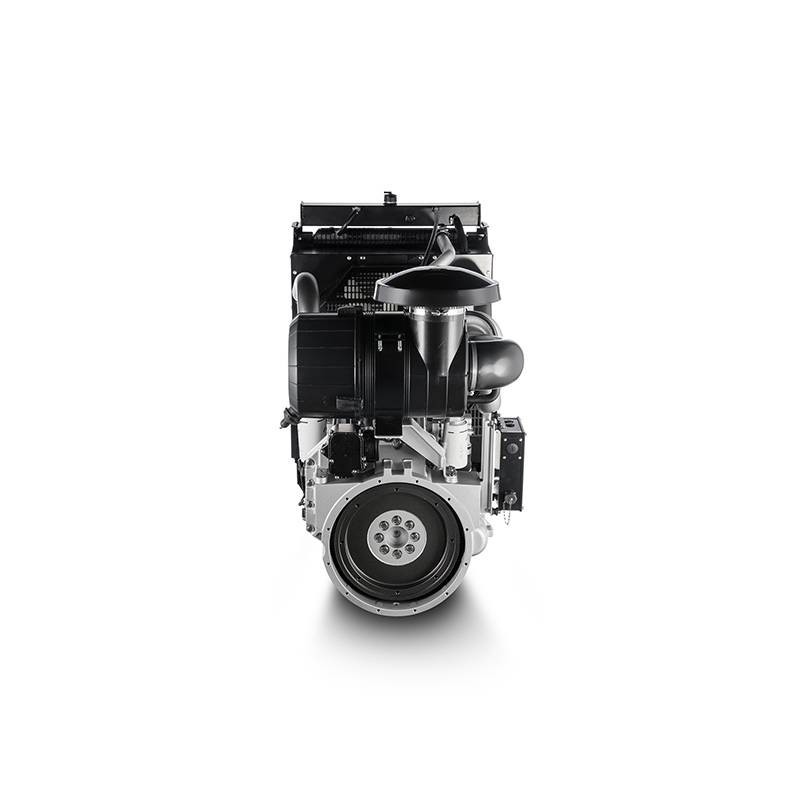

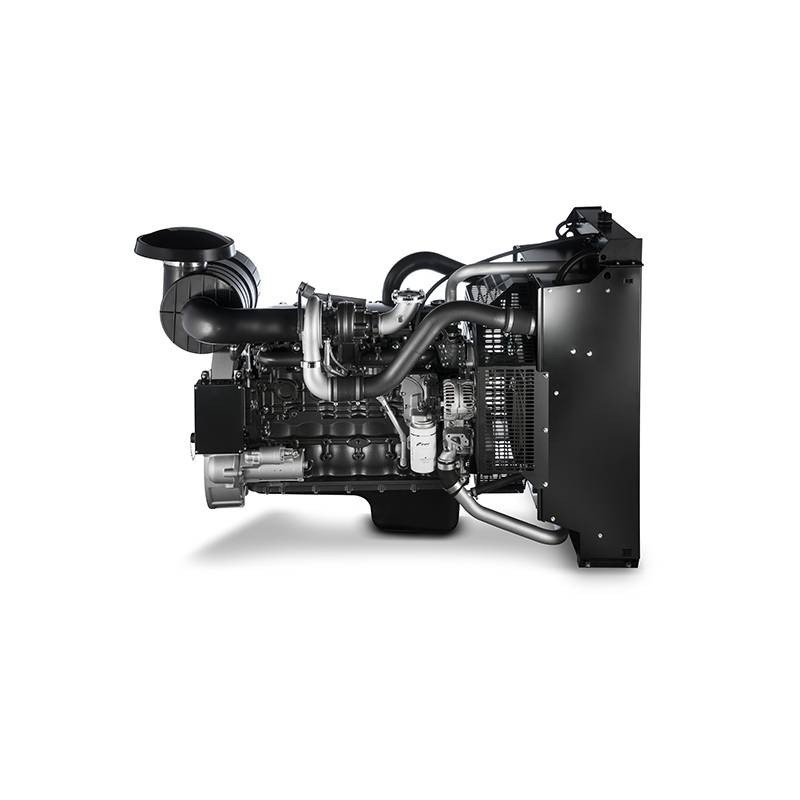

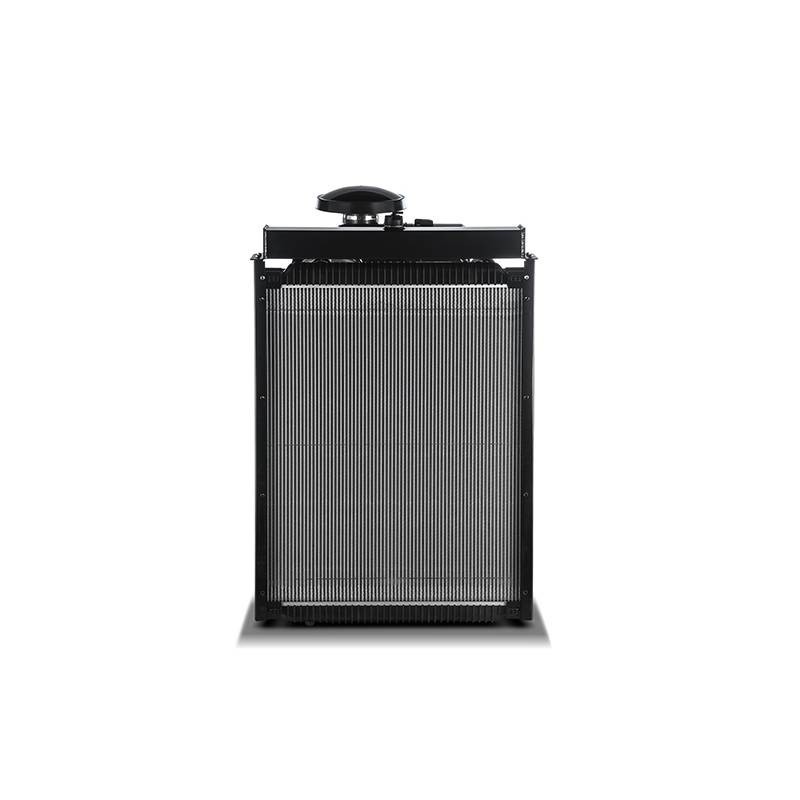

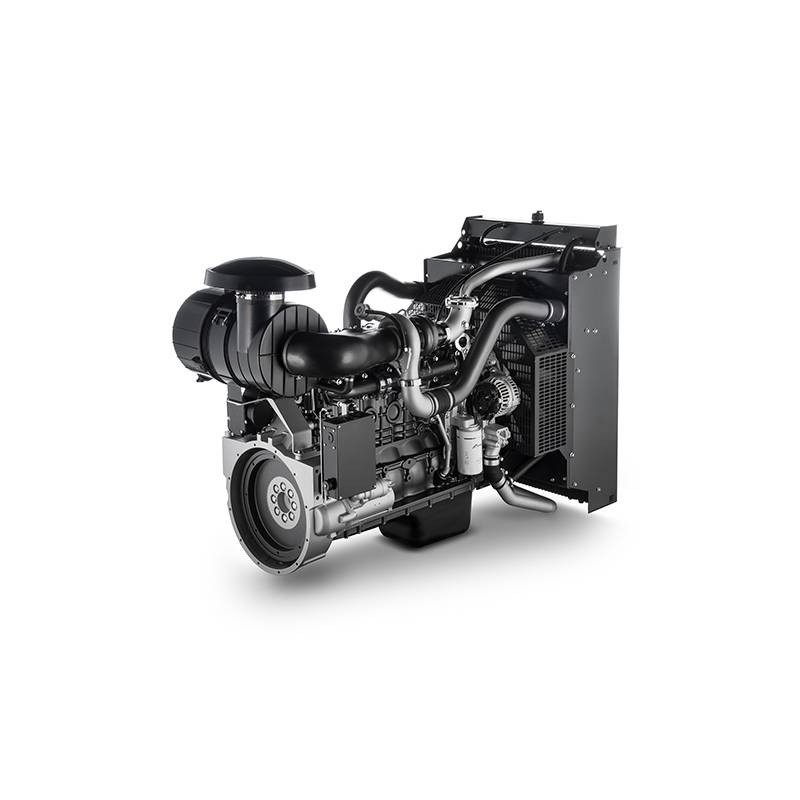

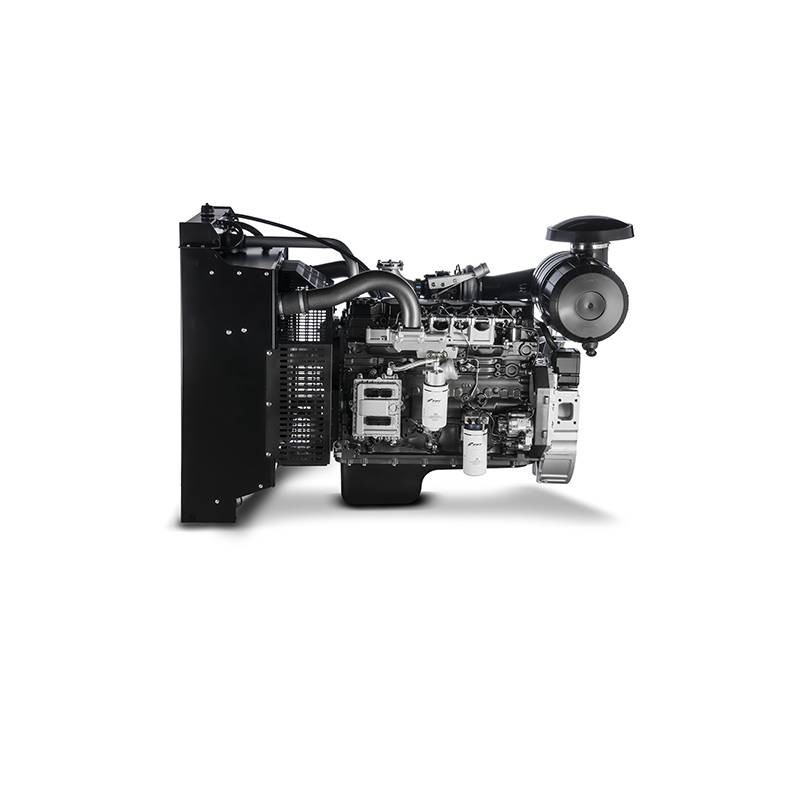

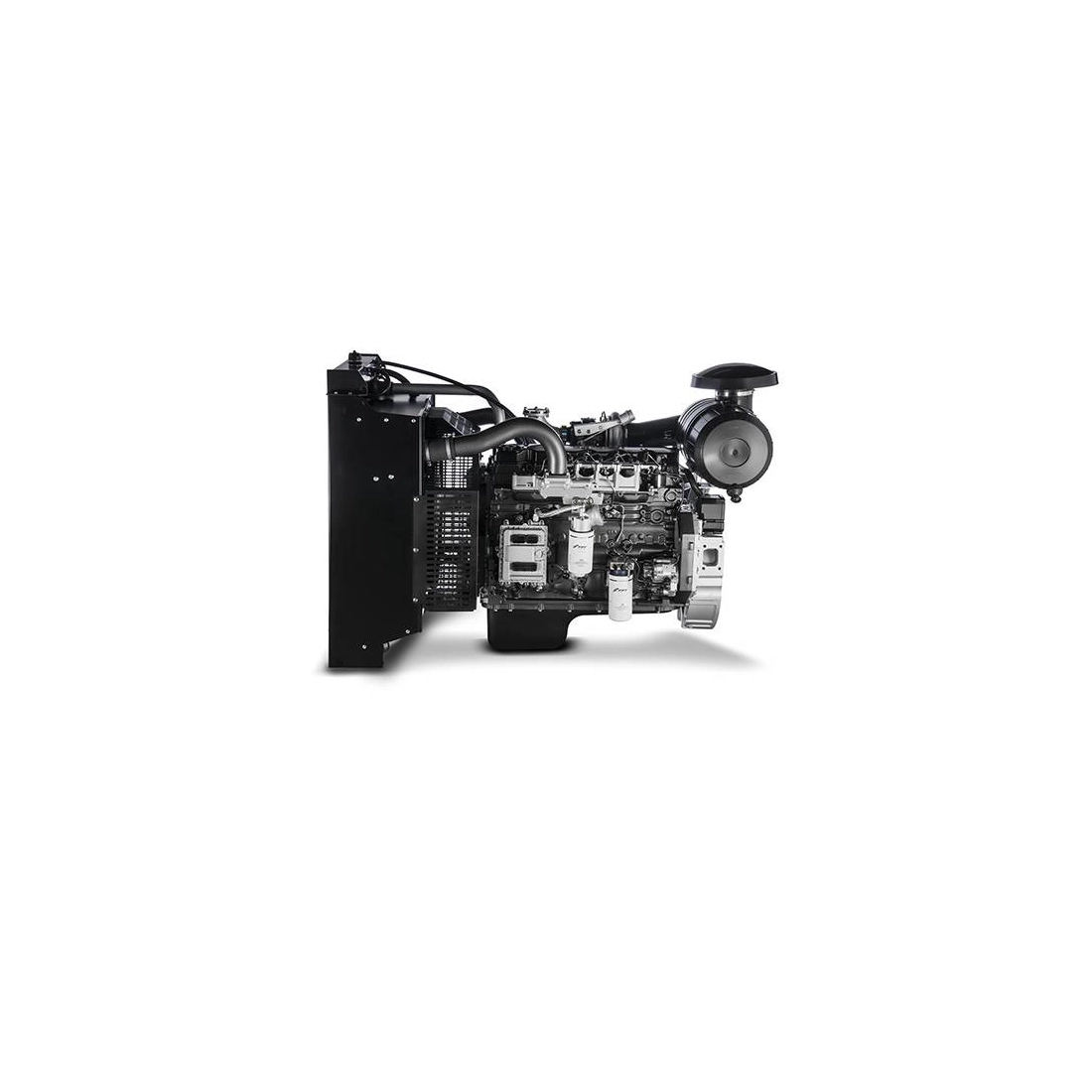

IVECO FPT NEF 67 TE8P DIESEL ENGINE 244 KW STAGE III

IVECO FPT NEF 67 TE8P DIESEL ENGINE 244 KW STAGE III

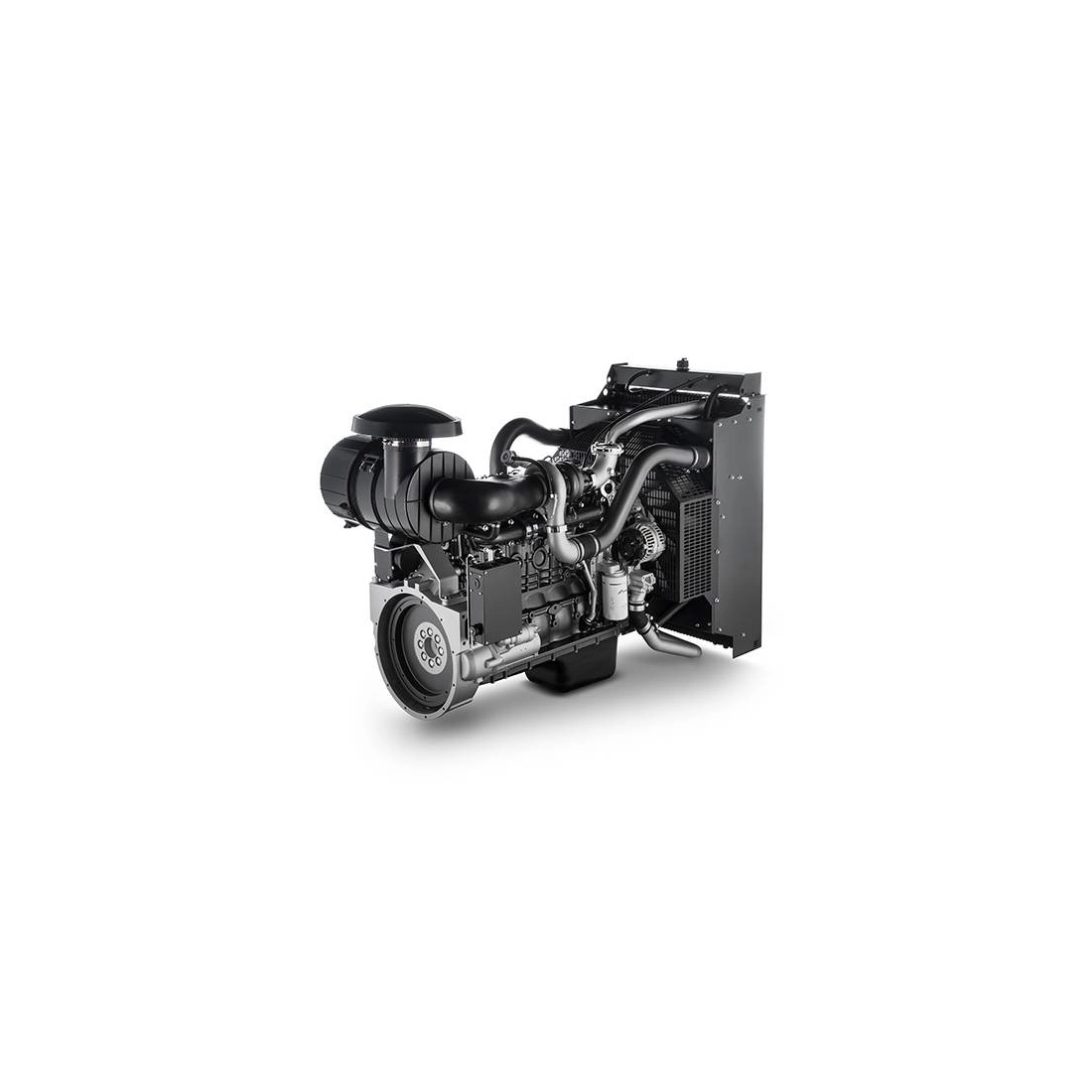

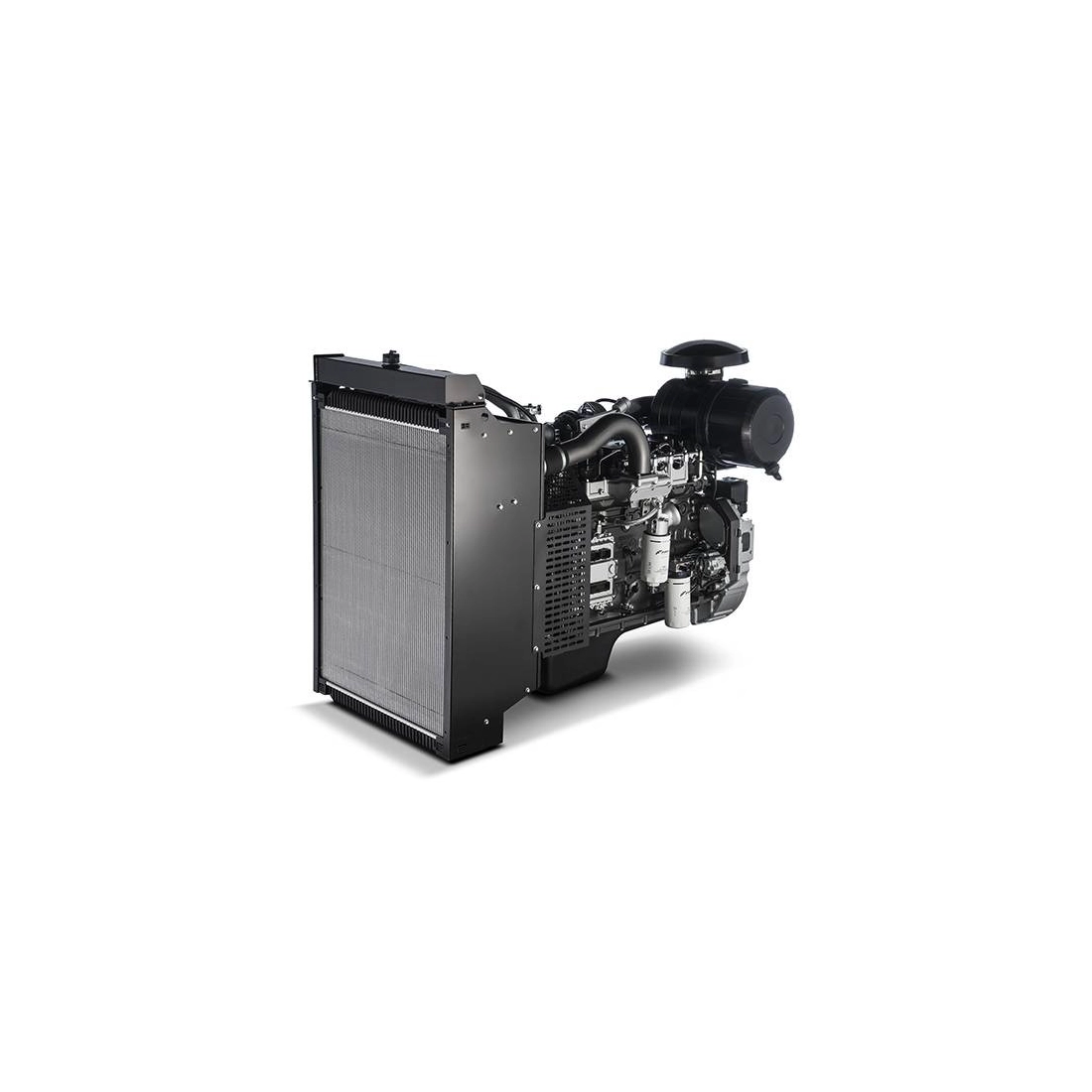

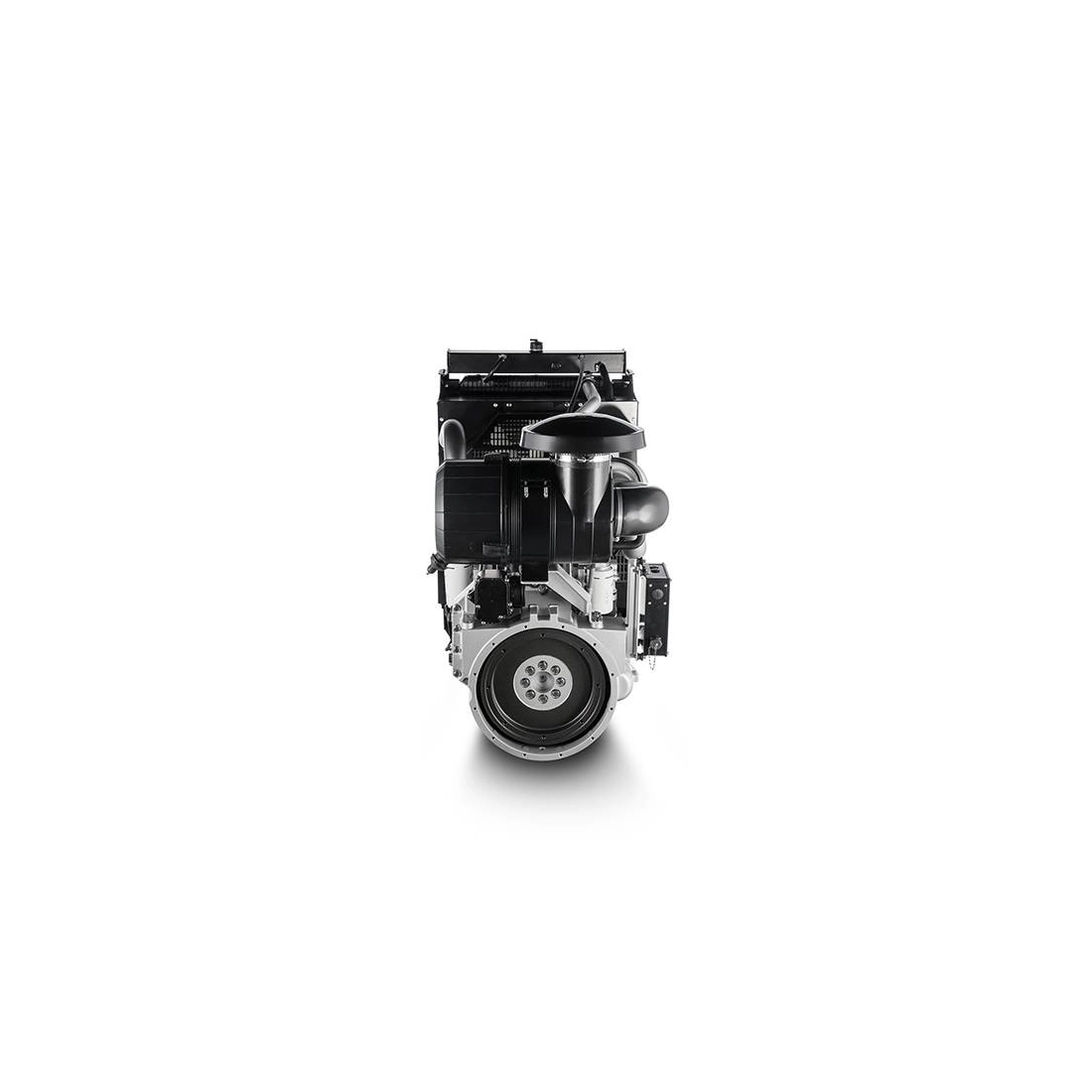

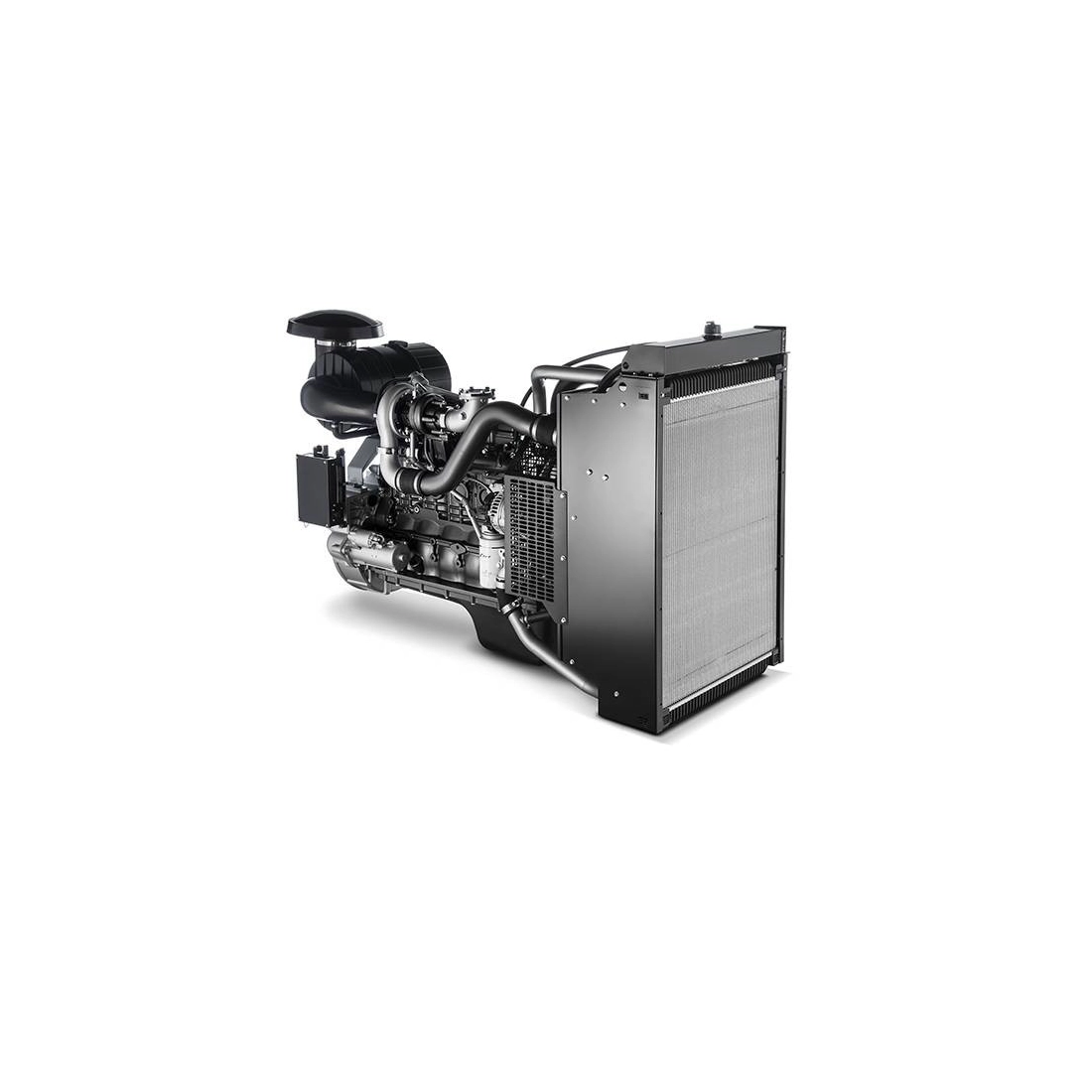

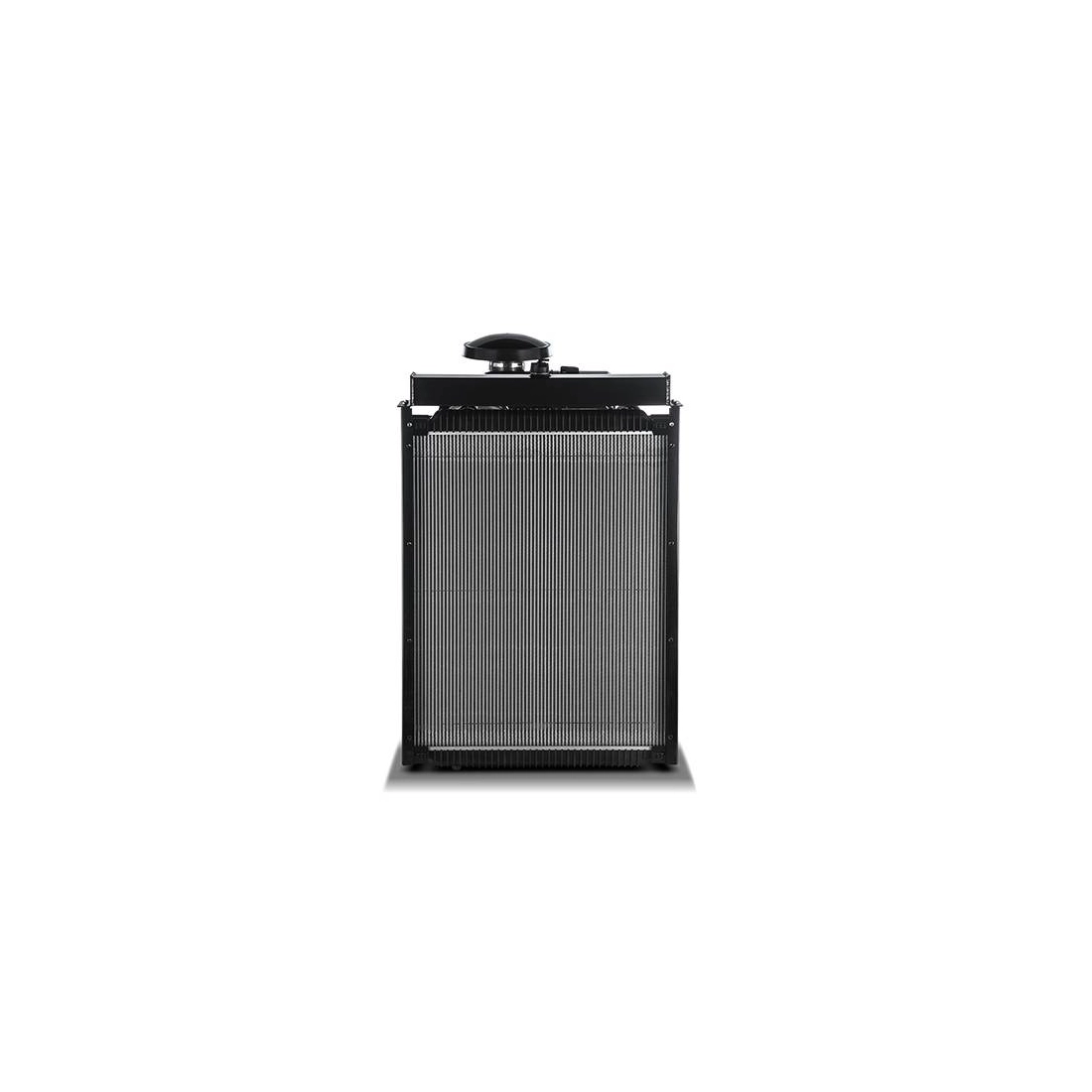

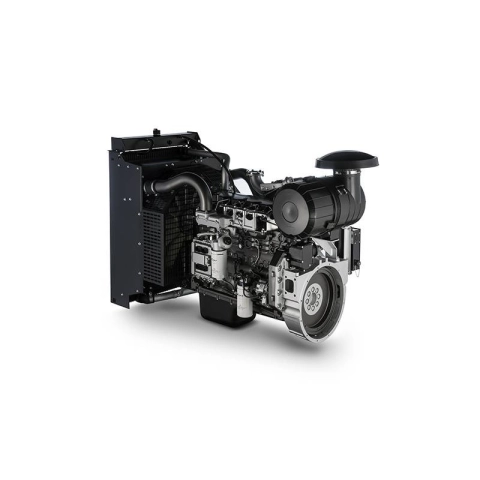

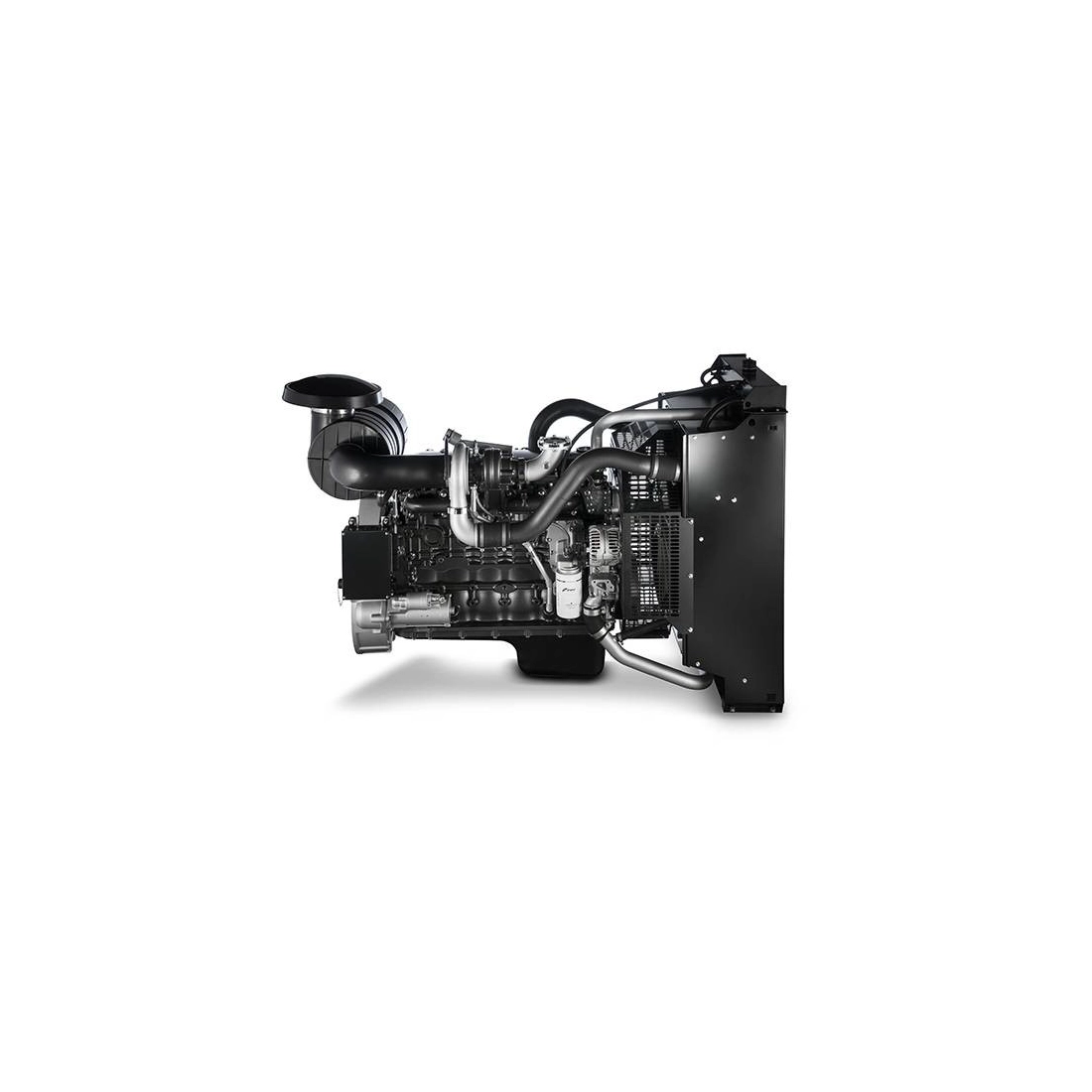

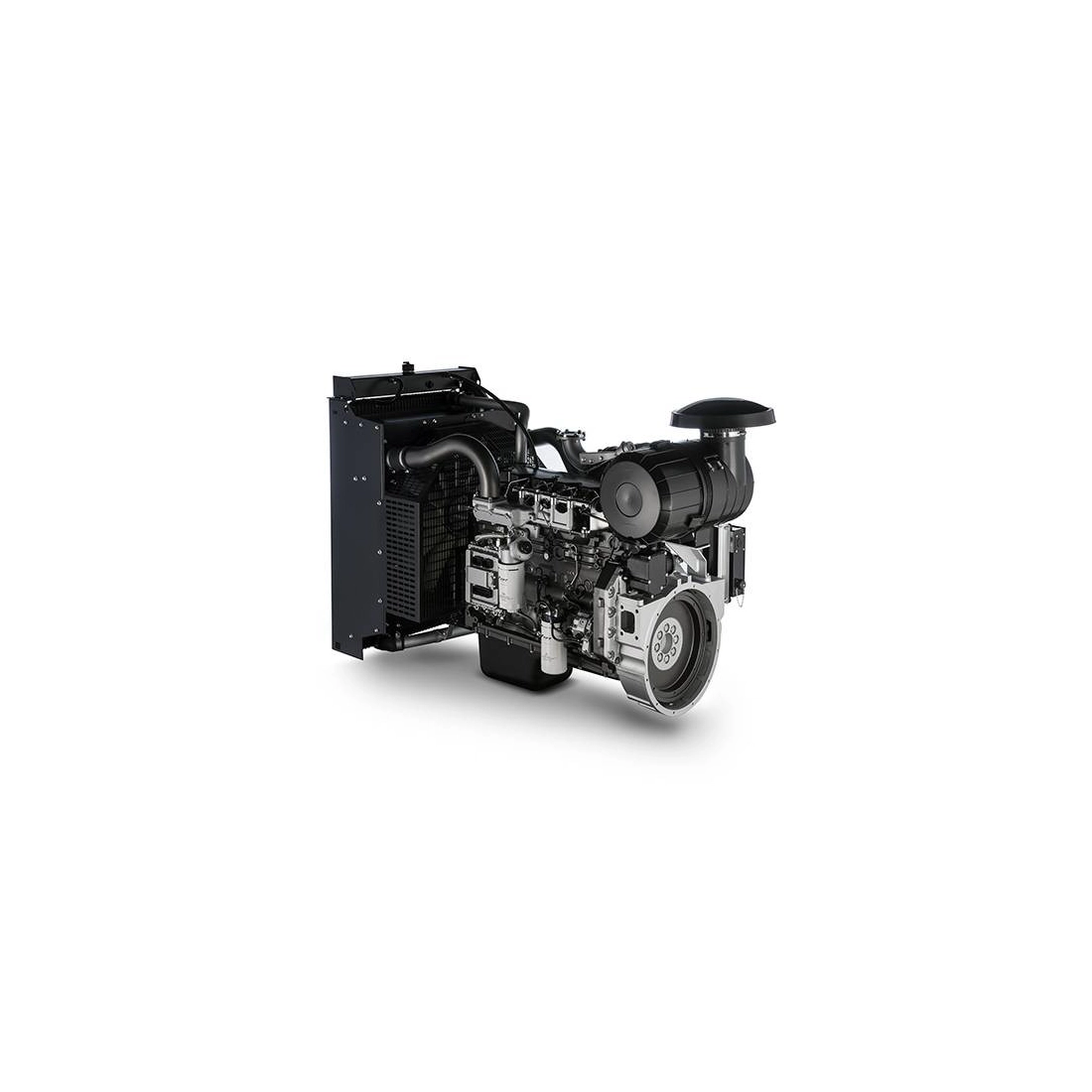

IVECO FPT NEF 67 TE8P 6-cylinder stage III diesel engine, offering high power delivery and load response with excellent levels of reliability and efficiency.

Extended oil change intervals (up to 800 hours with the mechanical version) maximize engine uptime. Optimized combustion chambers and high-pressure injection system reduce oil dilution. The engine design has been optimized in terms of calculations related to mechanical tolerances, circlips and engine oil system.

NEF engines are available in naturally aspirated, turbocharged and turbocharged with aftercooled versions, which allow the user to optimize the engine installation and final performance of the generator set. Optional equipment includes hot parts guards, water jacket heater, alarm signals, oil drain systems and front radiator guard. Thanks to the exceptional flexibility of the design, all NEF motors can be adapted according to the needs of the market.

TECHNICAL FEATURES IVECO FPT NEF 67 TE8P

Standby power[mech]: 244 KW
Fuel: Diesel
Engine revolutions: 1500 rpm
Cycle: 4-stroke
Air charge system scheme: turbocharged with aftercooling
Number of cylinders: 6
Cylinder arrangement: in-line
Bore: 104 mm
Stroke: 132 mm
Stroke / Bore: 1.27
Displacement: 6.7 l
Unit displacement 1.12 l
Cooling scheme: liquid
Compression ratio: 16.5 : 1
Injection Type: direct
Material: cast iron
Camshaft arrangement: OHV
Switchability: 1500-1800 rpm
Emission level 1500 rpm: Stage IIIA
Emission level 1800 rpm: TIER3
Width: 1156 mm
Length: 699 mm
Height: 1031 mm
Net weight: 550 kg

Are you looking for an engine with different technical characteristics? HERE You can find the full range of IVECO FPT engines or other specialized brands.

The images and technical data are not binding, and may be subject to revisions by the manufacturer.
