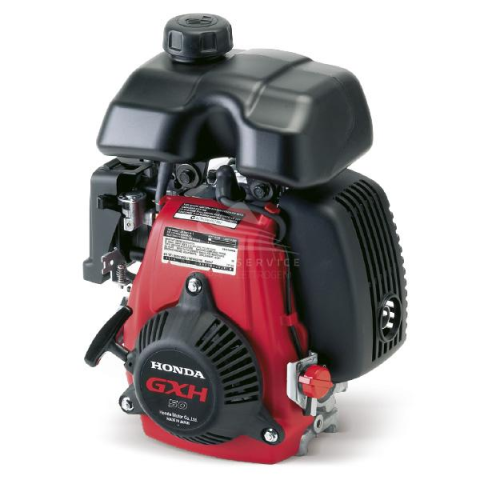

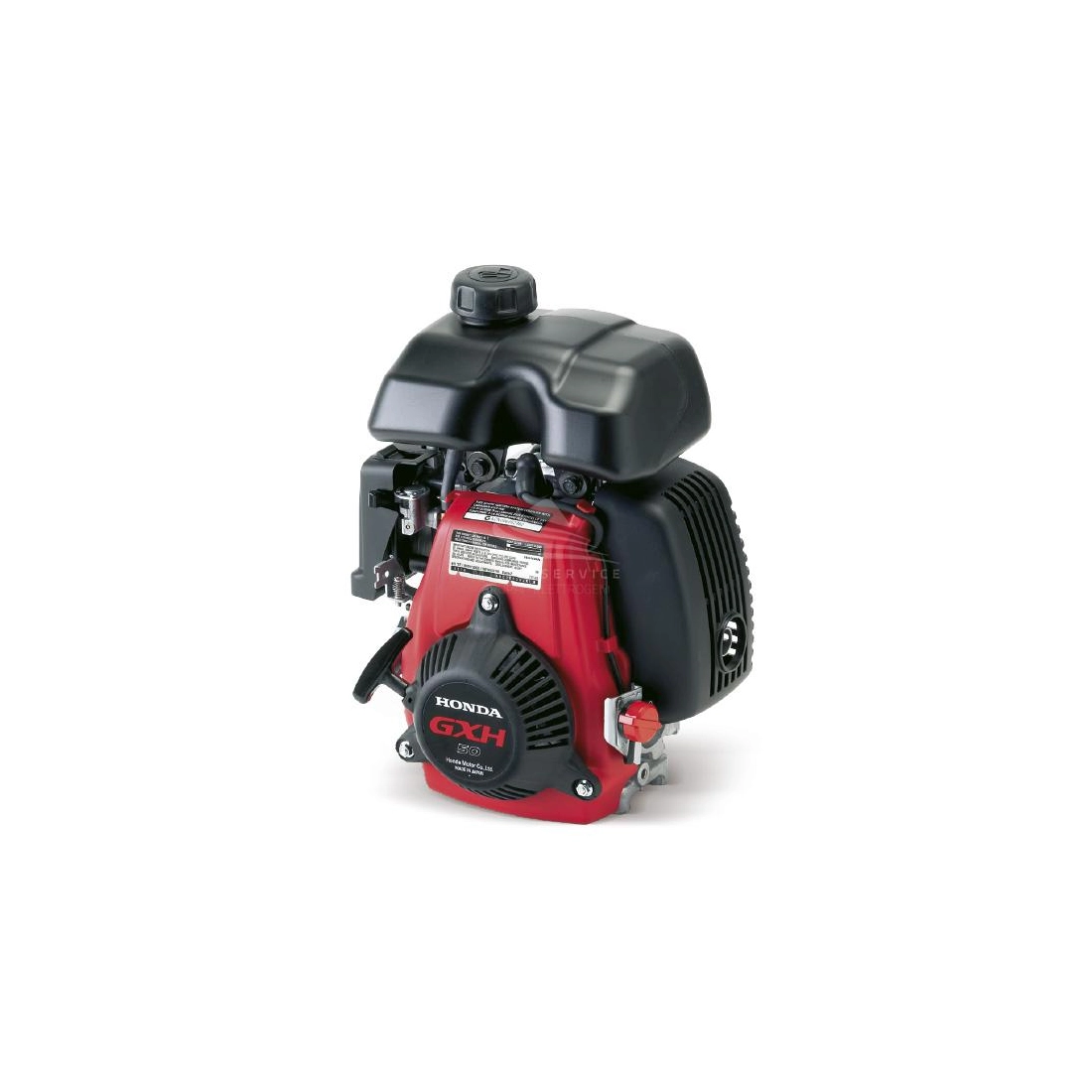

HONDA GXH50UT SE Engine

HONDA GXH50
HONDA GXH50
HONDA GXH50
HONDA GXH50
GXH50UT SE /

OUT OF PRODUCTION

Net power (kW): 1.6
Net power (Hp): 2.1
Fuel: Petrol
Starter system: Manual
Round per minute (rpm): 7000
Displacement (cm3): 49
Lenght (mm): 225
Width: 276
Height (mm): 353
Dry weight (Kg): 5.5
Compression ratio: 8 : 1
Fuel tank capacity (Lt.): 0.77

Download Scheda tecnica GXH50 Download Technical data GXH50

Height (mm)
353
Length (mm)
225
Starting system
Manual
Width (mm)
276
Engine manufacturer
Honda
Engine
OHV horizontal shaft, 4 stroke
Lubrication
Concussion
Cooling
Forced air
Compression ratio
8.0 : 1
Fuel
Gasoline
Ignition
A transistor contactless
Engine capacity (cm³)
49
Number cylinders
1
Oil capacity (L)
0.25
Bore x stroke (mm)
41.8 x 36
Net power (kW)
1.6
Maximum torque
2.7 Nm / 0.28 kgfm / 4500 rpm
Fuel tank capacity (L)
0.77
Consumption (L/h)
0.91
Running time (h)
0.84
Dry weight (Kg)
5.5
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
