      ECO46-VL/4 SAE0 d18

      Phase Type: Three-phase
      Maximum three-phase power: 2419 KW
      Three-phase continuous use power: 2240 KW
      Maximum three-phase power: 3024 KVA
      Three-phase continuous use power: 2800 KVA
      Frequency: 50 / 60 Hz
      Voltage: 400 V
      Protection class: IP23
      Alternator speed: 1500 / 1800 rpm
      Number of poles: 4
      Efficiency: 96. 9%
      Weight: 5120 Kg
      Constant speed alternator
      Brushless
      Voltage regulator: AVR

      List price
      90,189.72 € tax incl.
      73,926.00 € tax excl.
      Discounted Price
      58,623.32 € tax incl.
      48,051.90 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MECC ALTE
      ECO46-VL/4 SAE0 d18

      Data sheet

      Phase
      Three phase
      Maximum power three phase (KW)
      2419
      Continuous power three phase (KW)
      2240
      Maximum power three phase (KVA)
      3024
      Continuous power three phase (KVA)
      2800
      Frequency (Hz)
      50 / 60
      Voltage (V)
      400
      Engine rpm (rpm)
      1500 / 1800
      Poles
      4
      Three-phase power (KVA)
      3024

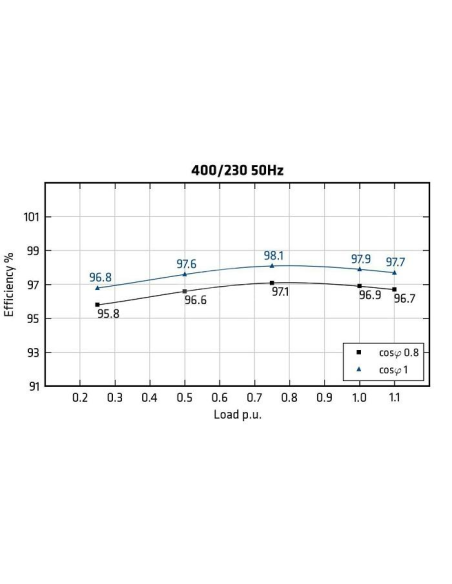

      Efficiency (%)
      96.9
      Protection degree
      IP23
      Acoustic pressure
      86 dB(A) at 7 m
      Brushes
      No
      PMG
      Optional
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      5120

      Specific References

      New

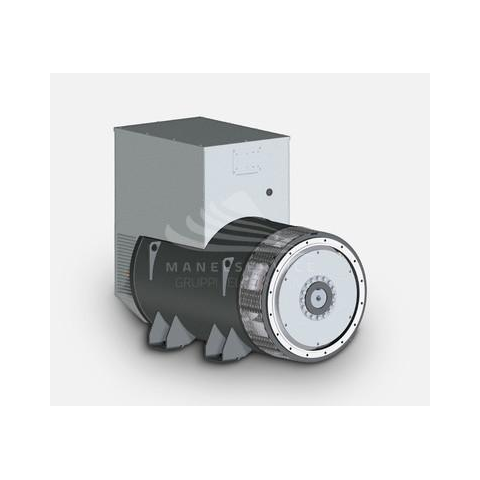

      MECC ALTE ECO46-VL/4 THREE-PHASE ALTERNATOR 2800 KVA AVR

      MECC ALTE ECO46-VL/4 is a three-phase alternator capable of delivering a maximum power of 2800KVA complete with voltage regulator AVR.

      Self-regulation is achieved by means of a digital electronic regulator powered by an auxiliary winding. We guarantee a nearly constant supply from the generator - under any operating condition.

      The versatility of Mecc Alte products and their robust design make the ECO46-VL/4 series suitable to meet the demands of industry and the most demanding technological specifications needed in various applications. They are available as bearing in single or double bearing configuration. To couple them to a main engine, you can choose from a wide range of flanges and fittings.

      All MECC ALTE ECO46-VL/4 alternators consist of a fixed stator with inclined slots and a rotating inductor. In addition, MECC ALTE ECO46-VL/4 models are equipped with a damping cage as standard. All windings have a 2/3 pitch in order to reduce the harmonic content.

      The alternators manufactured by Mecc Alteare in compliance with the Italian regulation CEI 2-3 file 11111. This standard corresponds to the European standard EN 60034-1 and the international standard IEC 60034-1, is linked to the British standard BS 4999 Part 101, is equivalent to the German standard VDE 0530 Part 1 and is included in the French standard NF 51.111. Mecc Alte generators also meet the requirements of the international standard ISO 8528-3 (Generator sets driven by reciprocating internal combustion engines - Part 3: Current generators for generator sets and NEMA MG 1-2011 requirements.

      MECC Alte ECO46-VL/4 TECHNICAL CHARACTERISTICS

      Phase Type: Three-phase
      Maximum three-phase power: 2419 KW
      Three-phase continuous use power: 2240 KW
      Maximum three-phase power: 3024 KVA
      Three-phase continuous use power: 2800 KVA
      Frequency: 50 Hz
      Voltage: 400 V
      Protection class: IP23
      Alternator speed: 1500 rpm
      Number of poles: 4
      Efficiency: 96. 9%
      Weight: 5120 Kg
      Constant speed alternator
      Brushless
      Voltage regulator: AVR

      Are you looking for an alternator with different characteristics? Here you can find the whole range of MECC ALTE or other specialized brands

      Images and technical data not binding.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
      Mecc Alte - Radio-VDE 0875 CLASS K interference suppressor kit for ECO
          Radio-VDE 0875 CLASS K interference suppressor kit for ECO46 alternators.
          155.00 €Price
          Mecc Alte - Voltage control potentiometer for ECO46 alternators.
              Voltage control potentiometer for ECO46 alternators.
              48.31 €Price
              Mecc Alte - Diode RBD-1 failure sensor for ECO46 alternators.
                  Diode RBD-1 failure sensor for ECO46 alternators.
                  356.15 €Price
                  Mecc Alte - Coupling bell for type B3-B14 for ECO46 alternators.
                      Coupling bell for type B3-B14 for ECO46 alternators.
                      601.07 €Price
                      Mecc Alte - PTCK150 temperature sensor for ECO46 alternators.
                          PTCK150 temperature sensor (1 set of 3) for ECO46 alternators.
                          235.30 €Price
                          Mecc Alte - PT100 RTD sensor on windings for ECO46 alternators.
                              PT100 RTD sensor on windings (1 of 3) for ECO46 alternators.
                              315.25 €Price
                              Mecc Alte - PT100 RTD sensor on windings for ECO46 alternators.
                                  PT100 RTD sensor on windings (2 of 3) for ECO46 alternators.
                                  598.00 €Price
                                  Mecc Alte - PT100 RTD (for bearing) for ECO46 alternators.
                                      PT100 RTD (for bearing) for ECO46 alternators.
                                      386.10 €Price
                                      Mecc Alte - Bimetallic probe (thermal protection) for ECO alternators.
                                          Bimetallic probe (thermal protection) for ECO46 alternators.
                                          209.95 €Price
                                          Mecc Alte - DSR AVR (factory fitted only) for ECO46 alternators.
                                              DSR AVR (factory fitted only) for ECO46 alternators.
                                              76.00 €Price
                                              Mecc Alte - USB 2 DxR digital interface for ECO46 alternators.
                                                  USB 2 DxR digital interface for ECO46 alternators.
                                                  200.20 €Price
                                                  Mecc Alte - DER2 AVR (three phase sensing) for ECO46 alternators.
                                                      DER2 AVR (three phase sensing integrated USB) (+/- 0.5%) (factory fitted only) for ECO46 alternators.
                                                      185.00 €Price
                                                      Mecc Alte - Basler DECS150 for ECO46 alternators.
                                                          Basler DECS150 for ECO46 alternators.
                                                          2,552.59 €Price
                                                          Mecc Alte - PMG - Kit permanent magnet generator for ECO46 alternators
                                                              PMG - Kit permanent magnet generator (factory fitted or integrable) for ECO46 alternators.
                                                              1,028.30 €Price
                                                              Mecc Alte - IP23 protection (Recommended for marine use) for ECO46. | Manel Service
                                                                  IP23 protection (Recommended for marine use) for ECO46 alternators.
                                                                  310.00 €Price
                                                                  Mecc Alte - Air filter for rear inlet (loss 7%) for ECO46 alternators.
                                                                      Air filter for rear inlet (loss 7%) for ECO46 alternators.
                                                                      1,979.25 €Price
                                                                      Mecc Alte - IP45 protection screen for ECO46 alternators.
                                                                          IP45 protection screen (Derating applies) for ECO46 alternators.
                                                                          3,827.20 €Price
                                                                          Mecc Alte - Anti-condensation heater - rear part for ECO46 alternators.
                                                                              Anti-condensation heater - rear part (factory fitted) for ECO46 alternators.
                                                                              240.43 €Price
                                                                              Mecc Alte - Anti-condensation heater - front part for ECO46 alternators
                                                                                  Anti-condensation heater - front part (factory fitted) for ECO46 alternators.
                                                                                  240.43 €Price
                                                                                  Mecc Alte - Anti-condensation heater on the rear shield for ECO46.
                                                                                      Anti-condensation heater on the rear shield (can be integrated) for ECO46 alternators.
                                                                                      423.56 €Price
                                                                                      Mecc Alte - Grey impregnation + for ECO46 alternators.
                                                                                          Grey impregnation + (Grey main stator and Black exciter stator) for ECO46 alternators.
                                                                                          1,035.45 €Price
                                                                                          Mecc Alte - Total Impregnation + for ECO46 alternators.
                                                                                              Total Impregnation + (Black main stator & exciter stator, Grey rotor) for ECO46 alternators.
                                                                                              1,343.55 €Price
                                                                                              Mecc Alte - Measuring current transformer TA for ECO46 VL alternators.
                                                                                                  Measuring current transformer TA (power 2750 KVA, k 4k/5) for ECO46 VL alternators.
                                                                                                  1,816.70 €Price
                                                                                                  Mecc Alte - Protection current transformer TA for ECO46 VL alternators
                                                                                                      Protection current transformer TA (power 2800 KVA, k 4k/5) for ECO46 VL alternators.
                                                                                                      1,921.19 €Price
                                                                                                      Mecc Alte - Measuring and protection TA for ECO46 VL alternators.
                                                                                                          Measuring and protection current transformer TA (power 2800 KVA) for ECO46 VL alternators.
                                                                                                          2,499.79 €Price
